2018 KIA RIO tailgate

63
Driving your vehicle
Be sure the exhaust system
does not leak.
The exhaust system should be
checked whenever the vehicle is
raised to change the oil or for any
other purpose. If you
hear a change in the sound of the
exhaust or if you drive over some-
thing that strikes the underneath side
of the vehicle, have the exhaust sys-
tem checked as soon as possible by
an authorized Kia dealer.
WARNING- Engineexhaust
Do not inhale exhaust fumes or
leave your engine running in an
enclosed area for a prolonged
time.
Exhaust fumes contain carbon
monoxide, a colorless, odorless
gas that can cause uncon-
sciousness and death by
asphyxiation.WARNING- Open trunk/tailgate
Do not drive with the trunk/tail-
gate open.
Poisonous exhaust gases can
enter the passenger compart-
ment. If you must drive with the
trunk/tailgate open proceed as
follows:
1.Close all windows.
2.Open side vents.
3.Set the air intake control at “Fresh”, the air flow control at
“Floor” or “Face” and the fan
at the highest speed.

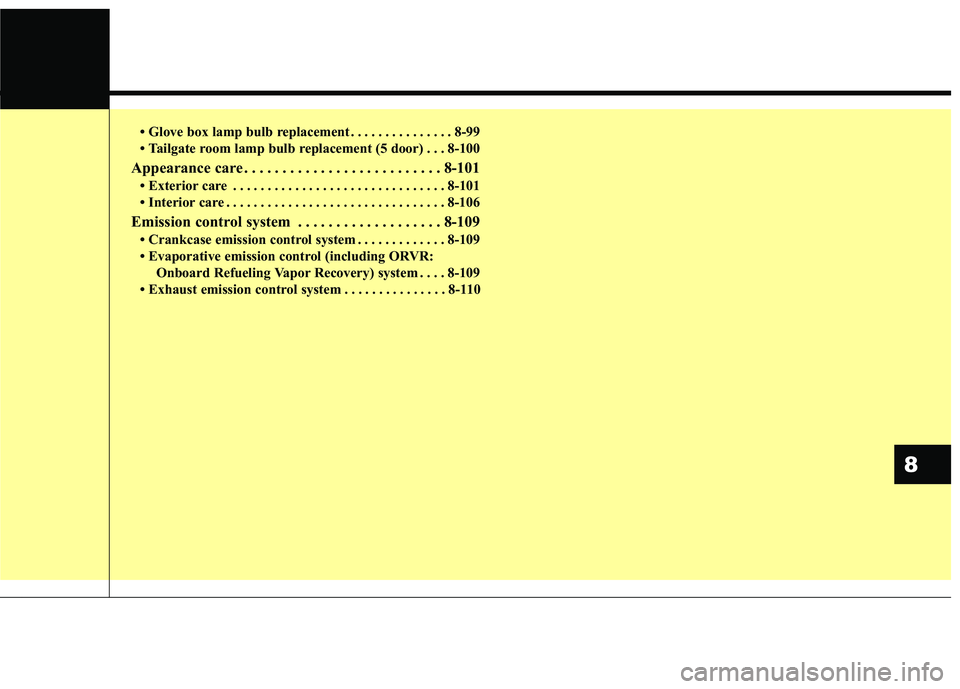

• Glove box lamp bulb replacement . . . . . . . . . . . . . . . 8-99
• Tailgate room lamp bulb replacement (5 door) . . . 8-100
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . 8-101
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-101
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-106
Emission control system . . . . . . . . . . . . . . . . . . . 8-109
• Crankcase emission control system . . . . . . . . . . . . . 8-109
• Evaporative emission control (including ORVR:Onboard Refueling Vapor Recovery) system . . . . 8-109
• Exhaust emission control system . . . . . . . . . . . . . . . 8-110
8

889
Maintenance

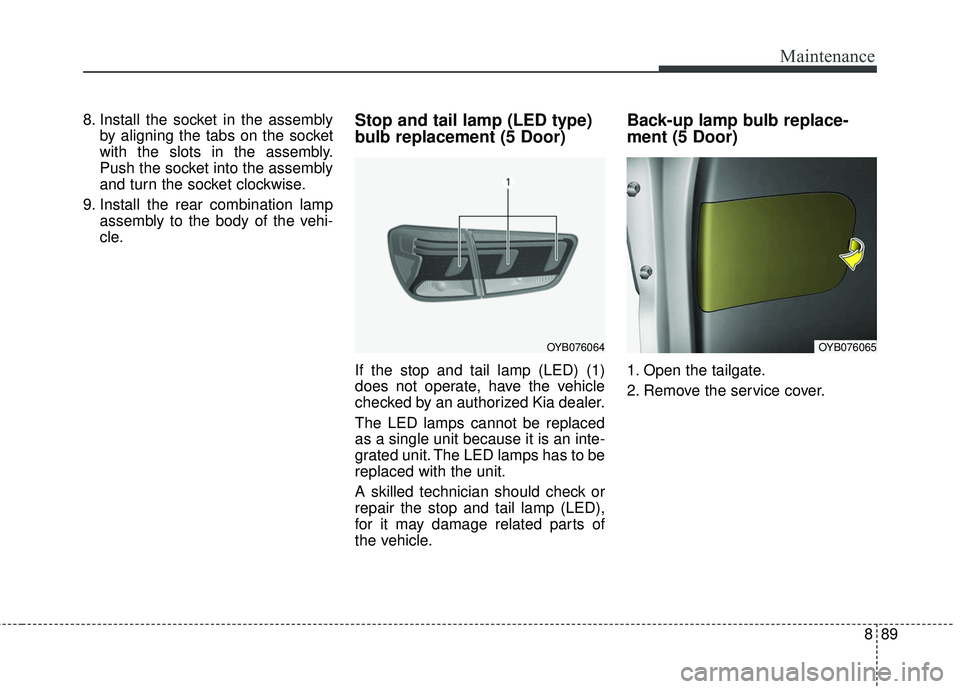

8. Install the socket in the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.Stop and tail lamp (LED type)
bulb replacement (5 Door)
If the stop and tail lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the stop and tail lamp (LED),
for it may damage related parts of
the vehicle.
Back-up lamp bulb replace-
ment (5 Door)
1. Open the tailgate.
2. Remove the service cover.
OYB076064OYB076065

Maintenance
90
8

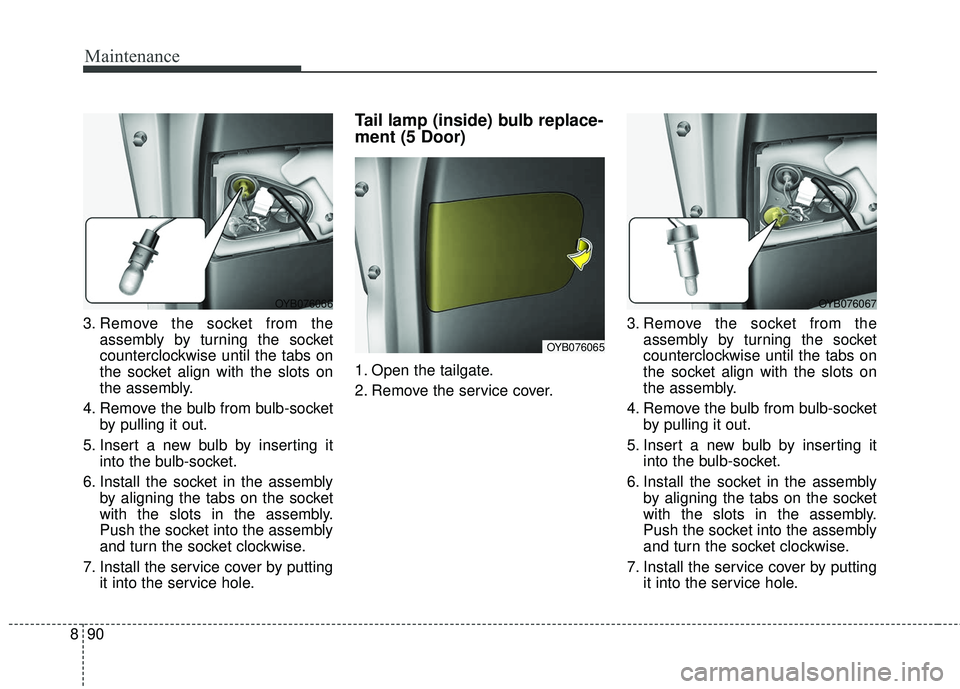

3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Tail lamp (inside) bulb replace-
ment (5 Door)
1. Open the tailgate.
2. Remove the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
OYB076066
OYB076065
OYB076067

Maintenance
100
8
✽ ✽

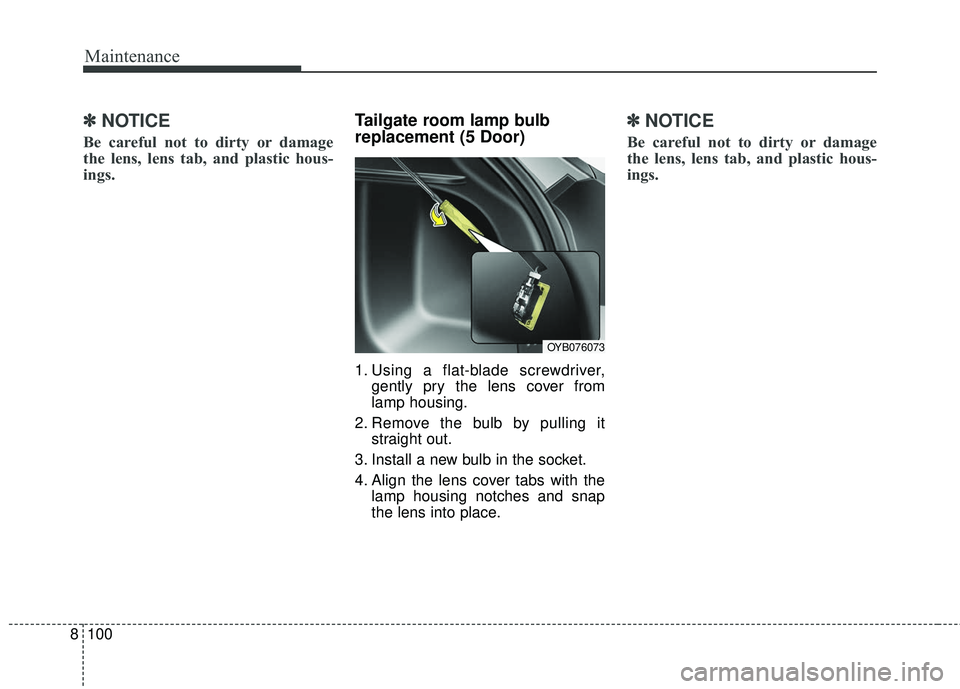

NOTICE
Be careful not to dirty or damage
the lens, lens tab, and plastic hous-
ings.
Tailgate room lamp bulb
replacement (5 Door)
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
✽ ✽NOTICE
Be careful not to dirty or damage
the lens, lens tab, and plastic hous-
ings.
OYB076073

Index
6I
Headlamp (Low/High beam) bulb replacement(Headlamp Type A) ..................................................8-80
High mounted stop lamp bulb replacement (4 door)..8-96
High mounted stop lamp bulb replacement (5 Door) ..8-91
License plate lamp bulb replacement (5, 4 door) ......8-91
Light bulb position (Front) ........................................8-77
Light bulb position (Rear) (4 door) ............................8-79
Light bulb position (Rear) (5 door) ............................8-78
Light bulb position (Side) ..........................................8-80
Map lamp bulb replacement ......................................8-97
Position lamp + DRL (LED type) bulb replacement..8-84
Rear turn signal lamp bulb replacement (4 door) ......8-92
Rear turn signal lamp bulb replacement (5 door) ......8-88
Room lamp bulb replacement ....................................8-99
Side repeater lamp (Bulb type) bulb Replacement ....8-86
Side repeater lamp (LED type) bulb Replacement....8-85
Stop and tail lamp (LED type) bulb replacement (4 door) ....................................................................8-96\
Stop and tail lamp (LED type) bulb replacement (5 Door) ....................................................................8-89\
Stop and tail lamp bulb replacement (5 door) ............8-86
Stop and tail lamp/Side marker (Bulb type) replacement (4 door) ....................................................................8-93\
Tail lamp (Bulb type) bulb replacement (4 door) ......8-95
Tail lamp (Inside) bulb replacement (5 door) ............8-90
Tailgate room lamp bulb replacement (5 door) ........8-100
Trunk lamp bulb replacement (4 door) ......................8-97
Vanity mirror lamp bulb replacement ........................8-98 Lighting........................................................................\
..4-87
Battery saver function ................................................4-87
Daytime running light ................................................4-88
Front fog light ............................................................4-92
Headlight escort function ............................................4-87
Headlight welcome function ......................................4-87
High beam operation ..................................................4-90
Lighting control ..........................................................4-88
Turn signals and lane change signals ........................4-91
Maintenance services ......................................................8-5 Owner maintenance precautions ..................................8-6
Owner’s responsibility ..................................................8-5
Manual climate control system....................................4-104 Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-113
Climate control air filter ..........................................4-112
Heating and air conditioning ....................................4-105
System operation ......................................................4-110
Manual transaxle............................................................6-15 Good driving practices ................................................6-17
Manual transaxle operation ........................................6-15
Mirrors ........................................................................\
..4-50 Inside rearview mirror ................................................4-50
Outside rearview mirror ..............................................4-50
M

Index
8I
Rocking the vehicle ....................................................6-58
Smooth cornering ........................................................6-58
Sport mode integrated control system ..........................6-53 Sport mode ..................................................................6-53
Starting the engine ........................................................6-12 Starting the engine with a smart key ..........................6-13
Starting the engine with an ignition key ....................6-12
Steering wheel...........................................................\
.....4-47 Electric power steering (EPS) ....................................4-47
Heated steering wheel ................................................4-49
Horn ........................................................................\
....4-48
Tilt and telescopic steering ........................................4-48
Storage compartment ..................................................4-128 Center console storage ..............................................4-128
Glove box ..................................................................4-128
Luggage net holder ..................................................4-129
Sunglass holder ........................................................4-129
Sunroof ........................................................................\
..4-42 Resetting the sunroof ..................................................4-46
Sliding the sunroof ......................................................4-43
Sunroof open warning ................................................4-43
Sunshade ....................................................................4-45\
Tilting the sunroof ......................................................4-45
Tailgate (5 door) ............................................................4-28 Closing the tailgate ....................................................4-28 Emergency tailgate safety release ..............................4-29
Opening the tailgate ....................................................4-28
Theft-alarm system ........................................................4-15 Armed stage ................................................................4-15
Disarmed stage ............................................................4-17
Theft-alarm stage ........................................................4-16
Tire Pressure Monitoring System (TPMS -Type A) ......7-7 Changing a tire with TPMS ........................................7-10
Low tire pressure telltale ..............................................7-8
This device complies with Industry Canada licence-exempt RSS standard(s) ..............................7-11
TPMS (Tire Pressure Monitoring System) malfunction indicator ......................................................................7-\
9
Tire Pressure Monitoring System (TPMS - Type B) ....7-12 Changing a tire with TPMS ........................................7-16
Check tire pressure.....................................................\
.7-12
Low tire pressure position telltale ..............................7-14
Low tire pressure telltale ............................................7-14
This device complies with Industry Canada licence-exempt RSS standard(s) ..............................7-17
Tire specification and pressure label ............................9-11
Tires and wheels ....................................................8-45, 9-5 All season tires ..........................................................8-57
Checking tire inflation pressure ..................................8-46
Low aspect ratio tire ..................................................8-58
Radial-ply tires ............................................................8-58
T
