2018 KIA RIO HATCHBACK Owners Manual

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Headlamps
LOW(STD) Standard
55WHB2LL
HIGH(STD) Option * 60WHB2LL
LOW(OPT) Standard 60W9005HL+
HIGH(OPT) Option * 60W9005HL+
Front turn signal lamps STD28WPY28/8W
Front turn signal lamps OPT21WPY21W
Front position lamps STD
8WPY28/8W
OPT 0.5W * 12 LED
Front fog lamps 51WHB4
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.5W * 2 LED
Rear Rear Stop/Tail lamps (outside)
STD21W/5W
P21/5WLL
Rear tail lamps (Inside) 5WPY21/5WLL
Rear Stop/Tail lamps (outside) OPT1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.2W * 3 LED
Rear turn signal lamps 21WPY21W LL
Back-up lamps 16WW16W
High mounted stop lamp* 5W * 4W5W LL
License plate lamps 5W * 2W5W LL
* If equipped
(Continued)

Specifications, Consumer information, Reporting safety defects
49
Light BulbWattageBulb type
Interior Map lamps
10W * 2W10W
Room lamps 8WFESTON
Vanity mirror lamps 8WFESTON
Glove box lamp 8WFESTON
Luggage room lamp 8WFESTON
(Continued)
* If equipped

95
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size may damage the related parts or cause them to operate improp\
erly.
*1: Normal load : Up to 3 persons
*
2: If your vehicle is not equipped with a compact spare tire, it will be equipped with a Tire Mobility Kit Item Tire size Wheel size
Inflation pressure kPa (psi)
Wheel lug nut torque

Normal load *
1Maximum load
Front Rear Front Rear
Full size tire 185/65R15 5.5J X 15
230 (33) 230 (33) 230 (33) 230 (33) 11~13
(79~94, 107~127)
205/45R17 6.5J X 17
Compact spare tire *
2T125/80D15 3.5J x 15 420 (60) 420 (60) 420 (60) 420 (60)
✽
✽ NOTICE
• We recommend replacing tires with the same make and model originally supplied with the vehicle; no\
t doing so
may affect driving performance.
• When driving in high altitude grades such as mountainous areas, injection of additional air into tires may be required due to lower atmospheric pressure. Therefore, add 1.5 psi for every 1,000m above sea level at the recom-
mended tire pressure when frequently driving in high mountainous areas.

Specifications, Consumer information, Reporting safety defects
69

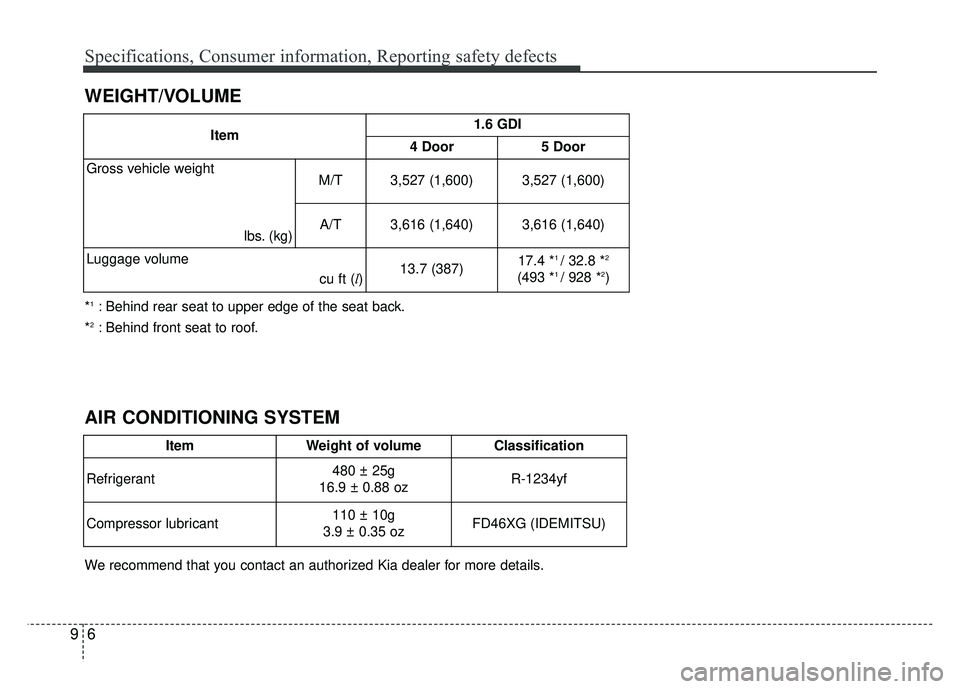

WEIGHT/VOLUME
Item1.6 GDI
4 Door5 Door
Gross vehicle weight
lbs. (kg)M/T 3,527 (1,600)
3,527 (1,600)
A/T 3,616 (1,640)
3,616 (1,640)
Luggage volume cu ft (l)
13.7 (387)17.4 *1 / 32.8 *2
(493 *1 / 928 *2)
ItemWeight of volumeClassification
Refrigerant
480 ± 25g
16.9 ± 0.88 oz R-1234yf
Compressor lubricant
110 ± 10g
3.9 ± 0.35 oz FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details. *
1: Behind rear seat to upper edge of the seat back.
*
2: Behind front seat to roof.
AIR CONDITIONING SYSTEM

97
Specifications, Consumer information, Reporting safety defects
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
GDI engine3.7 US qt. (3.5 l)API Service SM *3,
ILSAC GF-4 or above *4
Manual transaxle fluidGDI engine1.5 ~ 1.6 US qt. (1.6~1.7 l)
API Service GL-4 SAE 70W
- HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Automatic transaxle fluid7.1 US qt.(6.7l)Michang ATF SP-IV, SK ATF SP-IV NOCA ATF SP-IV,
Kia genuine ATF SP-IV

Specifications, Consumer information, Reporting safety defects
89
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
*4If the ILSAC GF-4 engine oil is not available in your country, you are able to use ILSAC GF-4 or above grade; therefore, you can
use ILSAC GF-5 or above.

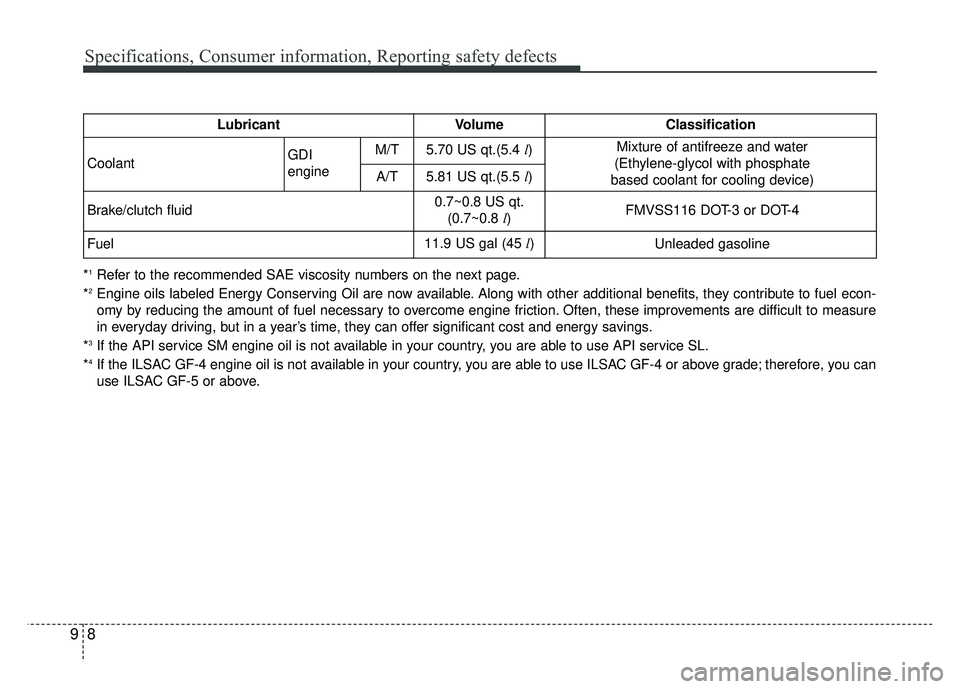

LubricantVolumeClassification
Coolant GDI
engineM/T5.70 US qt.(5.4 l)Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
A/T5.81 US qt.(5.5 l)
Brake/clutch fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel11.9 US gal (45 l)Unleaded gasoline

99
Specifications, Consumer information, Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil(GDI) *110W-30
5W-20*1, 5W-30
*1: For better fuel economy, it is recommended to use the engine oil ofa viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.

Specifications, Consumer information, Reporting safety defects
10
9
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside. The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBH088005N
VIN Label
OUB081001
OUB081003
VEHICLE CERTIFICATION-
LABEL
Frame Number
