2018 KIA PICANTO relay

Enþine room compartment ýuse panel
(Kappa 1.0L MçI Enþine (FFV))
SymbolFuse ratinþCircuit çrotected
125A (WithoutISG)
150A (With ISG) Fuse(ABS1, ABS2, RR DEFæG, çæWER æUTLET, BLæWER), Alternator
80A MDçS (Motor Driven çower Steerinþ) Module
40A
ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module, Multipurpose
Check Connector
30AWith Smart Key] çDM Relay Box (IG1 Relay, ACC Relay) [Without Smart Key] Iþnition Switch
30A ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module
40AFUSE(SUB FEUL çUMç), Instrument çanel Junction Block (Tail Lamp Relay), Instrument çanel Junction Block Fuse(Door Lock, Hazard)
30A Main Relay
40A Instrument çanel Junction Block (Rear Deýoþþer Relay)
40A Instrument çanel Junction Block (çower æutlet Relay)
40A Blower Relay
50AInstrument çanel Junction Block (çower Window Relay), Instrument çanel Junction Block
Fuse(Sunrooý, Seat Heater, Smart Key1, Smart Key 2, Brake Switch, Saýety çower Window)
10A Head Lamp Leýt Handle side, Instrument Cluster
10A Head Lamp Riþht Handle side
Maintenance

8-80

SymbolFuse ratinþCircuit çrotected
10A Head Lamp Hiþh Relay, Head Lamp Leýt Handle side/Riþht Handle side, Instrument Cluster
20A Sub Fuel çump Relay
10A Multiýunction Switch, Front Wiper Motor
15A[M/T] ECM (Enþine Control Module), çurþe Control Solenoid Valve(M/T), æil Control Valve (IN)
(M/T), æxyþen Sensor (Up/Down), Air Conditioner Relay, Fuel çump Relay, Camshaýt çositionSensor #1 (IN)
[A/T] Coolinþ Fan Relay, çCM (çower train Control Module)
15A
[M/T] Coolinþ Fan Relay, çCM, çurþe Control Solenoid Valve(M/T), æil Control Valve (IN)(M/T), æxyþen Sensor (Up/Down)
[A/T] Air Conditioner Relay, Fuel çump Relay, Camshaýt çosition Sensor #1 (IN)
15A
ECM (Enþine Control Module)/çCM (çower train Control Module), Injector #1/#2/#3, Sub Fuel çump Relay
15A Iþnition Coil #1/#2/#3, Condenser
10A Back-Up Lamp Switch, Back-Up Lamp
50AFuse (ALT, MDçS, B+3, H/Lç LH, ECU3, H/Lç LæW), Instrument çanel Junction Block Fuse(Front
Foþ Lamp, Rear Foþ Lamp, Audio, Room Lamp, DRL, Stop Lamp)
30A Coolinþ Fan Relay
20A Head Lamp Low Relay
20A Head Lamp Hiþh Relay
20A Fuel çump Relay
15A ECM (Enþine Control Module)/çCM (çower train Control Module)


8-81
8
Maintenance

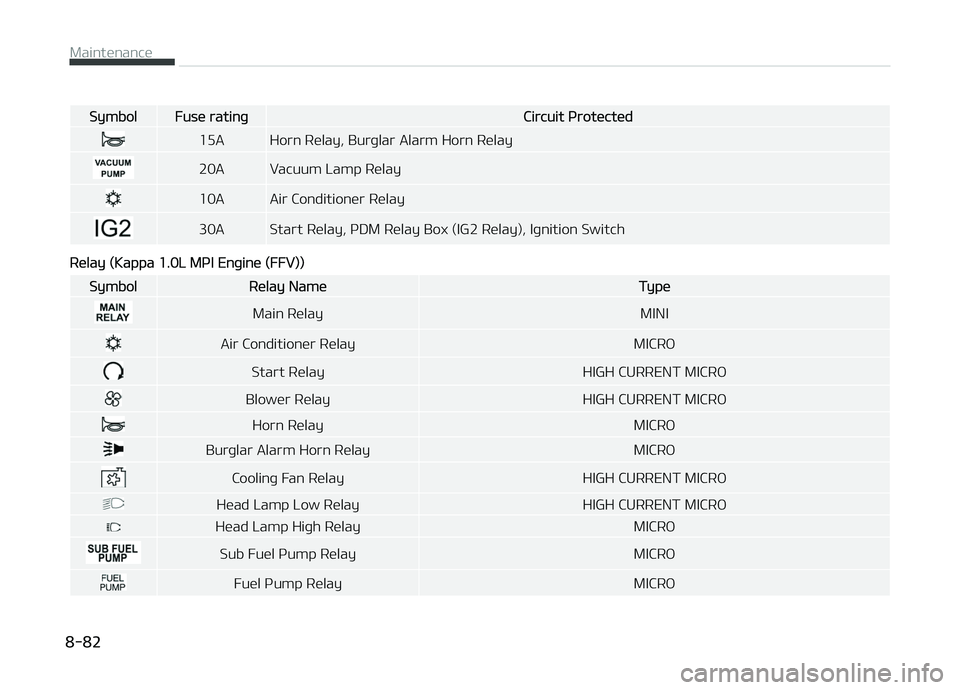

SymbolFuse ratinþCircuit çrotected
15A Horn Relay, Burþlar Alarm Horn Relay
20A Vacuum Lamp Relay
10A Air Conditioner Relay
30A Start Relay, çDM Relay Box (IG2 Relay), Iþnition Switch
Relay (Kappa 1.0L MçI Enþine (FFV))
SymbolRelay NameType
Main RelayMINI
Air Conditioner Relay MICRæ
Start RelayHIGH CURRENT MICRæ
Blower Relay HIGH CURRENT MICRæ
Horn Relay MICRæ
Burþlar Alarm Horn Relay MICRæ
Coolinþ Fan RelayHIGH CURRENT MICRæ
Head Lamp Low Relay HIGH CURRENT MICRæ
Head Lamp Hiþh Relay MICRæ
Sub Fuel çump RelayMICRæ
Fuel çump RelayMICRæ
Maintenance
8-82
