2018 KIA K900 seat adjustment

Seat and safety features of your vehicle
3
3-19

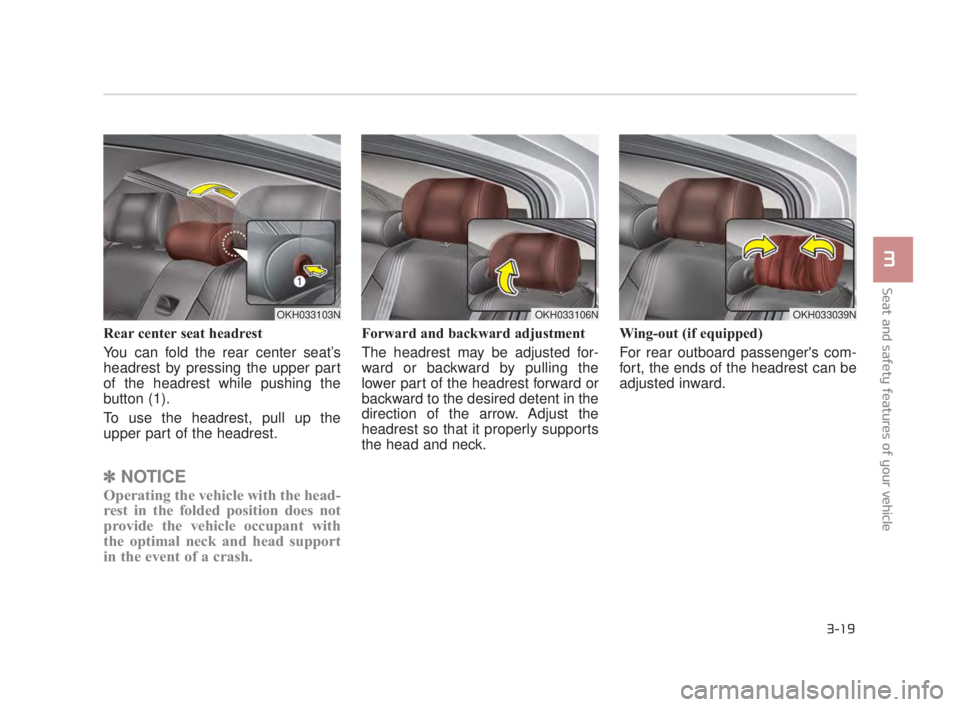

Rear center seat headrest
You can fold the rear center seat’s
headrest by pressing the upper part
of the headrest while pushing the
button (1).
To use the headrest, pull up the
upper part of the headrest.
✽NOTICE
Operating the vehicle with the head-
rest in the folded position does not
provide the vehicle occupant with
the optimal neck and head support
in the event of a crash.
Forward and backward adjustment
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck. Wing-out (if equipped)
For rear outboard passenger's com-
fort, the ends of the headrest can be
adjusted inward.
OKH033039NOKH033106NOKH033103N
KH USA 3:2018 4/18/2017 9:34 AM Page 19

3-24
Seat and safety features of your vehicle
Seat belt - Driver's 3-point systemwith emergency locking retractor
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud-
den stop or impact, however, the belt
will lock into position. It will also lock if you try to lean for-
ward too quickly.
✽
NOTICE
If you are unable to pull out the seat
belt from the retractor, firmly pull
the belt out and release it. Then you
will be able to pull the belt out
smoothly.
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the 4
positions for maximum comfort and
safety.
The height of the adjusting seat belt
should not be too close to your neck.
The shoulder portion should be
adjusted so that it lies across your
chest and midway over your shoulder
nearest the door and not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
OKH033113N
OKH033112N
KH USA 3:2018 4/18/2017 9:35 AM Page 24

Features of your vehicle
4-48
MIRRORS
Inside rearview mirror
Adjust the rearview mirror so that the
center view through the rear window
is seen. Make this adjustment before
you start driving.
Do not place objects in the rear seat
which would interfere with your vision
through the rear window.
Electric chromic mirror (ECM)with HomeLink®system and
compass (if equipped)
Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror
with a Z-Nav
®Electronic Compass
Display and an Integrated HomeLink®
Wireless Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare while the com-
pass indicates the direction the vehi-
cle is pointed. The HomeLink
®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc. (1) Channel 1 button
(2) Channel 2 button
(3) Status indicator LED
(4) Channel 3 button
(5) Rear light sensor
(6) Dimming ON/OFF button
(7) Compass control button
(8) Compass display
OKH043505N
Mirror adjustment
Do not adjust the rearview mirror
while the vehicle is moving. This
could result in loss of control.
WARNING
KH USA 4:2018 4/18/2017 5:57 PM Page 48

Features of your vehicle
4-174
✽NOTICE - Air intake
There is an air intake for the rear air
ventilation at the lower part of the
rear center seatback. If the air
intake is blocked, efficiency of the
rear air ventilation will be lower. Be
careful not to block the air intake.
Clock
Whenever the battery terminals or
related fuses are disconnected, you
must reset the time.
You can set the clock by using the
AVN (Audio or Navigation)
For the details, refer to the AVN man-
ual.
OKH045241N
Clock Setting Distraction
Do not adjust the clock while
driving. Such adjustments may
distract you for too long from
the roadway and lead to a colli-
sion.
WARNING
KH USA 4:2018 4/18/2017 6:04 PM Page 174

Engine number ...............................................................8-10
Engine oil .......................................................................7\
-32
Engine overheats ..............................................................6-9
Engine start/stop button ...................................................5-6Engine start/stop button position.................................5-6
Illuminated engine start/stop button............................5-6
Engine start/stop button illumination ..............................5-6
Engine start/stop button position .....................................5-6
Engine will not start.........................................................6-4
Evaporative emission control System ..........................7-104
Exhaust emission control system.................................7-105
Explanation of scheduled maintenance items ...............7-29
Exterior care...................................................................7-96
Exterior overview.............................................................2-2
Flat tire ........................................................................\
..6-17 Changing tires ...........................................................6-19
Compact spare tire ....................................................6-24
Jack and tools ............................................................6-17
Jack label ...................................................................6-27
Removing and storing the spare tire .........................6-18
Floor mat anchor(s) .....................................................4-175
Fluid Brakes fluid ...............................................................7-38
Power steering fluid ..................................................7-39
Washer fluid ..............................................................7-40 Front blind spot monitoring system.............................4-126
Front fog light ..............................................................4-135
Front lamp switch ........................................................4-139
Front seat adjustment - power .........................................3-5
Fuel Economy ................................................................4-96
Fuel filler lid ..................................................................4-37
Emergency fuel filler lid release ...............................4-39
Fuel Gauge .....................................................................4-6\
9
Fuel requirements ............................................................1-3
Fuse switch ....................................................................7-72\
Fuses ........................................................................\
......7-70 Fuse switch ................................................................7-72
Fuse/relay panel description......................................7-76
Instrument panel fuse ................................................7-71
Main fuse...................................................................7-74
Multi fuse ..................................................................7-75
Gauges ........................................................................\
...4-69
Glove box.....................................................................4-1\
65
Glove box lamp............................................................4-142
Gross vehicle weight........................................................8-4\
Index
I-5
I
F
G
KH USA Index:2018 4/18/2017 10:39 AM Page 5

I-6
Index
Hazard warning flasher ....................................................6-2
Hazardous driving conditions ........................................5-96
Head Up Display (HUD) .............................................4-115Head Up Display Information .................................4-116
Head Up Display ON/OFF......................................4-116
Head Up Display Setting ........................................4-117
Head Up Display Information .....................................4-116
Head Up Display ON/OFF ..........................................4-116
Head Up Display Setting .............................................4-117
Headlight bulb replacement ...........................................7-90
Headlight escort function ...........................................4-129
Headlight leveling device ............................................4-135
Headlight position........................................................4-131
Headrest(front) .................................................................3-9
Headrest(rear) ................................................................3-17
Heated steering wheel....................................................4-46
Heater Automatic climate control system ..........................4-144
High - beam operation .................................................4-133
Hight adjustment (front seat belt)..................................3-24
Highway driving ............................................................5-99
Hill-start assist control (HAC) .......................................5-46
HomeLink
®system ........................................................4-48
Hood........................................................................\
.......4-35
Horn ........................................................................\
.......4-47
HUD see the Head Up Display ...................................4-116 Immobilizer system .......................................................4-11
Impact sensing door unlock system...............................4-19
Indicator light...............................................................4-109
Information Mode ..........................................................4-76
Inside rearview mirror ...................................................4-48
Inside rearview mirror with compass ............................4-48
Instrument cluster ..........................................................4-67
Gauges .......................................................................4\
-69
Instrument panel illumination ...................................4-68
LCD Display Control ................................................4-68
Transaxle Shift Indicator ...........................................4-72
Instrument panel fuse.....................................................7-71
Instrument panel overview...............................................2-5
Interior care..................................................................7-102
Interior features............................................................4-168 Air ventilation seat .................................................4-172
Bag hanger ..............................................................4-177
Clock .......................................................................4\
-174
Clothes hanger.........................................................4-175
Cup holder ...............................................................4-168
Floor mat anchor(s) .................................................4-175
Luggage net (holder) ...............................................4-177
Power outlet.............................................................4-169
Rear curtain .............................................................4-178
Rear vanity mirror ...................................................4-176
Seat warmer .............................................................4-171
IH
KH USA Index:2018 4/18/2017 10:39 AM Page 6

Panoramic sunroof .........................................................4-40Sunroof open warning ...............................................4-40
Parking assist system ...................................................4-118 Non-operational conditions .....................................4-120
Operation .................................................................4-118
Parking Guide System .................................................4-124
Parking light position...................................................4-131
Power brakes ..................................................................5-27
Power Door Latch ..........................................................4-17
Power outlet .................................................................4-169
Power Trunk...................................................................4-22
Power window lock button ............................................4-34
Pre-active Seat belt (PSB) ............................................3-28
Pre-tensioner seat belt....................................................3-26
Rear curtain..................................................................4-178
Rear door lock button ....................................................4-18
Rear lamp switch .........................................................4-140
Rear seat adjustment (Power seat).................................3-13
Rear seat storage ..........................................................4-165
Rear vanity mirror........................................................4-176
Rear-Camera Display...................................................4-122
Recommended cold tire inflation pressures ..................7-54
Recommended lubricants and capacities .........................8-6 Recommended SAE viscosity number........................8-8
Record your key number .................................................4-4
Refrigerant label ............................................................8-10
Remote keyless entry system operations .........................4-7
Replacement light bulb ..................................................7-90
Reporting safety defects(U.S. only) ..............................8-15
Restrictions in handling keys.........................................4-10
Road warning ...................................................................6-2
Rocking the vehicle .......................................................5-96
Rotation (Tire) ...............................................................7-55
Scheduled maintenance service .....................................7-10
Seat belt Precautions......................................................3-29
Seat belt warning ...........................................................3-21
Seat belts ........................................................................\
3-21 Hight adjustment (front seat belt) .............................3-24
Lap/shoulder belt (3-Point system) ...........................3-23
Pre-active Seat belt (PSB) ........................................3-29
Pre-tensioner seat belt ...............................................3-26
Seat belt Precautions .................................................3-30
Seat belt warning .......................................................3-22
Seat warmer .................................................................4-171
Seatback pocket ..........................................................4-166
Seats ........................................................................\
.........3-2 Armrest (rear) ............................................................3-19
Driver position memory system ..................................3-8
Index
I-9
I
P
R
S
KH USA Index:2018 4/18/2017 10:39 AM Page 9

Front seat adjustment - power .....................................3-5
Headrest(front) ............................................................3-9
Rear seat adjustment (Power seat) ............................3-14
Shift-lock override - Automatic transmission (Shift by cable) ..........................................................5-15
Side air bag ....................................................................3-53\
Side curtain ..................................................................4-179
Smart Key ........................................................................\
4-4 Battery replacement ....................................................4-9
Immobilizer system ...................................................4-11
Mechanical key operations........................................4-10
Record your key number .............................................4-4
Remote keyless entry system operations ....................4-7
Restrictions in handling keys ....................................4-10
Smart key functions.....................................................4-4
Smart key precautions .................................................4-6
Transmitter precautions ...............................................4-8
Smart key functions .........................................................4-4
Smart key precautions......................................................4-6
Smart Trunk ...................................................................4-27
Smooth cornering...........................................................5-97
SNOW mode ..................................................................5-54
Snow tires ....................................................................5-10\
0
Spare tire Changing tires ...........................................................6-19
Compact spare tire ....................................................6-24
Compact spare tire replacement ................................7-59
Special driving conditions .............................................5-96 Driving at night .........................................................5-97
Driving in flooded areas............................................5-98
Driving in the rain .....................................................5-98
Driving off-road ........................................................5-99
Hazardous driving conditions ...................................5-96
Highway driving ........................................................5-99
Rocking the vehicle ...................................................5-96
Smooth cornering ......................................................5-97
Speedometer...................................................................4-69
SRS Care........................................................................\
3-61
SRS components and functions .....................................3-43
Starting difficulties, see engine will not start ..................6-4
Starting the engine ...........................................................5-9 Starting the engine with a smart key...........................5-9
Starting the engine - With a smart key ............................5-9
Steering wheel ...............................................................4-45 Electronic Hydraulic Power Steering (EHPS) ..........4-45
Heated steering wheel ...............................................4-46
Horn........................................................................\
...4-47
Tilt and telescopic steering........................................4-45
Steering wheel audio control ......................................4-182
Storage compartment ...................................................4-164 Center console storage ............................................4-164
Glove box ................................................................4-165
Map pocket ..............................................................4-167
Rear seat storage .....................................................4-165
Seatback pocket ......................................................4-166
Sunglass holder .......................................................4-166
I-10
Index
KH USA Index:2018 4/18/2017 10:39 AM Page 10
