– When installing a spare tire, make surethat it is the proper size and type as
specified on the tire placard. For addi-
tional information, refer to “Tire plac-
ard” in the “Technical and consumer
information” section of this manual.
– For additional information, refer to “Wheels and tires” in the “Mainte-
nance and do-it-yourself” section of
this manual.
The ABS controls the brakes so the wheels do
not lock during hard braking or when braking
on slippery surfaces. The system detects the
rotation speed at each wheel and varies the
brake fluid pressure to prevent each wheel
from locking and sliding. By preventing each
wheel from locking, the system helps the
driver maintain steering control and helps to
minimize swerving and spinning on slippery
surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
Anti-lock Braking System will operate to pre-
vent the wheels from locking up. Steer the
vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic fea-
ture that tests the system each time you start
the engine and move the vehicle at a low
speed in forward or reverse. When the self-
test occurs, you may hear a “clunk” noise
and/or feel a pulsation in the brake pedal.
This is normal and does not indicate a mal-
function. If the computer senses a malfunc-
tion, it switches the ABS off and illuminates
the ABS warning light on the instrument
panel. The brake system then operates nor-
mally, but without anti-lock assistance.
If the ABS warning light illuminates during
the self-test or while driving, have the vehicle
checked. It is recommended that you visit an
INFINITI retailer for this service.
Normal operation
The Anti-lock Braking System (ABS) operates
at speeds above5-10km/h (3 - 6 mph). The
speed varies according to road conditions. When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating prop-
erly. However, the pulsation may indicate
that road conditions are hazardous and extra
care is required while driving.
BRAKE ASSIST
When the force applied to the brake pedal
exceeds a certain level, the brake assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.
WARNING
The brake assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the driv-
er’s responsibility to stay alert, drive safely
and be in control of the vehicle at all times.
5-142Starting and driving

TIRE PRESSURE MONITORING
SYSTEM (TPMS) (if so equipped)
This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all tires except the spare.
When the low tire pressure warning light is lit,
and the “Tyre Pressure Low - Add Air” warn-
ing appears in the vehicle information display,
one or more of your tires is significantly
under-inflated. If equipped, the system also
displays pressure of all tires (except the spare
tire) on the display screen by sending a signal
from a sensor that is installed in each wheel. If
the vehicle is being driven with low tire pres-
sure, the TPMS will activate and warn you of
it by the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 25 km/h (16 mph).
For additional information, refer to “Warning
lights, indicator lights and audible reminders”
in the “Instruments and controls” section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.
WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ If the low tire pressure warning light illu- minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the tire placard to turn the low tire pres-
sure warning light OFF. If you have a flat
tire, replace it with a spare tire as soon as
possible. ∙ When replacing a wheel without TPMS
such as the spare tire, TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for these services.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below:
Stopping the vehicle
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to
P (Park).
4. Turn off the engine.
FLAT TIRE
In case of emergency6-3

8 Maintenance and do-it-yourself
Maintenance requirements.......................8-2
General maintenance .............................8-2
Explanation of general maintenance
items .........................................8-2
Maintenance precautions .........................8-5
Engine compartment check locations ..............8-6
Engine cooling system ........................... 8-8
Checking engine coolant level ................. 8-8
Changing engine coolant ......................8-9
Engine oil ........................................8-9
Checking engine oil level .......................8-9
Changing engine oil ......................... 8-10
Changing engine oil filter ....................8-12
Continuously Variable Transmission (CVT) fluid . . 8-13
Power steering fluid ............................ 8-13

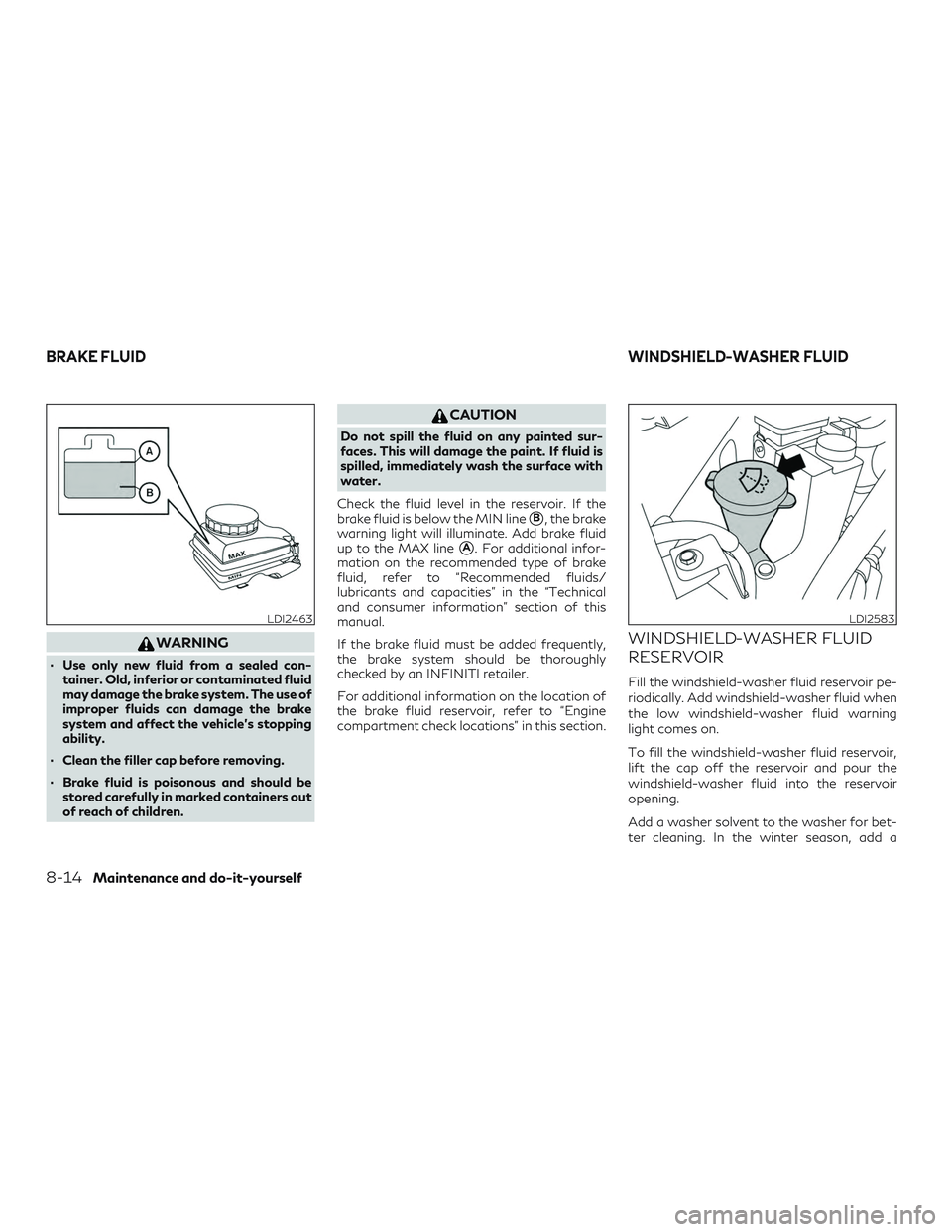

Brake fluid ..................................... 8-14
Windshield-washer fluid ........................ 8-14
Windshield-washer fluid reservoir ............8-14
Battery ........................................ 8-16
Jump starting ............................... 8-18
Drive belt ...................................... 8-18
Spark plugs .................................... 8-19
Replacing spark plugs ....................... 8-19Air cleaner
..................................... 8-20
Air conditioner filter ......................... 8-20
Windshield wiper blades ........................ 8-21
Cleaning .................................... 8-21
Replacing ................................... 8-21
Parking brake and brake pedal ..................8-22
Checking parking brake ......................8-22
Checking brake pedal ........................ 8-23
Brake booster ............................... 8-23
Fuses .......................................... 8-24
Engine compartment ........................ 8-24
Passenger compartment .....................8-25
Battery replacement ............................ 8-25
INFINITI Intelligent Key ......................8-26
Lights ......................................... 8-28
Headlights .................................. 8-28
Fog

lights ................................... 8-28
Exterior and interior lights ...................8-29
Wheels and tires ............................... 8-31
Tire pressure ................................ 8-31
Types of tires ............................... 8-34
Tire chains .................................. 8-35
Changing wheels and tires ...................8-35

vehicle is held securely on a fairly steep hill
when only the parking brake is applied.
Seat beltsCheck that all parts of the seat belt
system (for example, buckles, anchors, ad-
justers and retractors) operate properly and
smoothly, and are installed securely. Check
the belt webbing for cuts, fraying, wear or
damage.
Steering wheel Check for changes in the
steering condition, such as excessive play,
hard steering or strange noises.
Warning lights and chimes Make sure that all
warning lights and chimes are operating
properly.
Windshield defogger Check that the air
comes out of the defogger outlets properly
and in good quantity when operating the
heater or air conditioner.
Windshield wiper and washer* Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel). Battery* (except for maintenance free bat-
teries)
Check the fluid level in each cell. The
fluid should be at the bottom of the filler
opening. Vehicles operated in high tempera-
tures or under severe conditions require fre-
quent checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.).
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake (and clutch) fluid level(s)* For Manual
Transmission (M/T) model; make sure that
the brake and clutch fluid levels are between
the MAX and MIN lines on the reservoirs.
Except for Manual Transmission (M/T)
model; make sure that the brake fluid level is
between the MAX and MIN lines on the res-
ervoir. Engine coolant level*
Check the coolant level
when the engine is cold. Make sure that the
coolant level is between the MAX and MIN
lines on the reservoir.
Engine drive belt(s)* Make sure the drive
belt(s) is not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle (on level ground) and turning off
the engine.
Fluid leaks Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.
Power steering fluid level* and lines Check
the level when the fluid is cold with the engine
off. Check the lines for proper attachment,
leaks, cracks, etc.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface andapply the parking brake.
2. Turn the engine off. 3. Place a large drain pan under the oil filter
B.
4. Remove pins
Afrom the right engine
protector located inside the right wheel
well, then remove protector. Remove oil
filter
Bwith an oil filter wrench by turn-
ing it counterclockwise. Then remove
the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
∙ Be sure to remove any old gasket ma-terial remaining on the sealing surface
of the engine. Failure to do so could
lead to an oil leak and engine damage.
∙ The dipstick must be inserted in place to prevent oil spillage from the dipstick
hole when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil. 7. Screw on the oil filter until a slight resis-
tance is felt, then tighten an additional
2/3 turn.
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil if necessary.
LDI2938
8-12Maintenance and do-it-yourself

WARNING
∙ Use only new fluid from a sealed con-tainer. Old, inferior or contaminated fluid
may damage the brake system. The use of
improper fluids can damage the brake
system and affect the vehicle’s stopping
ability.
∙ Clean the filler cap before removing.
∙ Brake fluid is poisonous and should be stored carefully in marked containers out
of reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid is
spilled, immediately wash the surface with
water.
Check the fluid level in the reservoir. If the
brake fluid is below the MIN line
B, the brake
warning light will illuminate. Add brake fluid
up to the MAX line
A. For additional infor-
mation on the recommended type of brake
fluid, refer to “Recommended fluids/
lubricants and capacities” in the “Technical
and consumer information” section of this
manual.
If the brake fluid must be added frequently,
the brake system should be thoroughly
checked by an INFINITI retailer.
For additional information on the location of
the brake fluid reservoir, refer to “Engine
compartment check locations” in this section.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir pe-
riodically. Add windshield-washer fluid when
the low windshield-washer fluid warning
light comes on.
To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.
Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a
LDI2463LDI2583
BRAKE FLUID WINDSHIELD-WASHER FLUID
8-14Maintenance and do-it-yourself

CHECKING BRAKE PEDAL
With the engine running, check the distanceA
between the upper surface of the pedal and
the metal floor. If it is out of the range shown,
it is recommended that you visit an INFINITI
retailer for service.
Distance A: Under depression force of
490 N (110 lbs)
90 mm (3 1/2 in) or more
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes. The front and rear disc-type brakes self-
adjust every time the brake pedal is applied.
WARNING
Have your brake system checked if the
brake pedal height does not return to nor-
mal. It is recommended that you visit an
INFINITI retailer for this service.
Brake pad wear indicators
The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires replacement, a high pitched scraping
or screeching sound will be heard when the
vehicle is in motion. The noise will be heard
whether or not the brake pedal is depressed.
Have the brakes checked as soon as possible
if the wear indicator sound is heard.
Under some driving or climate conditions, oc-
casional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does
not affect the function or performance of the
brake system.
Proper brake inspection intervals should be
followed.
For additional information regard-
ing brake inspections, refer to the appropri-
ate maintenance schedule information in the
“INFINITI Service and Maintenance Guide”.
BRAKE BOOSTER
Check the brake booster function as follows:
1. With the engine off, press and release the brake pedal several times. When
brake pedal movement (distance of
travel) remains the same from one pedal
application to the next, continue on to
the next step.
2. While depressing the brake pedal, start the engine. The pedal height should drop
a little.
3. With the brake pedal depressed, stop the engine. Keep the pedal depressed for
about 30 seconds. The pedal height
should not change.
4. Run the engine for one minute without depressing the brake pedal, then turn it
off. Depress the brake pedal several
times. The pedal travel distance will de-
crease gradually with each depression as
the vacuum is released from the booster.
If the brakes do not operate properly, have
the brakes checked. It is recommended that
you visit an INFINITI retailer for this service.
WDI0229
Maintenance and do-it-yourself8-23

ENGINE COMPARTMENT
CAUTION
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the head- light switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing
the tab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse
block in the passenger compartment. 5. If the fuse is open
A, replace it with a
new fuse
B.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If the electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace with only Genuine NISSAN
parts.
LDI2267LDI0456
FUSES
8-24Maintenance and do-it-yourself
