SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine. If the warn-
ing light (orange) continues to illuminate,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors
2for the BCI system are located near the
rear bumper. Always keep the area near the
radar sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For U.A.E.
LSD2025
Starting and driving5-67

∙ If the engine coolant temperature be-comes excessively high, the cruise control
system will be canceled automatically.
∙ If the SET indicator blinks, turn the ON/OFF switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service.
∙ The SET indicator may sometimes blink when the ON/OFF switch is turned on
while pushing the ACCEL/RES,
COAST/SET or CANCEL switch. To
properly set the cruise control system,
perform the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
∙ when it is not possible to keep the vehicleat a set speed
∙ in heavy traffic or in traffic that varies in speed
∙ on winding or hilly roads
∙ on slippery roads (rain, snow, ice, etc.)
∙ in very windy areas
Doing so could cause a loss of vehicle con-
trol and result in an accident.
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 40 - 144 km/h (25 - 89 mph) with-
out keeping your foot on the accelerator
pedal.
To turn on the cruise control, push the
ON/OFF switch on. The CRUISE indicator
light in the vehicle information display will
illuminate.
To set cruising speed, accelerate the vehicle
to the desired speed, push the COAST/SET
switch and release it. The SET indicator light
in the vehicle information display will illumi-
nate. Take your foot off the accelerator
pedal. Your vehicle maintains the set speed.
∙ To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, drive without the cruise
control. To cancel the preset speed,
use one of the
following three methods:
∙ Push the CANCEL switch; the SET indi- cator light in the vehicle information dis-
play goes out.
∙ Tap the brake pedal; the SET indicator light goes out.
∙ Push the ON/OFF switch off. Both the CRUISE indicator light and SET indicator
light in the vehicle information display go
out.
The cruise control is automatically canceled
and the SET light in the vehicle information
display goes out if: ∙ You depress the brake pedal while push- ing the ACCEL/RES or SET/COAST
switch. The preset speed is deleted from
memory.
∙ The vehicle slows down more than 13 km/h (8 mph) below the set speed.
∙ You move the shift lever to N (Neutral).
Starting and driving5-77

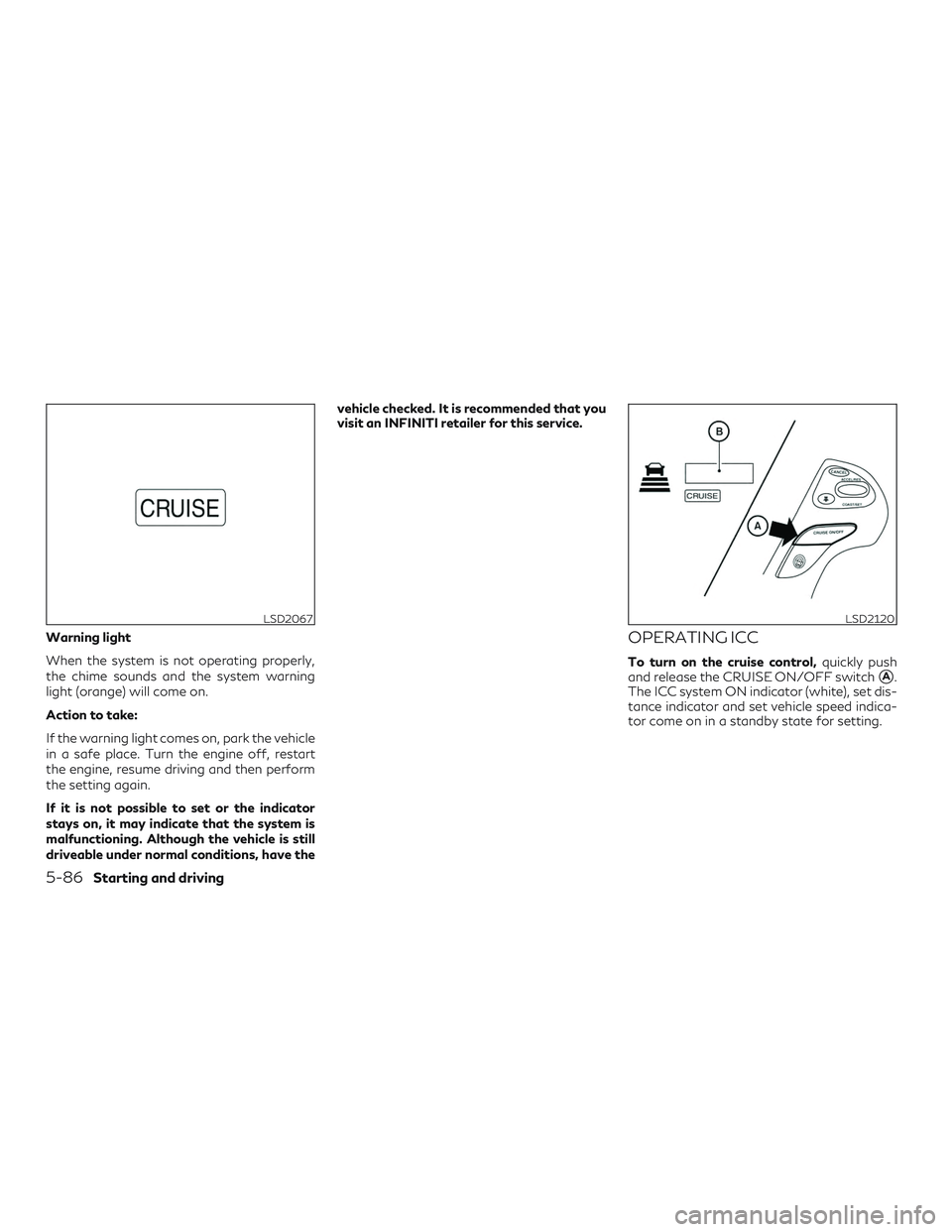

Warning light
When the system is not operating properly,
the chime sounds and the system warning
light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and then perform
the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have thevehicle checked. It is recommended that you
visit an INFINITI retailer for this service.OPERATING ICC
To turn on the cruise control,
quickly push
and release the CRUISE ON/OFF switch
A.
The ICC system ON indicator (white), set dis-
tance indicator and set vehicle speed indica-
tor come on in a standby state for setting.
LSD2067LSD2120
5-86Starting and driving

Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC sys-
tem back on to use the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed. If the sensor area is covered with ice, a
transparent or translucent vinyl bag, etc., the
ICC system may not detect vehicles ahead. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead. Be sure to check and clean the sensor
area.
The system warning light (orange) will illumi-
nate and the “Unavailable: Front radar
blocked” warning message will appear in the
vehicle information display.Action to take
If the warning light (orange) comes on, park
the vehicle in a safe location and turn the
engine off. Check to see if the radar sensor
window is blocked. If the radar sensor win-
dow is blocked, remove the blocking material.
Restart the engine. If the warning light con-
tinues to illuminate, have the ICC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the system warning
light (orange) will come on.Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
LSD2174LSD2175
Starting and driving5-97

Condition B:
When the sensor area of the front bumper is
dirty, making it impossible to detect a vehicle
ahead, the DCA system is automatically can-
celed.
The chime sounds and the system warning
light (orange) will come on and the “Unavail-
able: Front Radar Obstruction” indicator will
appear.
Action to take:
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor area of the bumper and then perform
the settings again.Condition C:
When the DCA system is not operating prop-
erly, the chime sounds and the system warn-
ing light (“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, and turn on the DCA system
again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with ICC and is located behind the front bum-
per.
For additional information, refer to “Intelli-
gent Cruise Control (ICC)” in this section.
DCA warning light (orange)
LSD2081
5-110Starting and driving

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, visit an INFINITI
retailer.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
Starting and driving5-119

in the P (Park) position and turn the engine
off. Clean the radar cover on the lower grille
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the PFCW system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.SYSTEM MAINTENANCE
The sensorAis located behind the lower
grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For Mexico
Continental ARS3–B
Certificado de homologacion:
RVLCOAR10–0980–A1
Este equipo opera a titulo secundario, con-
secuentemente, debe aceptar interferencias
perjudiciales incluyendo equipos de la misma
clase y puede no causar interferencias a
sistemas operando a titulo primario.
Cofetel notice:
La operación de este equipo está sujeta a las
siguientes dos condiciones: 1. Es posible que este equipo o dispositivo no cause interferencia perjudicial y
2. este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
LSD2098
Starting and driving5-131

Wire color designation for electric trailer
brake controller jumper harness.
WIRE COLOR NOTE
RED/GREEN Vehicle stop lamp switchto trailer brake controller.
BLACK Brake controller ground (-).
BROWN/WHITE Trailer brake controller switched output.
RED/BLUE Not used
RED Fused trailer brake controller battery feed (B+).
3. Peel off the tape and connect the jumperharness to the connector .
4. Release the parking brake.
5. Install the aftermarket electric trailer brake controller according to the manu-
facturer’s instructions.
WARNING
∙ If the engine is not running or is turned offwhile driving, the power assist for the
steering will not work. Steering will be
harder to operate.
∙ When the power steering warning light illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of the
vehicle but the steering will be harder to
operate. Have the power steering system
checked. It is recommended that you visit
an INFINITI retailer for this service.
The power steering system is designed to
provide power assist while driving to operate
the steering wheel with light force.
When the steering wheel is operated repeat-
edly or continuously while parking or driving
at a very low speed, the power assist for the
steering wheel will be reduced. This is to pre-
vent overheating of the power steering sys-
tem and protect it from getting damaged.
While the power assist is reduced, steering
wheel operation will become heavy. If the
steering wheel operation is still performed,
the power steering may stop and the power
steering warning light will illuminate. In a safe
location, stop the engine and push the igni-
tion switch to the OFF position. The temperature of the power steering sys-
tem will go down after a period of time and
the power assist level will return to normal
after starting the engine. The power steering
warning light will go off. Avoid repeating
such steering wheel operations that could
cause the power steering system to overheat.
You may hear a sound from the front of the
vehicle when the steering wheel is operated
quickly. This is a normal operational noise and
is not a malfunction.
If the power steering warning light
PSillumi-
nates while the engine is running, it may indi-
cate the power steering system is not func-
tioning properly and may need servicing.
Have the power steering system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
When the power steering warning light illu-
minates with the engine running, there will be
no power assist for the steering but you will
still have control of the vehicle. At this time,
greater steering effort is required to operate
the steering wheel, especially in sharp turns
and at low speeds.
For additional information, refer to “Power
steering warning light” in the “Instruments
and controls” section of this manual.
POWER STEERING
5-140Starting and driving
