NOTE:
This vehicle’s occupant classification sensor
system generally keeps the classification
locked during driving, so it is important that
you confirm that the front passenger is
properly classified prior to driving. However,
the occupant classification sensor may re-
calculate the weight of the occupant under
some conditions (both while driving and
when stopped), so front passenger seat oc-
cupants should continue to remain seated as
outlined above.
Troubleshooting
If you think the front passenger air bag status
light is incorrect:1. If the light is ON with an adult occupying the front passenger seat:
∙ Occupant is a small adult — the air bag light is functioning as intended. The front
passenger air bag is suppressed. However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:
∙ Occupant is not sitting upright, leaning against the seatback, and centered on
the seat cushion with his/her feet com-
fortably extended to the floor.
∙ A child restraint or other object pressing against the rear of the seatback.
∙ A rear passenger pushing or pulling on the back of the front passenger seat.
∙ Forcing the front seat or seatback against an object on the seat or floor
behind it.
∙ An object placed under the front passen- ger seat.
∙ An object placed between the seat cush- ion and center console or between the
seat cushion and the door.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute. NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds ini-
tially.
If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
2. If the light is OFF with a small adult, child or child restraint occupying the front
passenger seat.
This may be due to the following condi-
tions that may be interfering with the
weight sensors:
∙ Small adult or child is not sitting upright, leaning against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the floor.
∙ The child restraint is not properly in- stalled, as outlined in the “Child re-
straints” section of this manual.
∙ An object weighing over 9.1 lbs. (4 kg) hanging on the seat or placed in the seat-
back pocket.
1-60Safety—Seats, seat belts and supplemental restraint system

∙ A child restraint or other object pressingagainst the rear of the seatback.
∙ A rear passenger pushing or pulling on the back of the front passenger seat.
∙ Forcing the front seat or seatback against an object on the seat or floor
behind it.
∙ An object placed under the front passen- ger seat.
∙ An object placed between the seat cush- ion and center console.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.
NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds ini-
tially.
If the light is still OFF after this, the small
adult, child or child restraint should be repo-
sitioned in the rear seat and the vehicle
should be checked as soon as possible. It is
recommended that you visit an INFINITI re-
tailer for this service. 3. If the light is OFF with no front passen-
ger and no objects on the front passen-
ger seat the vehicle should be checked as
soon as possible. It is recommended that
you visit an INFINITI retailer for this ser-
vice.
Other supplemental front-impact air bag
precautions
WARNING
∙ Do not place any objects on the steering wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may be-
come dangerous projectiles and cause in-
jury if the front air bags inflate.
∙ Immediately after inflation, several front air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
∙ No unauthorized changes should be made to any components or wiring of the
supplemental air bag system. This is to
prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system. ∙ Do not make unauthorized changes to
your vehicle’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the
front air bag system.
∙ Tampering with the front air bag system may result in serious personal injury.
Tampering includes changes to the steer-
ing wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad and above the instru-
ment panel or by installing additional
trim material around the air bag system.
∙ Removing or modifying the front passen- ger seat may affect the function of the air
bag system and result in serious personal
injury.
∙
Modifying or tampering with the front pas-
senger seat may result in serious personal
injury. For example, do not change the
front seats by placing material on the seat
cushion or by installing additional trim ma-
terial, such as seat covers, on the seat that
are not specifically designed to assure
proper air bag operation. Additionally, do
not stow any objects under the front pas-
senger seat or the seat cushion and seat-
back. Such objects may interfere with the
proper operation of the occupant classifi-
cation sensor (weight sensor).
Safety—Seats, seat belts and supplemental restraint system1-61

If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. Have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer. For
additional information, refer to “Vehicle in-
formation display” in this section.
WARNING LIGHTS
For additional information, refer to “Vehicle
information display” in this section.
Anti-lock Braking System(ABS) warning light
When the ignition switch is in the ON posi-
tion, the ABS warning light illuminates and
then turns off. This indicates the ABS is op-
erational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service. If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock as-
sistance. For additional information, refer to
“Brake system” in the “Starting and driving”
section of this manual.
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running with the parking brake not applied,
stop the vehicle and perform the following:
1. Check the brake fluid level. Add brake fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the
“Maintenance and do-it-yourself” sec-
tion of this manual. 2. If the brake fluid level is correct, it is
recommended that you visit an INFINITI
retailer.
WARNING
∙ Your brake system may not be workingproperly if the warning light is on. Driving
could be dangerous. If you judge it to be
safe, drive carefully to the nearest ser-
vice station for repairs. Otherwise, have
your vehicle towed because driving it
could be dangerous.
∙ Pressing the brake pedal with the engine stopped and/or a low brake fluid level
may increase your stopping distance and
braking will require greater pedal effort
as well as pedal travel.
∙ If the brake fluid level is below the MINI- MUM or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
Instruments and controls2-9

Anti-lock Braking System (ABS)
warning indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking Sys-
tem (ABS) warning light illuminate, it may
indicate the ABS is not functioning properly.
Have the brake system checked, and if nec-
essary, repaired. It is recommended that you
visit an INFINITI retailer for this service.
Avoid high-speed driving and abrupt braking.
For additional information, refer to “Anti-lock
Braking System (ABS) warning light” in this
section.
Charge warning light
If this light comes on while the engine is run-
ning, it may indicate the charging system is
not functioning properly. Turn the engine off
and check the generator belt. If the belt is
loose, broken, missing, or if the light remains
on, have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Forward EmergencyBraking (FEB) with
Pedestrian Detection
system warning light
(if so equipped)
This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the FEB with Pe-
destrian Detection system is set to OFF in the
vehicle information display.
If the light illuminates when the FEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, refer to “Forward
Emergency Braking (FEB) with Pedestrian
Detection” in the “Starting and driving” sec-
tion of this manual.
Low tire pressure warninglight (if so equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly. After the ignition switch is placed in the ON
position, this light illuminates for about 1 sec-
ond and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
“Tyre Pressure Low - Add Air” warning also
appears in the vehicle information display.
When the low tire pressure warning light il-
luminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the
tire placard located in the driver’s door
opening. The low tire pressure warning light
does not automatically turn off when the
tire pressure is adjusted. After the tire is in-
flated to the recommended pressure, the ve-
hicle must be driven at speeds above
25 km/h (16 mph) to activate the TPMS and
turn off the low tire pressure warning light.
Use a tire pressure gauge to check the tire
pressure.
The “Tyre Pressure Low - Add Air” warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
2-10Instruments and controls

For additional information, refer to “Vehicle
information display” in this section and “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” and “In case of emer-
gency” sections of this manual.
TPMS malfunction
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The light
will remain on after the 1 minute. Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service. The
“Tyre Pressure Low - Add Air” warning does
not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.
For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire pres-
sure” in the “Maintenance and do-it-yourself”
section of this manual.WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ If the light does not illuminate with the ignition switch placed in the ON position,
have the vehicle checked. It is recom-
mended that you visit an INFINITI re-
tailer as soon as possible for this service.
∙ If the light illuminates while driving, avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed, pull
off the road to a safe location and stop
the vehicle as soon as possible. Driving
with under-inflated tires may perma-
nently damage the tires and increase the
likelihood of tire failure. Serious vehicle
damage could occur and may lead to an
accident and could result in serious per-
sonal injury or death. Check the tire pres-
sure for all four tires. Adjust the tire pres-
sure to the recommended COLD tire
pressure shown on the tire placard label
located in the driver’s door opening to
turn the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pressure, a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire, re-
place it with a spare tire as soon as pos-
sible. If no tire is flat and all tires are
properly inflated, have the vehicle
checked. It is recommended that you visit
an INFINITI retailer for this service.
∙ When replacing a wheel without the TPMS such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for these services.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
CAUTION
∙ The TPMS is not a substitute for theregular tire pressure check. Be sure to
check the tire pressure regularly.
∙ If the vehicle is being driven at speeds of less than 25 km/h (16 mph), the TPMS
may not operate correctly.
Instruments and controls2-11

You may feel or hear the system working; this
is normal.
The light will blink for a few seconds after the
VDC system stops limiting wheel spin.
The
indicator light also comes on when
you place the ignition switch in the ON posi-
tion. The light will turn off after approxi-
mately 2 seconds if the system is operational.
If the light does not come on have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Turn signal/hazard
indicator lights
The appropriate light flashes when the turn
signal switch is activated.
Both lights flash when the hazard switch is
turned on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC
OFF switch is pushed to off. This indicates
the VDC has been turned off.
Push the VDC OFF switch again or restart
the engine and the system will be reactivated.
For additional information, refer to “Vehicle Dynamic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
The VDC light also comes on when the igni-
tion switch is placed in the ON position. The
light will turn off after about 2 seconds if the
system is operational. If the light stays on or
comes on along with the
indicator light
while you are driving, have the VDC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
VDC should remain on unless freeing a ve-
hicle from mud or snow.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or ac-
celerating, but this is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a disc brake pad requires replace-
ment, it makes a high pitched scraping sound
when the vehicle is in motion, whether or not
the brake pedal is depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Key reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC
or OFF position or placed in the OFF or
LOCK position with the Intelligent Key left in
the vehicle. Make sure the ignition switch is
placed in the LOCK position, and take the
Intelligent Key with you when leaving the
vehicle.
Lane Departure Warning (LDW)
and Lane Departure Prevention
(LDP) warning chime
(if so equipped)
When the LDW or LDP system is on, the
chime sounds if the vehicle is traveling close
to either the left or the right of a traveling
lane with detectable lane markers.
For additional information, refer to “Lane
Departure Warning (LDW) system” or “Lane
Departure Prevention (LDP) system” in the
“Starting and driving” section of this manual.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Instruments and controls2-15

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4.
I-Key System Error: See Owner’s Manual
5. Key Registration Complete
6. Push brake and start button to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Keysystem (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tyre Pressure Low - Add Air (if so equipped)
16. TPMS Error: See Owner’s Manual (if so equipped) 17. AWD Error: See Owner’s Manual
(if so equipped)
18. AWD High Temp. Stop Vehicle (if so equipped)
19. Tyre Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Boot (liftgate) Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Turn off the lights
26.
Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator (if so equipped)
28. Lane Departure Warning (LDW) indicator (if so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic alert (RCTA) indicator
(if so equipped)
30. Malfunction: See Owner’s Manual (if so equipped)
31. Intelligent Cruise Control (ICC) indicators (if so equipped) 32. Cruise control indicators (if so equipped)
33. INFINITI drive mode selector indicators
34. Distance Control Assist (DCA) indicators
(if so equipped)
35. Unavailable: Road is slippery (if so equipped)
36. Unavailable: Snow Mode Active (if so equipped)
37. Unavailable: VDC OFF (if so equipped)
38. Unavailable: High Cabin Temp. (if so equipped)
39. Unavailable: Side Radar Obstruction (if so equipped)
40. Unavailable: High Accelerator Temp. (if so equipped)
41. Unavailable: Front radar blocked (if so equipped)
42. BCI OFF (if so equipped)
43. Shipping Mode On Push Storage Fuse
44. CVT Error: See Owner’s Manual
45. Rear Door Alert is activated (if so equipped)
46. Check Back Seat For All Articles (if so equipped)
2-26Instruments and controls

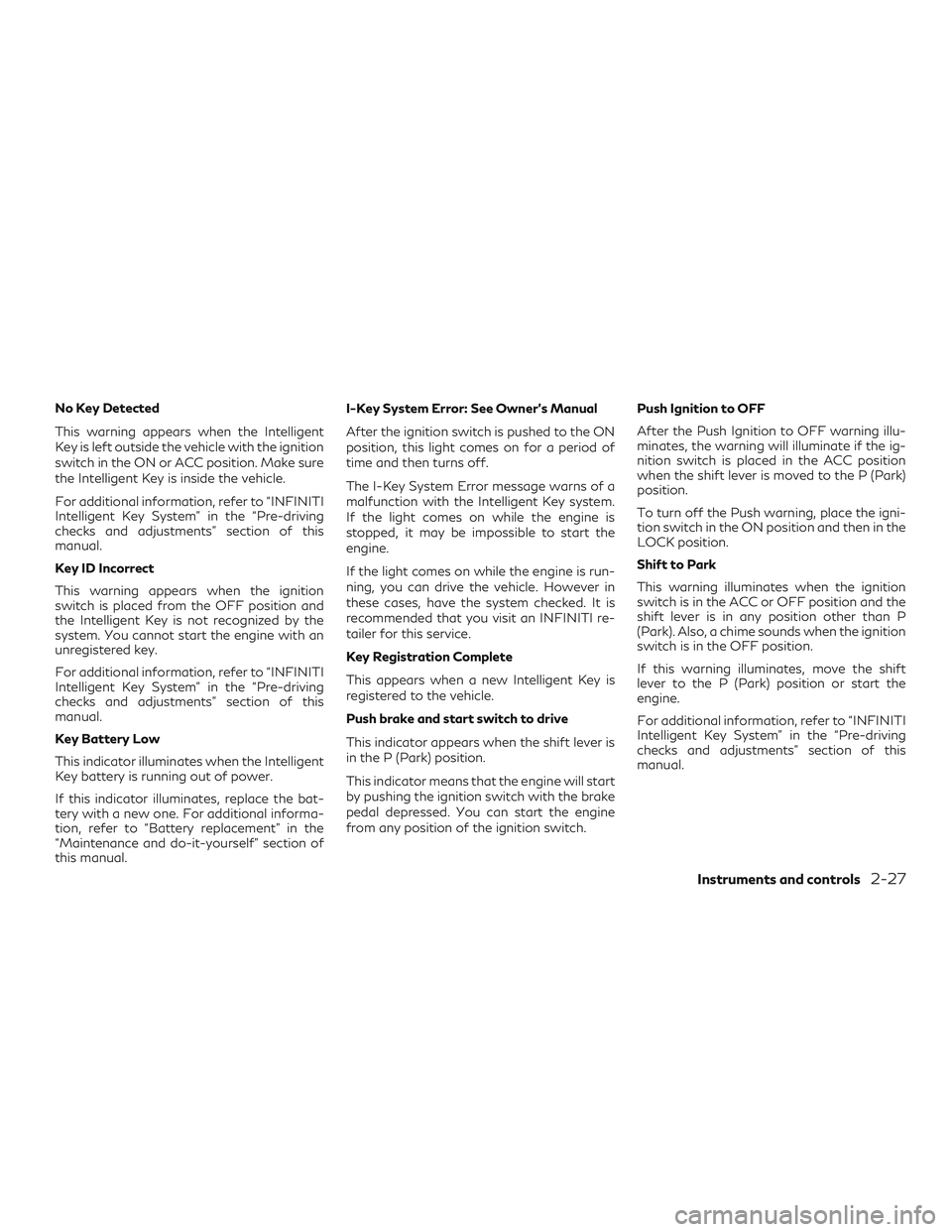

No Key Detected
This warning appears when the Intelligent
Key is left outside the vehicle with the ignition
switch in the ON or ACC position. Make sure
the Intelligent Key is inside the vehicle.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key ID Incorrect
This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with an
unregistered key.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key Battery Low
This indicator illuminates when the Intelligent
Key battery is running out of power.
If this indicator illuminates, replace the bat-
tery with a new one. For additional informa-
tion, refer to “Battery replacement” in the
“Maintenance and do-it-yourself” section of
this manual.I-Key System Error: See Owner’s Manual
After the ignition switch is pushed to the ON
position, this light comes on for a period of
time and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine.
If the light comes on while the engine is run-
ning, you can drive the vehicle. However in
these cases, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
Key Registration Complete
This appears when a new Intelligent Key is
registered to the vehicle.
Push brake and start switch to drive
This indicator appears when the shift lever is
in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.
Push Ignition to OFF
After the Push Ignition to OFF warning illu-
minates, the warning will illuminate if the ig-
nition switch is placed in the ACC position
when the shift lever is moved to the P (Park)
position.
To turn off the Push warning, place the igni-
tion switch in the ON position and then in the
LOCK position.
Shift to Park
This warning illuminates when the ignition
switch is in the ACC or OFF position and the
shift lever is in any position other than P
(Park). Also, a chime sounds when the ignition
switch is in the OFF position.
If this warning illuminates, move the shift
lever to the P (Park) position or start the
engine.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Instruments and controls2-27
