2018 INFINITI QX60 service indicator

Engine start operation for Intelligent Key
system (if I-Key battery level is low)
This indicator appears when the battery of
the Intelligent Key is low and when the Intel-
ligent Key system and the vehicle are not
communicating normally.
If this appears, touch the ignition switch with
the Intelligent Key while depressing the brake
pedal. For additional information, refer to
“INFINITI Intelligent Key battery discharge” in
the “Starting and driving” section of this
manual.
Release Parking Brake
This warning illuminates in the message area
of the vehicle information display when the
parking brake is set and the vehicle is driven.
Low Fuel
This warning illuminates when the fuel level in
the fuel tank is getting low. Refuel as soon as
it is convenient, preferably before the fuel
gauge reaches 0 (Empty).There will be a
small reserve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty). Loose Fuel Cap
This warning appears when the fuel-filler cap
is not tightened correctly after the vehicle has
been refueled. For additional information, re-
fer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Low Oil Pressure: See Owner’s Manual
This warning appears in the message area of
the vehicle information display if low oil pres-
sure is detected. This gauge is not designed
to indicate low oil level.
The low oil pressure
warning is not designed to indicate a low oil
level. Use the dipstick to check the oil level.
For additional information, refer to “Engine
oil” in the “Maintenance and do-it-yourself”
section of this manual.
Low Washer Fluid
This warning illuminates when the
windshield-washer fluid is at a low level. Add
windshield-washer fluid as necessary. For
additional information, refer to “Windshield-
washer fluid” in the “Maintenance and do-it-
yourself” section of this manual. Tyre Pressure Low - Add Air
(if so equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates
and low tire pressure is detected. The warn-
ing appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. If this warning appears, stop the ve-
hicle and adjust the tire pressures of all four
tires to the recommended COLD tire pres-
sure shown on the tire placard. For additional
information, refer to “Low tire pressure
warning light” in this section and “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting and driving” section of this manual.
TPMS Error: See Owner’s Manual
(if so equipped)
This warning appears when there is an error
with your TPMS. If this warning comes on,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
AWD Error: See Owner’s Manual
(if so equipped)
This warning appears when the all-wheel
drive system is not functioning properly while
the engine is running.
2-28Instruments and controls

Alert (RCTA)” in the “Starting and driving”
section of this manual.
Malfunction: See Owner’s Manual
(if so equipped)
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:∙ Forward Emergency Braking (FEB)
∙ Lane Departure Warning (LDW)
∙ Blind Spot Warning (BSW)
∙ Backup Collision Intervention (BCI)
∙ Blind Spot Intervention® (BSI)
∙ Intelligent Cruise Control (ICC)
∙ Distance Control Assist (DCA)
If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Intelligent Cruise Control (ICC) indicators
(if so equipped)
These indicators show the Intelligent Cruise
Control (ICC) system status. For additional
information, refer to “Intelligent Cruise Con-
trol (ICC)” in the “Starting and driving” section
of this manual. Cruise control indicators (if so equipped)
These indicators show the cruise control sys-
tem status.
For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.
INFINITI Drive Mode Selector indicators
These indicators show the current drive
mode of the vehicle.
For additional information, refer to “INFINITI
Drive Mode Selector” in the “Starting and
driving” section of this manual.
Distance Control Assist (DCA) indicators
(if so equipped)
These indicators show the Distance Control
Assist (DCA) system status. For additional
information, refer to “Distance Control Assist
(DCA)” in the “Starting and driving” section of
this manual.
Unavailable: Road is slippery
(if so equipped)
This message appears when the Distance
Control Assist (DCA) system becomes un-
available because the road is slippery. For
additional information, refer to “Distance
Control Assist (DCA)” in the “Starting and
driving” section of this manual.
Unavailable: Snow Mode Active
(if so equipped)
This message appears when the Distance
Control Assist (DCA) system becomes un-
available because the SNOW Mode is se-
lected. For additional information, refer to
“Distance Control Assist (DCA)” in the “Start-
ing and driving” section of this manual.
Unavailable: VDC OFF (if so equipped)
This message appears when the Distance
Control Assist (DCA) system becomes un-
available because the VDC is turned off. For
additional information, refer to “Distance
Control Assist (DCA)” in the “Starting and
driving” section of this manual.
Unavailable: High Cabin Temp.
(if so equipped)
This message appears when the camera de-
tects an interior temperature of more than
approximately 104°F (40°C). For additional
information, refer to “Lane Departure Warn-
ing (LDW)” in the “Starting and driving” sec-
tion of this manual.
2-30Instruments and controls

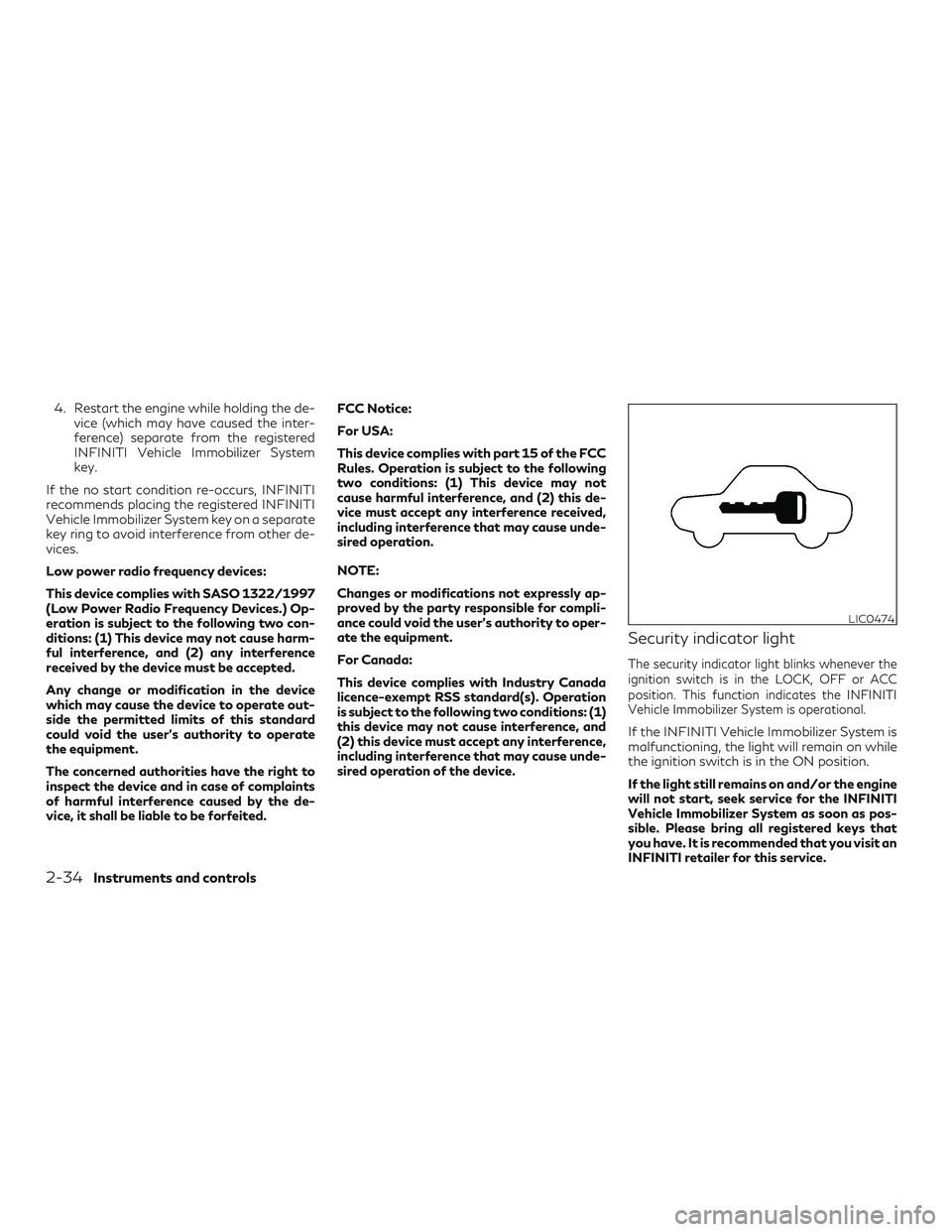

4. Restart the engine while holding the de-vice (which may have caused the inter-
ference) separate from the registered
INFINITI Vehicle Immobilizer System
key.
If the no start condition re-occurs, INFINITI
recommends placing the registered INFINITI
Vehicle Immobilizer System key on a separate
key ring to avoid interference from other de-
vices.
Low power radio frequency devices:
This device complies with SASO 1322/1997
(Low Power Radio Frequency Devices.) Op-
eration is subject to the following two con-
ditions: (1) This device may not cause harm-
ful interference, and (2) any interference
received by the device must be accepted.
Any change or modification in the device
which may cause the device to operate out-
side the permitted limits of this standard
could void the user’s authority to operate
the equipment.
The concerned authorities have the right to
inspect the device and in case of complaints
of harmful interference caused by the de-
vice, it shall be liable to be forfeited. FCC Notice:
For USA:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Security indicator light
The security indicator light blinks whenever the
ignition switch is in the LOCK, OFF or ACC
position. This function indicates the INFINITI
Vehicle Immobilizer System is operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, the light will remain on while
the ignition switch is in the ON position.
If the light still remains on and/or the engine
will not start, seek service for the INFINITI
Vehicle Immobilizer System as soon as pos-
sible. Please bring all registered keys that
you have. It is recommended that you visit an
INFINITI retailer for this service.
LIC0474
2-34Instruments and controls

∙ The timing of switching the low beam andhigh beam may change under the follow-
ing situations.
– The brightness of the headlights of the oncoming vehicle or leading
vehicle.
– The movement and direction of the oncoming vehicle and the leading
vehicle.
– When only one light on the oncoming vehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.).
– The number of passengers and the amount of luggage. High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion
1and push the lever forward2(high
beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.
LIC3618
2-42Instruments and controls

∙ Do not use the climate control seat forextended periods or when no one is using
the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
∙ Any liquid spilled on the seat should be removed immediately with a dry cloth
∙ The climate controlled seat has an air fil- ter. Do not operate the climate controlled
seat without an air filter. This may result
in damage to the system.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the cli- mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service. The climate controlled seat warms up or
cools down the front seat by blowing warm
or cool air from under the surface of the seat.
The climate control switch is located on the
center console.
The climate controlled seat can be operated
as follows:
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or the cool side2. The indicator light
Bon the control knob will illuminate.
3. Adjust the desired amount of air using the control knob. The climate controlled
seat blower remains on low speed for
approximately 60 seconds after turning
the switch on or selecting the desired
temperature.
4. When the vehicle’s interior is warmed or cooled, or before you leave the vehicle,
be sure to turn the control knob to the
OFF (center) position. The indicator light
Bon the control knob goes off with the
switch in the OFF (center) position.
To check the air filter for the climate con-
trolled seat, it is recommended that you con-
tact an INFINITI retailer.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
SSS0911
HEATED SEAT SWITCHES
(if so equipped)
2-46Instruments and controls

CAUTION
∙ The battery could run down if the seatheater is operated while the engine is not
running.
∙ Do not use the seat heater for extended periods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service. The front seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
∙ For high heat, turn the knob to the right
1.
∙ For low heat, turn the knob to the left
2.
∙ The indicator light
Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a control
module, automatically turning the heater
on and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
LIC3037
HEATED 2ND ROW SEAT SWITCHES
(if so equipped)
Instruments and controls2-47

CAUTION
∙ The battery could run down if the seatheater is operated while the engine is not
running.
∙ Do not use the seat heater for extended periods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service. The rear seats are warmed by built-in heat-
ers. The switches are located on the rear of
the front center console and can be operated
independently of each other.
1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the
switch off. The heated steering wheel system is de-
signed to operate only when the surface tem-
perature of the steering wheel is below 68°F
(20°C).
Push the heated steering wheel switch to
warm the steering wheel after the engine
starts. The indicator light will come on.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and on
to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on.
LIC0421
HEATED STEERING WHEEL SWITCH
(if so equipped)
2-48Instruments and controls

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
∙
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
Malfunction Indicator
Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.CAUTION
∙ If fuel is spilled on the vehicle body, flushit away with water to avoid paint
damage.
∙ Insert the fuel-filler cap straight into the fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light illu-
minates because the fuel-filler cap is
loose or missing, tighten or install the cap
and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips, have
the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this
service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
3-30Pre-driving checks and adjustments
