2018 INFINITI QX60 engine

2. Start the engine and let it idle until itreaches operating temperature, then
turn it off.
3. Remove the oil filler cap
Aby turning it
counterclockwise. 4. Place a large drain pan under the drain
plug
B.
5. Remove the drain plug
Bwith a wrench
by turning it counterclockwise and com-
pletely drain the oil.
If the oil filter is to be changed, remove
and replace it at this time. For additional
information, refer to “Changing engine
oil filter” in this section.
∙ Waste oil must be disposed of properly.
∙ Check your local regulations.
WARNING
∙ Prolonged and repeated contact with
used engine oil may cause skin cancer.
∙ Try to avoid direct skin contact with used oil. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible.
∙ Keep used engine oil out of reach of children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot. 6. Clean and reinstall the drain plug and a
new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 34 N·m (25 ft-lb)
7. Refill engine with recommended oil through the oil filler opening, then install
the oil filler cap securely.
For additional information on drain and
refill capacity, refer to “Recommended
fluids/lubricants and capacities” in the
“Technical and consumer information”
section of this manual.
The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only.
Always use the dipstick to determine
when the proper amount of oil is in the
engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Cor-
rect as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
VQ35DD
LDI3013
Maintenance and do-it-yourself8-11

CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface andapply the parking brake.
2. Turn the engine off. 3. Place a large drain pan under the oil filter
B.
4. Remove pins
Afrom the right engine
protector located inside the right wheel
well, then remove protector. Remove oil
filter
Bwith an oil filter wrench by turn-
ing it counterclockwise. Then remove
the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
∙ Be sure to remove any old gasket ma-terial remaining on the sealing surface
of the engine. Failure to do so could
lead to an oil leak and engine damage.
∙ The dipstick must be inserted in place to prevent oil spillage from the dipstick
hole when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil. 7. Screw on the oil filter until a slight resis-
tance is felt, then tighten an additional
2/3 turn.
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil if necessary.
LDI2938
8-12Maintenance and do-it-yourself

WARNING
∙ Use only new fluid from a sealed con-tainer. Old, inferior or contaminated fluid
may damage the brake system. The use of
improper fluids can damage the brake
system and affect the vehicle’s stopping
ability.
∙ Clean the filler cap before removing.
∙ Brake fluid is poisonous and should be stored carefully in marked containers out
of reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid is
spilled, immediately wash the surface with
water.
Check the fluid level in the reservoir. If the
brake fluid is below the MIN line
B, the brake
warning light will illuminate. Add brake fluid
up to the MAX line
A. For additional infor-
mation on the recommended type of brake
fluid, refer to “Recommended fluids/
lubricants and capacities” in the “Technical
and consumer information” section of this
manual.
If the brake fluid must be added frequently,
the brake system should be thoroughly
checked by an INFINITI retailer.
For additional information on the location of
the brake fluid reservoir, refer to “Engine
compartment check locations” in this section.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir pe-
riodically. Add windshield-washer fluid when
the low windshield-washer fluid warning
light comes on.
To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.
Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a
LDI2463LDI2583
BRAKE FLUID WINDSHIELD-WASHER FLUID
8-14Maintenance and do-it-yourself

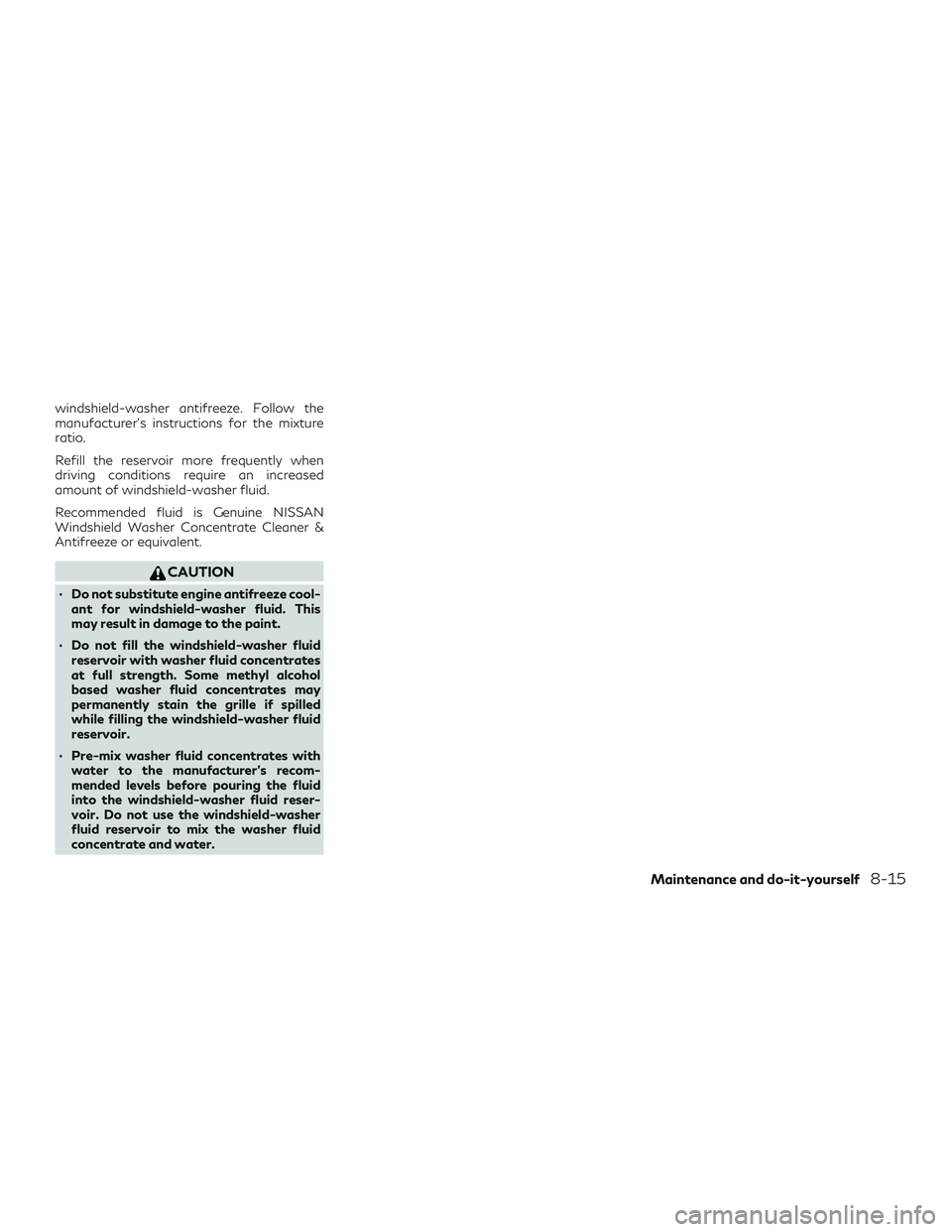

windshield-washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of windshield-washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION
∙ Do not substitute engine antifreeze cool-ant for windshield-washer fluid. This
may result in damage to the paint.
∙ Do not fill the windshield-washer fluid reservoir with washer fluid concentrates
at full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the windshield-washer fluid
reservoir.
∙ Pre-mix washer fluid concentrates with water to the manufacturer’s recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
Maintenance and do-it-yourself8-15

NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
WARNING
∙ Do not operate the vehicle if the fluid in the battery is low. Low battery fluid can
cause a higher load on the battery which
can generate heat, reduce battery life,
and in some cases lead to an explosion.
∙ When working on or near a battery, al- ways wear suitable eye protection and
remove all jewelry.
∙ Do not tip the battery. Keep the vent caps tight and the battery level. ∙ Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
∙ Keep battery out of the reach of children.
∙ Do not expose the battery to flames, an electrical spark or a cigarette. Hydrogen
gas generated by the battery is explo-
sive. Explosive gases can cause blindness
or injury. Do not allow battery fluid to
contact your skin, eyes, fabrics or painted
surfaces. Sulfuric acid can cause blind-
ness or injury. After touching a battery or
battery cap, do not touch or rub your
eyes. Thoroughly wash your hands. If the
acid contacts your eyes, skin or clothing,
immediately flush with water for at least
15 minutes and seek medical attention. 1. Remove the vent caps with a screwdriver
as shown. Use a cloth to protect the
battery case.
WDI0224
Maintenance and do-it-yourself8-17

2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom
of the filler opening. Do not overfill.Re-
install the vent caps. Vehicles operated in high temperatures or
under severe conditions require frequent
checks of the battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump
starting” in the “In case of emergency” section
of this manual. If the engine does not start by
jump starting, the battery may have to be
replaced. It is recommended that you visit an
INFINITI retailer for this service.
1. Drive belt automatic tensioner pulley
2. Generator pulley
3. Air conditioner compressor pulley
4 Crankshaft pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
1. Visually inspect the belt for signs of un- usual wear, cuts, fraying or looseness. If
the belt is in poor condition or is loose,
have it replaced or adjusted. It is recom-
mended that you visit an INFINITI re-
tailer for this service.
WDI0529
LDI2099
DRIVE BELT
8-18Maintenance and do-it-yourself

2. Have the belt checked regularly for con-dition and tension in accordance with
the maintenance schedule found in your
“INFINITI Service and Maintenance
Guide”.
REPLACING SPARK PLUGS
Iridium-tipped spark plugs
It is not necessary to replace iridium-tipped
Aspark plugs as frequently as conventional
type spark plugs because they last much lon-
ger. Follow the maintenance log shown in the
“INFINITI Service and Maintenance Guide”.
Do not service iridium-tipped spark plugs by
cleaning or regapping.
∙ Always replace spark plugs with recom-
mended or equivalent ones.
WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
SDI1895
SPARK PLUGS
Maintenance and do-it-yourself8-19

WARNING
∙ Operating the engine with the air cleanerfilter off can cause you or others to be
burned. The air cleaner filter not only
cleans the intake air, it also stops the
flame if the engine backfires. If the air
cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when the
air cleaner is off. ∙ Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
serious injury.
To remove the filter from the air cleaner, push
the tabs
Aand pull the cover upward.
The viscous paper type filter element (if so
equipped) should not be cleaned and reused.
The dry paper type filter element (if so
equipped) may be cleaned and reused. Re-
place the air filter according to the mainte-
nance log shown in a separate maintenance
booklet.
When replacing the air filter, wipe the inside
of the air cleaner housing and the cover with
a damp cloth.
NOTE:
After installing a new air cleaner, make sure
the air cleaner cover is seated in the housing
and latch the clips
A.
AIR CONDITIONER FILTER
The air conditioner filter restricts the entry of
airborne dust and pollen particles and re-
duces some objectionable outside odors. The
filter is located behind the glove box. For
additional information on change intervals,
refer to the “INFINITI Service and Mainte-
nance Guide”.
If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.
LDI2553
AIR CLEANER
8-20Maintenance and do-it-yourself
