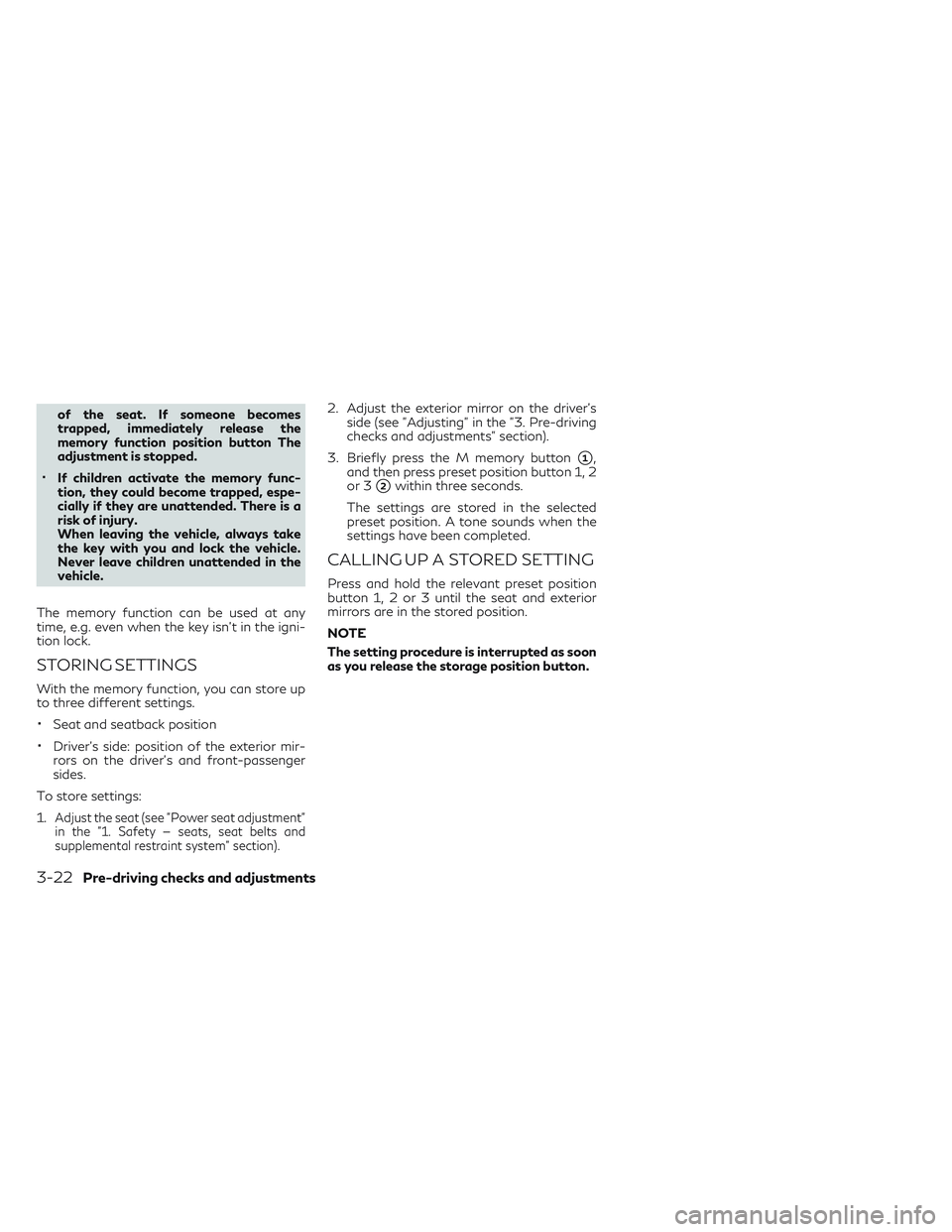

2018 INFINITI QX30 ESP

of the seat. If someone becomes
trapped, immediately release the
memory function position button The
adjustment is stopped.
•If children activate the memory func-
tion, they could become trapped, espe-
cially if they are unattended. There is a
risk of injury.
When leaving the vehicle, always take
the key with you and lock the vehicle.
Never leave children unattended in the
vehicle.
The memory function can be used at any
time, e.g. even when the key isn't in the igni-
tion lock.
STORING SETTINGS
With the memory function, you can store up
to three different settings.
•Seat and seatback position
•Driver's side: position of the exterior mir-
rors on the driver's and front-passenger
sides.
To store settings:
1.
Adjust the seat (see "Power seat adjustment"
in the "1. Safety — seats, seat belts and
supplemental restraint system" section).
2. Adjust the exterior mirror on the driver's side (see "Adjusting" in the "3. Pre-driving
checks and adjustments" section).
3. Briefly press the M memory button
1,
and then press preset position button 1, 2
or 3
2within three seconds.
The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.
CALLING UP A STORED SETTING
Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.
NOTE
The setting procedure is interrupted as soon
as you release the storage position button.
3-22Pre-driving checks and adjustments

ADDITIONAL SYSTEM
INFORMATION
System Start-Up
Due to the large number of features and
capabilities that the INFINITI InTouch system
needs to load on start-up, it may take up to a
minute for all functions (such as Apps) to be
available. The system will display the mes-
sage indicating that the application is loading
during this time. During the start-up period,
hard button controls for audio will become
available before start-up is complete. Fea-
tures will become available in the following
order.
•Audio volume and music playback
•Audio Full Screen Access
•Full App Availability – System will display
the message indicating the completion of
the application loading process.
System Response Delay
INFINITI InTouch uses an operating system
like those found on many computers, tablets
and cell phones. Like these devices, process-
ing speed may vary, and system response
delays or resets may occur intermittently.
This does not indicate a malfunction, and
further information on system operation can
be found below. In most situations, simply waiting a few mo-
ments longer should be sufficient for the
pending operations to complete.
If the system temporarily does not respond to
commands, the system can be easily reset.
Simply push down the Audio Power knob for
at least 5 seconds. The system will turn off
and restart.
After restart, all functions should be avail-
able.
•Audio will resume, but if you were using
Bluetooth® Audio or an Audio App, the
connection may need to be re-established.
•If a navigation route was set, the route
should resume automatically (models with
navigation system).
•If a phone call was in progress, the call may
be temporarily transferred back to the
handset.
System Reset
As noted above, intermittent system resets
may occur during normal operation. You may
also wish to reset the system if you find that a
particular feature is not loading or respond-
ing. Often, a quick system reset will resolve
any issue you may be experiencing. After re-
start, all functions will be available as de-
scribed above. System Updates
Like many digital devices, the INFINITI
InTouch system is designed to allow for soft-
ware updates as enhancements are devel-
oped and additional features added. If you
have questions about system performance, it
is recommended you contact your INFINITI
retailer to ensure that your vehicle has had
the latest available software installed.
Operating Tips
INFINITI InTouch provides several methods
of operation to suit your preferences. The
following are suggested operating tips.
•Operating the INFINITI Controller, Steer-
ing Wheel Controls, or other controls too
quickly can cause a lag between the con-
trol and the display. Operate the controls
carefully and allow the system to respond
to your request.
•INFINITI recommends using Voice Recog-
nition whenever possible to select options
while driving. Some touch screen function-
ality is intentionally unavailable during
driving. Please view the available voice
commands by pushing <
>on the steer-
ing wheel and then selecting a category on
the display.
4-16Display screen, heater and air conditioner, and audio system

•The Around View Monitor is a conve-
nience feature and is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in par-
ticular, are areas where objects do not
always appear in the bird’s-eye, front,
or rear views. Always check your sur-
roundings to be sure that it is safe to
move before operating the vehicle. Al-
ways operate the vehicle slowly.
•The driver is always responsible for
safety during parking and other
maneuvers.
CAUTION
Do not scratch the lens when cleaning dirt
or snow from the front of the camera.
The Around View Monitor system is designed
as an aid to the driver in situations such as
slot parking or parallel parking.
The monitor displays various views of the
position of the vehicle in a split screen format.
All views are not available at all times. Available views:
•Front View
An approximately 150-degree view of the
front of the vehicle.
•Rear View
An approximately 150-degree view of the
rear of the vehicle.
•Bird's-Eye View
The surrounding view of the vehicle from
above.
•Front-Side View
The view around and ahead of the front
passenger’s side wheel. To display the multiple views, the Around
View Monitor system uses cameras1lo-
cated in the front grille, on the vehicle’s out-
side mirrors and one just above the vehicle’s
rear number plate.
AROUND VIEW MONITOR
SYSTEM OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion or press the button to oper-
ate the Around View Monitor.
The screen displayed on the Around View
Monitor will automatically return to the pre-
vious screen 3 minutes after the
button has been pushed while the shift lever
is in a position other than the R (Reverse)
position.
NAA1638
4-26Display screen, heater and air conditioner, and audio system

Setting the air distribution
Directs the airflow through the demis-ter ventilators.
Directs the airflow through the centerand side air ventilators.
Directs the airflow through the foot-
well air ventilators.
NOTE
•You can also activate several of the air
distribution settings simultaneously. In or-
der to do this, press several of the air dis-
tribution buttons. The air is then routed
through different air ventilators.
•Regardless of the air distribution setting,
airflow is always directed through the side
air ventilators. The side air ventilators can
only be closed if the adjusters are turned
clockwise until they engage.
To set air distribution:
1. Make sure the engine is running.
2. Press one or more of the
,,orbuttons. The corresponding indica-
tor light comes on.
Setting the airflow
1. Make sure the ignition switch is in the ON position. 2. To increase or reduce airflow: turn control
5counterclockwise or clockwise.
Defogging the windshield
You can use this function to de-ice the wind-
shield or to defog the inside of the windshield
and the side windows.
NOTE
You should only select the "Windshield de-
misting" function until the windshield is clear
again.
Activating the "Windshield demisting"
function:
Make sure the ignition switch is in the ON
position.
To activate: press the
button The indi-
cator light in thebutton lights up.
The climate control system switches to the
following functions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air-recirculation mode off NOTE
•The "Windshield demisting" function auto-
matically sets the blower output to the
optimum demisting effect. As a result, the
airflow may increase or decrease auto-
matically after the
button is pressed.
•You can adjust the blower output manu-
ally while the "Windshield demisting" func-
tion is in operation. Turn airflow control
5counterclockwise or clockwise.
Deactivating the "Windshield demisting"
function:
Press the
button. The indicator light in
thebutton goes out. The previous set-
tings are reactivated. Air-recirculation mode
remains deactivated.
or
Turn temperature control
1counterclock-
wise or clockwise.
Defogging the windows
Windows misted up on the inside:
1. Activate the
"Cooling with air dehu-
midification" function.
2. If the windows continue to mist up, acti- vate the
"Windshield demisting"
function.
4-46Display screen, heater and air conditioner, and audio system

Reception conditions will constantly change
because of vehicle movement. Buildings, ter-
rain, signal distance and interference from
other vehicles can adversely affect ideal re-
ception. Described below are some of the
factors that can affect radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
FM radio reception
MAXIMUM SIGNAL DISTANCES
•FM : 25 to 30 miles (40 to 48 km)
•AM : 60 to 130 miles (97 to 209 km)
Range: FM range is normally limited to 25 to
30 miles (40 to 48 km), with monaural (single
station) FM having slightly more range than
stereo FM. External influences may some-
times interfere with FM station reception
even if the FM station is within 25 miles (40
km). The strength of the FM signal is directly
related to the distance between the transmit-
ter and receiver. FM signals follow a line-of-
sight path, exhibiting many of the same char-
acteristics as light. For example they will
reflect off objects. Fade and drift: As your vehicle moves away
from a station transmitter, the signals will
tend to fade and/or drift.
Static and flutter: During signal interference
from buildings, large hills or due to antenna
position, usually in conjunction with an in-
creased distance from the station transmit-
ter, static or flutter can be heard. This can be
reduced by lowering the treble setting to re-
duce the treble response.
Multipath reception: Because of the reflec-
tive characteristics of FM signals, direct and
reflected signals reach the receiver at the
same time. The signals may cancel each
other, resulting in momentary flutter or loss
of sound.AM radio reception
AM signals, because of their low frequency,
can bend around objects and skip along the
ground. In addition, the signals can bounce
off the ionosphere and be bent back to earth.
Because of these characteristics, AM signals
are also subject to interference as they travel
from transmitter to receiver.
Fading: This occurs while the vehicle is pass-
ing through freeway underpasses or in areas
with many tall buildings. It can also occur for
several seconds during ionospheric turbu-
lence even in areas where no obstacles exist.
SAA0306Z
4-54Display screen, heater and air conditioner, and audio system

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights.
HD RadioTMTechnology reception
(for U.S.)
HD RadioTMTechnology reception needs to
be activated to receive HD Radio broadcasts,
see "Audio settings" later in this section.
This enables you to receive radio broadcasts
digitally (where available), providing a better
quality sound with clear reception. When this
feature is not activated or HD Radio broad-
casts are not available, you will receive ana-
log radio (AM/FM) broadcasts.
Satellite radio reception
When the satellite radio is used for the first
time or the battery has been replaced, the
satellite radio may not work properly. This is
not a malfunction. Wait more than 10 min-
utes with the satellite radio ON and the ve-
hicle outside of any metal or large building for
the satellite radio to receive all of the neces-
sary data.
The satellite radio requires an active SiriusXM
Satellite Radio subscription. The satellite ser-
vice is a available only to those at least 18 and
older in the 48 contiguous United States. The satellite radio performance may be af-
fected if cargo carried on the roof blocks the
satellite radio signal.
If possible, do not put cargo near the satellite
antenna.
The build up of ice on the satellite radio an-
tenna can affect satellite radio performance.
Remove the ice to restore satellite radio re-
ception.
Trademarks
HD Radio Technology manufactured under
license from iBiquity Digital Corporation. U.S.
and Foreign Patents. HD Radio
TMand the
HD, HD Radio, and Arc logos are proprietary
trademarks of iBiquity Digita; Corp.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are those
of their respective owners.
SiriusXM services require a subscription after
trial period and are sold separately or as a
package. Our satellite service is available only
to those at least 18 and older in the 48 con- tiguous USA and DC. For more information
visit www.siriusxm.com.
Required SiriusXM Satellite Radio and
SiriusXM Travel Link monthly subscriptions
are sold separately. Sirius XM Travel Link is
only available in select markets. For more
information, see www.sirius.com/travellink
“Made for iPod®” and “Made for iPhone®”
mean that an electronic accessory has been
designed to connect specifically to iPod® or
iPhone®, respectively, and has been certified
by the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance
with safety and regulatory standards. Please
note that the use of this accessory with
iPod® or iPhone® may affect wireless per-
formance.
Apple, the Apple logo, iPhone®, iPod®, iPod
classic®, iPod nano®, and iPod touch® are
trademarks of Apple Inc., registered in the
U.S. and other countries. Lightning is a trade-
mark of Apple Inc. App Store is a service mark
of Apple Inc.
Music recognition technology and related
data are provided by Gracenote®. Gracenote
Display screen, heater and air conditioner, and audio system4-55

This system supports various USB memory
devices, USB hard drives and iPod players.
Some USB devices may not be supported by
this system.
•Partitioned USB devices may not play cor-
rectly.
•Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is
recommended.
General notes for USB use:
Refer to your device manufacturer’s owner
information regarding the proper use and
care of the device.
Notes for iPod use:
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
•Improperly plugging in the iPod may cause
a checkmark to be displayed on and off
(flickering). Always make sure that the
iPod is connected properly.
•An iPod nano (1st Generation) may remain
in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod.
•An iPod nano (2nd Generation) will con-
tinue to fast-forward or rewind if it is dis-
connected during a seek operation.
•An incorrect song title may appear when
the Play Mode is changed while using an
iPod nano (2nd Generation)
•Audiobooks may not play in the same or-
der as they appear on an iPod.
•Large video files cause slow responses in
an iPod. The vehicle display may momen-
tarily black out, but will soon recover.
•If an iPod automatically selects large video
files while in the shuffle mode, the vehicle
display may momentarily black out, but will
soon recover.
4-58Display screen, heater and air conditioner, and audio system

Windows Media Player:
This product is protected by certain intellec-
tual property right of Microsoft. Use or dis-
tribution of such technology outside of this
product is prohibited without a license from
Microsoft.
Bluetooth® Audio player
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are those
of their respective owners.
•Some Bluetooth® streaming audio de-
vices may not be recognized by the in-
vehicle audio system.
•It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
•The Bluetooth® streaming audio may be
stopped under the following conditions: – When receiving a hands-free call
– When checking the connection to the hands-free phone
– When connecting the hands-free phone or the audio device – When downloading a phonebook
memory from a connected cellular
phone
•Do not place a Bluetooth® streaming au-
dio device in an area surrounded by metal
or far away from the in-vehicle
Bluetooth® module to prevent tone qual-
ity degradation and wireless connection
disruption.
•While an audio device is connected
through Bluetooth® wireless connection,
the battery of the device may discharge
quicker than usual.
•This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP)
and Audio/Video Remote Control Profile
(AVRCP).
•Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band
(2.4 GHz). Using the Bluetooth® and the
wireless LAN functions at the same time
may slow down or disconnect the commu-
nication and cause undesired noise. It is
recommended that you turn off the wire-
less LAN (Wi-Fi) when using the
Bluetooth® functions.
Display screen, heater and air conditioner, and audio system4-63
