2018 INFINITI QX30 ESP

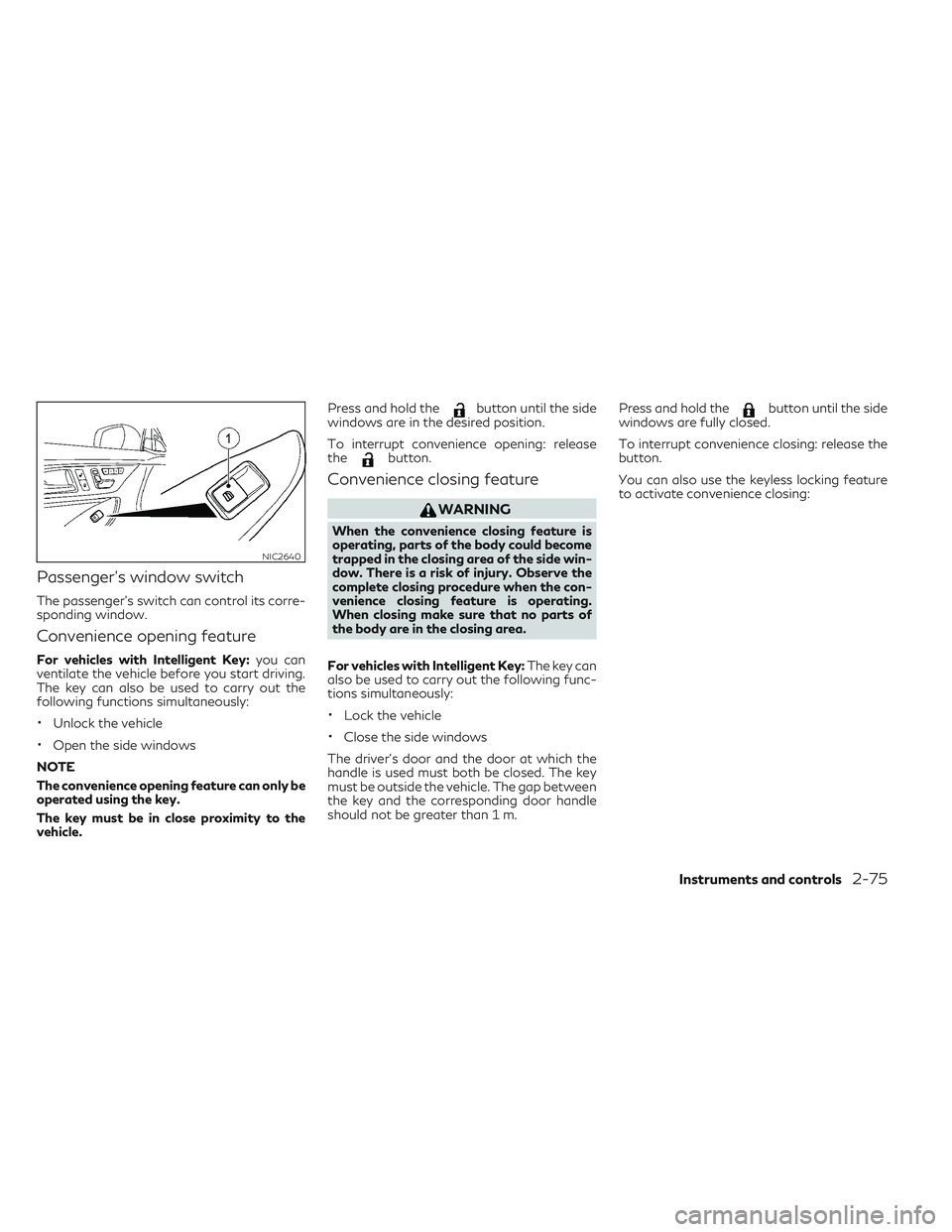

Passenger’s window switch
The passenger’s switch can control its corre-
sponding window.
Convenience opening feature
For vehicles with Intelligent Key:you can
ventilate the vehicle before you start driving.
The key can also be used to carry out the
following functions simultaneously:
•Unlock the vehicle
•Open the side windows
NOTE
The convenience opening feature can only be
operated using the key.
The key must be in close proximity to the
vehicle. Press and hold the
button until the side
windows are in the desired position.
To interrupt convenience opening: release
the
button.
Convenience closing feature
WARNING
When the convenience closing feature is
operating, parts of the body could become
trapped in the closing area of the side win-
dow. There is a risk of injury. Observe the
complete closing procedure when the con-
venience closing feature is operating.
When closing make sure that no parts of
the body are in the closing area.
For vehicles with Intelligent Key: The key can
also be used to carry out the following func-
tions simultaneously:
•Lock the vehicle
•Close the side windows
The driver's door and the door at which the
handle is used must both be closed. The key
must be outside the vehicle. The gap between
the key and the corresponding door handle
should not be greater than 1 m. Press and hold the
button until the side
windows are fully closed.
To interrupt convenience closing: release the
button.
You can also use the keyless locking feature
to activate convenience closing:
NIC2640
Instruments and controls2-75

Touch recessed sensor surface1on the
door handle until the side windows are fully
closed.
NOTE
Make sure you only touch recessed sensor
surface
1.
To interrupt convenience opening: release
the recessed sensor surface
1on the door
handle.
Resetting the side windows
If a side window can no longer be closed fully,
you must reset it.
1. Switch the ignition switch to the ON po- sition.
2. Close the door. 3. Pull the corresponding switch on the door
control panel until the side window is
completely closed
4. Hold the switch for an additional second.
If the side window opens again slightly:
1. Immediately pull the corresponding switch on the door control panel until the side
window is completely closed.
2. Hold the switch for an additional second.
3. If the corresponding side window remains closed after the button has been released,
the side window has been reset correctly.
If this is not the case, repeat the steps
above again.
If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
1Close
2Open
CAUTION
•Do not place heavy objects on the glass
roof or surrounding area.
•Do not hang from the sunshade or hang
any objects from it. It may cause damage
or deformation to the sunshade.
•Close the sunshade when you leave the
vehicle for extended periods of time to
prevent the inside of the vehicle from
reaching high temperatures.
SUNSHADE OPERATION
The sunshade operates only when the igni-
tion switch is in the ON position.
NPA1478NIC2646
FIXED GLASS ROOF (IF EQUIPPED)
2-76Instruments and controls

PARCEL SHELF
WARNING
•Never put anything on the parcel shelf,
no matter how small. Any object on it
could cause an injury in case of an acci-
dent or if the brakes are applied sud-
denly.
•Do not leave the parcel shelf in position
when it is disengaged from the grooves.
•Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury
•Properly secure cargo and do not allow
it to contact the top tether strap when it is attached to the top tether anchor.
Cargo that is not properly secured or
cargo that contacts the top tether strap
may damage the top tether strap during
a collision. If the cargo cover contacts
the top tether strap when it is attached
to the top tether anchor, remove the
cargo cover from the vehicle or secure it
on the cargo floor below its attachment
location. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child could
be seriously injured or killed in a collision
if the child restraint top tether strap is
damaged.
•Do not use the cargo cover if the rear
seats are folded down.
Removal
1. Open the lift gate (see "Lift gate lock" in the "2. Instruments and controls" section).
2. Detach both of the cords (left and right)
1from the inside of the lift gate.
3. Detach the parcel shelf
2by simply pull-
ing it rearwards through the lift gate
opening.
CAUTION
Make sure the parcel shelf is carefully
stored when not in use in order to prevent
any damage.
Installation
1. Open the lift gate.
2. Insert the parcel shelf by pushing it for- wards as far as possible through the lift
gate opening.
3. Attach the corresponding cords to each side
1of the lift gate.
4. Close the lift gate (see "Lift gate lock" in the "2. Instruments and controls" section).
ROOF RACK (IF EQUIPPED)
Genuine NISSAN accessory cross bars are
available through an INFINITI retailer. It is
recommended you visit an INFINITI retailer
for cross bar or other equipment information.
Always distribute the luggage evenly on the
cross bars. Do not load more than 221 lb
(100 kg) on the cross bars. Observe the maxi-
mum load limit shown on the crossbars or
roof carriers when you attach them on the
roof rails.
NIC2672
2-84Instruments and controls

Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be in-
stalled before applying load/cargo/luggage
to the roof of the vehicle.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear). The GVWR and GAWR are located
on the F.M.V.S.S. or C.V.M.S.S. certification
label (located on the driver’s door pillar). For
additional information, refer to "Vehicle load-
ing information" in the "10. Technical infor-
mation" section.
WARNING
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the roof
rack.
•Heavy loading of the roof rack has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
•Roof rack load should be evenly distrib-
uted.
•Do not exceed maximum roof rack load
weight capacity.
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
CAUTION
Always install the cross bars (if so
equipped) onto the roof side rails before
loading cargo of any kind. Loading cargo
directly onto the roof side rails or the vehi-
cle's roof may cause vehicle damage.
SKI HATCH (IF EQUIPPED)
To open the ski hatch:
1. Fold down rear seat armrest.
2. Pull the center head restraint on the rear bench seat into the uppermost position.
3. Slide locking mechanism
1in the direc-
tion of the arrow
4. Swing flap
2fully to the side. The flap is
held open by a magnet.
To close the ski hatch:
1. Swing flap
1in the luggage compart-
ment back until it engages.
2. Fold armrest fully up if necessary.
NIC2668
Instruments and controls2-85

When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.
WARNING
•Before opening any door, always look
for and avoid oncoming traffic.
•Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or move the
vehicle. Unattended children could be-
come involved in serious accidents.
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or death
to people and pets.
LOCKING WITH THE KEY
1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
If you do not open the vehicle within approxi-
mately 40 seconds of unlocking, the vehicle
will lock again and protection against theft is
reactivated.
To lock centrally, press button
1. The key
centrally locks:
•Doors
•Lift gate
•Fuel filler lid
When unlocking, the turn signals flash once
When locking, they flash three times.
Intelligent Key
You can combine the Intelligent Key func-
tions with the functions of a conventional
key. Unlock the vehicle by using Intelligent
Key function, for instance, and lock it using
the
button on the key.
The driver's door and the door at which the
handle is used, must both be closed. The key
must be outside the vehicle. When locking or
unlocking with Intelligent Key, the distance
between the key and the corresponding door
handle must not be greater than 1 m.
NPA1493
DOORS
3-4Pre-driving checks and adjustments

You could therefore be locked out if:
•The vehicle is being pushed.
•The vehicle is being towed.
•The vehicle is being tested on a dynamom-
eter.
CHILD SAFETY REAR DOOR
LOCK
The child safety lock helps prevent doors
from being opened accidentally, especially
when small children are in the vehicle.
When the switch is in the LOCK
2position,
the rear door can only be opened from the
outside.
LIFT GATE LOCK
To open the lift gate, unlock it first with one
of the following operations, then push the
button
1.
•Push thebutton on the key or Intel-
ligent Key (if equipped). See "INFINITI In-
telligent Key system" later in this section.
•Unlock all the doors using the key.
To close the lift gate, pull it down until it
securely locks.
NIC2641NPA1479
Pre-driving checks and adjustments3-7

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are programmed for the vehicle. If another Intelligent Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
SymptomPossible cause Remedy
You cannot lock or unlock the vehicle using
the key The key battery is discharged or nearly dis-
charged:
•Vehicles without Intelligent Key:
try again to lock/unlock the
vehicle using the remote control function of the key. Point the tip
of the key at the driver's door handle from close range and press
the
/button.
If this does not work:
•Check the key battery (see "Checking the battery" in the "8.
Do-it-yourself" section) and replace it necessary
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
There is interference from a powerful source
of radio waves
•Vehicles without Intelligent Key: try again to lock/unlock the
vehicle using the remote control function of the key. Point the tip
of the key at the driver's door handle from close range and press
the
/button.
If this does not work:
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
The key is faulty
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
•Have the key checked. It is recommended you visit an INFINITI
retailer for this service.
3-12Pre-driving checks and adjustments

4. Engage reverse gear. The exterior mirroron the front-passenger side moves to the
preset parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
6. Press memory button M
4and one of the
arrows on adjustment button
3within
three seconds. The parking position is
stored if the exterior mirror does not
move.
7. If the mirror moves out of position, repeat the steps. Calling up a stored parking position:
1. Switch the ignition switch to the ON po-
sition.
2. Adjust the exterior mirror on the front passenger side with the corresponding
button.
3. Engage reverse gear. The exterior mirror on the front-passenger side moves to the
stored parking position
The exterior mirror on the front-passenger
side moves back to its original position:
•As soon as you exceed a speed of 15 km/h.
•About ten seconds after you have disen-
gaged reverse gear.
•If you press button1for the exterior
mirror on the driver's side.
WARNING
•If you use the memory function on the
driver's side while driving, the adjust-
ments could cause you to lose control of
the vehicle. There is a risk of an accident.
Only use the memory function on the
driver's side while the vehicle is station-
ary.
Only use the memory function on the
driver's side while the vehicle is station-
ary.
•If the memory function adjusts the seat,
you and other vehicle occupants-
particularly children-could become
trapped. There is a risk of injury.
While the memory function is making
adjustments, make sure that no one has
any part of their body within the sweep
NIC2637
MEMORY FUNCTION (IF EQUIPPED)
Pre-driving checks and adjustments3-21
