2018 INFINITI QX30 stop start

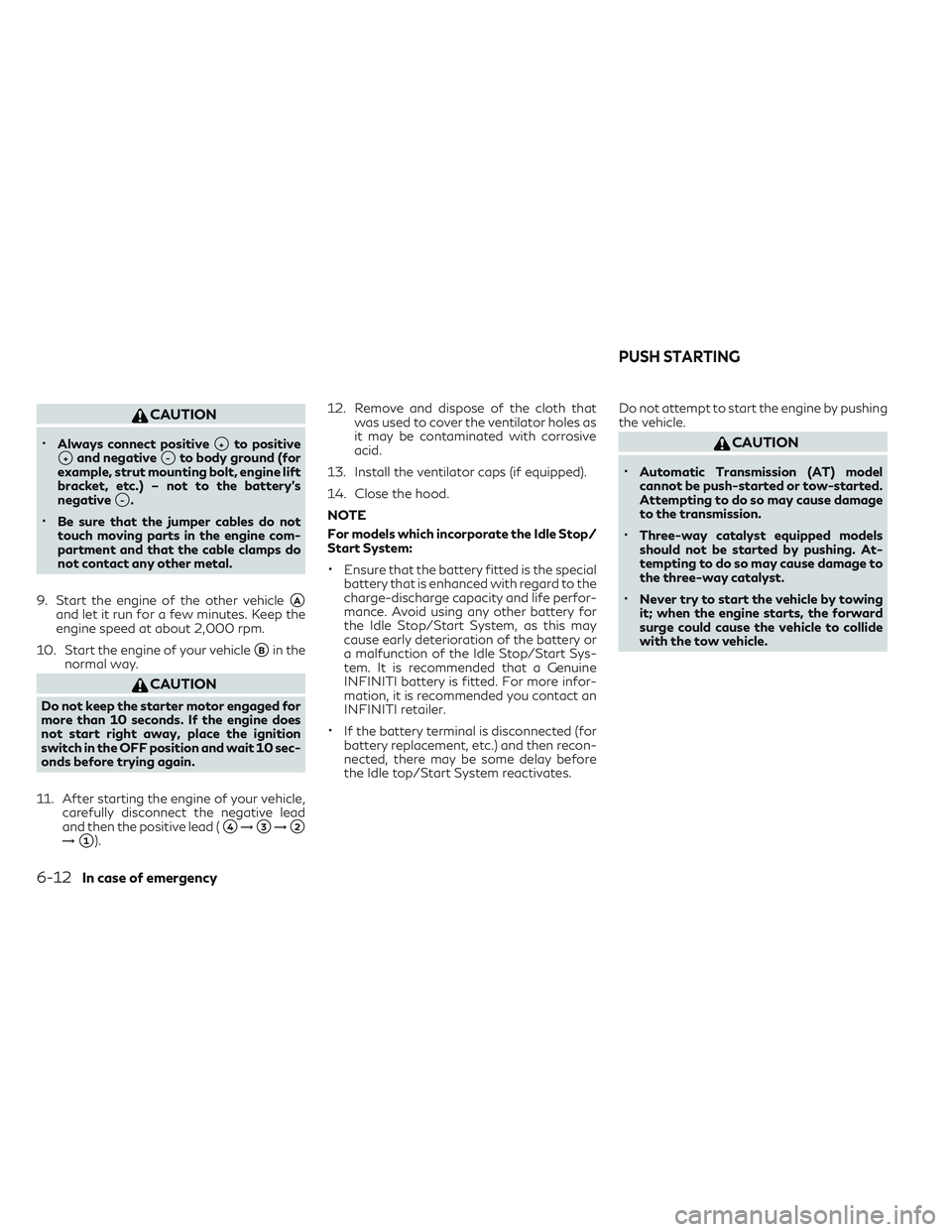

CAUTION
•Always connect positive+to positive
+and negative-to body ground (for
example, strut mounting bolt, engine lift
bracket, etc.) – not to the battery's
negative
-.
•Be sure that the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.
9. Start the engine of the other vehicle
Aand let it run for a few minutes. Keep the
engine speed at about 2,000 rpm.
10. Start the engine of your vehicle
Bin the
normal way.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 10 sec-
onds before trying again.
11. After starting the engine of your vehicle, carefully disconnect the negative lead
and then the positive lead (
4→3→2→1). 12. Remove and dispose of the cloth that
was used to cover the ventilator holes as
it may be contaminated with corrosive
acid.
13. Install the ventilator caps (if equipped).
14. Close the hood.
NOTE
For models which incorporate the Idle Stop/
Start System:
•Ensure that the battery fitted is the special
battery that is enhanced with regard to the
charge-discharge capacity and life perfor-
mance. Avoid using any other battery for
the Idle Stop/Start System, as this may
cause early deterioration of the battery or
a malfunction of the Idle Stop/Start Sys-
tem. It is recommended that a Genuine
INFINITI battery is fitted. For more infor-
mation, it is recommended you contact an
INFINITI retailer.
•If the battery terminal is disconnected (for
battery replacement, etc.) and then recon-
nected, there may be some delay before
the Idle top/Start System reactivates. Do not attempt to start the engine by pushing
the vehicle.
CAUTION
•Automatic Transmission (AT) model
cannot be push-started or tow-started.
Attempting to do so may cause damage
to the transmission.
•Three-way catalyst equipped models
should not be started by pushing. At-
tempting to do so may cause damage to
the three-way catalyst.
•Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
PUSH STARTING
6-12In case of emergency

WARNING
•Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
•To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is hot.
When the radiator or coolant reservoir
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.
•Do not open the hood if steam is coming
out.
If the engine of your vehicle is overheating
(indicated by the engine coolant temperature
gauge) or if you feel a lack of engine power,
detect unusual noise, etc., proceed as fol-
lows:
1. Move and park the vehicle safely off the road and away from traffic.
2. Turn on the hazard warning flasher lights.
3. Apply the parking brake.
4. Press the P (Park) button. DO NOT STOP THE ENGINE.
5. Open all windows. 6. Switch off the air conditioner system (if
equipped).
7. Set the heater or air conditioner tempera- ture control to maximum “HOT” and fan
speed control to maximum speed.
8. Exit the vehicle.
9. Visually inspect and listen for steam or coolant escaping from the radiator before
opening the hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
10. Open the hood. For details, see "Hood" in the "3. Pre-driving checks and adjust-
ments" section.
11. Visually check if the cooling fan is run- ning.
12. Visually check the radiator and radiator hoses for leakage.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
13. After the engine cools down, check the coolant level in the engine coolant reser-
voir with the engine running. Do not
open the radiator cap (if equipped).
14. If the level is low, remove the engine coolant reservoir cap and add coolant
slowly into the reservoir. After refilling
the reservoir to the MAX level, install the
reservoir cap.
15. Close the hood.
Have your vehicle inspected or repaired. It is
recommended you visit an INFINITI retailer.
IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

Two-Wheel Drive (FWD) models
CAUTION
NEVER tow automatic transmission (DCT)
models with the front wheels on the
ground or with all four wheels on the
ground (forwards or backwards), as this
may cause serious and expensive damage
to the transmission. If it is necessary to tow
the vehicle with the rear wheels raised, al-
ways use towing dollies under the front
wheels.
Four-Wheel Drive (4WD) models
INFINITI recommends that towing dollies be
used under the front or rear wheels when
towing your vehicle or the vehicle be placed
on a flatbed tow truck as illustrated.
CAUTION
Never tow 4WD models with any of the
wheels on the ground. Doing so will cause
serious and expensive damage to the
drivetrain.
Vehicle recovery (freeing a stuck
vehicle)
WARNING
To avoid vehicle damage, serious personal
injury or death when recovering a stuck ve-
hicle:
•Contact a professional towing service to
recover the vehicle if you have any ques-
tions regarding the recovery procedure.
•Tow chains or cables must be attached
only to main structural members of the
vehicle.
•Do not use the vehicle tie downs to tow
or free a stuck vehicle.
•Only use devices specifically designed
for vehicle recovery and follow the
manufacturer's instructions.
•Always pull the recovery device straight
out from the front of the vehicle. Never
pull at an angle.
•Route recovery devices so they do not
touch any part of the vehicle except the
attachment point.
•On vehicles with a push button ignition
switch: you must remove the start/stop
NCE450
4WD models
In case of emergency6-15

8 Do-it-yourself
Maintenance precautions.................8-2
Engine compartment check locations .........8-3
2.0L Gasoline engine ................ .8-3
Engine cooling system .................. .8-3
Checking engine coolant level ............8-4
Changing engine coolant ...............8-4
Engine oil .......................... .8-5
Checking engine oil level ...............8-5
Changing engine oil ................. .8-5
Changing engine oil filter ...............8-6
Automatic Transmission Fluid (ATF) ..........8-7
Brake fluid ......................... .8-7
Window washer fluid .................. .8-8
Battery ........................... .8-9
Accessing Vehicle battery ..............8-10
Maintenance free battery ..............8-10
Models with Idle Stop/Start System .......8-11
Battery replacement ................ .8-11
Reinitialisation procedure after battery
reconnection ..................... .8-12
Jump-starting .................... .8-12
Drive belt ......................... .8-12
Spark plugs ........................ .8-13
Air cleaner filter ..................... .8-13
Wiper blades ....................... .8-13Cleaning
........................ .8-13
Replacing front window wiper blades ......8-14
Replacing rear window wiper blade .......8-16
Brakes ........................... .8-17
Self-adjusting brakes ................ .8-17
Fuses ............................ .8-17
Before replacing a fuse ...............8-17
Engine compartment ................ .8-17
Passenger compartment ..............8-18
Intelligent Key battery replacement ........
.8-20
Checking

the battery ................ .8-20
Replacing the battery ............... .8-20
Lights ........................... .8-22
Exterior and interior lights ..............8-22
Replacement procedures ..............8-24
Wheels and tires ..................... .8-27
Tire Pressure ..................... .8-27
Tire inflation pressure ............... .8-29
Tire labeling ..................... .8-29
Types of tires ..................... .8-31
Tire chains ...................... .8-32
Tire wear and damage ............... .8-33
Tire rotation ..................... .8-34
Replacing wheels and tires .............8-34
Wheel balance .................... .8-35

CAUTION
•Be sure to remove any old gasket mate-
rial remaining on the sealing surface of
the engine. Failure to do so could lead to
an oil leak and engine damage.
•The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw on the oil filter until a slight resis- tance is felt, then tighten an additional
2/3 turn.
Engine oil filter tightening torque: 19 ft-lb,
25 N•m
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil if necessary. It is recommended that you visit an INFINITI
retailer if checking or replacement is required.
CAUTION
•Use only Shell DCT-M1 or equivalent.
Do not mix with other fluids.
•Using automatic transmission fluid
other than Shell DCT-M1 may cause de-
terioration in driveability and automatic
transmission durability, and may dam-
age the automatic transmission. Dam-
age caused by the use of fluids other
than as recommended is not covered by
the warranty.
WARNING
•Use only new fluid. Old, inferior, or con-
taminated fluid may damage the brake
systems. The use of improper fluids can
damage the brake system and affect the
vehicle's stopping ability.
•Clean the filler cap before removing.
•Brake fluid is poisonous and should be
stored carefully in marked containers
out of the reach of children.
CAUTION
•Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is
spilled, wash with water.
NDI1599
AUTOMATIC TRANSMISSION FLUID
(ATF) BRAKE FLUID
Do-it-yourself8-7

MODELS WITH IDLE
STOP/START SYSTEM
•Ensure that the battery fitted is the special
battery that is enhanced with regard to the
charge-discharge capacity and life perfor-
mance. Avoid using any other battery for
the Idle Stop/Start System, as this may
cause early deterioration of the battery or
a malfunction of the Idle Stop/Start Sys-
tem. It is recommended that a Genuine
INFINITI battery is fitted. For more infor-
mation, it is recommended that you con-
tact an INFINITI retailer.
•If the battery terminal is disconnected (for
battery replacement, etc.) and then recon-
nected, there may be some delay before
the Stop/Start System reactivates.
BATTERY REPLACEMENT
It is recommended that a Genuine INFINITI
battery is fitted. It is recommended that you
visit an INFINITI retailer for this service.
Protective plate for battery
WARNING
Whenever the battery is replaced, always
have the protective plate underneath the
battery also reinstalled or replaced. If this
plate is not reinstalled/replaced, in the
event of a collision a thermal incident could
occur, causing vehicle damage and poten-
tially causing serious injury of death.
If the vehicle battery is replaced, the protec-
tive plate underneath the battery must also
be replaced. This protective plate must be
fixed to the underside of the replacement
battery using the adhesive tape supplied with
the replacement plate. It is recommended
that you visit an INFINITI retailer to purchase
and replace the protective plate underneath
the battery. 1. Make sure the underside of the replace-
ment battery is dry and free of dust.
2. Remove the backing strips
1from the
adhesive strips.
3. Fix the protective plate to the underside of the battery without any overlap
2.
NDI1634
Do-it-yourself8-11

Replace the spark plugs according to the
maintenance schedule shown in a separate
maintenance booklet.
If replacement is required, it is recommended
that you visit an INFINITI retailer.
Always replace spark plugs with recom-
mended or equivalent ones.
WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
•Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can cause damage to the spark
plugs. It is recommended that you visit an INFINITI
retailer if checking or replacement is required.
WARNING
•Operating the engine with the air
cleaner filter off can cause you or others
to be burned. The air cleaner filter not
only cleans the intake air, it also stops
the flame if the engine backfires. If the
air cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when
the air cleaner is off.
•Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
CLEANING
If the windshield or rear window is not clear
after using the window washer or if a wiper
blade chatters when running, wax or other
material may be on the blade or windshield.
Clean the outside of the windshield or rear
window with a washer solution or a mild
detergent. The windshield or rear window is
clean if beads do not form when rinsing with
clear water.
Clean the blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
the windshield or rear window is still not clear
after cleaning the blades and using the wiper,
replace the blades.
CAUTION
Worn windshield wiper blades can damage
the windshield and impair driver vision.
SPARK PLUGS AIR CLEANER FILTERWIPER BLADES
Do-it-yourself8-13

Checking.....................8-4
Coolant level .................8-4
Engine oil level ................8-5
Child restraints .................1-19
Anchorage ..................1-23
ISOFIX installation .............1-24
Precautions .................1-20
Childsafety...................1-17 Rear door locks ................3-7
Cleaning ......................7-3
Alloy wheels ..................7-3
Chromeparts.................7-3
Exterior ....................7-2
Glass......................7-3
Interior.....................7-4
Leatherseatcovers.............7-6
Removing spots ...............7-3
Seat belts ...................7-5
Underbody ..................7-3
Washing ....................7-2
Waxing .....................7-2
Clock.......................2-77 Adjusting time ................2-77
Coat hooks ...................2-81
Cockpit......................0-6 Overview ................0-6,2-2
Cold weather ..................5-97
Battery....................5-97
Drivingonsnoworice...........5-98
Engine coolant ...............5-97
Precautions .................5-97 Special equipment
.............5-98
Tire equipment ...............5-97
Compact Disc (CD) ..............4-71
Player ................4-71,4-127
Compartment .................2-87
Connecting ...................4-90
Bluetooth® device .............4-90
Bluetooth® Hands-Free Phone .....4-88
Coolant .....................10-2
Capacities ..................10-2
Changing engine coolant ..........8-4
Checking coolant level ...........8-4
Cold weather ................5-97
Engine cooling system ...........8-3
Temperature gauge .............2-6
Corrosionprotection..............7-7 Environmental factors ............7-7
Cruisecontrol .................5-46 Canceling ..................5-48
Operation ..................5-47
Cupholders ..................2-80
Customer assistance ............4-124
D
Defroster....................2-63
Switch ....................2-63
Dimensions...................10-9 Engine ....................10-7
Tires.....................10-8 Display .....................
2-70
Brightness.................. 2-70
Vehicle information display ........2-15
Warningsandindicators ......... 2-29
Doors .......................3-7
Liftgate....................3-7
Locking key ..................3-5
Locks .....................3-4
Map pocket ................. 2-83
Drive belts ....................8-12
Driving ......................5-20
Automatic Transmission .........5-20
Coldweather................5-97
Idle Stop/Start System ..........5-29
Onsnoworice...............5-98
Precautions..................5-4
E
Emergency key ..................3-2
Engine ......................5-18
Before starting ............... 5-18
Changing engine coolant ..........8-4
Changing engine oil .............8-5
Changing oil filter ..............8-6
Checking coolant level ...........8-4
Checking engine oil level ..........8-5
Coldweather................5-97
Compartment .............0-9,8-3
Coolingsystem................8-3
11-2Index
