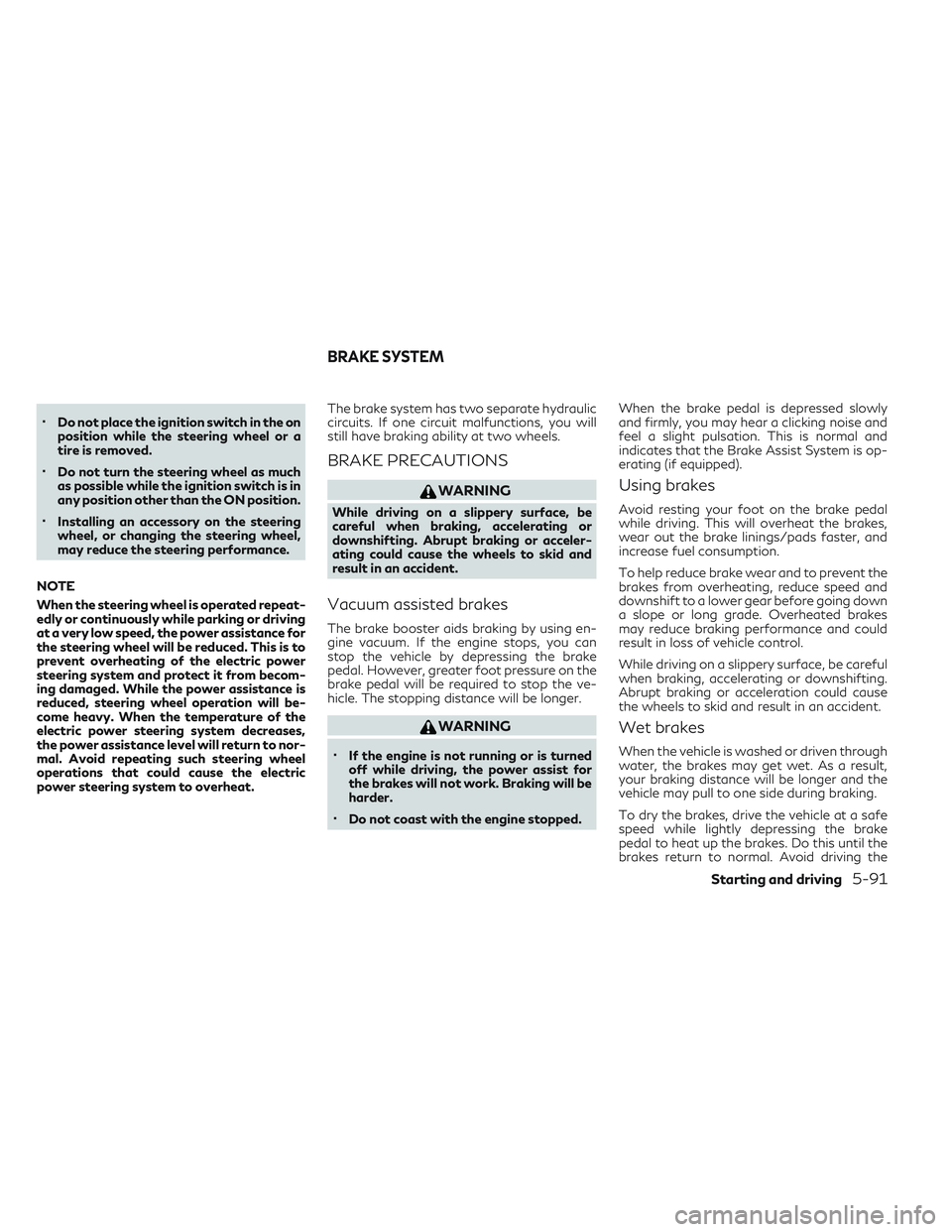

•Do not place the ignition switch in the on
position while the steering wheel or a
tire is removed.
•Do not turn the steering wheel as much
as possible while the ignition switch is in
any position other than the ON position.
•Installing an accessory on the steering
wheel, or changing the steering wheel,
may reduce the steering performance.
NOTE
When the steering wheel is operated repeat-
edly or continuously while parking or driving
at a very low speed, the power assistance for
the steering wheel will be reduced. This is to
prevent overheating of the electric power
steering system and protect it from becom-
ing damaged. While the power assistance is
reduced, steering wheel operation will be-
come heavy. When the temperature of the
electric power steering system decreases,
the power assistance level will return to nor-
mal. Avoid repeating such steering wheel
operations that could cause the electric
power steering system to overheat. The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will
still have braking ability at two wheels.
BRAKE PRECAUTIONS
WARNING
While driving on a slippery surface, be
careful when braking, accelerating or
downshifting. Abrupt braking or acceler-
ating could cause the wheels to skid and
result in an accident.
Vacuum assisted brakes
The brake booster aids braking by using en-
gine vacuum. If the engine stops, you can
stop the vehicle by depressing the brake
pedal. However, greater foot pressure on the
brake pedal will be required to stop the ve-
hicle. The stopping distance will be longer.
WARNING
•If the engine is not running or is turned
off while driving, the power assist for
the brakes will not work. Braking will be
harder.
•Do not coast with the engine stopped. When the brake pedal is depressed slowly
and firmly, you may hear a clicking noise and
feel a slight pulsation. This is normal and
indicates that the Brake Assist System is op-
erating (if equipped).
Using brakes
Avoid resting your foot on the brake pedal
while driving. This will overheat the brakes,
wear out the brake linings/pads faster, and
increase fuel consumption.
To help reduce brake wear and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down
a slope or long grade. Overheated brakes
may reduce braking performance and could
result in loss of vehicle control.
While driving on a slippery surface, be careful
when braking, accelerating or downshifting.
Abrupt braking or acceleration could cause
the wheels to skid and result in an accident.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result,
your braking distance will be longer and the
vehicle may pull to one side during braking.
To dry the brakes, drive the vehicle at a safe
speed while lightly depressing the brake
pedal to heat up the brakes. Do this until the
brakes return to normal. Avoid driving the
BRAKE SYSTEM
Starting and driving5-91

vehicle at high speeds until the brakes func-
tion correctly.
Driving uphill
When starting on a steep gradient, it is some-
times difficult to operate the brake. Use the
parking brake to hold the vehicle. When ready
to start, make sure that the shift lever is in an
appropriate forward or reverse driving posi-
tion, release the parking brake while depress-
ing the accelerator pedal. If your vehicle has
an electric parking brake, this will automati-
cally release when you depress the accelera-
tor pedal (DCT models).
Driving downhill
The engine braking action is effective for
controlling the vehicle while descending hills.
A low gear position in the manual shift mode,
low enough to obtain sufficient engine brak-
ing, should be selected.
Parking brake break-in
Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or drums/rotors are replaced, in
order to assure the best braking perfor-
mance.This procedure is described in the vehicle ser-
vice manual and can be performed by an
INFINITI retailer.
ANTI-LOCK BRAKING SYSTEM
(ABS)
WARNING
The Anti-lock Braking System (ABS) is a
sophisticated device, but it cannot prevent
accidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking on
slippery surfaces. Remember that stopping
distances on slippery surfaces will be lon-
ger than on normal surfaces even with
ABS. Stopping distances may also be lon-
ger on rough, gravel or snow covered
roads, or if you are using tire chains. Al-
ways maintain a safe distance from the ve-
hicle in front of you. Ultimately, the driver
is responsible for safety.
Tire type and condition may also affect
braking effectiveness.
– When replacing tires, install the specified
size of tires on all four wheels.
– When installing a replacement tire, make
sure that it is the proper size and type as
specified on the tire and loading informa- tion label. (See "Wheels and Tires" in the
"9. Maintenance and Schedules" section.)
– For detailed information, see "Wheels and
tires" in the "8. Do-it-yourself" section.
The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during
hard braking or when braking on slippery sur-
faces. The system detects the rotation speed
at each wheel and varies the brake fluid pres-
sure to prevent each wheel from locking and
sliding. By preventing each wheel from lock-
ing, the system helps the driver maintain
steering control and helps to minimize swerv-
ing and spinning on slippery surfaces.
Using system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid ob-
stacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
5-92Starting and driving

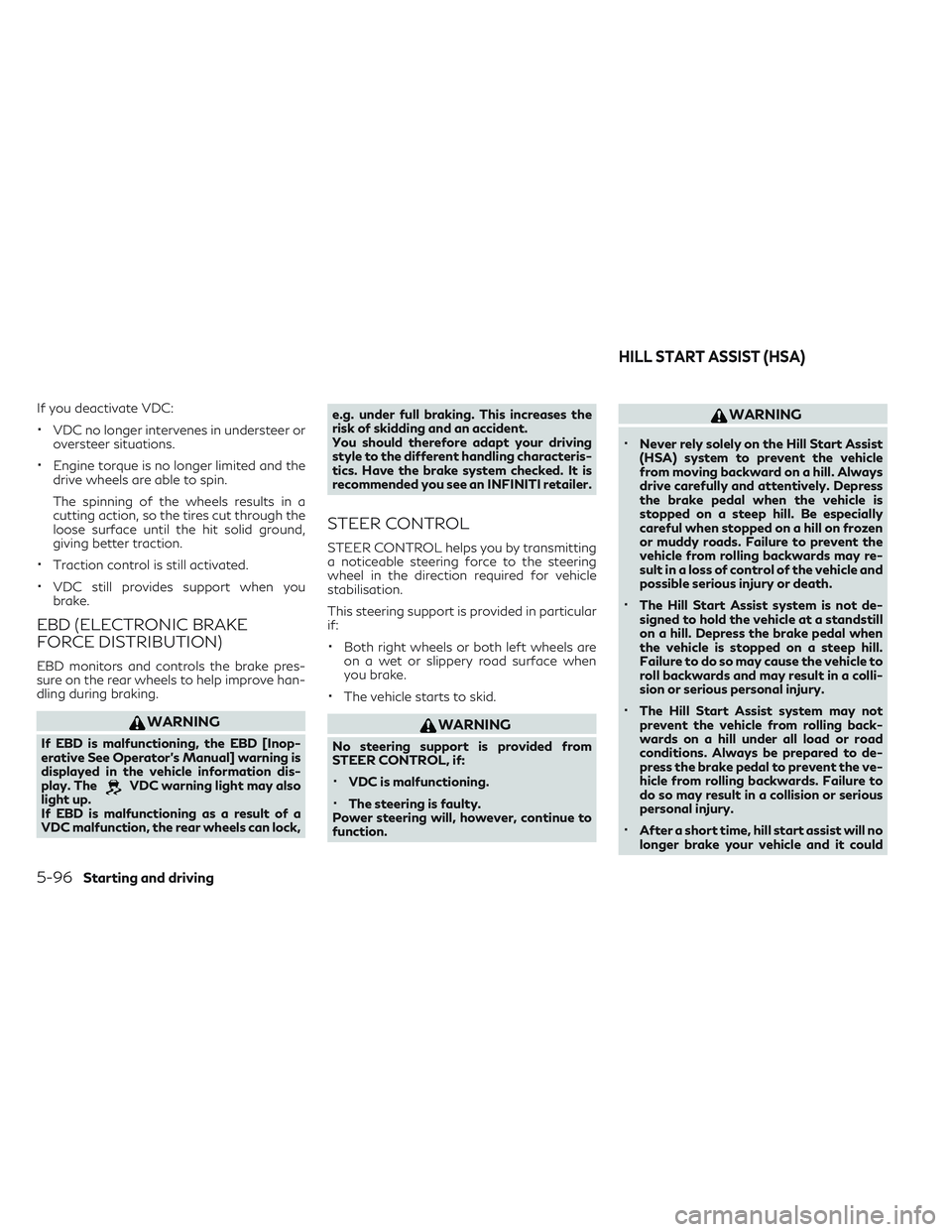

If you deactivate VDC:
•VDC no longer intervenes in understeer or
oversteer situations.
•Engine torque is no longer limited and the
drive wheels are able to spin.
The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.
•Traction control is still activated.
•VDC still provides support when you
brake.
EBD (ELECTRONIC BRAKE
FORCE DISTRIBUTION)
EBD monitors and controls the brake pres-
sure on the rear wheels to help improve han-
dling during braking.
WARNING
If EBD is malfunctioning, the EBD [Inop-
erative See Operator's Manual] warning is
displayed in the vehicle information dis-
play. The
VDC warning light may also
light up.
If EBD is malfunctioning as a result of a
VDC malfunction, the rear wheels can lock, e.g. under full braking. This increases the
risk of skidding and an accident.
You should therefore adapt your driving
style to the different handling characteris-
tics. Have the brake system checked. It is
recommended you see an INFINITI retailer.
STEER CONTROL
STEER CONTROL helps you by transmitting
a noticeable steering force to the steering
wheel in the direction required for vehicle
stabilisation.
This steering support is provided in particular
if:
•Both right wheels or both left wheels are
on a wet or slippery road surface when
you brake.
•The vehicle starts to skid.
WARNING
No steering support is provided from
STEER CONTROL, if:
•VDC is malfunctioning.
•The steering is faulty.
Power steering will, however, continue to
function.
WARNING
•Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle
from moving backward on a hill. Always
drive carefully and attentively. Depress
the brake pedal when the vehicle is
stopped on a steep hill. Be especially
careful when stopped on a hill on frozen
or muddy roads. Failure to prevent the
vehicle from rolling backwards may re-
sult in a loss of control of the vehicle and
possible serious injury or death.
•The Hill Start Assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Failure to do so may cause the vehicle to
roll backwards and may result in a colli-
sion or serious personal injury.
•The Hill Start Assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to de-
press the brake pedal to prevent the ve-
hicle from rolling backwards. Failure to
do so may result in a collision or serious
personal injury.
•After a short time, hill start assist will no
longer brake your vehicle and it could
HILL START ASSIST (HSA)
5-96Starting and driving

drive at a reduced speed, otherwise, your
vehicle may be damaged and/or vehicle
handling and performance may be ad-
versely affected.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during the winter:
•A scraper and stiff-bristled brush to re-
move ice and snow from the windows.
•A sturdy, flat board to be placed under the
jack to give it firm support.
•A shovel to dig the vehicle out of snow-
drifts.
•Extra washer fluid to refill the windshield
washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
•Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or sanded.
•Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.
•Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
•Allow greater following distances on
slippery roads.
•Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
•Do not use cruise control on slippery
roads.
•Snow can trap dangerous exhaust gas
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.
5-98Starting and driving

6 In case of emergency
Hazard warning flasher switch.............6-2
Flat tire ........................... .6-2
Tire Pressure Monitoring System (TPMS) .....6-2
Stopping vehicle .................... .6-3
Warning triangle (if equipped) ............6-4
Run-flat tires ...................... .6-4Removing and fitting wheels
.............6-5
Jump starting ...................... .6-10
Push starting ....................... .6-12
If your vehicle overheats ................ .6-13
Towing your vehicle .................. .6-14
Towing recommended by INFINITI ........6-14

function and the low tire pressure warn-
ing light will flash for approximately 1
minute. The light will remain on after 1
minute. It is recommended you Contact
an INFINITI retailer as soon as possible
for tire replacement and/or system re-
setting.
•Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
•If you used Emergency Tire Sealant to
repair a minor tire puncture, the TPMS
sensor should be checked when repair-
ing or replacing the tire. It is recom-
mended you visit an INFINITI retailer for
this service.
The Tire Pressure Monitoring System (TPMS)
monitors tire pressure of all tires. When the
low tire pressure warning light is lit, and a tire
pressure-related warning (if equipped) ap-
pears in the vehicle information display, one
or more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and
warn you of it by the low tire pressure warn-
ing light (in the meter panel). This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h). For more details about the TPMS, see "Tire
Pressure Monitoring System (TPMS)" in the
"5. Starting and driving" section.
STOPPING VEHICLE
WARNING
•Be sure to apply the parking brake
firmly.
•Be sure that P (Park) is engaged.
•Never change tires when the vehicle is
on a slope, ice or slippery area. This is
hazardous.
•Never change tires when the oncoming
traffic is close to your vehicle. Call for
professional road assistance.
1. Safely move the vehicle off the road away from traffic.
2. Turn on the hazard indicator flasher lights.
3. Park on a level surface.
4. Apply the parking brake.
5. Press the P (Park) button.
6. Turn off the engine. 7. Open the hood and set up the triangle
reflector (if equipped):
•To warn other traffic.
•To signal professional road assistance
personnel that you need assistance.
8. Have all passengers get out of the vehicle and stand in a safe place, away from
other traffic and clear of the vehicle.
In case of emergency6-3

In addition to the vehicle load, the driving
distance possible depends upon:
•Vehicle speed.
•Road condition.
•Outside temperature.
The driving distance possible in run-flat mode
may be reduced by extreme driving
conditions/maneuvers, or it can be increased
through a moderate style of driving.
The driving distance possible in run-flat mode
is counted from the moment the tire pressure
loss warning appears in the vehicle informa-
tion display.
You must not exceed a maximum speed of 50
MPH (80 km/h).
When replacing one or all tires, observe the
following specifications for your vehicle's
tires:
•Size
•Type
•Run-flat mark
If a tire has gone flat and cannot be replaced
with a run flat tire, a standard tire may be
used as a temporary measure. Make sure that
you use the proper size and type (summer or
winter tire).
WARNING
Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneu-
vers, and driving over obstacles (curbs, pot
holes, off road). This applies in particular to
a laden vehicle.
Stop driving in emergency mode if:
•You hear banging noises.
•The vehicle starts to shake.
•You see smoke and smell rubber.
•VDC is intervening constantly.
•There are tears in the sidewalls of the
tire.
After driving in emergency mode, have the
wheel rims checked with regard to their
further use. It is recommended you visit an
INFINITI retailer for this service. The faulty
tire must be replaced.
REMOVING AND FITTING
WHEELS
NOTE
A spare wheel is not provided with your ve-
hicle.
Blocking the wheels
WARNING
Make sure to block the appropriate wheel
to prevent the vehicle from moving, which
may cause personal injury.
Place suitable blocks
1in front of and be-
hind the wheel diagonally opposite the flat
tire
Ato prevent the vehicle from moving
when it is on the jack.
MCE0001DZ
In case of emergency6-5

Removing the wheel
WARNING
•The jack must be placed on firm level
ground. Failure to observe this instruc-
tion could result in vehicle damage, or
serious injury or death.
•Make sure to read the caution label at-
tached to the jack body before use.
•DO NOT GET UNDER A VEHICLE THAT
IS SUPPORTED BY A JACK.
•Never use a jack which was not designed
for your vehicle.
•Use the correct jacking points. Never
use any other part of the vehicle for jack
support.
•Never lift the vehicle more than neces-
sary.
•Never use blocks on or under the jack.
•Do not start or run the engine while the
vehicle is on the jack. The vehicle may
move suddenly, and this may cause an
accident.
•Never allow passengers to stay in the
vehicle while the tire is off the ground.
•Remove all loads before lifting the ve-
hicle with the jack.
NOTE
A jack and rod are not provided as standard
equipment with your vehicle. These parts are
dealer options. It is recommended that you
contact an INFINITI retailer for more infor-
mation about obtaining these parts. 1.
Vehicles without intelligent key: Remove
the key from the ignition lock.
Vehicles with a push button ignition
switch: remove the start/stop button
from the ignition lock (see " Push-button
ignition switch (if equipped)" in the "5.
Starting and driving" section).
2. Place the jack directly under the jack-up point as illustrated so that the top of the
jack contacts the vehicle at the jack-up
point.
The jack must be placed on firm level
ground.
NCE453NCE447
Jack-up points
6-6In case of emergency
