2018 INFINITI QX30 engine

Cruise control.......................5-46
Cruise control operations..............5-47
Intelligent Cruise Control (ICC) system
(Full speed range) (if equipped)............5-49
ICC system operation................5-50
ICC switch (cruise control lever)..........5-51
ICC system display and indicators.........5-52
Operating ICC.....................5-53
ICC Limitations....................5-56
Tips for driving with the ICC system.......5-58
System temporarily unavailable..........5-60
System maintenance.................5-62
Forward emergency braking (FEB) system
(if equipped)........................5-62
FEB system operation................5-63
Turning the FEB system on/off..........5-66
FEB system limitations................5-67
System temporarily unavailable..........5-67
System maintenance.................5-68
FCC Notice.......................5-69
Active sound enhancement...............5-69
Active sound enhancement.............5-70
Intelligent Parking Assist (IPA) (if equipped). . . .5-70
Important safety notes...............5-70
Detecting parking spaces..............5-71
Parking.........................5-73
Exiting a parking space...............5-74Canceling IPA.....................5-75
Camera Aiding Sonar (parking sensor) function
(if equipped)........................5-76
Sonar function overview...............5-77
Range of the sensors.................5-81
Sonar function OFF switch.............5-81
Sonar function settings...............5-82
Sonar function limitations..............5-82
Problems with sonar function...........5-83
System maintenance.................5-84
Break-in schedule.....................5-84
Fuel efficient driving tips................5-85
Increasing fuel economy.................5-86
Four-Wheel Drive (4WD) (if equipped)........5-86
Parking...........................5-87
Switching off the engine..............5-88
Extended parking...................5-89
Electric power steering system............5-89
Brake system........................5-90
Brake precautions..................5-90
Anti-lock Braking System (ABS)..........5-91
Vehicle Dynamic Control (VDC) system.......5-92
Traction Control System (TCS)..........5-94
Characteristics of VDC...............5-94
EBD (electronic brake force distribution). . . .5-95
Steer Control......................5-95
Hill Start Assist (HSA)..................5-95

Cold weather driving...................5-96
Freeing a frozen door lock.............5-96
Antifreeze........................5-96
Battery..........................5-96Draining of engine coolant.............5-96
Tire equipment.....................5-96
Special winter equipment..............5-97
Driving on snow or ice................5-97

WARNING
•Never leave children or adults who
would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. They could un-
knowingly activate switches or controls
and inadvertently become involved in a
serious accident and injure themselves.
On hot, sunny days, temperatures in a
closed vehicle could quickly become high
enough to cause severe or possibly fatal
illness to people or animals.
•Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.
•To avoid raising the center of gravity
excessively, do not exceed the rated ca-
pacity of the roof rack (if so equipped)
and evenly distribute the load.
EXHAUST GAS (CARBON
MONOXIDE)
WARNING
•Do not breathe exhaust gas; it contains
colorless and odorless carbon monoxide.
Carbon monoxide is dangerous. It can
cause unconsciousness or death.
•If you suspect that exhaust fumes are
entering the vehicle, drive with all win-
dows fully open, and have the vehicle
inspected immediately.
•Do not run the engine in closed spaces
such as a garage.
•Do not park the vehicle with the engine
running for an extended period of time.
•Keep the lift gate closed while driving,
otherwise exhaust gas could be drawn
into the passenger compartment. If you
must drive with the lift gate open, fol-
low these precautions:
–Open all the windows.
–Turn the air recirculation switch off
and set the fan control to the highest
level to circulate the air.
•If electrical wiring or other cable con-
nections must pass to a trailer through
the seal ion the lift gate or body, follow
the manufacturer's recommendations
to prevent carbon monoxide entry into
the vehicle.
•The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
–You suspect that exhaust fumes are
entering into the passenger compart-
ment.
–You notice a change in the sound of
the exhaust system.
–You have had an accident involving
damage to the exhaust system, un-
derbody, or rear of the vehicle.
THREE-WAY CATALYST
(IF EQUIPPED)
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gas in the three-way catalyst is burned
at high temperatures to help reduce pollut-
ants.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-2Starting and driving

WARNING
•The exhaust gas and the exhaust system
are very hot. Keep people, animals and
flammable materials away from the ex-
haust system components.
•Do not stop or park the vehicle over
flammable materials such as dry grass,
wastepaper or rags. They may ignite
and cause a fire.
CAUTION
•Do not use leaded gasoline. (See "Rec-
ommended fluids/lubricants and ca-
pacities".) Deposits from leaded gaso-
line seriously reduce the ability of the
three-way catalyst to help reduce ex-
haust pollutants and/or damage the
three-way catalyst.
•Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems may cause overrich
fuel to flow into the three-way catalyst,
causing it to overheat. Do not keep driv-
ing if the engine misfires, or if noticeable
loss of performance or other unusual op-
erating conditions are detected. Have
the vehicle inspected promptly. It is rec-ommended you visit an INFINITI retailer
for this service.
•Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
•Do not race the engine while warming it
up.
•Do not push or tow your vehicle to start
the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if present),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of yourtires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your tires
as soon as possible, and inflate them to the
proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
Starting and driving5-3

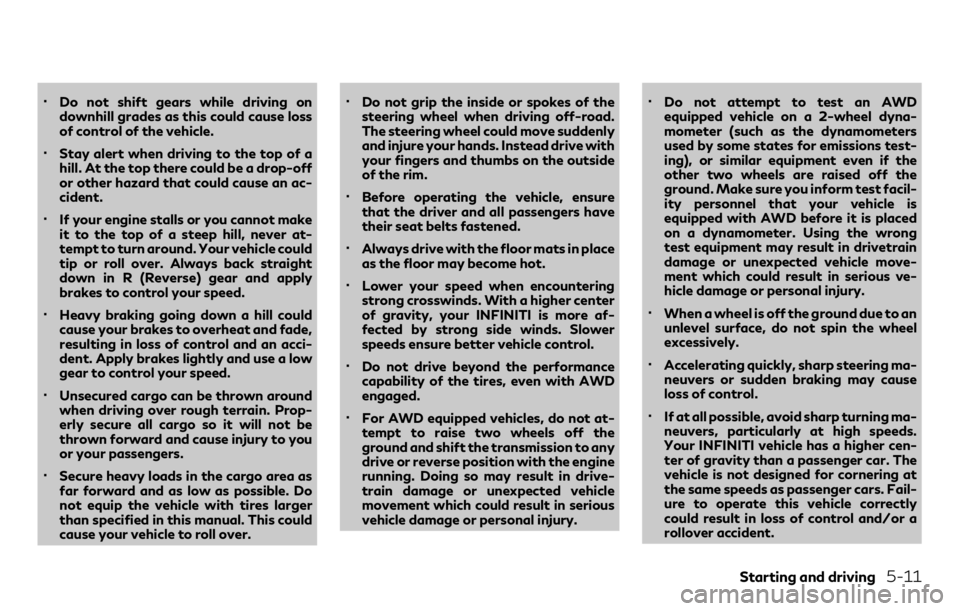

•Do not shift gears while driving on
downhill grades as this could cause loss
of control of the vehicle.
•Stay alert when driving to the top of a
hill. At the top there could be a drop-off
or other hazard that could cause an ac-
cident.
•If your engine stalls or you cannot make
it to the top of a steep hill, never at-
tempt to turn around. Your vehicle could
tip or roll over. Always back straight
down in R (Reverse) gear and apply
brakes to control your speed.
•Heavy braking going down a hill could
cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.
•Unsecured cargo can be thrown around
when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.
•Secure heavy loads in the cargo area as
far forward and as low as possible. Do
not equip the vehicle with tires larger
than specified in this manual. This could
cause your vehicle to roll over.
•Do not grip the inside or spokes of the
steering wheel when driving off-road.
The steering wheel could move suddenly
and injure your hands. Instead drive with
your fingers and thumbs on the outside
of the rim.
•Before operating the vehicle, ensure
that the driver and all passengers have
their seat belts fastened.
•Always drive with the floor mats in place
as the floor may become hot.
•Lower your speed when encountering
strong crosswinds. With a higher center
of gravity, your INFINITI is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.
•Do not drive beyond the performance
capability of the tires, even with AWD
engaged.
•For AWD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
drive or reverse position with the engine
running. Doing so may result in drive-
train damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
•Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drivetrain
damage or unexpected vehicle move-
ment which could result in serious ve-
hicle damage or personal injury.
•When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.
•Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause
loss of control.
•If at all possible, avoid sharp turning ma-
neuvers, particularly at high speeds.
Your INFINITI vehicle has a higher cen-
ter of gravity than a passenger car. The
vehicle is not designed for cornering at
the same speeds as passenger cars. Fail-
ure to operate this vehicle correctly
could result in loss of control and/or a
rollover accident.
Starting and driving5-11

•Always use tires of the same type, size,
brand, construction (bias, bias-belted,
or radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
•Be sure to check the brakes immediately
after driving in mud or water. .
•Avoid parking your vehicle on steep hills.
If you get out of the vehicle and it rolls
forward, backward or sideways, you
could be injured.
•Whenever you drive off-road through
sand, mud or water as deep as the wheel
hub, more frequent maintenance may be
required. For additional information, re-
fer to "Maintenance schedules".
ALL-WHEEL DRIVE (AWD)
DRIVING SAFETY PRECAUTIONS
(IF SO EQUIPPED)
WARNING
•Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
•Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
•This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.
•For AWD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to any
D (Drive) or R (Reverse) position with
the engine running. Doing so may result
in drivetrain damage or unexpected ve-
hicle movement which could result in se-
rious vehicle damage or personal injury
•Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer, (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drivetrain
damage or unexpected vehicle move-
ment which could result in serious ve-
hicle damage or personal injury.
•When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.
5-12Starting and driving

The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of the registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll
road device or automated payment device on
the key ring. Restart the engine using the
following procedures:
1. Leave the ignition switch in the ON posi-
tion for approximately 5 seconds.
2. Turn the ignition switch to the OFF or
LOCK position and wait approximately
5 seconds.
3. Repeat Step 1 and 2 again.
4. Restart the engine while holding the de-
vice (which may have caused the interfer-
ence) separate from the registered key.
If the no start condition re-occurs, INFINITI
recommends placing the registered key on a
separate key ring to avoid interference from
other devices.
0OFF position
1ACC position
2ON position
3START position
WARNING
Never remove the key or turn the ignition
switch to the OFF position while driving.
The steering wheel will lock and could
cause the driver to lose control of the ve-
hicle. This could result in serious vehicle
damage or personal injury.
CAUTION
Use electrical accessories with the engine
running to avoid discharging the vehicle
battery. If you must use accessories while
the engine is not running, do not use them
for extended periods of time and do not use
multiple electrical accessories at the same
time.
KEY POSITIONS
OFF (Normal parking position)
0
The ignition key can only be removed when in
this position.
The steering lock can only be locked in this
position.
ACC (Accessories)/1
The engine is turned off without locking the
steering wheel. This position activates elec-
trical accessories, such as the radio, when the
engine is not running.
ON (Normal operating position)2
This position turns on the ignition system and
electrical accessories.
NPA1483
INFINITI VEHICLE IMMOBILIZER
SYSTEMIGNITION SWITCH
Starting and driving5-13

START3
The engine starter activates and the engine
will start. As soon as the engine has started,
release the key immediately. It will return to
the ON position.
NOTE
For vehicles fitted with Idle Stop/Start Sys-
tem:
When the engine is automatically stopped
by the Idle Stop/Start System the ignition
switch can still be operated as usual.
At the end of a journey turn the ignition OFF
to avoid a discharged battery. The Idle
Stop/Start System does not automatically
turn ignition off.
Vehicles with Intelligent Key are equipped with
keys featuring an integrated Intelligent Key
function and in some cases a detachable push-
button ignition switch (Start/Stop button).
A check which periodically establishes a radio
connection between the vehicle and the key
determines whether a valid key is in the ve-
hicle. This occurs, for example, when starting
the engine.
When you insert the push-button ignition
switch into the ignition lock, the system needs
approximately two seconds recognition time.
You can then use the push-button ignition
switch.
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except in
an emergency. (The engine will stop when
the ignition switch is pressed 3 consecutive
times in quick succession or the ignition
switch is pushed and held for more than 2
seconds.) If the engine stops while the ve-
hicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch:
•Select P (Park).Pressing the Start/Stop button several times
in succession corresponds to the different
key positions in the ignition lock. Prerequisite
for this is that:
•You do not depress the brake pedal.
If you depress the brake pedal and press the
Start/Stop button, the engine starts immedi-
ately.
To start the vehicle without actively using the
key:
•The push-button ignition switch must be
inserted in the ignition lock.
•The key must be in the vehicle.
•The vehicle must not be locked with the
key or Intelligent Key (see "Keys").
Do not keep the Intelligent Key:
•With electronic devices, for example a mo-
bile phone or another key.
•With metallic objects, for example coins or
metal film.
•Inside metallic objects, for example a metal
case.
This can affect the functionality of the Intel-
ligent Key.
PUSH-BUTTON IGNITION SWITCH
(IF EQUIPPED)
5-14Starting and driving
