2018 INFINITI Q50 HYBRID Roadside Assistance Guide

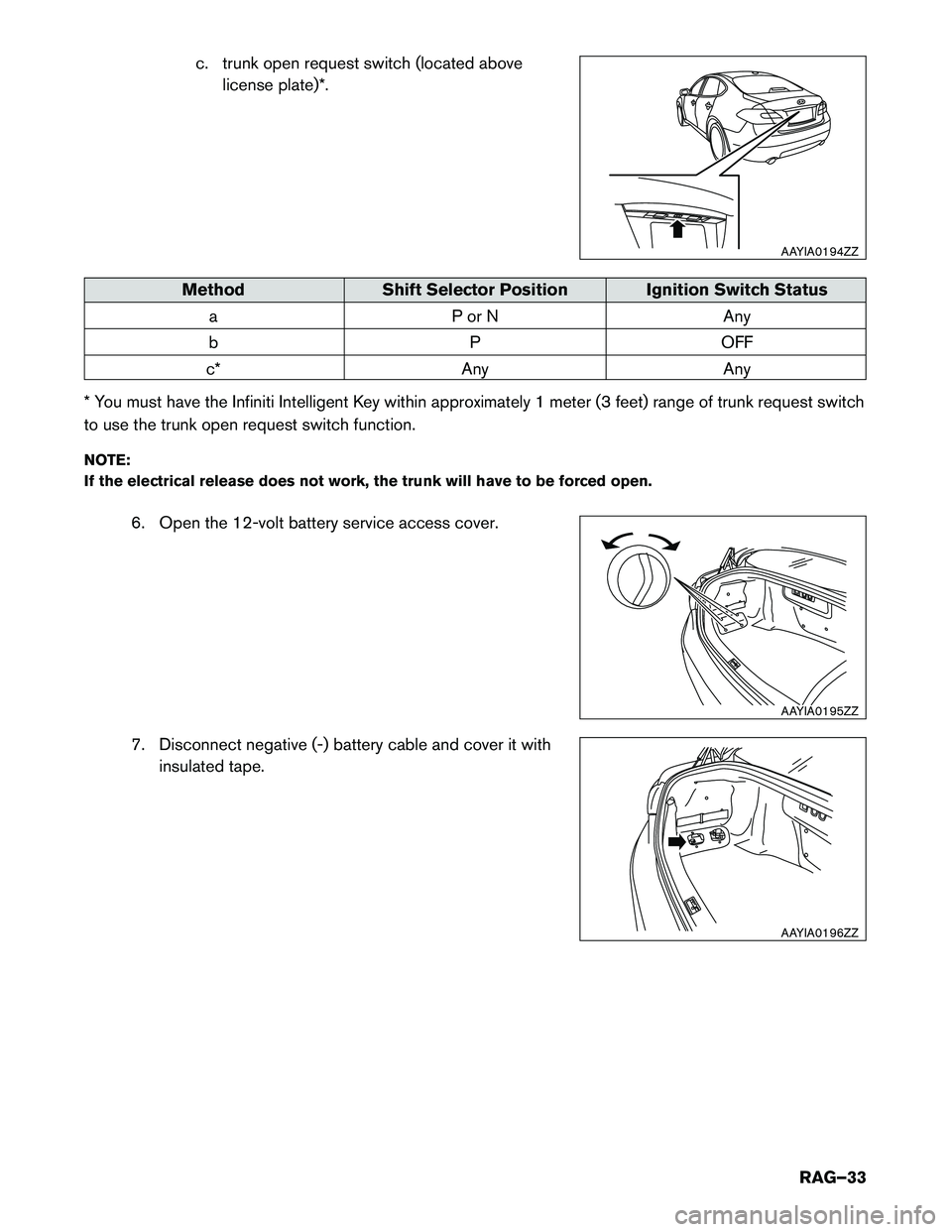

c. trunk open request switch (located above
license plate)*. Method
Shift Selector Position Ignition Switch Status
a
P or N Any
b POFF
c* Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function.
NOTE:
If the electrical release does not work, the trunk will have to be forced open.
6. Open the 12-volt battery service access cover.
7. Disconnect negative (-) battery cable and cover it withinsulated tape. AAYIA0194ZZ
AAYIA0195ZZ
AAYIA0196ZZ
RAG–33

8. Open service plug access cover.
9.
Remove the service plug (A) by pulling the locking lever (B) , then pressing the locking tab (C)
and rotating the handle (D) fully outward. Using the handle, pull the service plug (E) completely
out of its socket.
10. Cover the service plug socket with insulated tape.
11. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the service plug has been removed.
12. The vehicle is now ready for storage. AAYIA0204ZZ
A
B C
D
E
AAYIA0202ZZ
RAG–34
