2018 Hyundai Elantra Owner's Manual

4-38
Multimedia System
MENU : Audio CD
Press the Audio CD mode [MENU] but-
ton to set the Repeat, Random,
Information features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn off.
Random : [2] Button
Randomly play songs within the current
CD.
Press RDM again to turn off.
Information : [3] Button
Display information of the current song.
Press the [MENU] button to turn off info
display.
MENU : MP3 CD/USB
Press the MP3 CD/USB mode [MENU]
button to set the Repeat, Folder
Random, Folder Repeat, All Random,
Information, and Copy features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn off.
Folder Random : [2] Button
Randomly play songs within the current
folder.
Press F.RDM again to turn off.
Folder Repeat : [3] Button
Repeat songs within the current folder.
Press F.RPT again to turn off.
All Random : [4] Button
Randomly play all songs within the
CD/USB.
Press A.RDM again to turn off.
Information : [5] Button
Display information of the current song.
Press the [MENU] button to turn off info
display.
Copy : [6] Button (if equipped)
This is used to copy the current song into
My Music. You can play the copied Music
in My Music mode.
If another button is pressed while copy-
ing is in progress, a pop up asking you
whether to cancel copying is displayed.
If another media is connected or inserted
(USB, CD, iPod
®, AUX) while copying is
in progress, copying is canceled.
Music will not be played while copying is
in progress.

4-39
Multimedia System
4

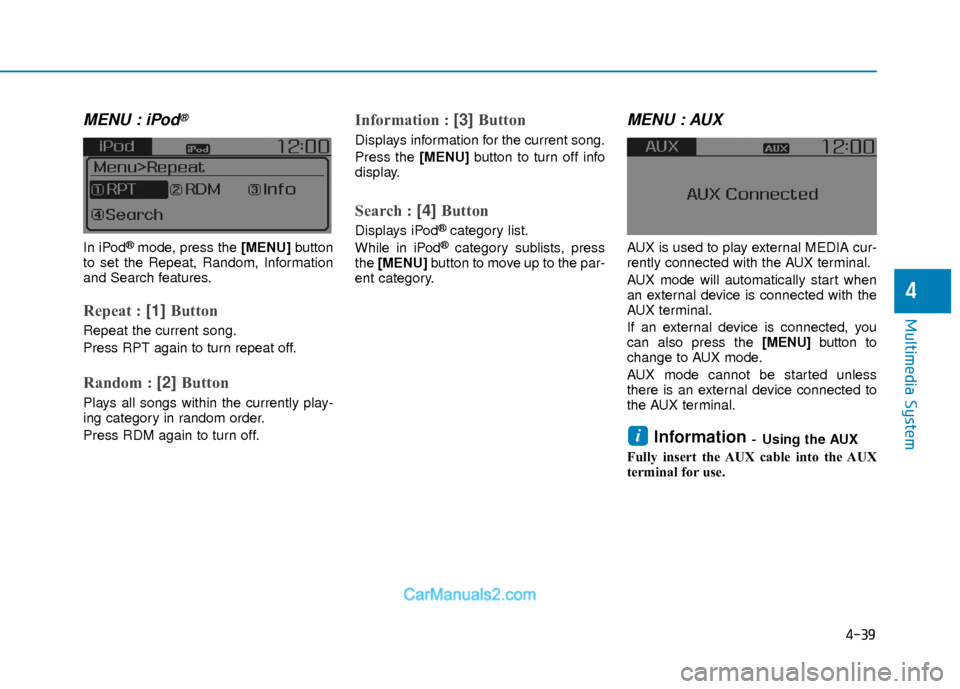

MENU : iPod®
In iPod®mode, press the [MENU]button
to set the Repeat, Random, Information
and Search features.
Repeat : [1] Button
Repeat the current song.
Press RPT again to turn repeat off.
Random : [2] Button
Plays all songs within the currently play-
ing category in random order.
Press RDM again to turn off.
Information : [3] Button
Displays information for the current song.
Press the [MENU] button to turn off info
display.
Search : [4] Button
Displays iPod®category list.
While in iPod®category sublists, press
the [MENU] button to move up to the par-
ent category.
MENU : AUX
AUX is used to play external MEDIA cur-
rently connected with the AUX terminal.
AUX mode will automatically start when
an external device is connected with the
AUX terminal.
If an external device is connected, you
can also press the [MENU] button to
change to AUX mode.
AUX mode cannot be started unless
there is an external device connected to
the AUX terminal.
Information - Using the AUX
Fully insert the AUX cable into the AUX
terminal for use.i

4-40
Multimedia System

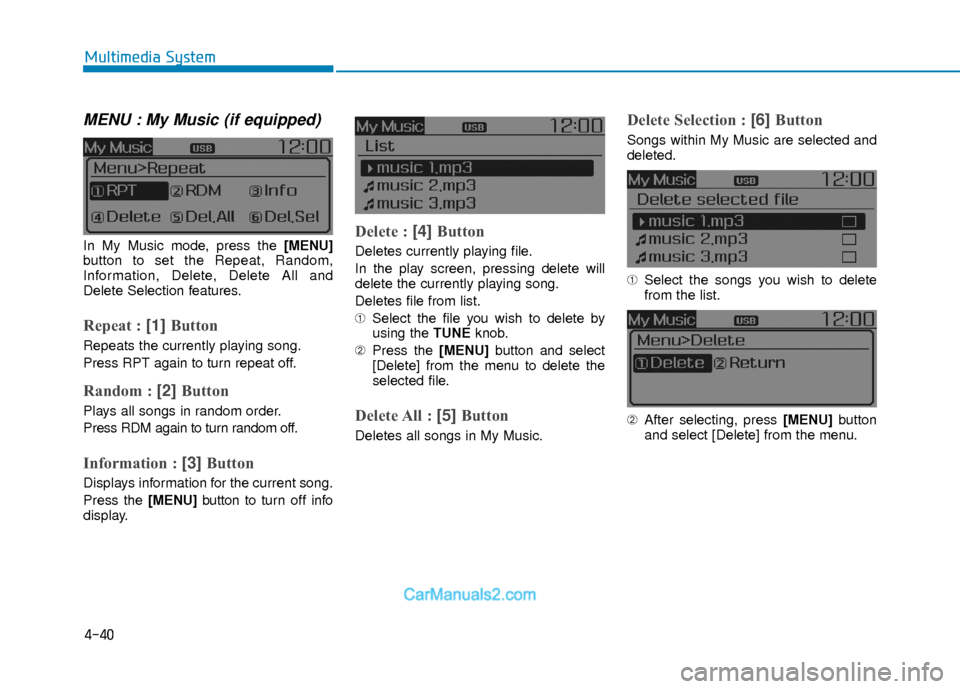

MENU : My Music (if equipped)
In My Music mode, press the [MENU]
button to set the Repeat, Random,
Information, Delete, Delete All and
Delete Selection features.
Repeat : [1] Button
Repeats the currently playing song.
Press RPT again to turn repeat off.
Random : [2] Button
Plays all songs in random order.
Press RDM again to turn random off.
Information : [3] Button
Displays information for the current song.
Press the [MENU] button to turn off info
display.
Delete : [4] Button
Deletes currently playing file.
In the play screen, pressing delete will
delete the currently playing song.
Deletes file from list.
➀Select the file you wish to delete by
using the TUNE knob.
➁ Press the [MENU] button and select
[Delete] from the menu to delete the
selected file.
Delete All : [5] Button
Deletes all songs in My Music.
Delete Selection : [6] Button
Songs within My Music are selected and
deleted.
➀Select the songs you wish to delete
from the list.
➁ After selecting, press [MENU] button
and select [Delete] from the menu.

4-41
Multimedia System
4

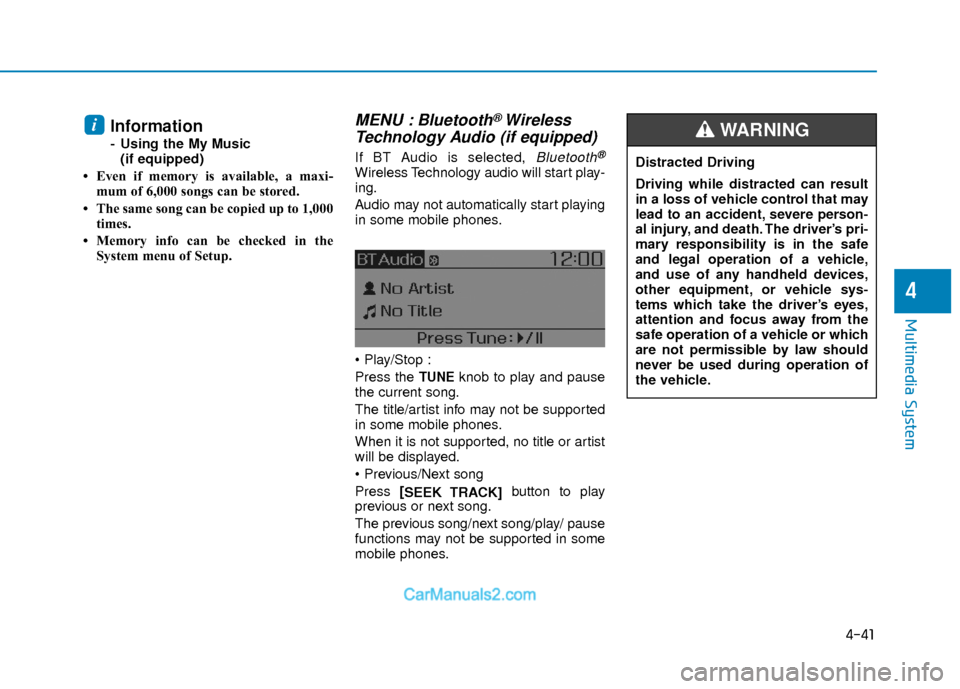

Information
- Using the My Music(if equipped)
• Even if memory is available, a maxi- mum of 6,000 songs can be stored.
• The same song can be copied up to 1,000 times.
• Memory info can be checked in the System menu of Setup.
MENU : Bluetooth® Wireless
Technology Audio (if equipped)
If BT Audio is selected, Bluetooth®
Wireless Technology audio will start play-
ing.
Audio may not automatically start playing
in some mobile phones.

Press the
TUNEknob to play and pause
the current song.
The title/artist info may not be supported
in some mobile phones.
When it is not supported, no title or artist
will be displayed.

Press [
SEEK TRACK] button to play
previous or next song.
The previous song/next song/play/ pause
functions may not be supported in some
mobile phones.
i
Distracted Driving
Driving while distracted can result
in a loss of vehicle control that may
lead to an accident, severe person-
al injury, and death. The driver’s pri-
mary responsibility is in the safe
and legal operation of a vehicle,
and use of any handheld devices,
other equipment, or vehicle sys-
tems which take the driver’s eyes,
attention and focus away from the
safe operation of a vehicle or which
are not permissible by law should
never be used during operation of
the vehicle.
WARNING

4-42
Multimedia System
Phone Mode (if equipped)
Making a call using the Steeringwheel controls
❈ The actual features in the vehicle may
differ from the illustration.
(1) VOICE RECOGNITION
Activates voice recognition*.
(2) MODE
Press the button to change audio
source.
FM1
➟ FM2 ➟ AM ➟ XM1*➟XM2*➟XM3*➟ CD ➟ USB(iPod®) ➟ AUX ➟My Music*➟ BT Audio*.
(3) VOLUME +
/-
Raises or lowers speaker volume.
*if equipped (4)
MUTE
Mutes audio volume.
(5) CALL
Places and transfers calls.
Check call history and making calls
- Shortly press the [CALL] button on the
steering wheel controls.
- The call history list will be displayed on the screen.
- Press the [CALL] button again to con-
nect a call to the selected number.
Redialing the most recently called number
- Press and hold the [CALL] button on
the steering wheel controls.
- The most recently called number is redialed.
(6) END
Ends calls or cancels functions.
❈ If call history does not exist, a screen
asking whether to download call histo-
ry is displayed. (The download feature
may not be supported in some mobile
phones)
Pairing using the Steering wheel controls
1. Press the [CALL] button on the steer-
ing wheel controls.
2. Select [OK] button to enter the Pair Phone screen.
Vehicle Name : Name of device as shown when searching from your
Bluetooth®Wireless Technology
device
Passkey : Passkey used to pair the device

4-43
Multimedia System
4
3. From your Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your car
audio system.
❈ SSP : Secure Simple Pairing
Non SSP supported device :
4. After a few moments, a screen is dis- played where the passkey is entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system.
SSP supported device :
4. After a few moments, a screen is dis- played that has the 6 digit passkey
from any nearby SSP device that is
found. Check the passkey on your
Bluetooth®Wireless Technology. Some phones (i.e., iPhone
®, Android TM
and Blackberry®phones) may offer an
option to allow acceptance of all future
Bluetooth
®connection requests by
default. Visit http://www.hyundaiusa.com/Bluetoothfor additional
information on pairing your Bluetooth®-
enabled mobile phone, and to view a
phone compatibility list.
If
Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the [CALL]
button on the steering wheel control
displays the following screen. Select
[Pair] button to pair a new device or
select [Connect] to connect a previous-
ly paired device.
MENU : Phone
With a Bluetooth®Wireless Technology
device connected, press the [PHONE]
button to display the Phone menu
screen.
Favorites : [1] Button
Up to 20 frequently used contacts can be
saved for easy access.
Call History : [2] Button
Displays the call history list screen.
If you select the [History] button but there
is no call history data, a prompt is dis-
played which asks to download call histo-
ry data.

4-44
Multimedia System
Contacts : [3]Button
Displays the Contacts list screen.
If you select the [Contacts] button but
there is no contacts data stored, a
prompt is displayed which asks to down-
load contacts data.
Setup : [4] Button
Displays Phone related settings.
This feature may not be supported in
some mobile phones. For more informa-
tion on download support, refer to your
mobile phone’s user manual.
Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connected
will display the following screen.
To accept the call, press [CALL] button
on the steering wheel while the call is
incoming.
Caller : Displays the other party’s name when the incoming caller is saved with-
in your contacts
Incoming Number : Displays the incoming number
Information
• When an incoming call pop-up is dis-played, most Audio and SETUP features
are disabled. Only the call volume will
operate.
• The telephone number may not be prop- erly displayed in some mobile phones.
i

4-45
Multimedia System
4

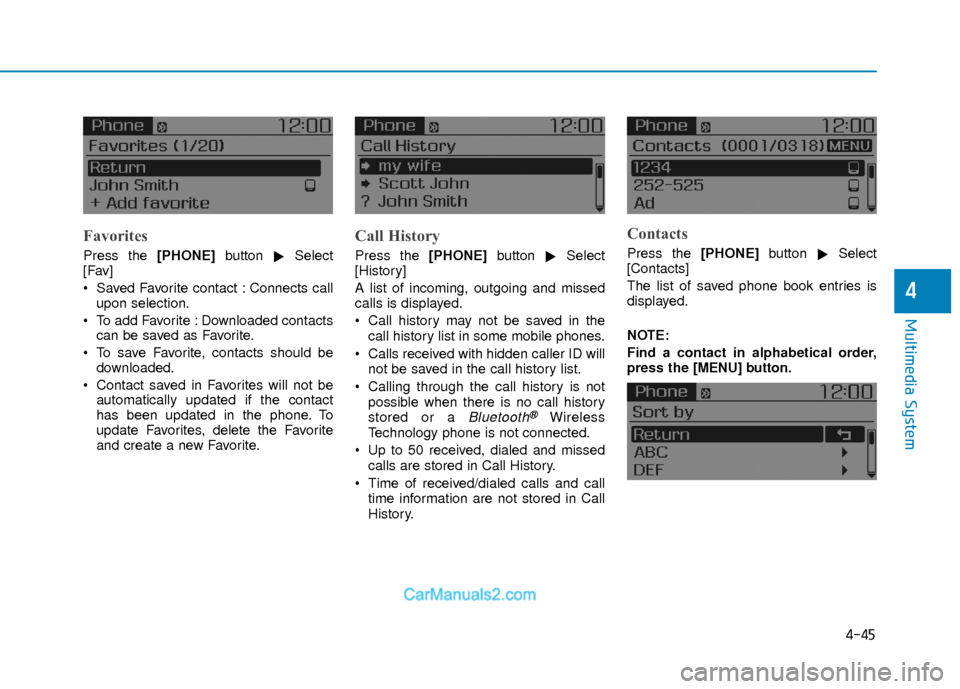

Favorites
Press the [PHONE]button
Select
[Fav]
Saved Favorite contact : Connects call upon selection.
To add Favorite : Downloaded contacts can be saved as Favorite.
To save Favorite, contacts should be downloaded.
Contact saved in Favorites will not be automatically updated if the contact
has been updated in the phone. To
update Favorites, delete the Favorite
and create a new Favorite.
Call History
Press the [PHONE] button
Select
[History]
A list of incoming, outgoing and missed
calls is displayed.
Call history may not be saved in the
call history list in some mobile phones.
Calls received with hidden caller ID will not be saved in the call history list.
Calling through the call history is not possible when there is no call history
stored or a
Bluetooth®Wireless
Technology phone is not connected.
Up to 50 received, dialed and missed calls are stored in Call History.
Time of received/dialed calls and call time information are not stored in Call
History.
Contacts
Press the [PHONE] button
Select
[Contacts]
The list of saved phone book entries is
displayed.
NOTE:
Find a contact in alphabetical order,
press the [MENU] button.
