Convenient features of your vehicle
This warning light remains ON
after blinking for approximately 60
seconds, or repeatedly blinks ON
and OFF in 3 second intervals:
When there is a malfunction with the
TPMS.
In this case, have your vehicle inspected
by an authorized HYUNDAI dealer.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)"
in chapter 6.
Automatic EmergencyBraking (AEB) Warninglight (if equipped)
This warning light illuminates :
When the AEB system is turned off.
When the radar sensor or cover is
blocked with dirt or snow. Check the
sensor and cover and clean them by
using a soft cloth.
When there is a malfunction with AEB. In this case, have your vehicle inspect-
ed by an authorized HYUNDAI dealer.
Headlight WarningLight
This warning light illuminates:
This warning light illuminates if one of the
exterior bulbs (headlamp, taillamp,
foglamp, etc.) is not operating properly.
One of the bulbs may need to be
replaced. If the vehicle is equipped with
LED headlamps, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Information
When replacing the bulb, use the same
wattage bulb.
For more information, refer to "BULB
WATTAGE" in chapter 8.
i
Safe Stopping
The TPMS cannot alert you to
severe and sudden tire damage
caused by external factors.
If you notice any vehicle instabili-
ty, immediately take your foot off
the accelerator pedal, apply the
brakes gradually with light force,
and slowly move to a safe posi-
tion off the road.
WARNING

7
Tires and Wheels .................................................7-33
Tire Care ........................................................................\
....7-33
Recommended Cold Tire Inflation Pressures ...........7-34
Check Tire Inflation Pressure ......................................7-35
Tire Rotation...................................................................\
..7-36
Wheel Alignment and Tire Balance ............................7-37
Tire Replacement ............................................................7-37
Wheel Replacement ........................................................7-38
Tire Traction .....................................................................7-3\
8
Tire Maintenance ............................................................7-39
Tire Sidewall Labeling ....................................................7-39
Tire Terminology and Definitions................................7-43
All Season Tires ...............................................................7-46
Summer Tires ...................................................................7-46
Snow Tires ........................................................................\
7-46
Radial-Ply Tires ...............................................................7-46
Low Aspect Ratio Tires..................................................7-47
Fuses ......................................................................7-\
48
Instrument Panel Fuse Replacement..........................7-49
Engine Compartment Panel Fuse Replacement.......7-50
Fuse/Relay Panel Description ......................................7-53
Light Bulbs ............................................................7-59
Headlamp, Parking Lamp,
Turn Signal Lamp and Side Marker ............................7-59
Side Repeater Lamp Replacement ..............................7-70
Rear Combination Light Bulb Replacement ..............7-70
High Mounted Stop Light Replacement ....................7-74
License Plate Light Bulb Replacement ......................7-74
Interior Light Bulb Replacement .................................7-75
Appearance Care..................................................7-76
Exterior Care ....................................................................7-76\
Interior Care .....................................................................7-8\
0
Emission Control System ....................................7-83
Crankcase Emission Control System ..........................7-83
Evaporative Emission Control System Including
Onboard Refueling Vapor Recovery (ORVR)............7-83
Exhaust Emission Control System ..............................7-84
California Perchlorate Notice.............................7-86

7-59
7
Maintenance
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
After heavy driving, rain or washing,
headlamp and trunk lenses could appear
frosty. This condition is caused by the tem-
perature difference between the lamp
inside and the outside temperature. This is
similar to the condensation on your win-
dows inside your vehicle during the rain
and doesn ’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have your vehicle checked
by an authorized HYUNDAI dealer.
Headlamp, Parking Lamp, Turn
Signal Lamp and Side Marker
Type A – Standard type
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp/Parking lamp
(4) Side marker
i
Prior to replacing a lamp, depress
the foot brake, move the shift
lever into P (Park) apply the park-
ing brake, place the igntion
switch to the LOCK/OFF position,
and take the key with you when
leaving the vehicle to avoid sud-
den movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be hot
and may burn your fingers.
WARNING
OAD075077N

7-65
7
Maintenance
Type C– HID headlamp type
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Side marker
(5) Daytime running lamp (DRL) &
Parking lamp
Headlamp (Low, HID type)
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So if
you need to have your vehicle disposed,
you should remove the HID Headlamps
before disposal. The removed HID head-
lamps should be recycled, re-used or dis-
posed as hazardous waste.
Information
HID lamps have superior performance vs.
halogen bulbs.
HID lamps are estimated by the manufac-
turer to last twice as long or longer than
halogen bulbs depending on their frequen-
cy of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID
lamps life. HID lamps do not fail in the
same manner as halogen incandescent
lamps. If a headlamp goes out after a peri-
od of operation but will immediately
relight when the headlamp switch is cycled
it is likely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
i
i
OAD075078N
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
WARNING

7-68
Maintenance
Side marker
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Parking lamp/Daytime running
lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
Type D - HID headlamp type (LED side marker)
(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Side marker
(4) Daytime running lamp (DRL) &
Parking lamp
Headlamp (Low/High, HID type)
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So if
you need to have your vehicle disposed,
you should remove the HID Headlamps
before disposal. The removed HID head-
lamps should be recycled, re-used or dis-
posed as hazardous waste.
i
OAD075082N
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
WARNING
OAD076123

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number .........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb typeWattage
Front Headlamp
Low
Type A, B HB3
60
Type C D5S 25
High Type A, B, C H7 55
Low/High Type D D1S35
Turn signal lamp PY28/8W28/8
Parking lamp Type A
PY28/8W 28/8
Type B, C, D LEDLED
Side marker lamp Type A, B, C
W5W5
Type D LEDLED
Daytime running lamp (DRL)* LEDLED
Side repeater lamp (Outside mirror) LEDLED
Rear Rear combination lamp Outside Tail/Stop
Type A P21/5W
21/5
Type B, C LED LED
Turn signal Type A, B PY27W
27
Type C P27W 27
Side marker Type A, B W5W
5
Type C LED LED
(Continued)
* If equipped

8-4
Specifications, Consumer information and Reporting safety defects

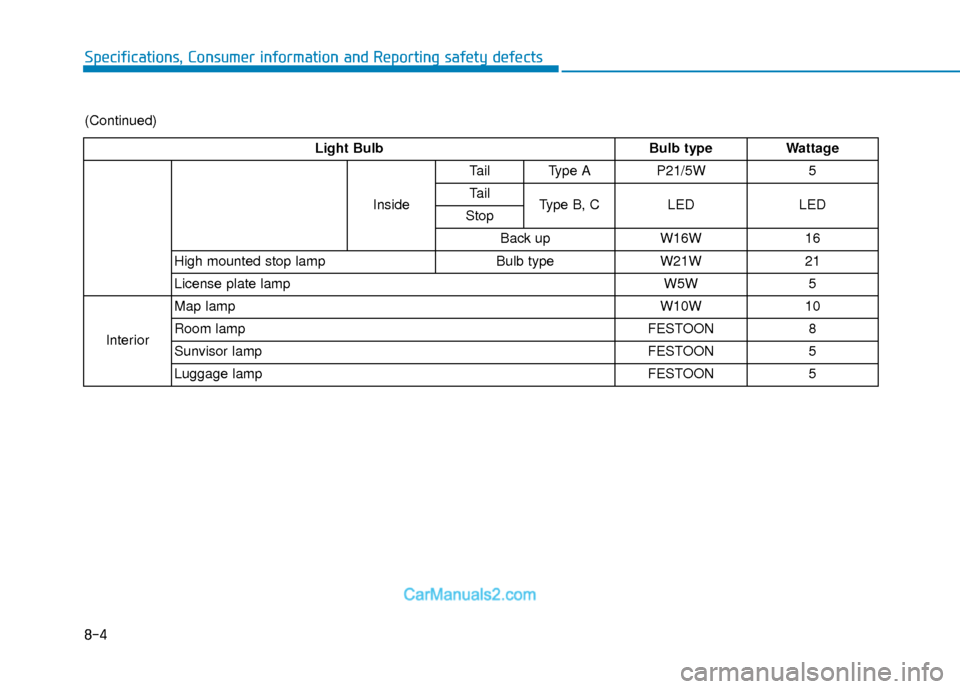

Light BulbBulb typeWattage
Inside Tail Type A P21/5W
5
Tail Type B, C LED LED
Stop
Back up W16W16
High mounted stop lamp Bulb typeW21W21
License plate lamp W5W5
Interior Map lamp
W10W10
Room lamp FESTOON8
Sunvisor lamp FESTOON5
Luggage lamp FESTOON5
(Continued)
