2018 HONDA ODYSSEY horn

5
Quick Reference Guide
❙Navigation System Voice Control Buttons*
() See Navigation System Manual
❙Audio Remote Control Buttons (P264)
❙Steering Wheel Adjustments (P205)
❙Brightness Control (P200)
❙ENTER Button (P122)
❙/ Button (P122)34
❙Headlights/Turn Signals (P189)
❙LaneWatchTM * (P598)
❙Fog Lights* (P192)
❙Bluetooth ® HandsFreeLink ® System
Buttons
(P470, 495)
❙Paddle Shifter (Shift down) (P551)
❙Heated Steering Wheel Button* (P241)
❙Paddle Shifter (Shift up) (P551)
❙Adaptive Cruise Control (ACC) Buttons* (P565)
❙Interval Button* (P571)
❙Cruise Control Buttons* (P559)
❙ENGINE START/STOP Button (P186)
❙MAIN Button* (P565, 583)
❙Wipers/Washers (P197)
❙Lane Keeping Assist System (LKAS) Button*
(P583)
❙CRUISE Button* (P559)
❙ (home) Button (P122, 265)
❙Horn (Press an area around .)
* Not available on all models
18 US ODYSSEY-31THR6010.book 5 ページ ２０１８年１２月６日　木曜日　午後４時１８分

179Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood, or doors are forcibly
opened.
The alarm does not activate if the tailgate or doors are opened with the key, remote
transmitter or smart entry system
*.
However, the alarm activates if a door is opened with the key, then the hood is
opened before the power mode is set to ON.
■When the security system alarm activates
The horn sounds intermittently, and some exterior lights flash.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1 Security System Alarm
The security alarm conti nues for a maximum of two
minutes until the security system deactivates.
* Not available on all models
18 US ODYSSEY-31THR6010.book 179 ページ ２０１８年１２月６日　木曜日　午後４時１８分

181
uuSecurity System uSecurity System Alarm
Controls

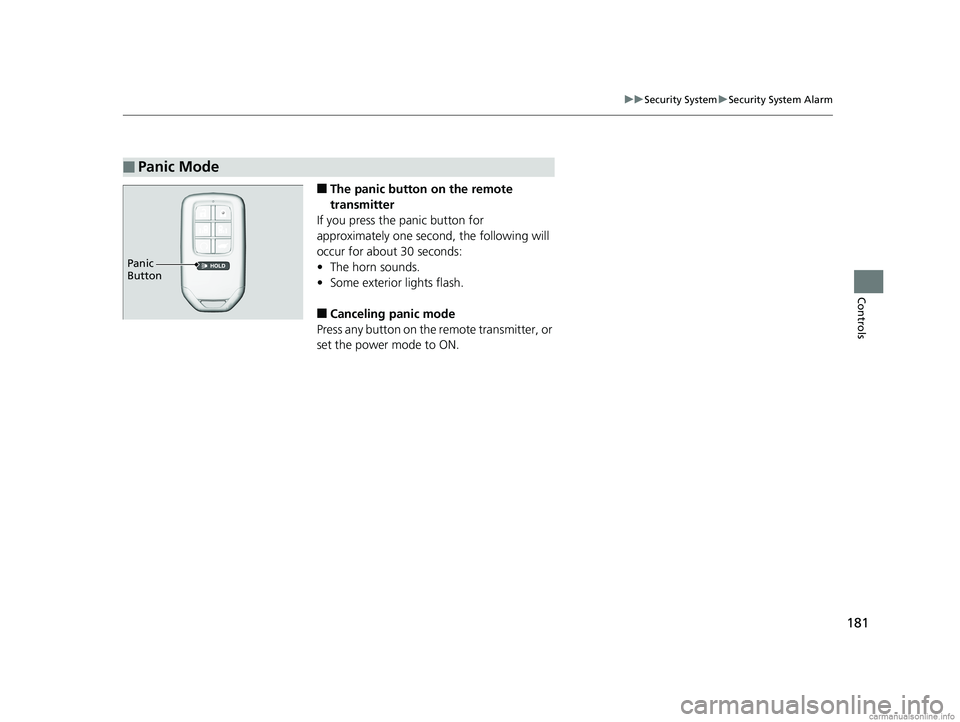

■The panic button on the remote
transmitter
If you press the panic button for
approximately one second, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or
set the power mode to ON.
■Panic Mode
Panic
Button
18 US ODYSSEY-31THR6010.book 181 ページ ２０１８年１２月６日　木曜日　午後４時１８分

725
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse Box B
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
DC/DC2(30 A)
DC/DC1(30 A)
−−
Fuse Box Main150 A
Fuse Box Main250 A
Rear Fuse Box Main150 A
Rear Fuse Box Main250 A
Vacuum*(60 A)
2 IG Main1 30 A
3AC Outlet(30 A)
4 IG Main2 30 A
5−−
6 Rear Blower 30 A
7Audio Amp2*(20 A)
8Audio Amp1*(20 A)
9Rear Defogger40 A
10 − −
11Heated Windshield*(15 A)
12 BMS 5 A
13Audio Amp3*(30 A)
14 − −
15−−
16 VSA Motor 40 A
17Front Blower40 A
18 − −
19Horn10 A
20 − −
213rd Row Accessory Power Socket*(20 A)
22 Shift By Wire 10 A
23VBUM10 A
24 VSA 40 A
Circuit ProtectedAmps
* Not available on all models
18 US ODYSSEY-31THR6010.book 725 ページ ２０１８年１２月６日　木曜日　午後４時１８分
