2018 HONDA ODYSSEY ECO mode

7
Quick Reference Guide
❙Seat Belts (P38)
❙Seat Belt to Secure a Child Seat (P74)
❙Seat Belt (Installing a Child Seat) (P72)
❙Side Curtain Airbags (P58)
❙Front Seat (P209)
❙Second Row Multi-Functional Center Seat* (P216, 218)
❙Grab Handle
❙Sun Visors
❙Vanity Mirrors
❙Side Airbags (P56)
❙Second Row Seat (P216)
❙HDMITM Port* (P399)
❙USB Port* (P261)
❙LATCH to Secure a Child Seat (P67)
❙Coat Hooks (P238)
❙Integrated Sunshades* (P244)
❙Map Lights (P226)
❙Sunglasses Holder (P240)
❙Moonroof Switch* (P185)
❙Map Lights (P226)
❙Grab Handle
❙Seat Belt with Detachable Anchor (P43)
* Not available on all models
18 US ODYSSEY-31THR6010.book 7 ページ ２０１８年１２月６日　木曜日　午後４時１８分

11
Quick Reference Guide
Eco Assist® System (P 557)
Ambient Meter●Changes color to re flect your driving
style.
Green: Fuel efficient driving
White green: Moderate acceleration/
deceleration
White: Aggressive acceleration/
deceleration
● The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button (P 557)
Helps maximize fuel economy.
ECON Mode Indicator (P 94)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
* Not available on all models
18 US ODYSSEY-31THR6010.book 11 ページ ２０１８年１２月６日　木曜日　午後４時１８分

13
Quick Reference Guide
Instrument Panel (P83)
System Indicators
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA
®) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/
TPMS Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Lane Keeping Assist
System ( LKAS)
Indicator (Green/
Amber)
*
Seat Belt Reminder
Indicator
System Indicators
Econ Mode Indicator
System Message
Indicator Parking Brake and
Brake System Indicator
(Red)
Supplemental
Restraint System
Indicator
Driver Information Interface CRUISE MAIN

Indicator
*
Tachometer
M
(Sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
Speedometer
Fuel Gauge
Gear Position Indicator/
Transmission System
Indicator Auto Idle Stop
Indicator (Green)
*
Gauges (P119)/Driver Information Interface (P120)/System
Indicators
(P84)
Automatic Brake Hold
Indicator Adaptive Cruise
Control (ACC)
Indicator (Green/
Amber)
*
Turn Signal and
Hazard Warning
Indicators
Electric Power Steering
(EPS) System Indicator
Blind spot information
(BSI) Indicator
*
CRUISE CONTROL
Indicator*
Temperature Gauge
Parking Brake and
Brake System Indicator
(Amber)
U.S.
Canada
U.S.
Canada
System Indicators
U.S.
Canada
Low Fuel Indicator
Automatic Brake Hold
System Indicator
Auto High-Beam
Indicator*
Auto Idle Stop System
Indicator (Amber)*
Snow Mode Indicator
Normal Mode
Indicator
Road Departure
Mitigation (RDM)
Indicator
*
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator*
* Not available on all models
18 US ODYSSEY-31THR6010.book 13 ページ ２０１８年１２月６日　木曜日　午後４時１８分

14
Quick Reference Guide
Controls (P141)
Clock (P142)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
To adjust time
To adjust date
aSelect , then select Settings .
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display Audio
Set DateBlu-Ray
Save
Month DayYearXX
Cancel
Phone Navigati.. FM12:34
eSelect
Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P186)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system
18 US ODYSSEY-31THR6010.book 14 ページ ２０１８年１２月６日　木曜日　午後４時１８分

31
Quick Reference Guide
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models with Auto Idle Stop
18 US ODYSSEY-31THR6010.book 31 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued39
uuSeat Belts uAbout Your Seat Belts
Safe Driving
■Proper use of seat belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduc e the effectiveness of the
belt and can increase the chance of serious injury in a crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
• Do not put any accessories on the seat belt s. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability
and increase the chance of serious injury in a crash.
The seat belt system includes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If you set the power mode to ON and a seat
belt is not fastened, a beeper will sound and
the indicator will blink. After a few seconds,
the beeper will stop and the indicator will
come on and remain illuminated until the seat
belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
■Seat Belt Reminder
1About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
1 Seat Belt Reminder
The indicator will also co me on if a front passenger
does not fasten their seat be lt within 6 seconds after
the power mode is set to ON.
When no one is sitting in th e front passenger’s seat,
the indicator will not come on and the beeper will not
sound. The indicator also may not come on and the
beeper may not sound when the occupant is not
heavy enough to trigger th e weight sensor. Such
occupants (e.g., infants and smaller children) should
be moved to the rear seat as a deploying front airbag
likely will injure or kill them. 2 Protecting Child Passengers P. 62
18 US ODYSSEY-31THR6010.book 39 ページ ２０１８年１２月６日　木曜日　午後４時１８分

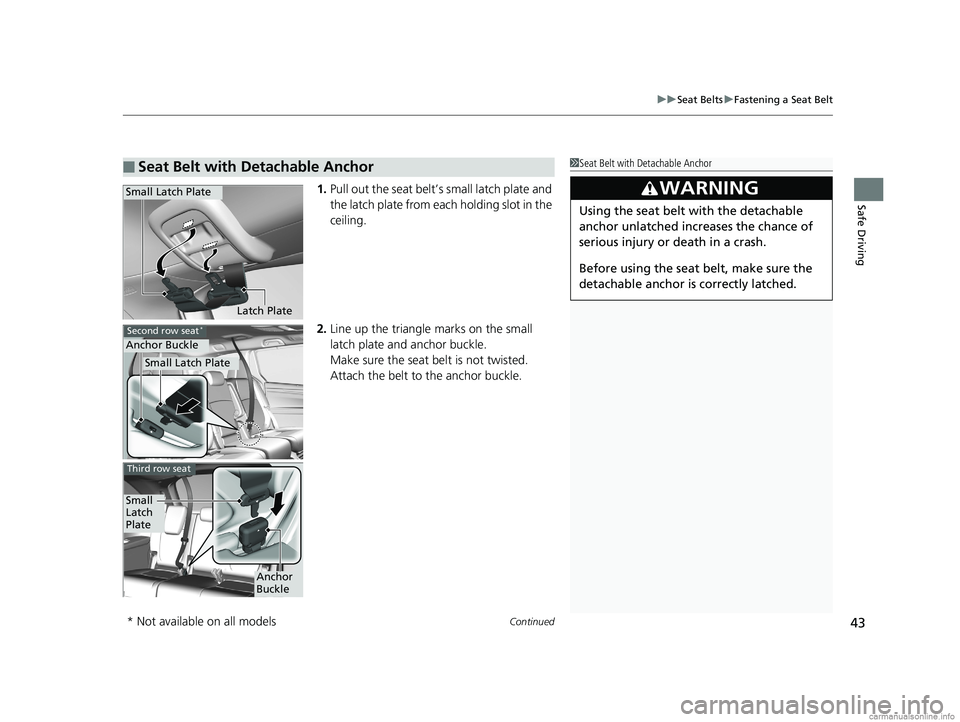

Continued43
uuSeat Belts uFastening a Seat Belt
Safe Driving1. Pull out the seat belt’s small latch plate and
the latch plate from each holding slot in the
ceiling.
2. Line up the triangle marks on the small
latch plate and anchor buckle.
Make sure the seat belt is not twisted.
Attach the belt to the anchor buckle.
■Seat Belt with Detachable Anchor1Seat Belt with Detachable Anchor
3WARNING
Using the seat belt with the detachable
anchor unlatched incr eases the chance of
serious injury or death in a crash.
Before using the seat belt, make sure the
detachable anchor is correctly latched.
Small Latch Plate
Latch Plate
Small Latch Plate
Anchor Buckle
Second row seat*
Small
Latch
Plate
Anchor
Buckle
Third row seat
* Not available on all models
18 US ODYSSEY-31THR6010.book 43 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuSeat Belts uFastening a Seat Belt
44
Safe Driving
3. Insert the latch plate into the buckle.
Properly fasten the seat belt the same way
you fasten the lap/shoulder seat belt.1Seat Belt with Detachable Anchor
To unlatch the detachable anchor, insert the latch
plate into the slot on the side of the anchor buckle.
Pivot down the anchor buckle forward.
Insert the latch plate into the slot on the back of the
anchor buckle.
Latch
PlateSmall
Latch
Plate
Slot
Second row center seat*
Latch Plate
Small Latch
PlateSlot
Buckle
Latch Plate
Second row seat*
Buckle
Latch Plate
Third row seat
* Not available on all models
18 US ODYSSEY-31THR6010.book 44 ページ ２０１８年１２月６日　木曜日　午後４時１８分
