2018 HONDA CLARITY PLUG-IN Owner's Manual (in English)

487
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

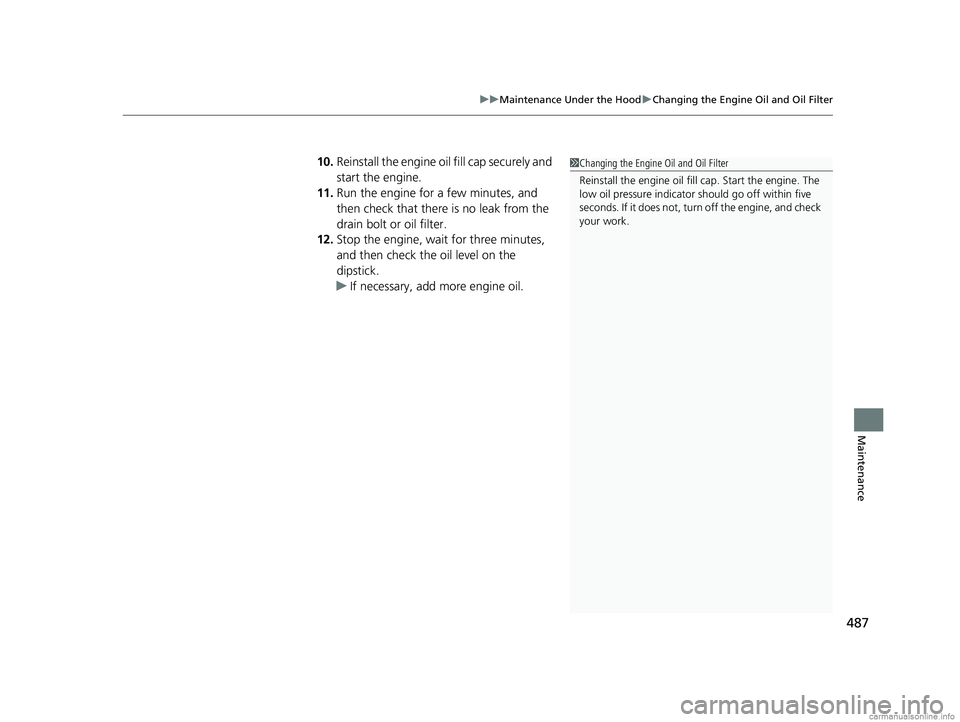

10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
18 CLARITY PHEV CSS-31TRW6000.book 487 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

488
uuMaintenance Under the Hood uEngine Coolant
Maintenance
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolan t level every time you refuel or you
charge the High Voltage battery. Check the re serve tank first. If it is completely
empty, also check the coolant level in the radiator. Add the engine coolant
accordingly.
1. Make sure the engine and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Honda Clarity Plug-In Hybrid dealer for details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
Reserve
Tank
MAX
MIN
18 CLARITY PHEV CSS-31TRW6000.book 488 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

489
uuMaintenance Under the Hood uEngine Coolant
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap
counter-clockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Radiator Cap
18 CLARITY PHEV CSS-31TRW6000.book 489 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

490
uuMaintenance Under the Hood uCooling System
Maintenance
Cooling System
Coolant is used to reduce the temperature of the high voltage battery and inverter
coolant. When checking the coolant level, make sure to follow the procedures listed
below. If the coolant level is below the MIN mark, have your vehicle inspected by an
authorized Honda Clarity Plug-In Hybrid dealer.
1.Check the fluid level in the tank.
2. If the coolant level has dropped below the
MIN level, have your vehicle serviced at an
authorized Honda Clarity Plug-In Hybrid
dealer.
u Only a properly trained technician can
refill the coolant an d check the system
for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Checking the Inverter Coolant Level
1 Cooling System
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Honda Clarity Plug-In Hybrid dealer for details.
Only use the genuine Honda coolant.
Expansion Tank
MAX
MIN
18 CLARITY PHEV CSS-31TRW6000.book 490 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

491
uuMaintenance Under the Hood uCooling System
Maintenance
1. Check the fluid level in the tank from the
window.
2. If the coolant level has dropped below the
MIN level, have your ve hicle serviced at an
authorized Honda Clarity Plug-In Hybrid
dealer.
u Only a properly trained technician can
refill the coolant and check the system
for leaks.
■Checking the Coolant Level for the High Voltage Battery
and Related Parts
MAX
MINWindow
Expansion Tank
18 CLARITY PHEV CSS-31TRW6000.book 491 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

492
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have an authorized Honda Clarity Plug-In Hybrid dealer check the fluid level and
replace if necessary.
Do not attempt to check or change the transmission fluid yourself.
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
■Transmission Fluid
Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle limited warranty.
1 Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Hond a Clarity Plug-In Hybrid
dealer inspect the vehicle for leaks or worn brake
pads as soon as possible.
Brake Reserve Tank
MAX
MIN
18 CLARITY PHEV CSS-31TRW6000.book 492 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

493
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance

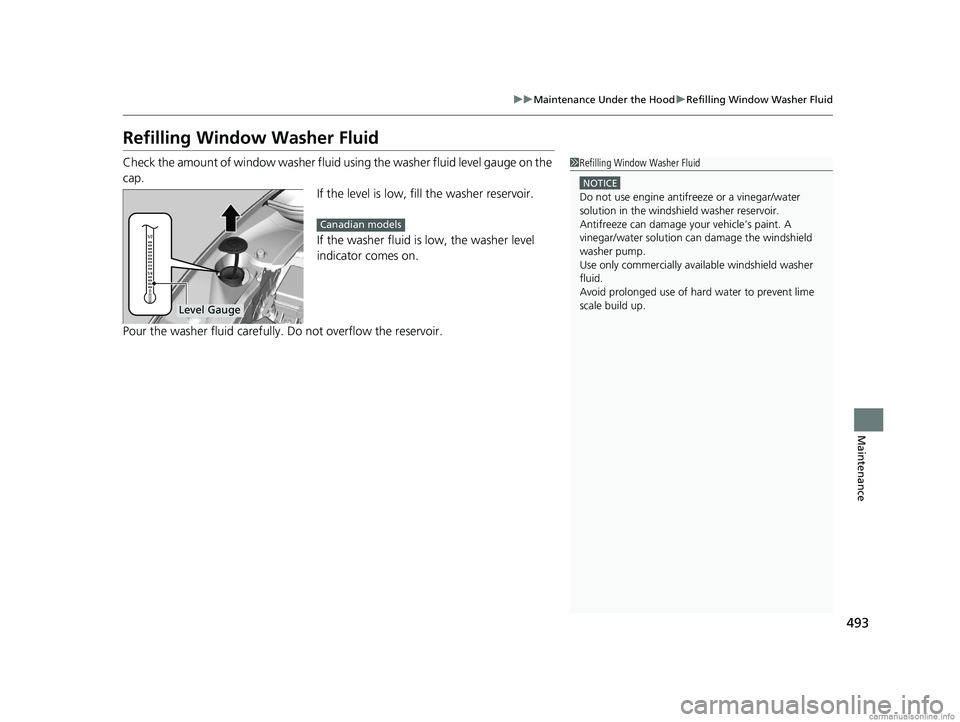

Refilling Window Washer Fluid
Check the amount of window washer fluid using the washer fluid level gauge on the
cap.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator comes on.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.
Level Gauge
Canadian models
18 CLARITY PHEV CSS-31TRW6000.book 493 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

494
Maintenance

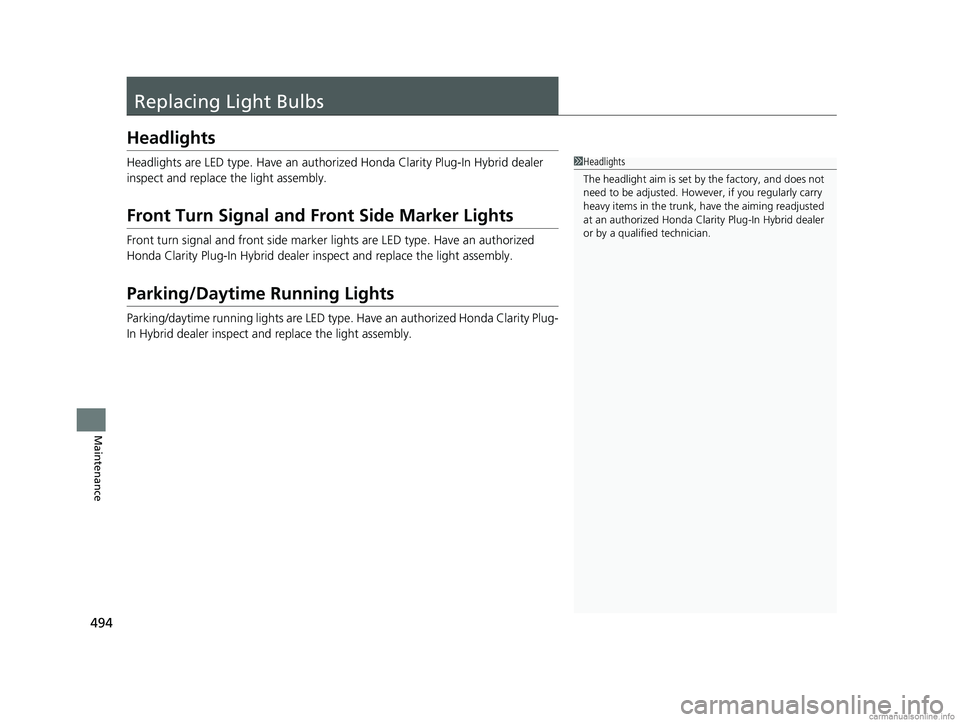

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda Clarity Plug-In Hybrid dealer
inspect and replace the light assembly.
Front Turn Signal and Front Side Marker Lights
Front turn signal and front side marker lights are LED type. Have an authorized
Honda Clarity Plug-In Hybrid dealer inspect and replace the light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda Clarity Plug-
In Hybrid dealer inspect a nd replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Honda Clar ity Plug-In Hybrid dealer
or by a qualif ied technician.
