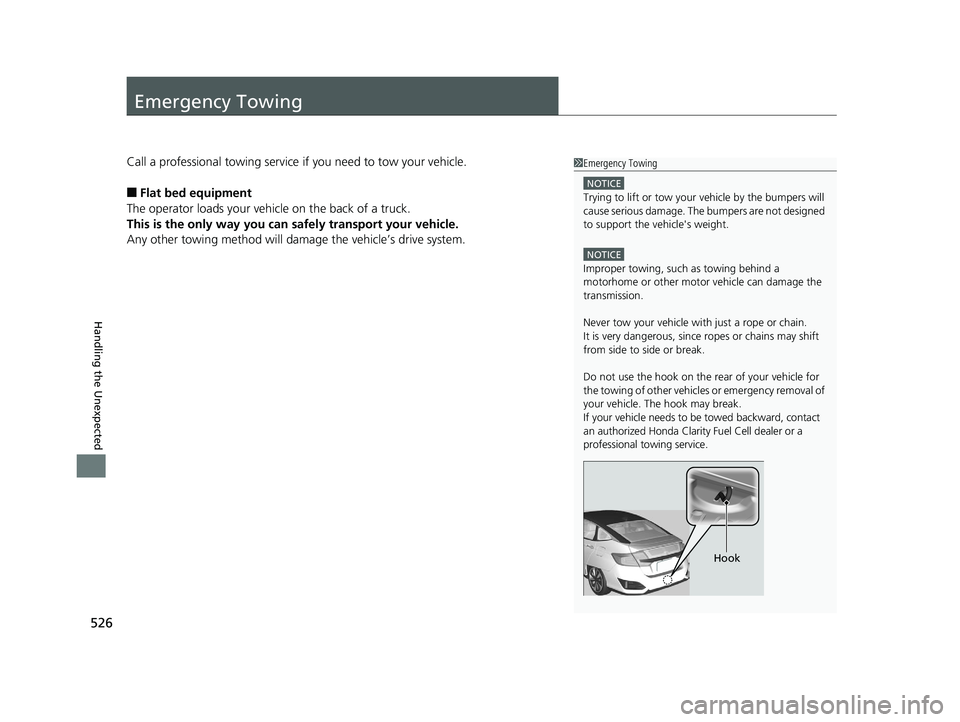

526
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
18 CLARITY FUEL CELL PPO-31TRT6100.book 526 ページ ２０１７年１１月２１日 火曜日 午後３時３分

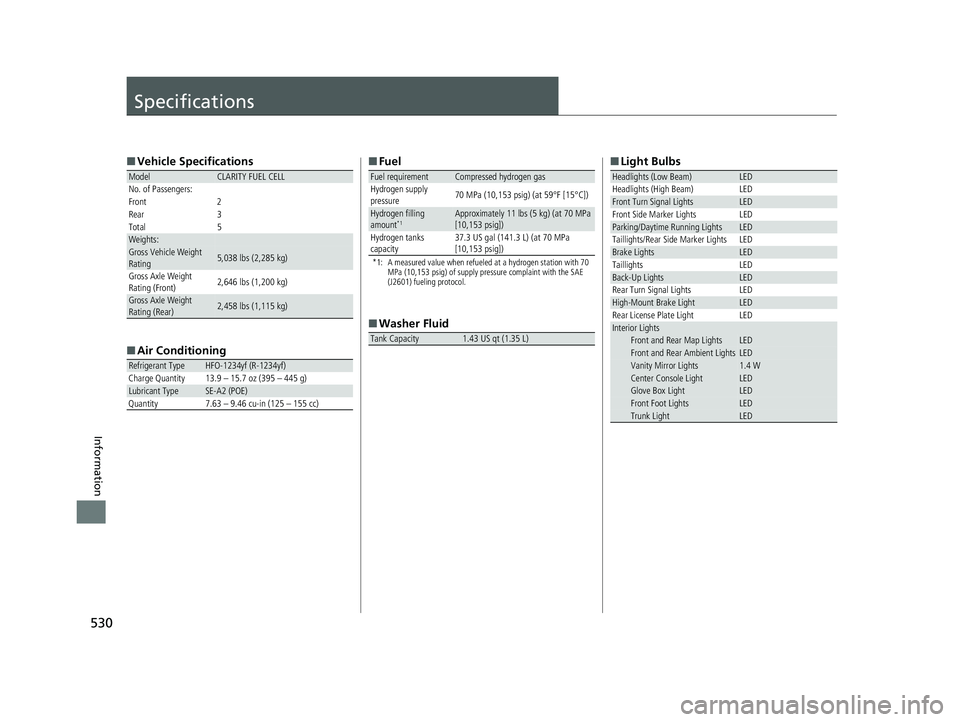

530
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 5,038 lbs (2,285 kg)
Gross Axle Weight
Rating (Front)2,646 lbs (1,200 kg)
Gross Axle Weight
Rating (Rear)2,458 lbs (1,115 kg)
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure complaint with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
