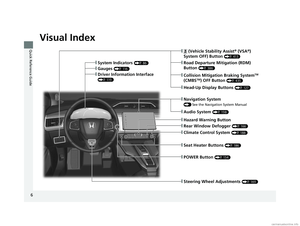

Quick Reference Guide

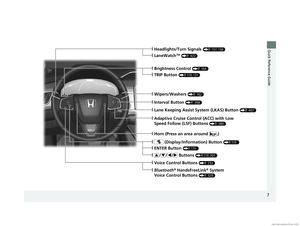

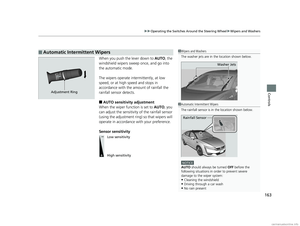

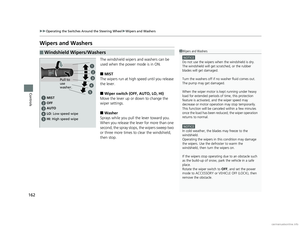

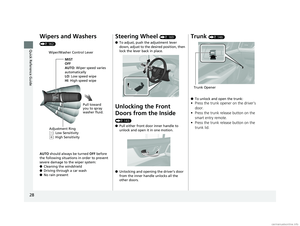

❙Wipers/Washers (P 162)

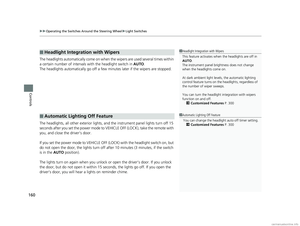

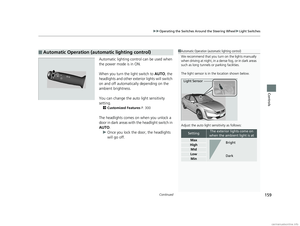

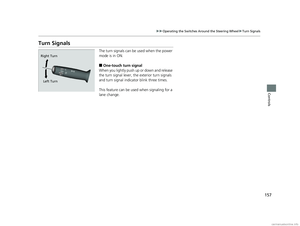

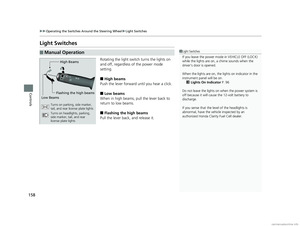

❙Headlights/Turn Signals (P 157, 158)

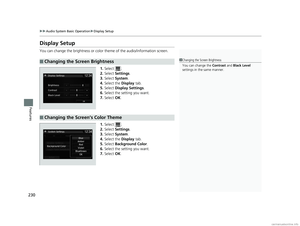

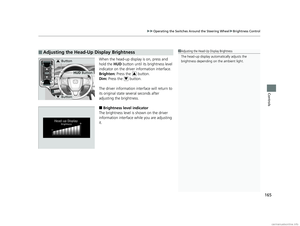

❙Brightness Control (P 164)

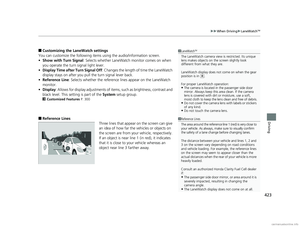

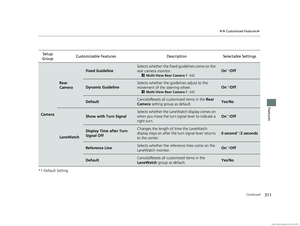

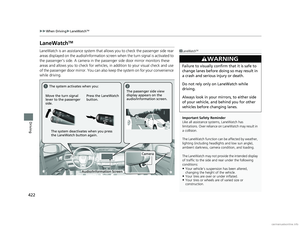

❙LaneWatchTM (P 422)

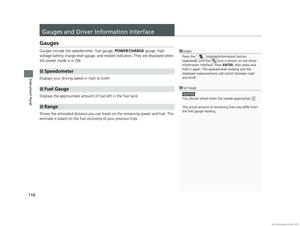

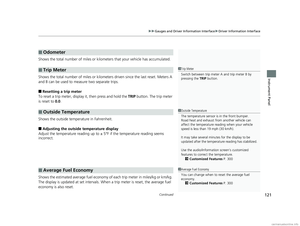

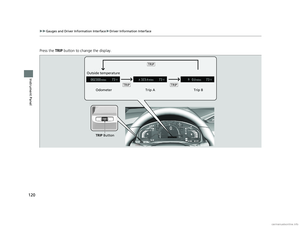

❙TRIP Button (P119, 121)

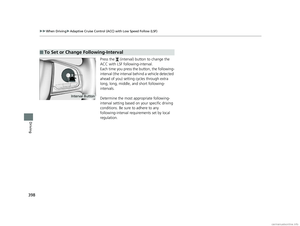

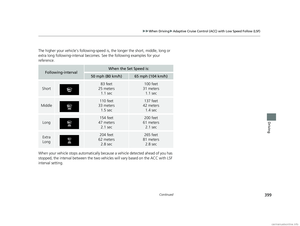

❙Interval Button (P 398)

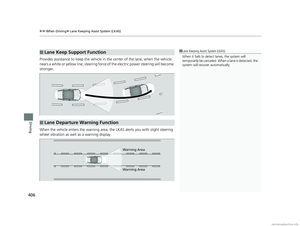

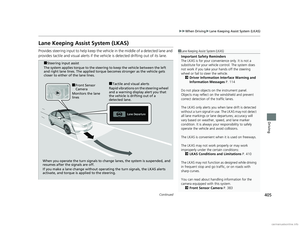

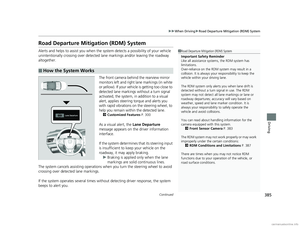

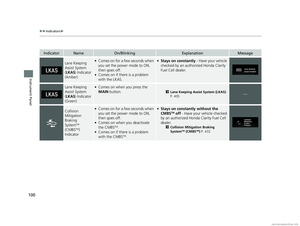

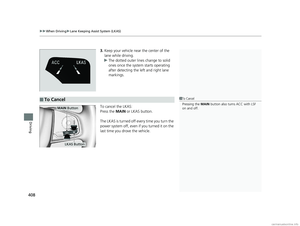

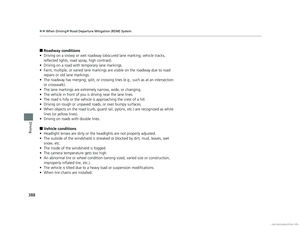

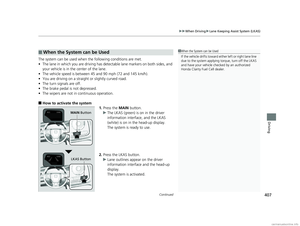

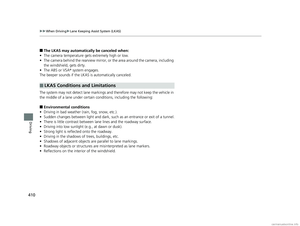

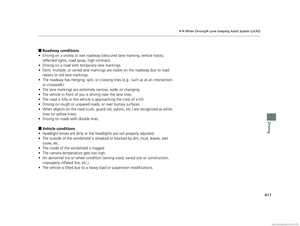

❙Lane Keeping Assist System (LKAS) Button (P 407)

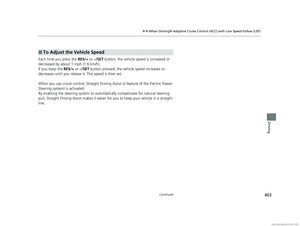

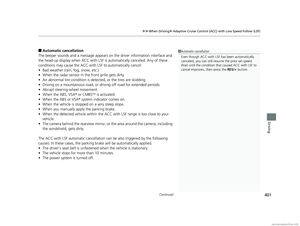

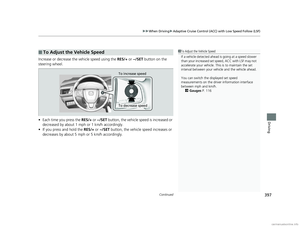

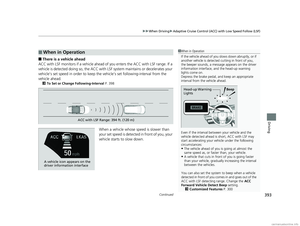

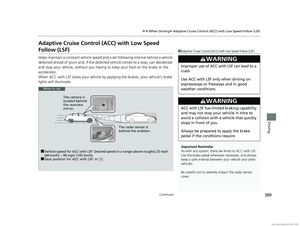

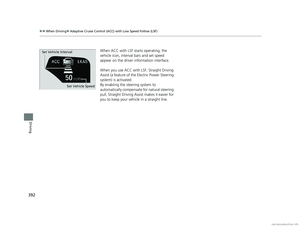

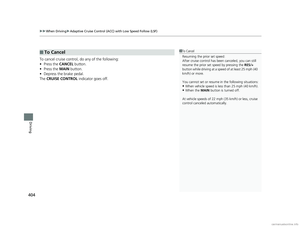

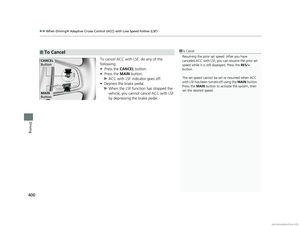

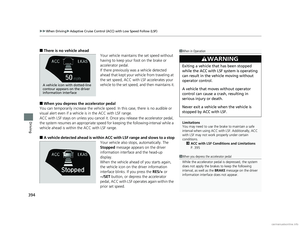

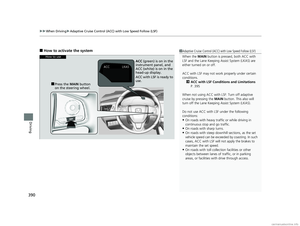

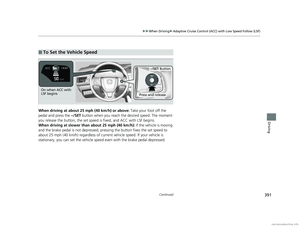

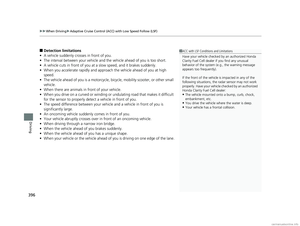

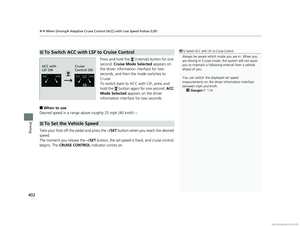

❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 389)

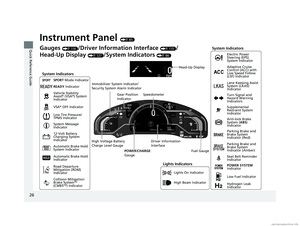

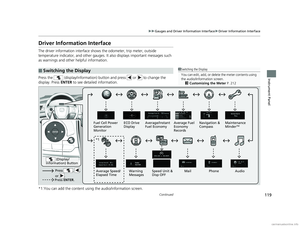

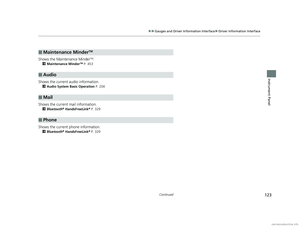

❙ (Display/Information) Button (P119 )

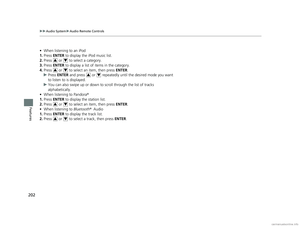

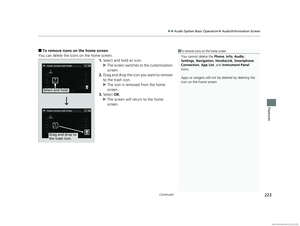

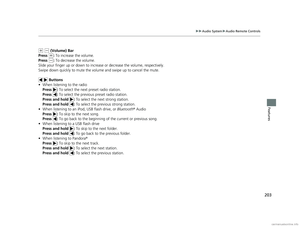

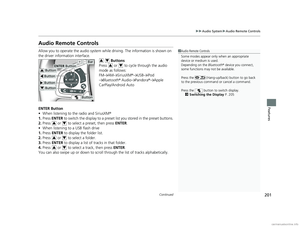

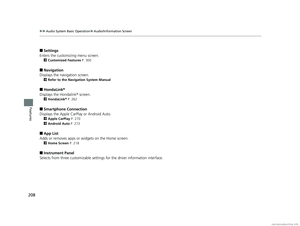

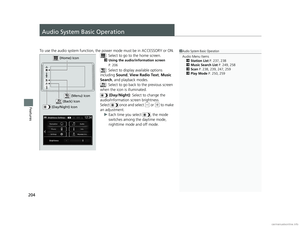

❙/ / / Buttons (P119, 201)34
❙ENTER Button (P119 )

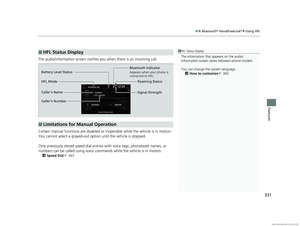

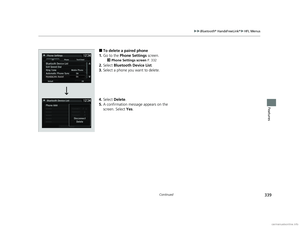

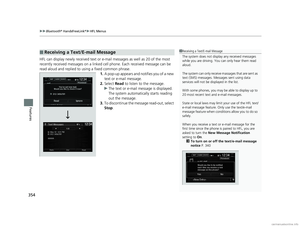

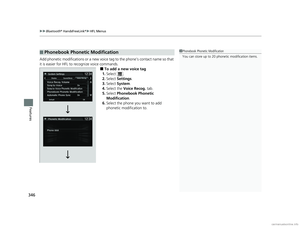

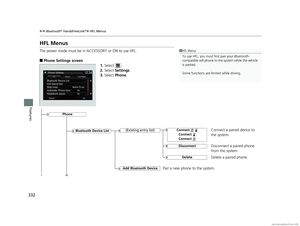

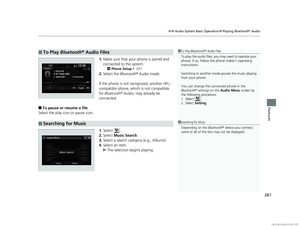

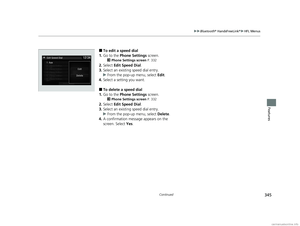

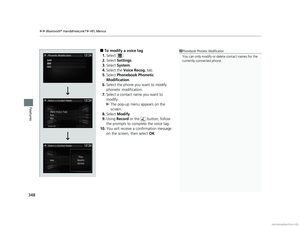

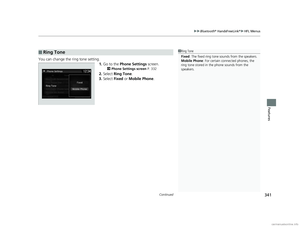

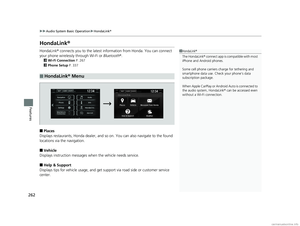

❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 329)
❙Horn (Press an area around .)

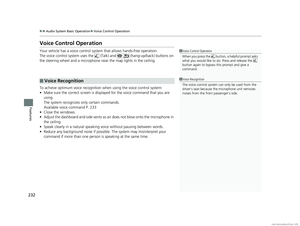

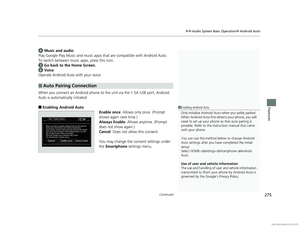

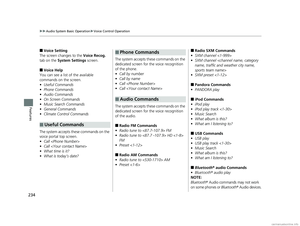

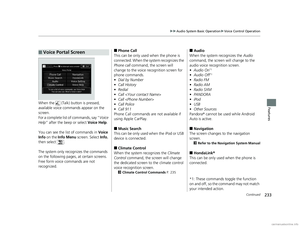

❙Voice Control Buttons (P 232)
18 CLARITY FUEL CELL PPO-31TRT6100.book 7 ページ ２０１７年１１月２１日　火曜日　午後３時３分

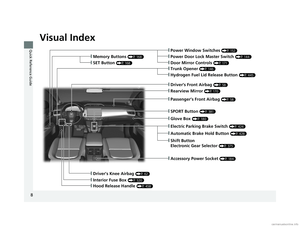

Visual Index
8

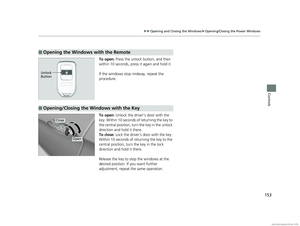

Quick Reference Guide❙Power Window Switches (P 152)
❙Trunk Opener (P 146)

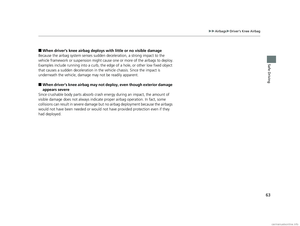

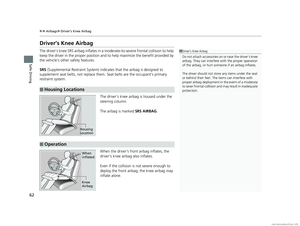

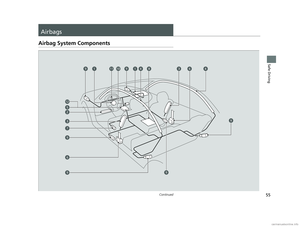

❙Driver’s Knee Airbag (P 62)

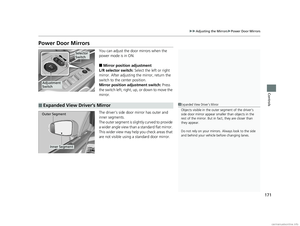

❙Door Mirror Controls (P 171)

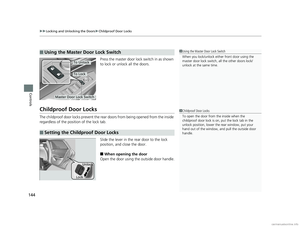

❙Power Door Lock Master Switch (P 144)
❙Hydrogen Fuel Lid Release Button (P 445)

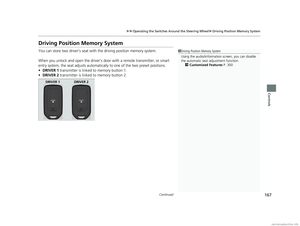

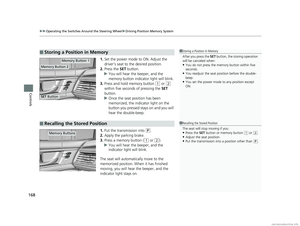

❙Memory Buttons (P 168)
❙SET Button (P 168)

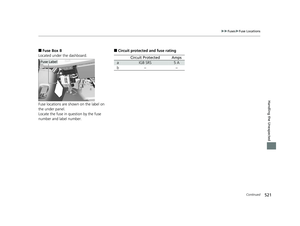

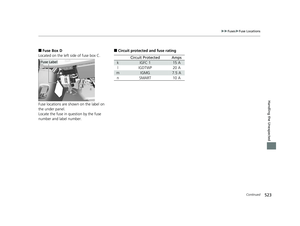

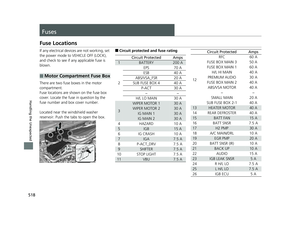

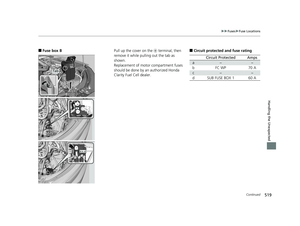

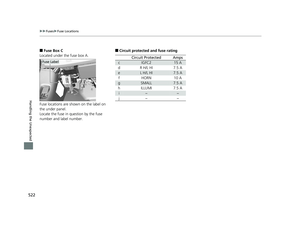

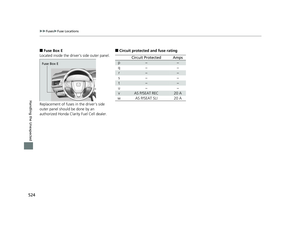

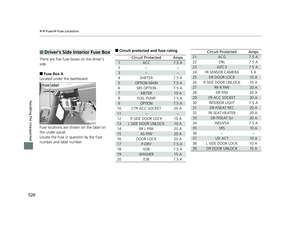

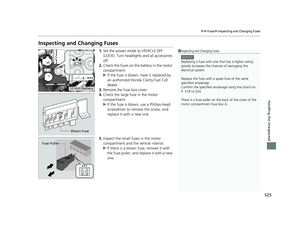

❙Interior Fuse Box (P 520)

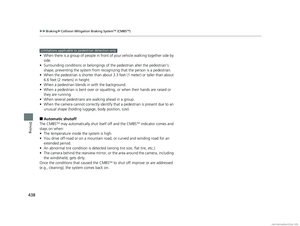

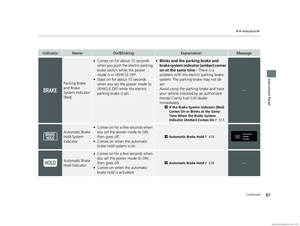

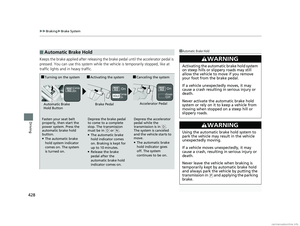

❙Automatic Brake Hold Button (P 428)

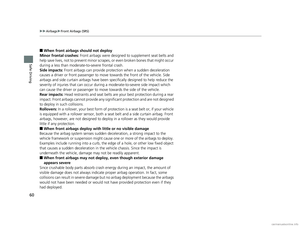

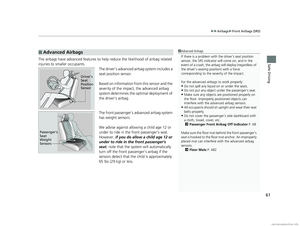

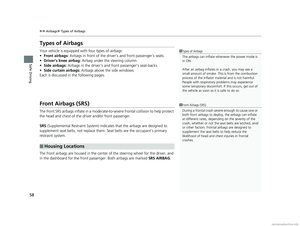

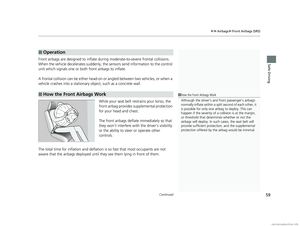

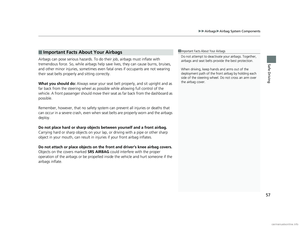

❙Driver’s Front Airbag (P 58)
❙Passenger’s Front Airbag (P 58)

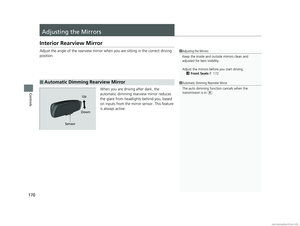

❙Rearview Mirror (P 170)

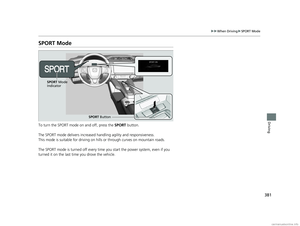

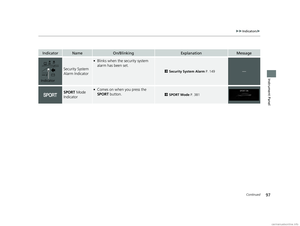

❙SPORT Button (P 381)

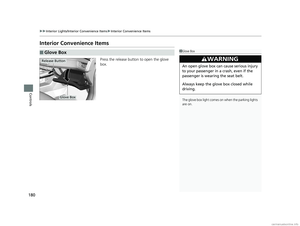

❙Glove Box (P 180)

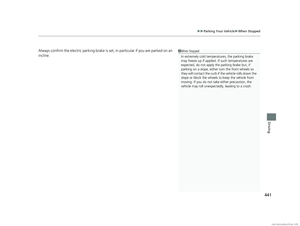

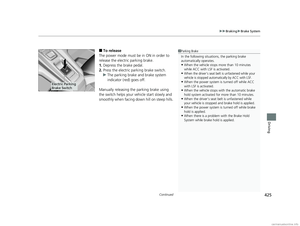

❙Electric Parking Brake Switch (P 424)

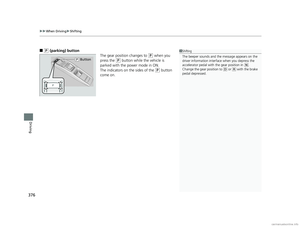

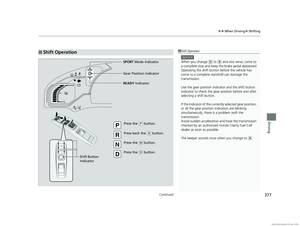

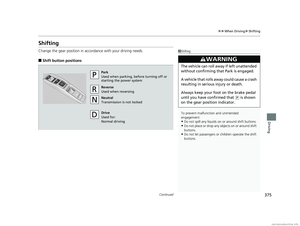

❙Shift Button
Electronic Gear Selector
(P 375)

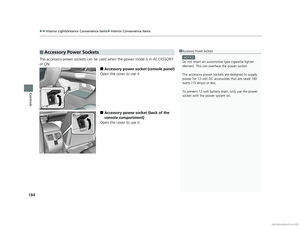

❙Accessory Power Socket (P 184)

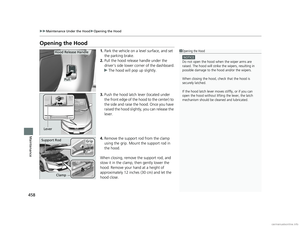

❙Hood Release Handle (P 458)
18 CLARITY FUEL CELL PPO-31TRT6100.book 8 ページ ２０１７年１１月２１日　火曜日　午後３時３分

9
Quick Reference Guide

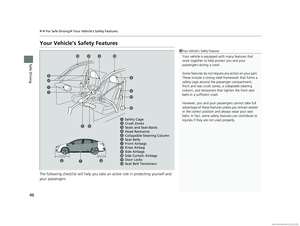

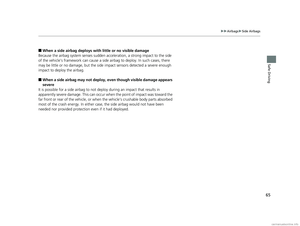

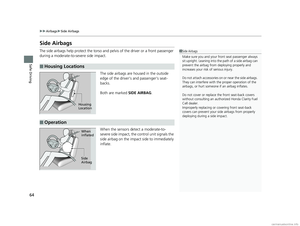

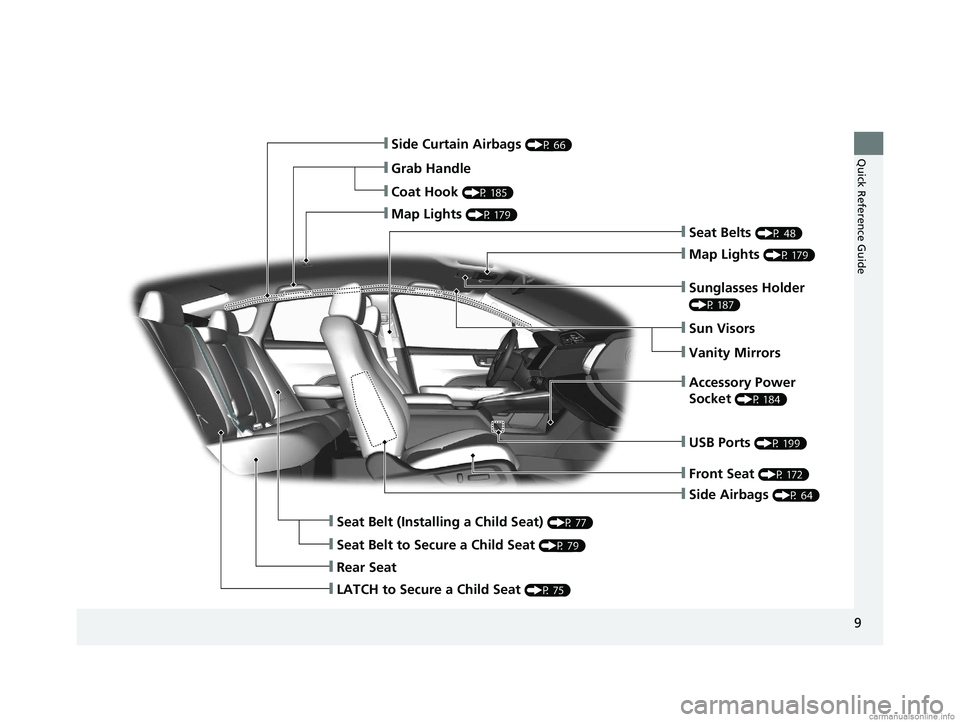

❙Side Airbags (P 64)

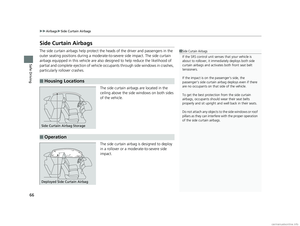

❙Side Curtain Airbags (P 66)

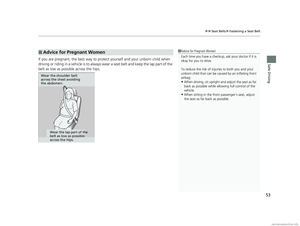

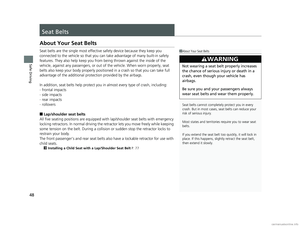

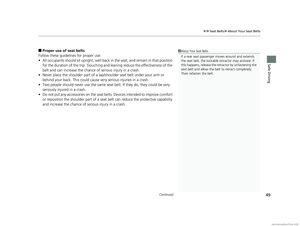

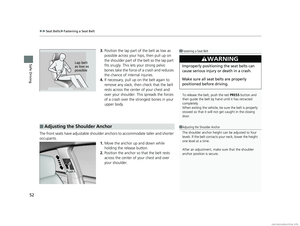

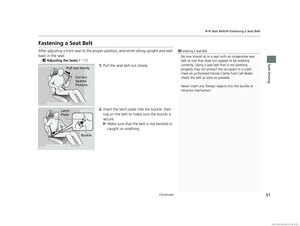

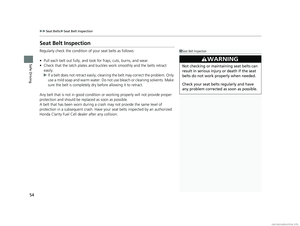

❙Seat Belts (P 48)

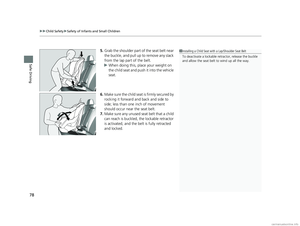

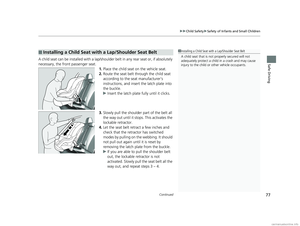

❙Seat Belt (Installing a Child Seat) (P 77)
❙Rear Seat

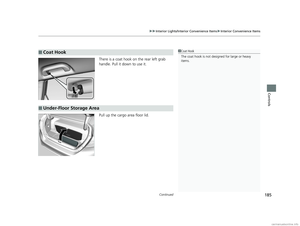

❙Coat Hook (P 185)

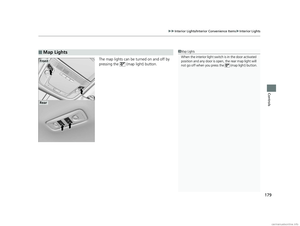

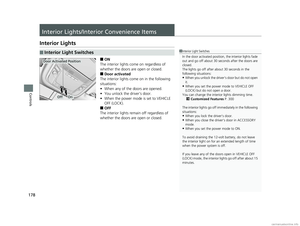

❙Map Lights (P 179)
❙Sun Visors
❙Vanity Mirrors

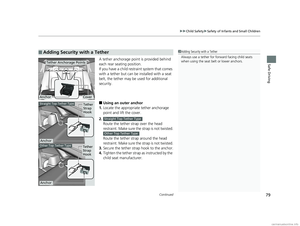

❙Seat Belt to Secure a Child Seat (P 79)
❙Map Lights (P 179)
❙Grab Handle

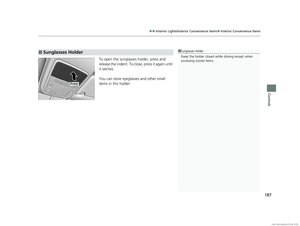

❙Sunglasses Holder
(P 187)
❙Accessory Power
Socket
(P 184)

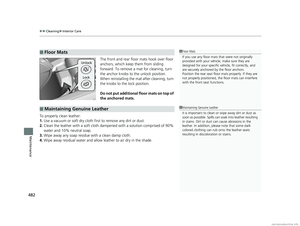

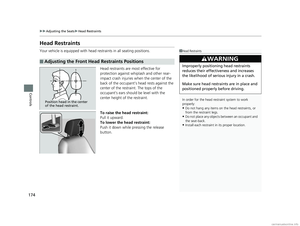

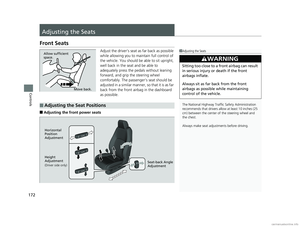

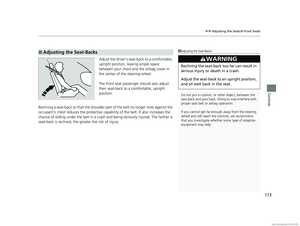

❙Front Seat (P 172)

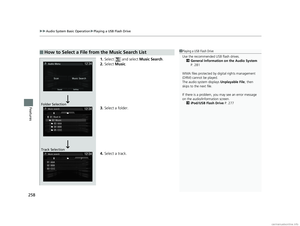

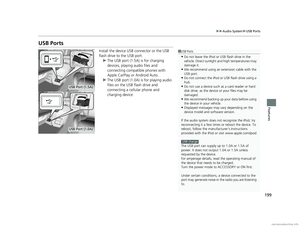

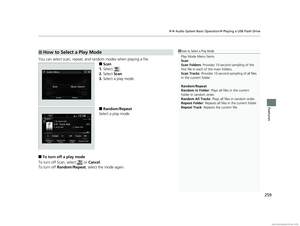

❙USB Ports (P 199)

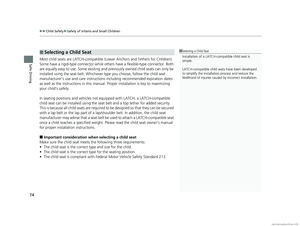

❙LATCH to Secure a Child Seat (P 75)
18 CLARITY FUEL CELL PPO-31TRT6100.book 9 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Visual Index
10

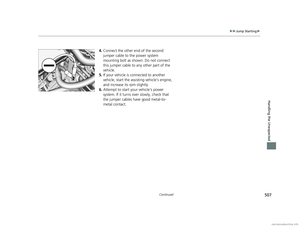

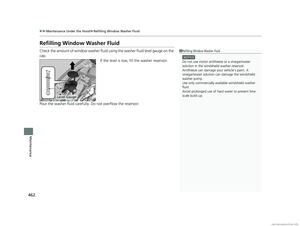

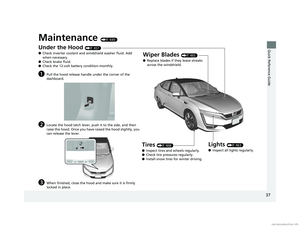

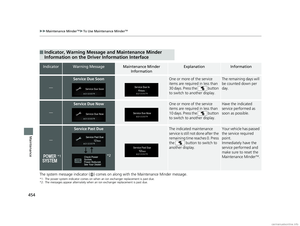

Quick Reference Guide❙Maintenance Under the Hood (P 457)

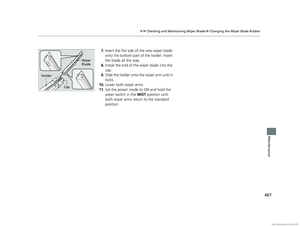

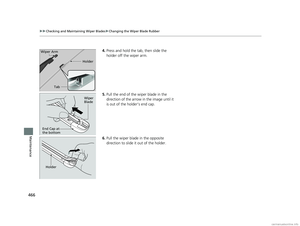

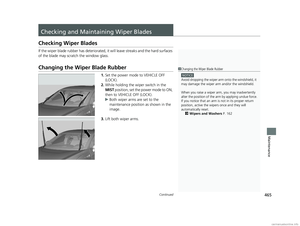

❙Windshield Wipers (P 162, 465)

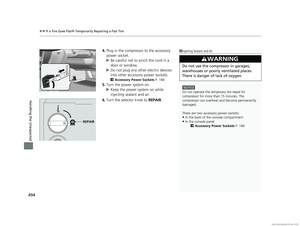

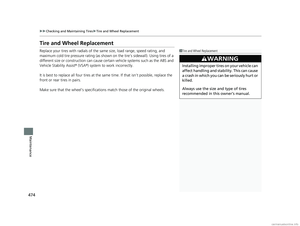

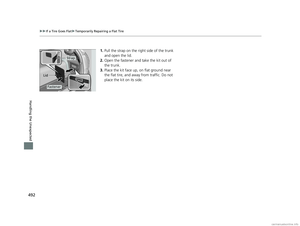

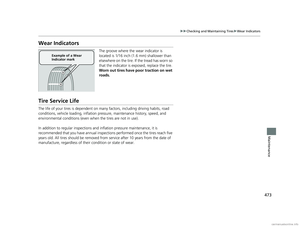

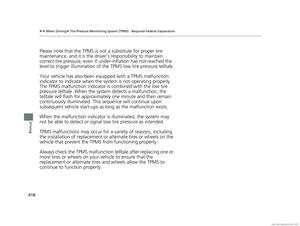

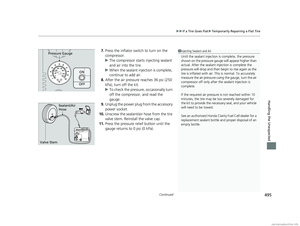

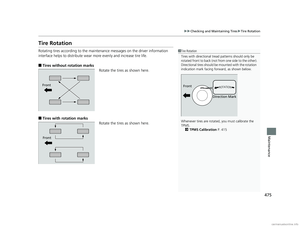

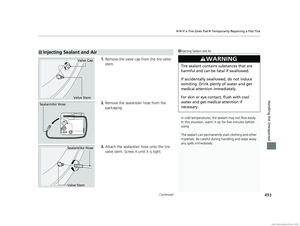

❙Tires (P 468, 490)

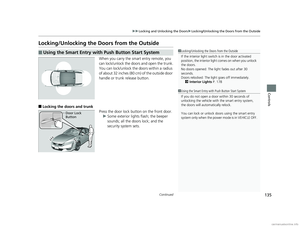

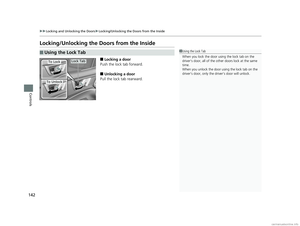

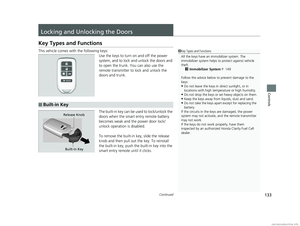

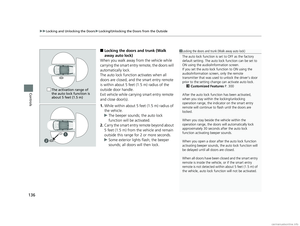

❙Door Lock/Unlock Control (P 135)

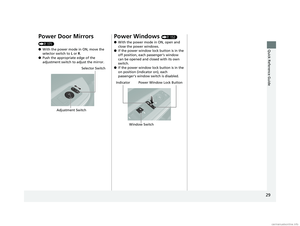

❙Power Door Mirrors (P 171)
❙Headlights (P 158, 463)
❙Front Side Marker Lights (P 158, 463)
❙Front Turn Signal Lights (P 157, 463)

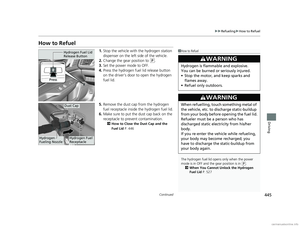

❙How to Refuel (P 445)
❙High-Mount Brake Light (P 464)

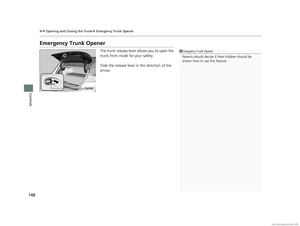

❙Emergency Trunk Release Lever (P 148)

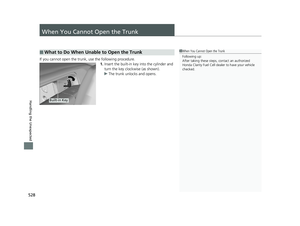

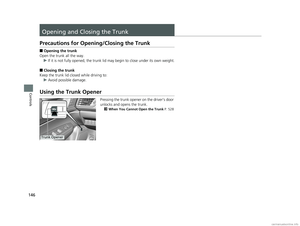

❙Opening/Closing the Trunk (P 146)

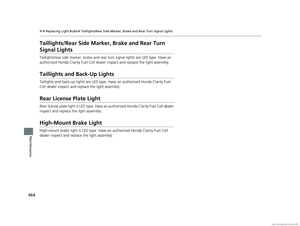

❙Tail/Rear Side Marker Lights (P 464)
❙Brake Lights (P 464)
❙Rear Turn Signal Lights (P 464)
❙Back-Up Lights (P 464)
❙Taillights (P 464)

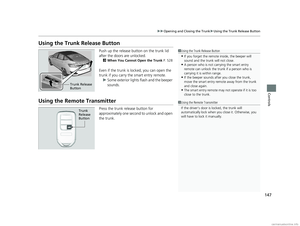

❙Trunk Release Button (P 147)
❙Rear License Plate Light (P 464)

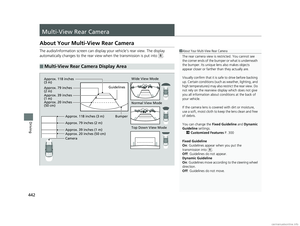

❙Multi-View Rear Camera (P 442)

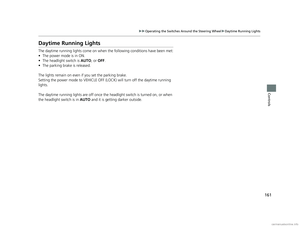

❙Parking/Daytime Running Lights (P 158, 161, 463)
18 CLARITY FUEL CELL PPO-31TRT6100.book 10 ページ ２０１７年１１月２１日　火曜日　午後３時３分

11
Quick Reference Guide

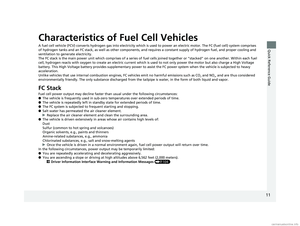

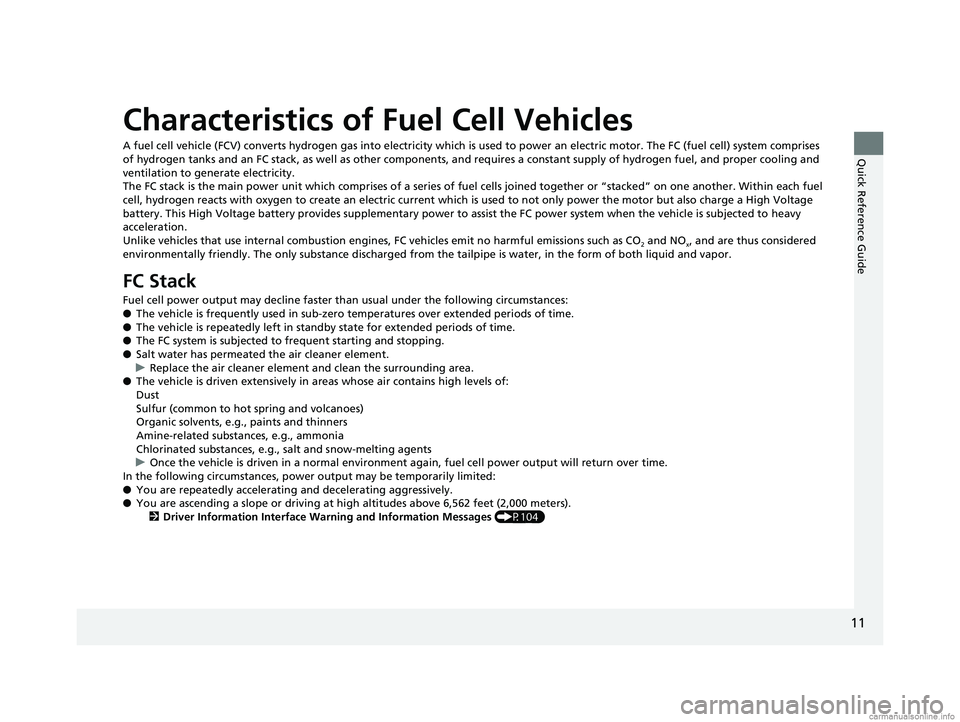

Characteristics of Fuel Cell Vehicles
A fuel cell vehicle (FCV) converts hydrogen gas into electricity which is used to power an electric motor. The FC (fuel cell) system comprises
of hydrogen tanks and an FC stack, as well as other components, and requires a constant supply of hydrogen fuel, and proper cooling and
ventilation to generate electricity.

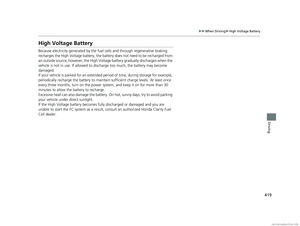

The FC stack is the main power unit which comprises of a series of fuel cells joined together or “stacked” on one another. With in each fuel
cell, hydrogen reacts with oxygen to create an electric current whic h is used to not only power the motor but also charge a High Voltage
battery. This High Voltage battery provides supplementary power to assist the FC power system when the vehicle is subjected to heavy
acceleration.
Unlike vehicles that use internal combustion engines, FC vehicles emit no harmful emissions such as CO
2 and NOx, and are thus considered
environmentally friendly. The only substa nce discharged from the tailpipe is water, in the form of both liquid and vapor.
FC Stack
Fuel cell power output may decline faster th an usual under the following circumstances:
● The vehicle is frequently used in sub-zero temperatures over extended periods of time.
● The vehicle is repeatedly left in stand by state for extended periods of time.
● The FC system is subjected to frequent starting and stopping.
● Salt water has permeated the air cleaner element.
u Replace the air cleaner element and clean the surrounding area.
● The vehicle is driven extensively in areas whose air contains high levels of:
Dust
Sulfur (common to hot spring and volcanoes)
Organic solvents, e.g., paints and thinners
Amine-related substa nces, e.g., ammonia
Chlorinated substances, e.g., salt and snow-melting agents
u Once the vehicle is driven in a normal environment again, fuel cell power output will return over time.
In the following circumstances, power output may be temporarily limited:
● You are repeatedly accelerating and decelerating aggressively.
● You are ascending a slope or driving at high altitudes above 6,562 feet (2,000 meters).

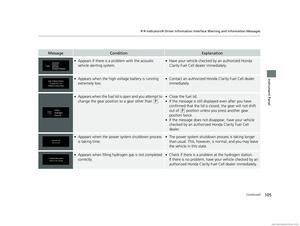

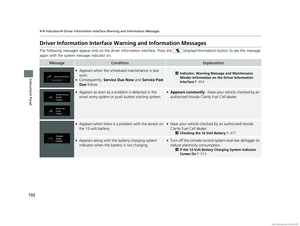

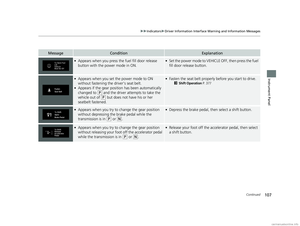

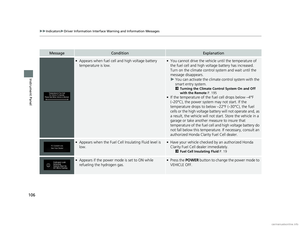

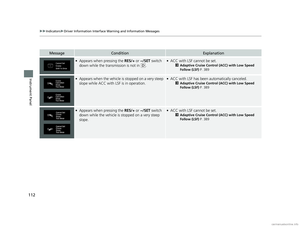

2 Driver Information Interface Wa rning and Information Messages (P104)
18 CLARITY FUEL CELL PPO-31TRT6100.book 11 ページ ２０１７年１１月２１日　火曜日　午後３時３分

12
Quick Reference Guide

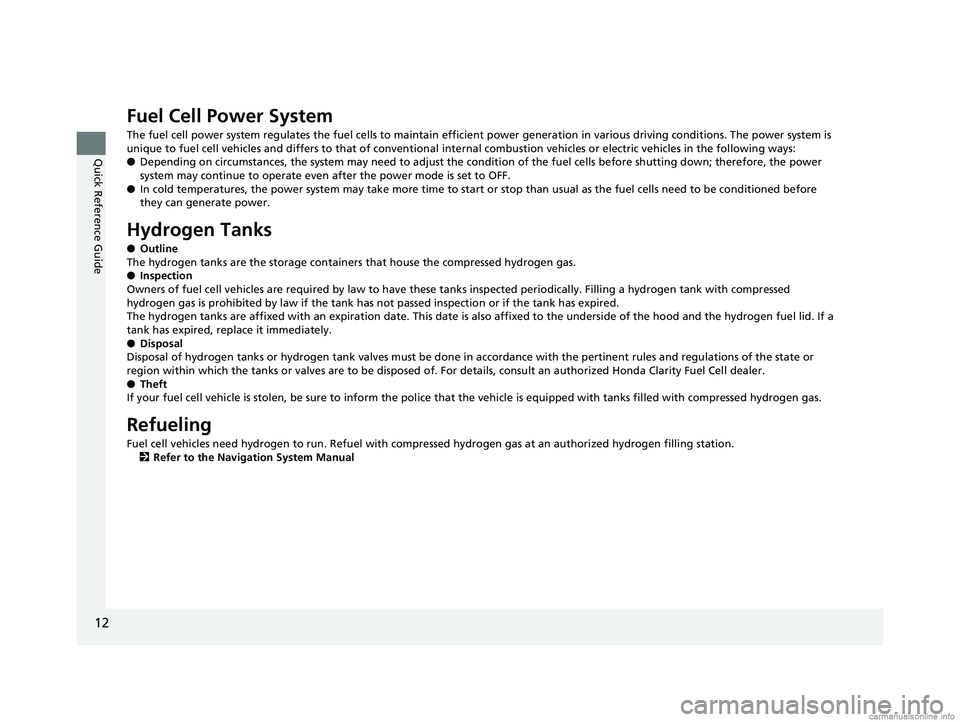

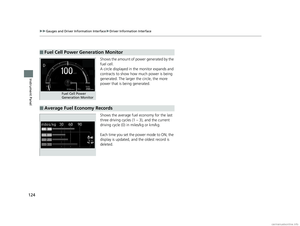

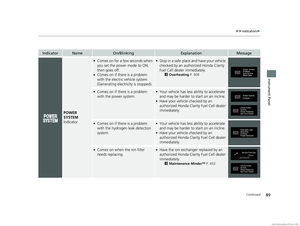

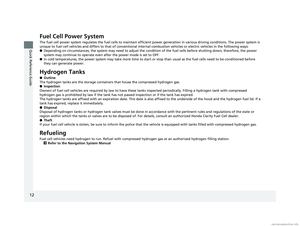

Fuel Cell Power System
The fuel cell power system regulates the fuel cells to maintain efficient power generation in various driving conditions. The p ower system is
unique to fuel cell vehicles and differs to that of conventional internal combustion vehicles or electric vehicles in the following ways:
● Depending on circumstances, the system may n eed to adjust the condition of the fuel cells before shutting down; therefore, the power
system may continue to operate even after the power mode is set to OFF.

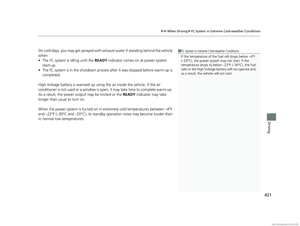

● In cold temperatures, the power system may take more time to sta rt or stop than usual as the fuel cells need to be conditioned before
they can generate power.
Hydrogen Tanks
● Outline
The hydrogen tanks are the storage containe rs that house the compressed hydrogen gas.
● Inspection
Owners of fuel cell vehicles are required by law to have these tanks inspected periodically. Filling a hydrogen tank with compr essed
hydrogen gas is prohibited by law if the tank has not passed inspection or if the tank has expired.
The hydrogen tanks are affixed with an expiration date. This date is also affixed to the underside of the hood and the hydrogen fuel lid. If a
tank has expired, replace it immediately.
● Disposal
Disposal of hydrogen tanks or hydrogen tank valves must be done in accordance with the pertinent rules and regulations of the state or
region within which the tanks or valves are to be disposed of. For details, consult an authorized Honda Clarity Fuel Cell deale r.
● Theft
If your fuel cell vehicle is stolen, be sure to inform the polic e that the vehicle is equipped with tanks filled with compresse d hydrogen gas.

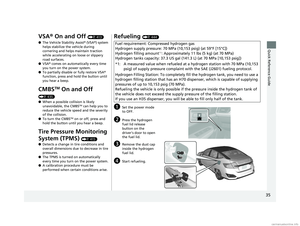

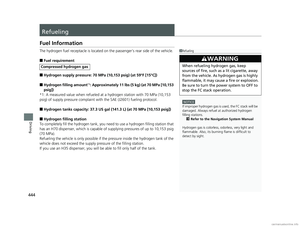

Refueling
Fuel cell vehicles need hydrogen to run. Refuel with compressed hydrogen gas at an authorized hydrogen filling station.
2 Refer to the Navigation System Manual
18 CLARITY FUEL CELL PPO-31TRT6100.book 12 ページ ２０１７年１１月２１日　火曜日　午後３時３分

13
Quick Reference Guide

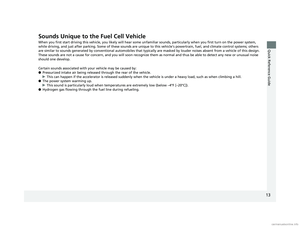

Sounds Unique to the Fuel Cell Vehicle
When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,

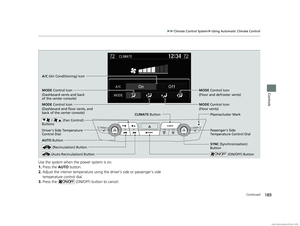

while driving, and just after parking. Some of these sounds are unique to this ve hicle’s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
Certain sounds associated with your vehicle may be caused by:
● Pressurized intake air being released through the rear of the vehicle.
u This can happen if the accelerator is released suddenly when the vehicle is under a heavy load, such as when climbing a hill.
● The power system warming up.
u This sound is particularly loud when temperat ures are extremely low (below –4°F [–20°C]).
● Hydrogen gas flowing through the fuel line during refueling.
18 CLARITY FUEL CELL PPO-31TRT6100.book 13 ページ ２０１７年１１月２１日　火曜日　午後３時３分

14
Quick Reference Guide

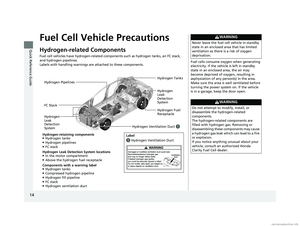

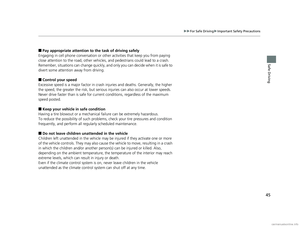

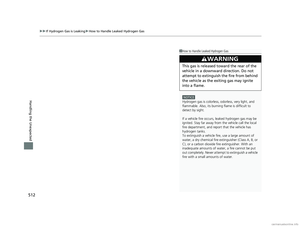

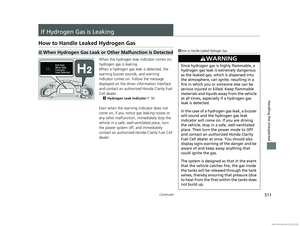

Fuel Cell Vehicle Precautions
