2018 HONDA CIVIC HATCHBACK Owner's Manual (in English)

Continued159

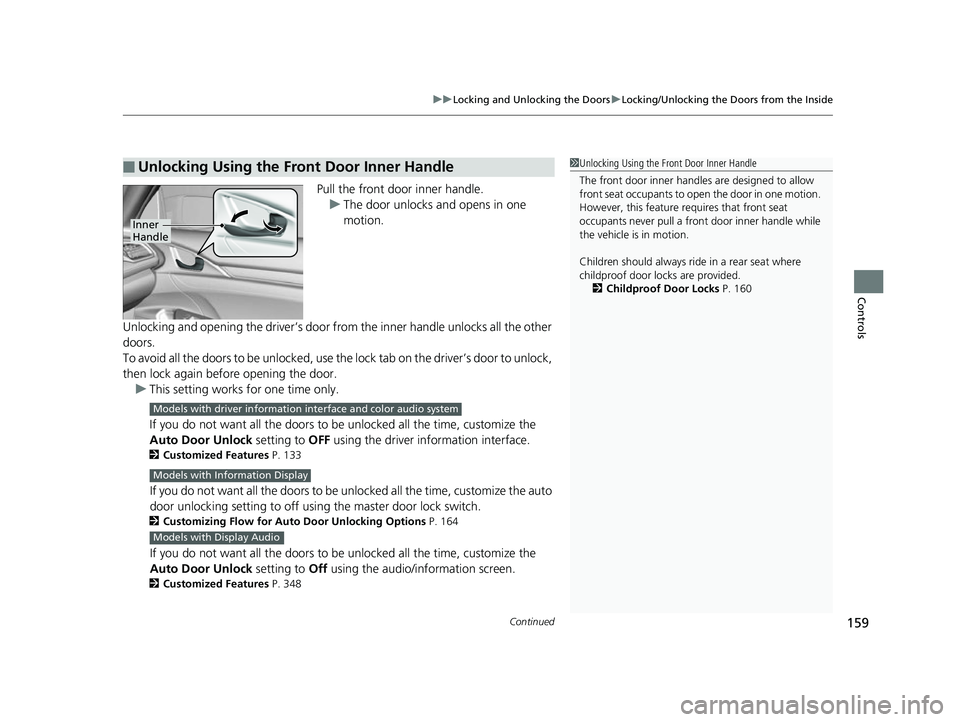

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to OFF using the driver information interface.
2Customized Features P. 133
If you do not want all the doors to be unlocked all the time , customize the auto
door unlocking setting to off using the master door lock switch.
2 Customizing Flow for Auto Door Unlocking Options P. 164
If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to Off using the audio/information screen.
2Customized Features P. 348
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 160
Inner
Handle
Models with driver information interface and color audio system
Models with Information Display
Models with Display Audio
18 CIVIC 5D (KA KC KL)-31TGG6100.book 159 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuLocking and Unlocking the Doors uChildproof Door Locks
160
Controls
Press the master door lock switch in as shown
to lock or unlock all the doors and the hatch.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock either of the front doors using
the master door lock swit ch, all the other doors and
the hatch lock/unlock at the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
18 CIVIC 5D (KA KC KL)-31TGG6100.book 160 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

161
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors and the hatch lock when the vehicle’s speed reaches about 10 mph (15
km/h).
■Driver’s door open mode
All doors and the hatch unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting
* P. 162
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface. 2 Customized Features P. 133
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 348
Models with Information Display
Models with driver information interface and color
audio system
Models with Display Audio
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 161 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

162
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
Customizing the Auto Door Locking/Unlocking Setting*
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1:Default setting
■List of the Auto Door Locking/ Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors and the hatch lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver's Door Open
Mode*1All doors and the hatch unlock when the driver’s door is opened.
Park Unlock Mode
All doors and the hatch unlock when the shift lever is moved into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Models with
continuously variable
transmission
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 162 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

163
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Continued
Controls
*1:Default setting
■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*1Off
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w.Turn the ignition switch to ON (w.
4
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release th e switch after you hear a click twice.Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
5Turn the ignition switch to ACCESSORY (q within 20 seconds.
u Customization is completed.
Models with continuously variable transmissionModels with continuously variable transmission
18 CIVIC 5D (KA KC KL)-31TGG6100.book 163 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

164
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
*1:Default setting
■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode*1Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w.Turn the ignition switch to ON
(w.
4
Press and hold the left side of the master door lock switch on the driver’s door for more than five seconds. Release the switch
after you hear a click twice.
5Turn the ignition switch to ACCESSORY (q within 20 seconds.
u Customization is completed.
Models with continuously variable transmission
Models with continuously variable transmissionModels with continuously variable
transmission
18 CIVIC 5D (KA KC KL)-31TGG6100.book 164 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

165
Controls
Opening and Closing the Hatch
Precautions for Opening/Closing the Hatch
Always make sure individuals and objects are clear of the hatch before opening or
closing it.
•Open the hatch all the way.
u If it is not fully opened, the hatch may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the hatch to close.
Keep the hatch closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 74
1Precautions for Opening/Closing the Hatch
Be careful not to hit your head on the hatch or to put
your hands between the ha tch and the cargo area
when closing the hatch.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a hatch that
is being opened or closed can be seriously
injured.
Make sure that all people are clear of the
hatch before opening or closing it.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 165 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

166
uuOpening and Closing the Hatch uUsing the Hatch Release Button
Controls
Using the Hatch Release Button
When all the doors are unlocked or press the
hatch unlock button on the remote
transmitter, the hatch is unlocked. Press the
hatch release button and lift open the hatch.
If you are carrying the smart entry remote, you
do not have to unlock the hatch before
opening it.
To close the hatch, grab the inner handle, pull
the hatch down, and push it closed from
outside.1 Using the Hatch Release Button
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can unlock the hatch while someone else with
the remote is within range.
•Do not leave the smart entry remote inside the
cargo area and close the hatch when all the doors
are locked. The beeper sounds and the hatch
cannot be locked.
Models with smart entry system
Hatch Release Button
Models with smart entry system
Inner Handle
All models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 166 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
