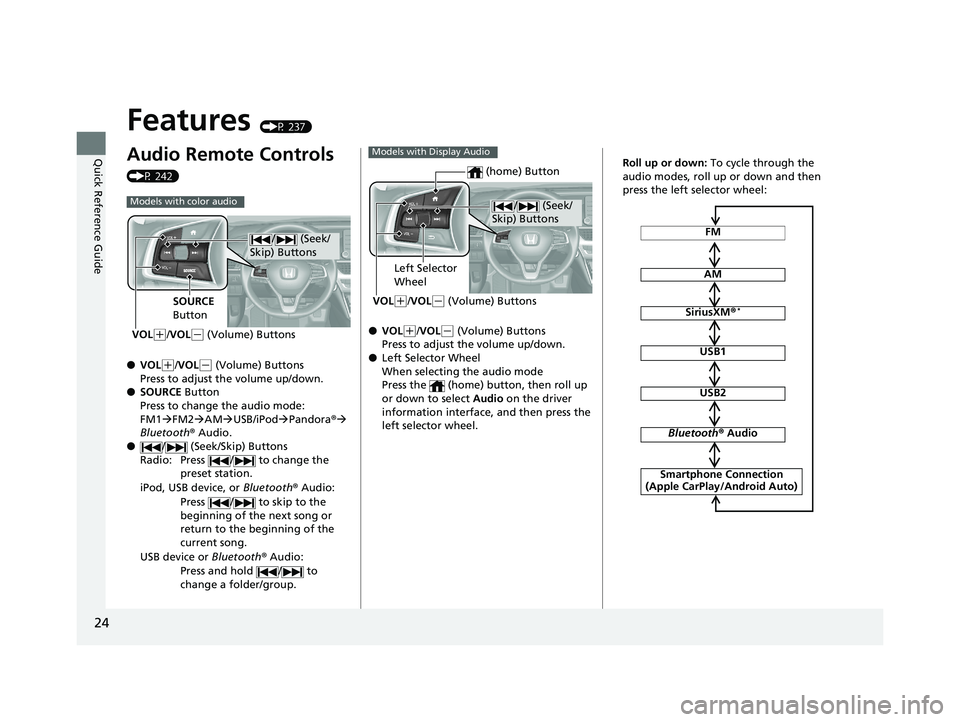

2018 HONDA ACCORD SEDAN android auto

24
Quick Reference Guide
Features (P 237)
Audio Remote Controls
(P 242)
●VOL
(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1 FM2 AM USB/iPod Pandora ®
Bluetooth ® Audio.
● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, or Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device or Bluetooth® Audio:
Press and hold / to
change a folder/group.
Models with color audio
/ (Seek/
Skip) Buttons
SOURCE
Button
VOL
( +/VOL(- (Volume) Buttons● VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● Left Selector Wheel
When selecting the audio mode
Press the (home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel.
Models with Display Audio
/ (Seek/
Skip) Buttons
Left Selector
Wheel
VOL
( +/VOL(- (Volume) Buttons
(home) Button
FM
AM
SiriusXM ®*
USB1
USB2
Bluetooth® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
18 ACCORD HYBRID-31TWA6000.book 24 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued143
uuGauges and Displays uDriver Information Interface
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2 Refer to the navigation system
■Navigation*1Navigation*
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 378
Models with Display Audio
Compass
Turn-By-Turn Driving Directions
Models with Display Audio
Models with navigation system
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 143 ページ ２０１８年１月３０日　火曜日　午後７時３８分

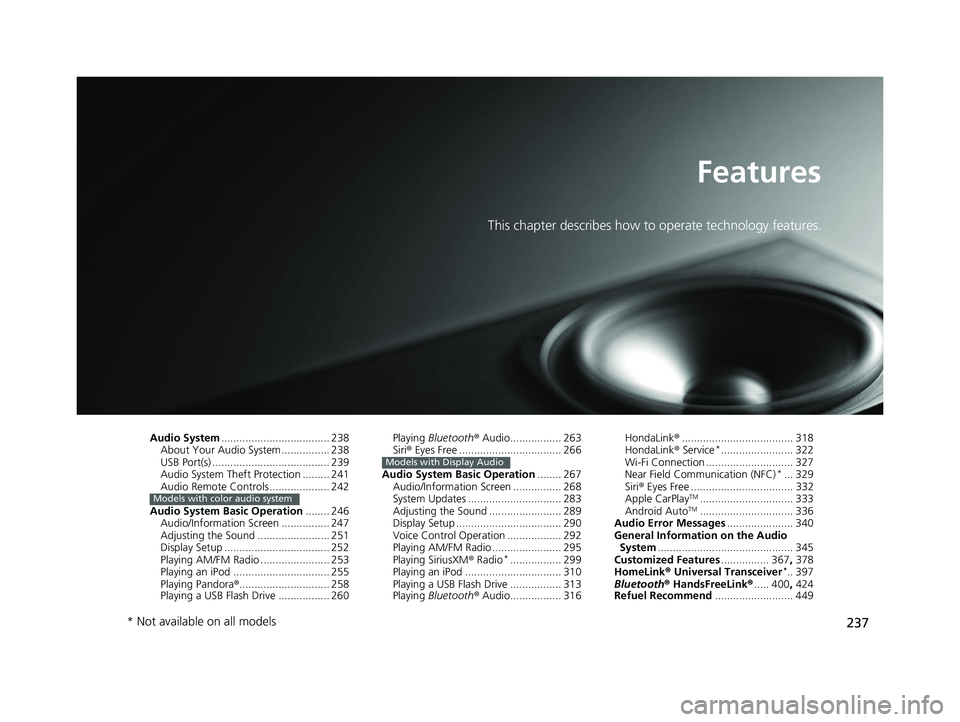

237
Features
This chapter describes how to operate technology features.
Audio System.................................... 238
About Your Audio System ................ 238
USB Port(s) ....................................... 239
Audio System Theft Protection ......... 241
Audio Remote Controls .................... 242
Audio System Basic Operation ........ 246
Audio/Information Screen ................ 247
Adjusting the Sound ........................ 251
Display Setup ................................... 252
Playing AM/FM Radio ....................... 253
Playing an iPod ................................ 255
Playing Pandora ®.............................. 258
Playing a USB Flash Drive ................. 260
Models with color audio system
Playing Bluetooth ® Audio................. 263
Siri ® Eyes Free .................................. 266
Audio System Basic Operation ........ 267
Audio/Information Screen ................ 268
System Updates ............................... 283
Adjusting the Sound ........................ 289
Display Setup ................................... 290
Voice Control Operation .................. 292
Playing AM/FM Radio ....................... 295
Playing SiriusXM ® Radio
*................. 299
Playing an iPod ................................ 310
Playing a USB Flash Drive ................. 313
Playing Bluetooth ® Audio................. 316
Models with Display Audio
HondaLink ®..................................... 318
HondaLink ® Service*........................ 322
Wi-Fi Connection ............................. 327
Near Field Communication (NFC)
*... 329
Siri ® Eyes Free .................................. 332
Apple CarPlay
TM............................... 333
Android AutoTM............................... 336
Audio Error Messages ...................... 340
General Information on the Audio System ............................................. 345
Customized Features ................ 367, 378
HomeLink ® Universal Transceiver
*.. 397
Bluetooth® HandsFreeLink® ..... 400, 424
Refuel Recommend .......................... 449
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 237 ページ ２０１８年１月３０日　火曜日　午後７時３８分

239
uuAudio System uUSB Port(s)
Continued
Features
USB Port(s)
Install the iPod USB connector or the USB flash drive to the USB port.
■In the Center Pocket
The USB port (1.0A) is for playing audio files
on a USB flash drive, connecting a cellular
phone and charging devices.
The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.
1 USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/2.5A of power. It
does not output 1.0A/2.5A unless the device
requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Set the power mode to ACCESSORY or ON first.
Under certain condi tions, a device connected to the
port may generate noi se in the radio you are listening
to.
USB charge
Models
with
color
audioModels
with
Display
Audio
In the Center Pocket
Models with color audio
Models with Display Audio
18 ACCORD HYBRID-31TWA6000.book 239 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuAudio System uUSB Port(s)
240
Features
■In the consol e compartment
The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.
■Rear of the center console*
The USB ports (2.5A) are only for charging
devices.
Models with Display Audio1 USB Port(s)
These ports are for battery charge only. You cannot
play music even if you ha ve connected music players
to them.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
Rear of the center console*In the Console Compartment
Rear of the center console*
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 240 ページ ２０１８年１月３０日　火曜日　午後７時３８分

244
uuAudio System uAudio Remote Controls
Features
Roll up or down:
FM
AM
SiriusXM ®*
USB1
USB2
Bluetooth ® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
To cycle through the audio modes, roll up or down
and then press the left selector wheel:
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 244 ページ ２０１８年１月３０日　火曜日　午後７時３８分

270
uuAudio System Basic Operation uAudio/Information Screen
Features
■HondaLink
Displays the H ondaLink screen.
2HondaLink ® P. 318
■Apple CarPlay/Android Auto
Displays the Apple CarPlay or Android Auto screen.
2Apple CarPlayTM P. 333
2 Android AutoTM P. 336
■Messages
Displays the text message screen.
2 Bluetooth ® HandsFreeLink ® P. 424
■AT&T Hotspot*
Displays the AT&T Hotspot screen.
■NFC Manager*
Displays the Near Field Communi cation (NFC) manager screen.
2Near Field Communication (NFC)* P. 329
■Compass*
Displays the compass screen.
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 270 ページ ２０１８年１月３０日　火曜日　午後７時３８分

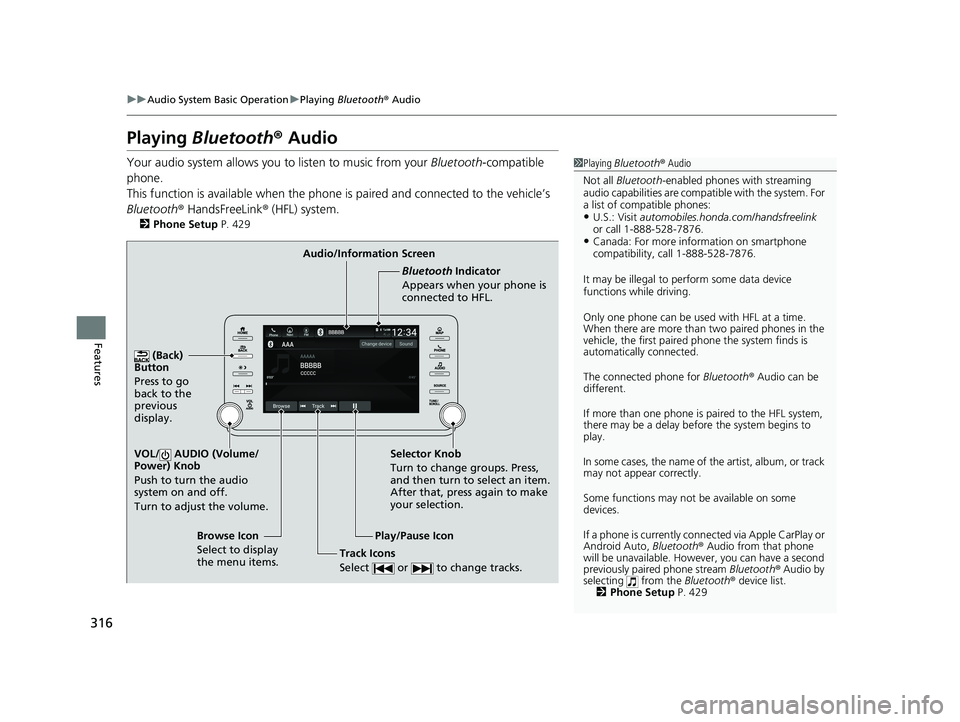

316
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Features
Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system.
2 Phone Setup P. 429
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compat ible with the system. For
a list of compatible phones:
•U.S.: Visit automobiles.honda.com/handsfreelink
or call 1-888-528-7876.
•Canada: For more information on smartphone
compatibility, call 1-888-528-7876.
It may be illegal to perform some data device
functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.
The connected phone for Bluetooth® Audio can be
different.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
If a phone is currently conne cted via Apple CarPlay or
Android Auto, Bluetooth® Audio from that phone
will be unavailable. However, you can have a second
previously paired phone stream Bluetooth® Audio by
selecting from the Bluetooth® device list.
2 Phone Setup P. 429Audio/Information Screen
(Back)
Button
Press to go
back to the
previous
display.
VOL/ AUDIO (Volume/
Power) Knob
Push to turn the audio
system on and off.
Turn to adjust the volume.Selector Knob
Turn to change groups. Press,
and then turn to select an item.
After that, press again to make
your selection.
Play/Pause Icon Bluetooth Indicator
Appears when your phone is
connected to HFL.
Track Icons
Select or to change tracks.
Browse Icon
Select to display
the menu items.
18 ACCORD HYBRID-31TWA6000.book 316 ページ ２０１８年１月３０日　火曜日　午後７時３８分
