7-69
7
Maintenance
Engine compartment fuse panel
Fuse NameFuse ratingCircuit Protected
ALT200AAlternator, Multifuse (BATT) - B+2/ B+5/ MDPS 1,
Fuse - P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2
B+160A IGPM (Fuse - BRAKE SWITCH, E-SHIFTER 1 Leak Current Autocut Device (Fuse - INTERIOR LAMP/
MULTI MEDIA 1/ MEMORY 3), IPS 1)
B+360A IGPM (Fuse - SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)
B+460A IGPM (Fuse - DOOR LAMP/ MODULE 9/ MODULE 10, IPS 4/ IPS6/ IPS)
B+660A Metal Core Block (PCB #1 Fuse - ECU 3/ IG2/ MODULE 1)
B+780A Metal Core Block (PCB #2 Fuse - HORN/ ACC/ EPB 1/ EPB 2/ B/UP LAMP)
B+260A IGPM (Fuse - P/HANDLE/ P/WDW LH/ P/SEAT DRV 1/ P/SEAT PASS 1/ S/HEATER PASS/ POWER
OUTLET 3/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS)
B+580A Metal Core Block (PCB #1 Fuse - BLOWER/ DEICER/ H/LAMP WASHER/ H/LAMP HI SOL)
MDPS 1125A MDPS Unit
C/FAN80A Cooling Fan Controller
P/SEAT
RR30A Not Used
ESC 240A ESC Module, Multipurpose Check Connector
ESC 140A ESC Module, Multipurpose Check Connector
P/SEAT DRV 225A Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box
VACUUM
PUMP40A Vacuum Pump Relay
WIPER 130A Wiper Motor

7-76
Maintenance
L LI
IG
GH
HT
T
B
BU
UL
LB
BS
S
Consult an authorized retailer of
Genesis Branded products to
replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can get
to the bulb. This is especially true for
removing the headlamp assembly to
get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
✽ ✽
NOTICE
After heavy driving, rain or wash-
ing, headlamp and trunk lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
the outside temperature. This is sim-
ilar to the condensation on your win-
dows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, have
your vehicle checked by an author-
ized retailer of Genesis Branded
products.
Headlamp, position lamp, turn
signal lamp, side marker and
front fog lamp bulb replace-
ment
(1) Turn signal lamp
(2) Headlamp (High/Low)
(3) Side marker
(4) Position lamp/Daytime running
lights
(5) Fog lamp
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, press
the Engine Start/Stop button
to the OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
ODH073039
■ Type A

7-78
Maintenance
✽ ✽
NOTICE
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at an authorized retailer
of Genesis Branded products.
Headlamp
1. Turn off the engine.
2. Open the hood.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the connector (A) and
pull the BI-FUNCTION lamp.
5. Connect the BI-FUNCTION lamp
to the cable and install the con-
nector (A).
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.Push the socket into the assembly
and turn the socket clockwise.
If the headlamp (LED) does nut oper-
ate, have the vehicle checked by an
autorized retailer of Genesis
Branded products.
ODH073064L
A
A

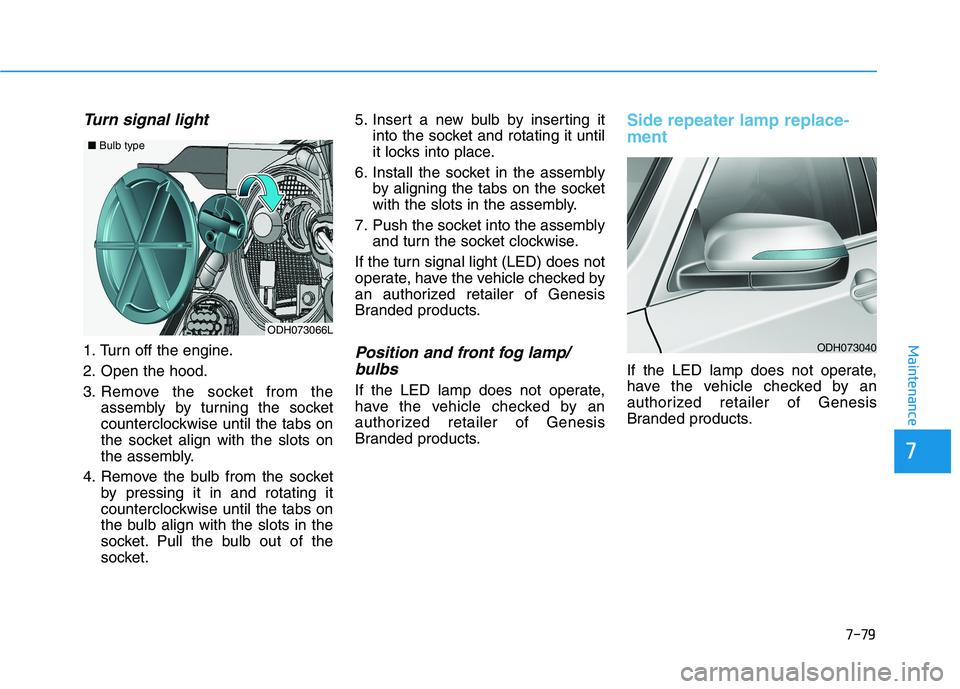

7-79
7
Maintenance
Turn signal light
1. Turn off the engine.
2. Open the hood.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
If the turn signal light (LED) does not
operate, have the vehicle checked by
an authorized retailer of Genesis
Branded products.Position and front fog lamp/
bulbs
If the LED lamp does not operate,
have the vehicle checked by an
authorized retailer of Genesis
Branded products.
Side repeater lamp replace-
ment
If the LED lamp does not operate,
have the vehicle checked by an
authorized retailer of Genesis
Branded products.
ODH073066L ■Bulb type
ODH073040

7-92
Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve
(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
When the engine starts or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission system.
Vehicle modifications
This vehicle should not be modi-
fied. Modification of your vehicle
could affect its performance, safety
or durability and may even violate
governmental safety and emis-
sions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust (carbon monox-
ide) precautions
Carbon monoxide can be present
with other exhaust fumes. If you
smell exhaust fumes of any kind in
your vehicle, drive with all the win-
dows fully open. Have your vehicle
checked and repaired immediately.
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
WARNING

8-4
Specifications, Consumer information and Reporting safety defects
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
✽ ✽
NOTICE
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are expect-
ed, recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to
drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level. (Air
inflation per altitude : +2.4 psi/1 mile)
*1: It is applied to Lambda 3.3 T-GDI engine vehicle.
*2: It is applied to Tau 5.0 GDI engine vehicle.
Item Tire size Wheel sizeInflation pressure kPa (psi)
Wheel lug nut
torque kgf·m
(lbf·ft, N.m) Normal load Maximum load
Front Rear Front Rear
Full size tire (2WD)245/45R18 8.0JX18 230 (33) 230 (33) 230 (33) 230 (33)
11~13
(79~94, 107~127) 245/40R19 8.5JX19 230 (33) - 230 (33) -
275/35R19 9.0JX19 - 260 (38) - 260 (38)
Full size tire (AWD)245/45R18 8.0JX18 230 (33) 230 (33) 230 (33) 230 (33)
245/40R19 8.5JX19235 (34)*
1- 235 (34)*1-
240 (35)*2- 240 (35)*2-
275/35R19 9.0JX19 - 260 (38) - 260 (38)
Compact spare tire
(if equipped)T135/80R18 4.0TX18 420 (60) 420 (60) 420 (60) 420 (60)
T135/70R19 4.0TX19 420 (60) 420 (60) 420 (60) 420 (60)

8-7
88
Specifications, Consumer information and Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *1
°C
°F
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM & ILSAC GF-4 (or above)).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1: For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
10W-30
5W-30
■ ■
Lambda 3.3 T-GDI / Lambda 3.8 GDI
■ ■
Tau 5.0 GDI

I-4
Driver Attention Alert System (DAA) ..........................5-104
Resetting the system .................................................5-106
System malfunction ..................................................5-106
System setting and activation ...................................5-104
System standby.........................................................5-106
Driver position memory system .....................................3-16
Easy access function ..................................................3-18
Resetting the driver's seat memory system ................3-17
Storing positions into memory ...................................3-16
Emission control system .................................................7-91
Engine ...............................................................................8-2
Engine compartment..................................................1-7, 7-3
Engine coolant ................................................................7-27
Changing engine coolant ............................................7-29
Checking the engine coolant level .............................7-27
Engine number ..................................................................8-9
Engine oil ........................................................................7-24
Checking the engine oil and filter ..............................7-25
Checking the engine oil level .....................................7-24
Explanation of scheduled maintenance items.................7-21
Exterior features..............................................................3-43
Fuel filler door............................................................3-54
Hood ...........................................................................3-43
Smart trunk .................................................................3-51
Trunk ..........................................................................3-44
Exterior overview ......................................................1-2, 1-3Fuses ...............................................................................7-59
Engine compartment panel fuse replacement ............7-62
Fuse/Relay panel description .....................................7-64
Instrument panel fuse replacement.............................7-60
Genesis Adaptive Control Suspension............................5-53
Dynamic stability damping control (DSDC) .............5-53
Electronic control suspension (ECS) .........................5-53
Gross vehicle weight.........................................................8-5
Hazard warning flasher .....................................................6-2
Head Up Display (HUD) ..............................................3-103
Index
E
F
H
G
