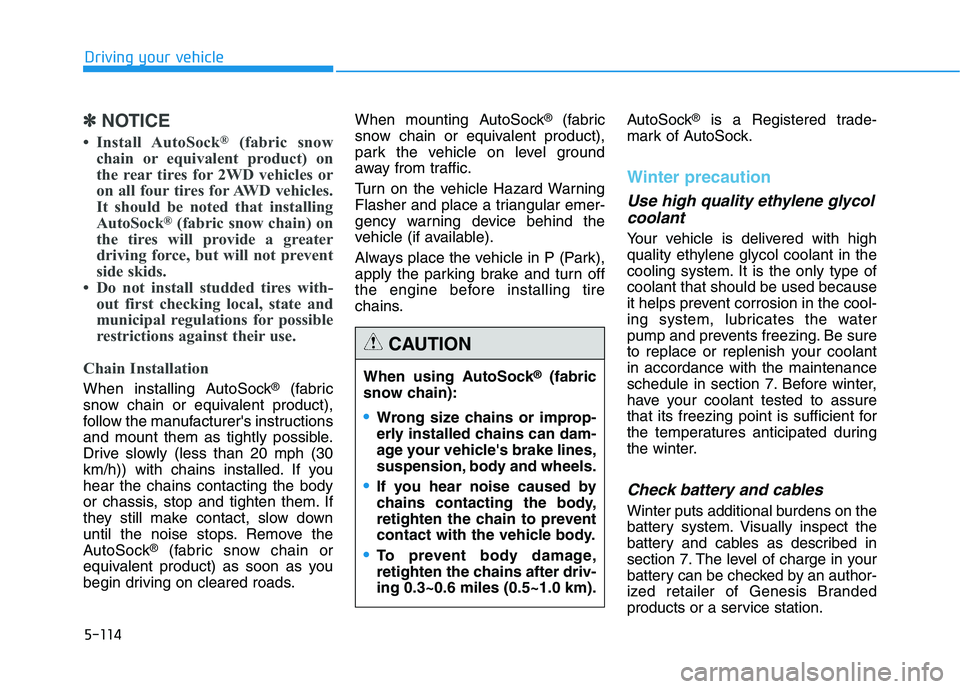

5-114
Driving your vehicle
✽ ✽
NOTICE
• Install AutoSock®(fabric snow
chain or equivalent product) on
the rear tires for 2WD vehicles or
on all four tires for AWD vehicles.
It should be noted that installing
AutoSock
®(fabric snow chain) on
the tires will provide a greater
driving force, but will not prevent
side skids.
• Do not install studded tires with-
out first checking local, state and
municipal regulations for possible
restrictions against their use.
Chain Installation
When installing AutoSock®(fabric
snow chain or equivalent product),
follow the manufacturer's instructions
and mount them as tightly possible.
Drive slowly (less than 20 mph (30
km/h)) with chains installed. If you
hear the chains contacting the body
or chassis, stop and tighten them. If
they still make contact, slow down
until the noise stops. Remove the
AutoSock
®(fabric snow chain or
equivalent product) as soon as you
begin driving on cleared roads.When mounting AutoSock
®(fabric
snow chain or equivalent product),
park the vehicle on level ground
away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emer-
gency warning device behind the
vehicle (if available).
Always place the vehicle in P (Park),
apply the parking brake and turn off
the engine before installing tire
chains.AutoSock®is a Registered trade-
mark of AutoSock.
Winter precaution
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in section 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on the
battery system. Visually inspect the
battery and cables as described in
section 7. The level of charge in your
battery can be checked by an author-
ized retailer of Genesis Branded
products or a service station. When using AutoSock
®(fabric
snow chain):
Wrong size chains or improp-
erly installed chains can dam-
age your vehicle's brake lines,
suspension, body and wheels.
If you hear noise caused by
chains contacting the body,
retighten the chain to prevent
contact with the vehicle body.
To prevent body damage,
retighten the chains after driv-
ing 0.3~0.6 miles (0.5~1.0 km).
CAUTION

7
Maintenance
7
Maintenance
Engine compartment .............................................7-3
Maintenance services ...........................................7-6
Owner's responsibility ......................................................7-6
Owner maintenance precautions ..................................7-6
Owner maintenance ...............................................7-7
Owner maintenance schedule ........................................7-7
Scheduled maintenance services ......................7-10
Normal maintenance schedule
(Lambda 3.8 GDI/Tau 5.0 GDI)......................................7-11
Maintenance under severe usage conditions
(Lambda 3.8 GDI/Tau 5.0 GDI)......................................7-14
Normal maintenance schedule
(Lambda 3.3 T-GDI).........................................................7-16
Maintenance under severe usage conditions
(Lambda 3.3 T-GDI).........................................................7-19
Explanation of scheduled maintenance
items.......................................................................7-21
Engine oil ..............................................................7-24
Checking the engine oil level .......................................7-24
Checking the engine oil and filter ..............................7-25
Engine coolant......................................................7-27
Checking the engine coolant level..............................7-27
Changing engine coolant...............................................7-29
Brake fluid ............................................................7-30
Checking the brake fluid level .....................................7-30
Washer fluid .........................................................7-31
Checking the washer fluid level ..................................7-31
Parking brake .......................................................7-31
Checking the parking brake .........................................7-31
Air cleaner ............................................................7-33
Filter replacement ...........................................................7-33
Climate control air filter .....................................7-34
Filter inspection ...............................................................7-34
Wiper blades .........................................................7-36
Blade inspection ..............................................................7-36
Blade replacement ..........................................................7-36
Battery...................................................................7-38
For best battery service................................................7-39
Battery recharging .........................................................7-40
Reset features .................................................................7-42
7

7-6
Maintenance
M MA
AI
IN
NT
TE
EN
NA
AN
NC
CE
E
S
SE
ER
RV
VI
IC
CE
ES
S
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
We recommend you have your vehi-
cle maintained and repaired by an
authorized retailer of Genesis
Branded products. An authorized
retailer of Genesis Branded products
meets Genesis Branded Vehicle's
high service quality standards and
receives technical support from
Genesis Branded Vehicle in order to
provide you with a high level of serv-
ice satisfaction.
Owner's responsibility
Maintenance service and record reten-
tion are the owner's responsibility.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-
dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.Detailed warranty information is pro-
vided in your Owner's Handbook &
Warranty Information booklet.
Repairs and adjustments required as
a result of improper maintenance or
a lack of required maintenance are
not covered.
Owner maintenance precau-
tions
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury. This
chapter provides instructions only for
the maintenance items that are easy
to perform. Several procedures can
be done only by an authorized retail-
er of Genesis Branded products with
special tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance,
safety or durability of your vehicle
and may, in addition, violate condi-
tions of the limited warranties cover-
ing the vehicle.Certain modifications may also be in
violation of regulations established
by the U.S. Department of
Transportation and other federal or
state agencies.
✽ ✽
NOTICE
Improper owner maintenance dur-
ing the warranty period may affect
warranty coverage. For details, read
the separate Owner's Handbook &
Warranty Information booklet pro-
vided with the vehicle. If you're
unsure about any service or mainte-
nance procedure, have it done by an
authorized retailer of Genesis
Branded products.

7-13
7
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
5: Front/rear differential oil should be changed anytime they have been submerged in water.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,0007.51522.53037.54552.56067.57582.59097.5105112.5
Km×1,0001224364860728496108120132144156168180
Disc brakes and padsIIIIIIIIIIIIIII
Steering gear rack, linkage and bootsIIIIIIIIIIIIIII
Driveshaft and bootsIIIIIIIIIIIIIII
Rotate tiresRotate every 7,500 miles (12,000 km)
Suspension mounting boltsIIIIIIIIIIIIIII
Air conditioner refrigerantIIIIIIIIIIIIIII
Air conditioner compressorIIIIIIIIIIIIIII
Climate control air filter (if equipped)RRRRRRRRRRRRRRR
Automatic transaxle fluidNo check, No service required
Front (AWD) / rear differential oil *5III
Propeller shaftIIIIIIIIIIIIIII
Exhaust pipe and mufflerIIIIIIIIIIIIIII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
Normal Maintenance Schedule (Lambda 3.8 GDI/Tau 5.0 GDI) (CONT.)

7-18
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
5: Front/rear differential oil should be changed anytime they have been submerged in water.
Number of months or driving distance, whichever comes first
Months1224364860728496108120132144156168180
Miles×1,00061218243036424854606672788490
Km×1,000102030405060708090100110120130140150
Disc brakes and padsIIIIIIIIIIIIIII
Steering gear rack, linkage and bootsIIIIIIIIIIIIIII
Driveshaft and bootsIIIIIIIIIIIIIII
Rotate tiresRotate every 6,000 miles (10,000 km)
Suspension mounting boltsIIIIIIIIIIIIIII
Air conditioner refrigerantIIIIIIIIIIIIIII
Air conditioner compressorIIIIIIIIIIIIIII
Climate control air filter (if equipped)RRRRRRRRRRRRRRR
Automatic transaxle fluidNo check, No service required
Front (AWD) / rear differential oil *5III
Propeller shaftIIIIIIIIIIIIIII
Exhaust pipe and mufflerIIIIIIIIIIIIIII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
Normal Maintenance Schedule (Lambda 3.3 T-GDI) (CONT.)

I-6
Lane Keeping Assist System (LKAS) ............................5-94
Limitation of the System ..........................................5-102
LKAS function change .............................................5-101
LKAS malfunction .....................................................5-99
LKAS operation .........................................................5-95
LCD display ....................................................................3-64
LCD Modes ................................................................3-64
User Settings Mode ....................................................3-68
Warning Messages......................................................3-75
Light ..............................................................................3-106
Exterior lights ...........................................................3-106
Interior lights ............................................................3-116
Smart High Beam .....................................................3-108
Welcome system .......................................................3-115
Light bulbs ......................................................................7-75
Headlamp, position lamp, turn signal lamp,
side marker and front fog lamp bulb replacement ..7-76
High mounted stop lamp ............................................7-82
Interior light bulb replacement ...................................7-82
License plate light bulb replacement .........................7-82
Rear combination light bulb replacement ..................7-80
Side repeater lamp replacement .................................7-79
Luggage volume ...............................................................8-5Maintenance services ........................................................7-6
Owner maintenance precautions ..................................7-6
Owner's responsibility ..................................................7-6
Mirrors ............................................................................3-22
Inside rearview mirror ................................................3-22
Reverse parking aid function .....................................3-34
Side view mirrors .......................................................3-32
Multimedia system............................................................4-2
Antenna ........................................................................4-3
Audio / Video / Navigation system (AVN) ..................4-5
AUX, USB and iPod
®port ..........................................4-2
Bluetooth®Wireless Technology hands-free................4-5
Steering wheel audio control........................................4-4
Owner maintenance ..........................................................7-7
Owner maintenance schedule .......................................7-7
Index
ML
O

I-7
Panorama sunroof ...........................................................3-39
Closing the sunroof ....................................................3-41
Resetting the sunroof..................................................3-42
Sliding the sunroof .....................................................3-40
Sunshade.....................................................................3-39
Tilting the sunroof ......................................................3-40
Parking brake ..................................................................7-35
Checking the parking brake .......................................7-35
Recommended lubricants and capacities ..........................8-6
Recommended SAE viscosity number .........................8-7
Refrigerant label ...............................................................8-9
Reporting safety defects..................................................8-11Scheduled maintenance services.......................................7-9
Maintenance under severe usage conditions ..............7-23
Normal maintenance schedule ...................................7-10
Seat belts .........................................................................2-22
Additional seat belt safety precautions ......................2-31
Care of seat belts ........................................................2-34
Pre-Active Seat belt (PSB) .........................................2-30
Seat belt restraint system............................................2-25
Seat belt safety precautions ........................................2-22
Seat belt warning light ...............................................2-23
Seats ..................................................................................2-4
Front seats ....................................................................2-6
Headrest ......................................................................2-14
Rear seats ....................................................................2-11
Safety precautions ........................................................2-5
Seat warmers and air ventilation seats .......................2-18
Special driving conditions ............................................5-109
Driving at night ........................................................5-110
Driving in flooded areas ...........................................5-111
Driving in the rain ....................................................5-111
Hazardous driving conditions ..................................5-109
Rocking the vehicle ..................................................5-109
Smooth cornering .....................................................5-110
I
Index
R
SP
