Page 208 of 325
MOTORCRAFT PARTS
Part Number
Component
FA-1912-A*
Air filter element.
HG7Z-6731-A**
Oil filter.
HG7Z-10655-A**
Battery.
SP-542*
Spark plugs.
FP-70*
Cabin air filter.
HG7Z-17528-A (right-hand side)**
Windshield wipers.
HG7Z-17528-B (left-hand side)**
*Motorcraft® part number
**Ford part number
We recommend Ford and Motorcraft®
replacement parts available at your Ford
dealer or at fordparts.com for scheduled
maintenance. These parts meet or exceed
Ford Motor Company ’s specifications and
are engineered for your vehicle. Use of
other parts may impact vehicle
performance, emissions and durability.
Your warranty may be void for any damage
related to use of other parts. For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals.
205
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Capacities and Specifications
Page 210 of 325
VEHICLE IDENTIFICATION
NUMBER
You can find the vehicle identification
number at the following locations.
On the vehicle certification label inside the
driver's door opening.
On the left-hand side of the instrument
panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number. The Vehicle Identification Number contains
the following information:
World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
207
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Capacities and SpecificationsE227109 E252123 E142477
Page 212 of 325
CAPACITIES AND SPECIFICATIONS
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.
Capacity
Item
15.3 qt (14.5 L)
Engine oil with oil filter (dry fill capacity).
13.7 qt (13 L)
Engine oil with oil filter (oil change refill
capacity).
20.1 qt (19 L)
Engine coolant.
1.1 qt (1.04 L)
Brake fluid.
6.3 qt (6 L)
Hydraulic fluid (power steering, active
suspension, active aero).
4.1 qt (3.9 L)
Transmission fluid.
8.5 qt (8 L)
Wet Clutch fluid.
15.2 gal (57.54 L)
Fuel tank.
0.5 gal (1.89 L)
Windshield washer fluid.
1.5 lb (0.68 kg)
A/C Refrigerant.
4.7 fl oz (140 ml)
A/C Refrigerant Compressor Oil.
209
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Capacities and Specifications
Page 213 of 325

Specifications
Materials
Specification
Name
WSS-M2C931-C
Recommended motor oil:
Castrol Edge® Supercar SAE 5W-50 Full Synthetic Motor
Oil (U.S. & Canada)
WSS-M97B44-D2
Engine coolant:
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)
WSS-M6C65-A2
Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20 (U.S. & Canada)
WSS-M2C938-A
Hydraulic Fluid
Motorcraft® MERCON LV
XT-10-QLVC
-
Gear/Transmission Fluid:
Motorcraft® Ford GT Supercar Transaxle Lubricant
XT-75W90-QSC
-
Clutch Fluid:
Motorcraft® Ford GT Supercar Clutch Fluid
XL-20
WSS-M14P19-A
Windshield washer fluid:
Motorcraft® Premium Windshield Wash Concentrate
with Bitterant
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)
WSS-M17B21-A
A/C refrigerant (U.S. and Mexico):
R-1234yf Refrigerant
YN-33-A
WSS-M17B21-A
A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA
210
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Capacities and Specifications

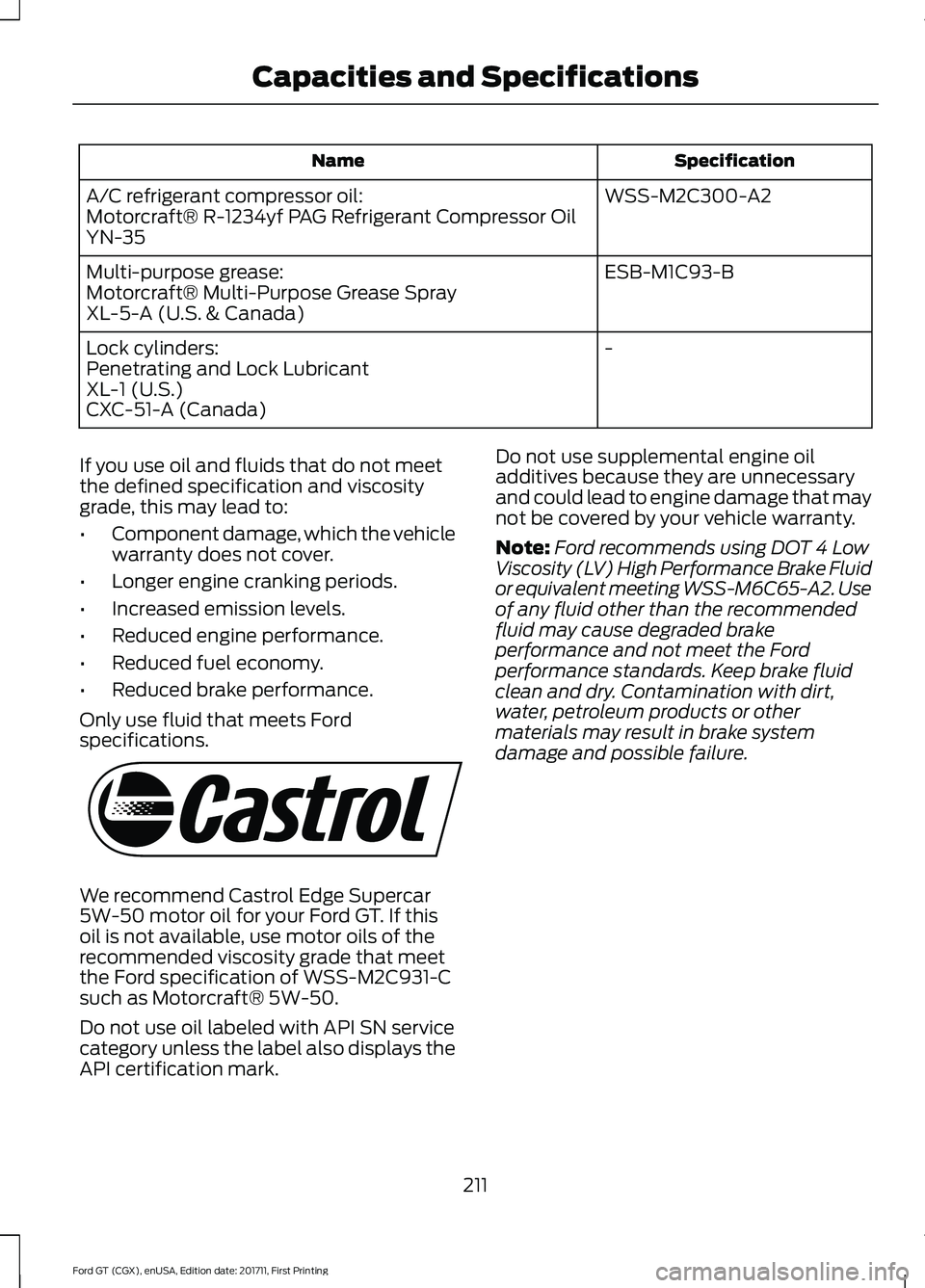

Page 214 of 325

Specification
Name
WSS-M2C300-A2
A/C refrigerant compressor oil:
Motorcraft® R-1234yf PAG Refrigerant Compressor Oil
YN-35
ESB-M1C93-B
Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A (U.S. & Canada)
-
Lock cylinders:
Penetrating and Lock Lubricant
XL-1 (U.S.)
CXC-51-A (Canada)
If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
• Component damage, which the vehicle
warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance.
Only use fluid that meets Ford
specifications. We recommend Castrol Edge Supercar
5W-50 motor oil for your Ford GT. If this
oil is not available, use motor oils of the
recommended viscosity grade that meet
the Ford specification of WSS-M2C931-C
such as Motorcraft® 5W-50.
Do not use oil labeled with API SN service
category unless the label also displays the
API certification mark. Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
Note:
Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.
211
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Capacities and SpecificationsE115472
Page 263 of 325

Cell phone issues
Possible solution
Possible cause
Issue
Refer to your device's manual about audio
adjustments.
The audio control
settings on your cell
phone may be affecting
SYNC 3 performance.
There is back-
ground noise
during a phone
call.
Try switching your cell phone off, resetting
it or removing the battery, then try again.
Possible cell phone
malfunction.
During a call, I
can hear the
other person
but they cannot
hear me.
Make sure that the microphone for SYNC
3 is not set to off. Look for the microphone
icon on the phone screen.
To restart your system, shut down the
engine, open and close the door, and then
lock the door and wait for 2-3 minutes.
Make sure that your SYNC 3 screen is black
and the lighted USB port is off.
The system may need to
be restarted.
During a call, I
cannot hear the
other person
and they cannot
hear me.
Check your cell phone's compatibility.
This is a cell phone-
dependent feature.
SYNC 3 is not
able to down-
load my phone-
book. Make sure you allow SYNC 3 to retrieve
contacts from your phone. Refer to your
cell manual.
Possible cell phone
malfunction. You must switch on your cell phone and
the automatic phonebook download
feature on SYNC 3.
Try switching your cell phone off, resetting
it or removing the battery, then try again.
Make sure you allow SYNC 3 to retrieve
contacts from your phone. Refer to your
cell manual.
Limitations on your cell
phone's capability.
The system
says "Phone-
book down-
loaded" but my
SYNC 3 phone-
book is empty or
is missing
contacts. If the missing contacts are stored on your
SIM card, move them to your cell phone's
memory.
You must switch on your cell phone and
the automatic phonebook download
feature on SYNC 3.
260
Ford GT (CGX), enUSA, Edition date: 201711, First Printing SYNC™ 3 (If Equipped)
Page 278 of 325

Oils and Fluids
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle
’s oils and
fluids at the specified intervals or in
conjunction with a repair.
NORMAL SCHEDULED MAINTENANCE
Normal Maintenance Intervals Annually or Every 5,000 mi (8,000 km)
Change oil and filter.
Inspect tires and check tire pressures.
Inspect the brake pads, rotors, hoses, brake cooling duct hoses and check parking brake
function. Check brake fluid level.
Inspect the engine cooling system strength and hoses. Check coolant level.
Inspect the exhaust system and heat shields.
Inspect the accessory drive belts.
Inspect the steering linkage, ball joints, suspension and tie-rod ends.
Inspect the wiper blades. Check washer fluid level.
Inspect hinges and latches. Lubricate if needed.
Inspect vehicle battery and state of charge.
Check the hydraulic fluid level.
Check operation of all lights.
Check operation of warning indicators inside the instrument cluster.
Check for any fluid leaks.
275
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Scheduled Maintenance
Page 279 of 325

Other maintenance items
1
Change brake fluid.
Every 2 Years or 10,000 mi (16,000 km)
Replace cabin air filter.
Every 2 Years or
10,000 mi (16,000 km)
Replace engine air filters.
Every 3 Years or
15,000 mi (24,000 km)
Change transmission fluid.
Every 6 Years or
30,000 mi (48,000 km)
Replace spark plugs.
Every
45,000 mi (72,000 km)
Change hydraulic fluid.
Every 10 Years or
60,000 mi (100,000 km)
Change engine coolant.2
Every 10 Years or
60,000 mi (100,000 km)
Replace front and rear accessory drive
belts.
Every 10 Years or
100,000 mi (160,000 km)
Replace Hydraulic Accumulator
Bottle.
Every 24 Years
1 Do not exceed the designated distance
or mileage for the interval.
2 Initial replacement at 10 years or
60,000 mi (100,000 km)
, then every six
years or 30,000 mi (48,000 km).
SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 2,500 mi (4,000 km). Engine Air Filter and Cabin Air
Filter Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty
and dirty conditions. Vehicles operated in
these conditions require frequent
inspection and replacement of the engine
air filter and cabin air filter.
Operating at High Speeds and
Track Days
Your vehicle is capable of sustained high
speeds and track day driving. Your GT has
electronic controls to reduce power and
limit the RPM to reduce powertrain
temperatures if operating temperatures
are exceeded.
276
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Scheduled Maintenance
