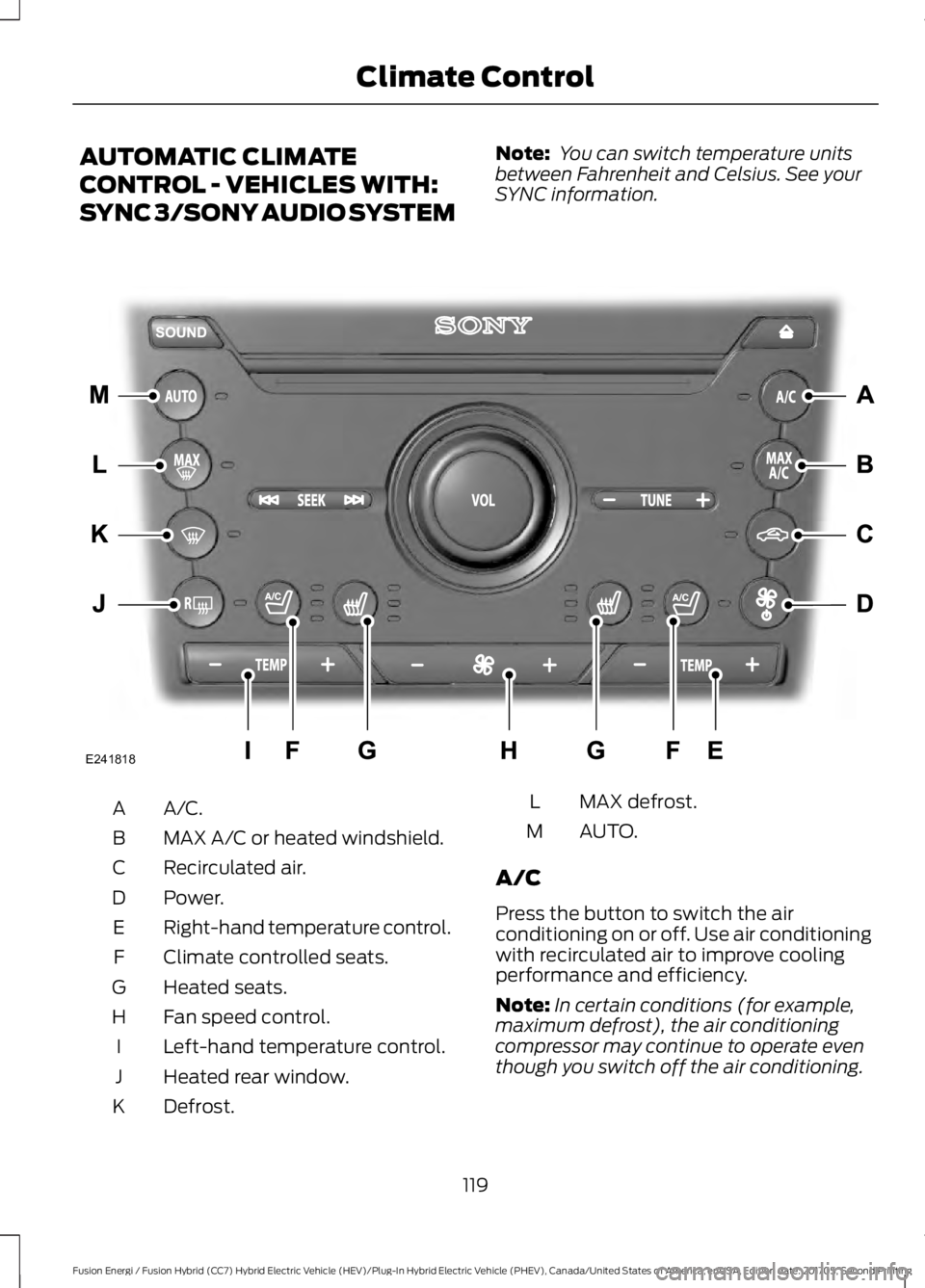

2018 FORD FUSION ENERGI climate control

AUTOMATIC CLIMATE
CONTROL - VEHICLES WITH:
SYNC 3/SONY AUDIO SYSTEM
Note: You can switch temperature unitsbetween Fahrenheit and Celsius. See yourSYNC information.
A/C.A
MAX A/C or heated windshield.B
Recirculated air.C
Power.D
Right-hand temperature control.E
Climate controlled seats.F
Heated seats.G
Fan speed control.H
Left-hand temperature control.I
Heated rear window.J
Defrost.K
MAX defrost.L
AUTO.M
A/C
Press the button to switch the airconditioning on or off. Use air conditioningwith recirculated air to improve coolingperformance and efficiency.
Note:In certain conditions (for example,maximum defrost), the air conditioningcompressor may continue to operate eventhough you switch off the air conditioning.
119
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate ControlE241818

Max A/C (If Equipped)
Press for maximum cooling. The left-handand right-hand settings set to LO,recirculated air flows through theinstrument panel vents, air conditioningturns on and the fan adjusts to the highestspeed.
Heated Windshield (If Equipped)
Press to clear the heated windshield of thinice and fog.
Recirculated Air
Press to switch between outside air andrecirculated air. The air currently in thepassenger compartment recirculates. Thismay reduce the time needed to cool theinterior (when used with A/C) and reduceunwanted odors from entering your vehicle.
Note:Recirculated air may turn off (orprevent you from switching on) in all air flowmodes except MAX A/C to reduce the riskof fogging. Recirculation may also turn onand off in various air distribution controlcombinations during hot weather in orderto improve cooling efficiency.
Power
Press to switch the system on and off.When the system is off, it prevents outsideair from entering the vehicle.
Right-hand Temperature Control
Adjusts the temperature setting on theright-hand side.
Climate Controlled Seats
Press cycle through the various climatecontrolled seat settings and off. SeeClimate Controlled Seats (page 135).
Heated Seats
Press to cycle through the various heatsettings and off. See Heated Seats (page135).
Fan Speed Control
Adjust the volume of air circulated in thevehicle.
Left-hand Temperature Control
Adjusts the temperature setting on theleft-hand side.
Note:This control also adjusts theright-hand side temperature when youswitch off dual zone mode.
Heated Rear Window
Press to switch the heated rear window onand off. See Heated Windows andMirrors (page 126).
Defrost
Press to distribute air through thewindshield air vents and de-mister. Airdistribution to the instrument panel andfootwell vents turns off. You can also usethis setting to defog and clear thewindshield of a thin covering of ice.
Max Defrost
Press to switch on defrost. The left-handand right-hand settings set to HI, air flowsthrough the windshield vents, and the fanadjusts to the highest speed. You can alsouse this setting to defog and clear thewindshield of a thin covering of ice. Theheated rear window also turns on whenyou select maximum defrost.
Note:To prevent window fogging, youcannot select recirculated air whenmaximum defrost is on.
120
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate Control

AUTO
Press to switch on automatic operation,then adjust the temperature control toselect the desired temperature. Thesystem adjusts fan speed, air distribution,
air conditioning operation, and outside orrecirculated air to heat or cool the vehicleto maintain the desired temperature.
Note:You can also switch off dual zonemode by pressing and holding the buttonfor more than two seconds.

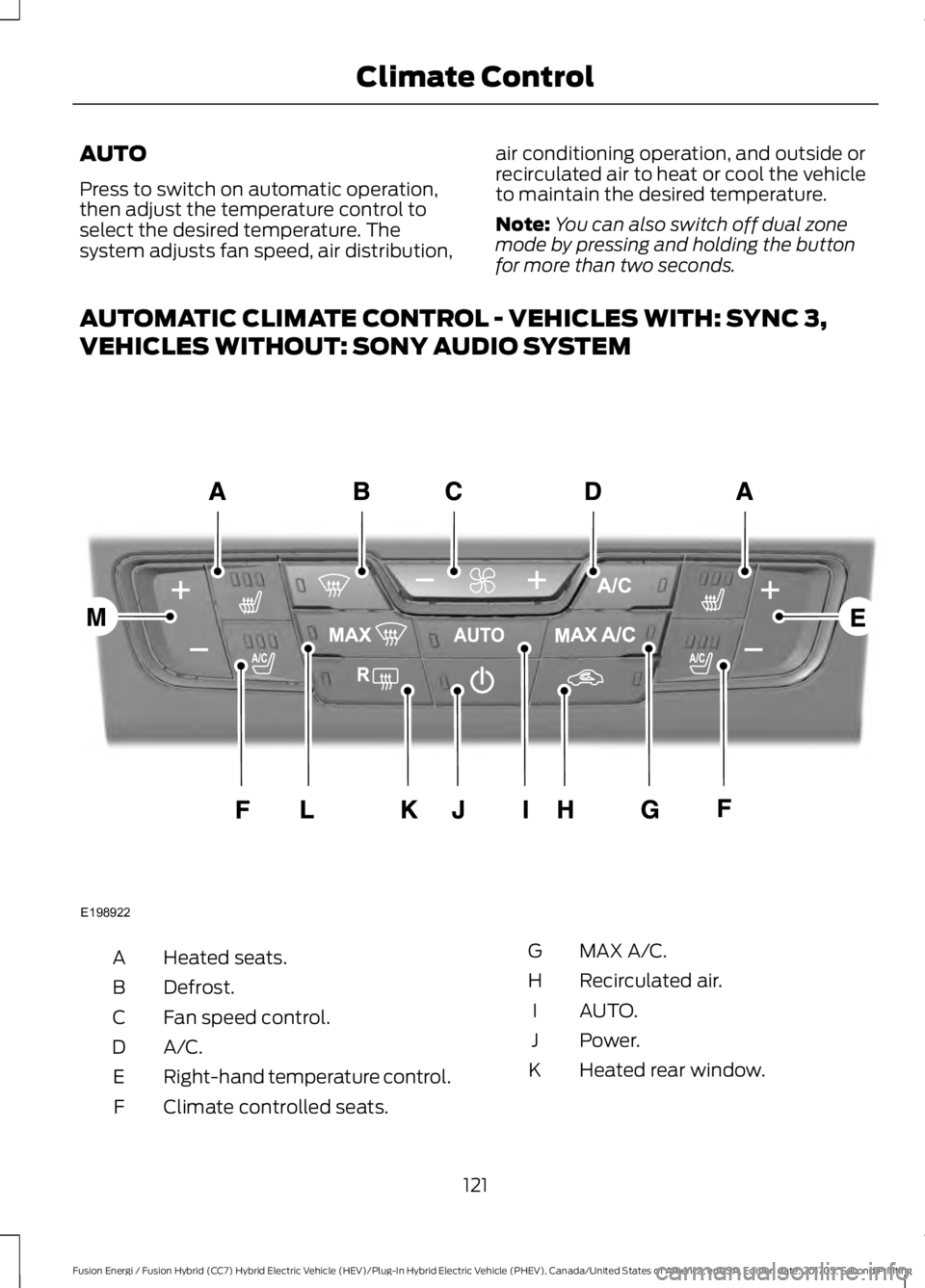

AUTOMATIC CLIMATE CONTROL - VEHICLES WITH: SYNC 3,
VEHICLES WITHOUT: SONY AUDIO SYSTEM
Heated seats.A
Defrost.B
Fan speed control.C
A/C.D
Right-hand temperature control.E
Climate controlled seats.F
MAX A/C.G
Recirculated air.H
AUTO.I
Power.J
Heated rear window.K
121
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate ControlE198922

MAX defrost.L
Left-hand temperature control.M
Heated Seats
Press to cycle through the various heatsettings and off. See Heated Seats (page135).
Defrost
Press to distribute air through thewindshield air vents and de-mister. Airdistribution to the instrument panel andfootwell vents turns off. You can also usethis setting to defog and clear thewindshield of a thin covering of ice.
Fan Speed Control
Adjust the volume of air circulated in thevehicle.
A/C
Press the button to switch the airconditioning on or off. Use air conditioningwith recirculated air to improve coolingperformance and efficiency.
Note:In certain conditions (for example,maximum defrost), the air conditioningcompressor may continue to operate eventhough you switch off the air conditioning.
Right-hand Temperature Control
Adjusts the temperature setting on theright-hand side.
Climate Controlled Seats
Press to cycle through the various climatecontrolled seat settings and off. SeeClimate Controlled Seats (page 135).
Max A/C
Press for maximum cooling. The driver andpassenger settings set to LO, recirculatedair flows through the instrument panelvents, air conditioning turns on and the fanadjusts to the highest speed.
Recirculated Air
Press to switch between outside air andrecirculated air. The air currently in thepassenger compartment recirculates. Thismay reduce the time needed to cool theinterior (when used with A/C) and reduceunwanted odors from entering your vehicle.
Note:Recirculated air may turn off (orprevent you from switching on) in all air flowmodes except MAX A/C to reduce the riskof fogging. Recirculation may also turn onand off in various air distribution controlcombinations during hot weather to improvecooling efficiency.
AUTO
Press to switch on automatic operation,then adjust the temperature control toselect the desired temperature. Thesystem adjusts fan speed, air distribution,air conditioning operation, and outside orrecirculated air to heat or cool the vehicleto maintain the desired temperature.
Note:You can also switch off dual zonemode by pressing and holding the buttonfor more than two seconds.
Power
Press to switch the system on and off.When the system is off, it prevents outsideair from entering the vehicle.
Heated Rear Window
Press to switch the heated rear window onand off. See Heated Windows andMirrors (page 126).
122
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate Control

Max Defrost
Press to switch on defrost. The left-handand right-hand settings set to HI, air flowsthrough the windshield vents, and the fanadjusts to the highest speed. You can alsouse this setting to defog and clear thewindshield of a thin covering of ice. Theheated rear window also turns on whenyou select maximum defrost.
Note:To prevent window fogging, youcannot select recirculated air whenmaximum defrost is on.
Left-hand Temperature Control
Adjusts the temperature setting on theleft-hand side.
Note:This control also adjusts theright-hand side temperature when youswitch off dual zone mode.
AUTOMATIC CLIMATE CONTROL - VEHICLES WITH: SYNC,
VEHICLES WITHOUT: TOUCHSCREEN DISPLAY
123
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate ControlE144492

Driver temperature control:Turn to increase or decrease theair temperature for the driverside of the vehicle. This controlalso adjusts the passenger sidetemperature when not in dualzone mode.
A
Recirculated air: Press thebutton to switch betweenoutside air and recirculated air.When you select recirculated air,the air currently in the passengercompartment recirculates. Thismay reduce the time needed tocool the interior (when used withA/C) and may reduce unwantedodors from entering your vehicle.
B
Note: Recirculated air may turnoff automatically (or beprevented from turning on) in allairflow modes except MAX A/Cto reduce risk of fogging.Recirculated air may also turn onand off automatically in Panelor Panel and Floor airflowmodes during hot weather inorder to improve coolingefficiency.
Fan speed control -: Press todecrease the volume of aircirculated in your vehicle.
C
Fan speed indicator:Illuminates to indicate fanspeed. When the system iscontrolling the fanautomatically, all of the fanspeed indicators turn off.
D
Note: When the system iscontrolling the fan speedautomatically, all of the fanspeed indicators turn off.
Air distribution control: Pressthese buttons to turn airflowfrom the windshield, instrumentpanel, or footwell vents on or off.The system can distribute airthrough any combination ofthese vents.
E
Note: At least one of thesebuttons remains on while thesystem is on.
Fan speed control +: Press toincrease the volume of aircirculated in your vehicle.
F
AUTO: Press the button to turnon automatic operation. Selectthe desired temperature usingthe temperature control. Thesystem adjusts fan speed, airdistribution, air conditioning
G
operation, and selects outsideair or recirculated air to heat orcool the vehicle in order tomaintain the desiredtemperature. You can also usethe AUTO button to turn off dualzone operation by pressing andholding the button for more thantwo seconds.
Passenger temperaturecontrol: Turn to increase ordecrease the air temperature onthe passenger side of the vehicle.This turns on dual zone mode.
H
Heated rear window: Turns theheated rear window on and off.See Heated Windows andMirrors (page 126).
I
124
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate Control

MAX Defrost: Press the buttonto maximize defrosting. Outsideair flows through the windshieldvents, and the fan automaticallyadjusts to the highest speed. Youcan use this setting to defog orclear a thin covering of ice fromthe windshield. The heated rearwindow also automatically turnson when you select MAX Defrost.
J
Note: To prevent windowfogging, you cannot selectrecirculated air when MAXDefrost is on.
Power: Press the button to turnthe system on and off. Switchingoff the climate control systemprevents outside air fromentering the vehicle.
K
Heated seat (if equipped):Turn the driver or passengerheated seats on and off. SeeHeated Seats (page 135).
L
MAX A/C: Press the button tomaximize cooling. Recirculatedair flows through the instrumentpanel vents, air conditioningautomatically turns on, and thefan automatically adjusts to thehighest speed.
M
A/C: Press the button to turn airconditioning compressor on oroff. Use air conditioning withrecirculated air to improvecooling performance andefficiency.
N
Note: In certain conditions (suchas when using Max Defrost), theair conditioning compressor maycontinue to operate even afteryou switch off the airconditioning with the A/Cbutton.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air maycause the windows to fog up.
Note:You may feel a small amount of airfrom the footwell air vents regardless of theair distribution setting.
Note:To reduce humidity build-up insideyour vehicle, do not drive with the systemswitched off or with recirculated air alwaysswitched on.
Note:Do not place objects under the frontseats as this may interfere with the airflowto the rear seats.
Note:Remove any snow, ice or leaves fromthe air intake area at the base of thewindshield.
Note:To improve the time to reach acomfortable temperature in hot weather,drive with the windows open until you feelcold air through the air vents.
Automatic Climate Control
Note:Adjusting the settings when yourvehicle interior is extremely hot or cold isnot necessary.
Note:The system adjusts to heat or coolthe interior to the temperature you selectas quickly as possible.
Note:For the system to function efficiently,the instrument panel and side air ventsshould be fully open.
Note:If you select AUTO during coldoutside temperatures, the system directsair flow to the windshield and side windowvents. In addition, the fan may run at aslower speed until the engine warms up.
125
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Climate Control

Note:If you select AUTO during hottemperatures and the inside of the vehicleis hot, the system uses recirculated air tomaximize interior cooling. Fan speed mayalso reduce until the air cools.
Quickly Heating the Interior
1. Press AUTO.
2.Adjust the temperature function to thedesired setting.
Recommended Settings forHeating
1. Press AUTO.
2.Adjust the temperature function to thedesired setting. Use 72°F (22°C) as astarting point, then adjust the settingas necessary.
Quickly Cooling the Interior
1. Press MAX A/C.
Recommended Settings forCooling
1. Press AUTO.
2.Adjust the temperature function to thedesired setting. Use 72°F (22°C) as astarting point, then adjust the settingas necessary.
Defogging the Side Windows inCold Weather
1. Press defrost.
2. Adjust the temperature control to thedesired setting. Use 72°F (22°C) as astarting point, then adjust the settingas necessary.
HEATED WINDOWS AND
MIRRORS
Note:Make sure the engine is runningbefore operating the heated windows.
Heated Rear Window
Press the button to clear theheated rear window of thin iceand fog. The heated rearwindow turns off after a short period oftime. Press the button again to switch itoff.
Note: Do not use razor blades or othersharp objects to clean or remove decalsfrom the inside of the heated rear window.The vehicle warranty does not coverdamage caused to the heated rear windowgrid lines.
Heated Exterior Mirrors
When you switch the heated rear windowon, the heated exterior mirrors turn on.
Note:Do not remove ice from the mirrorswith a scraper or adjust the mirror glasswhen it is frozen in place.
Note:Do not clean the mirror housing orglass with harsh abrasives, fuel or otherpetroleum-based cleaning products.
CABIN AIR FILTER
Your vehicle is equipped with a cabin airfilter, which gives you and your passengersthe following benefits:
•It improves your driving comfort byreducing particle concentration.
•It improves the interior compartmentcleanliness.
•It protects the climate controlcomponents from particle deposits.
You can locate the cabin air filter behindthe glove box.
Note:Make sure you have a cabin air filterinstalled at all times. This prevents foreignobjects from entering the system. Runningthe system without a filter in place couldresult in degradation or damage to thesystem.
