2018 FORD E-350 ignition

Action and Description
Message
Press OK to select and scroll to select the desired phone.
Press OK to confirm.
Turn the Bluetooth feature on and off. 4
BT ON/OFF
Press
OK and scroll to toggle between On and Off. When the
desired selection is chosen, press OK.
Setting Bluetooth to off disconnects all Bluetooth devices
and turns off all Bluetooth features.
Delete a paired cell phone.
DEL DEVICE
Press the OK button and scroll to select the device. Press OK
to confirm.
Delete all previously paired phones (and all information
originally saved with those phones).
DELETE ALL
Press
OK to select.
Exit the current menu.
RETURN
1 This is a speed-dependent feature. It is only available when your vehicle is traveling at
3 mph (5 km/h) or less.
2 You can only connect one device at a time. When another cell phone is connected, the
previous one is disconnected.
3 SYNC attempts to connect with the primary phone at every ignition cycle. When a phone
is selected as primary, it appears first in the list and is marked with an asterisk (*).
4 Turning Bluetooth off disconnects all Bluetooth devices and deactivates all Bluetooth
features.
Advanced
The Advanced menu allows you to access
and set prompts, languages, defaults,
perform a master reset, install an
application and view system information.
To access the advanced menu, press the phone button to enter the Phone Menu,
the scroll to: Action and Description
Message
Press
OK.
SYS SETTINGS
Press
OK.
ADVANCED
Select one of the following:
235
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing SYNC™
(If Equipped)

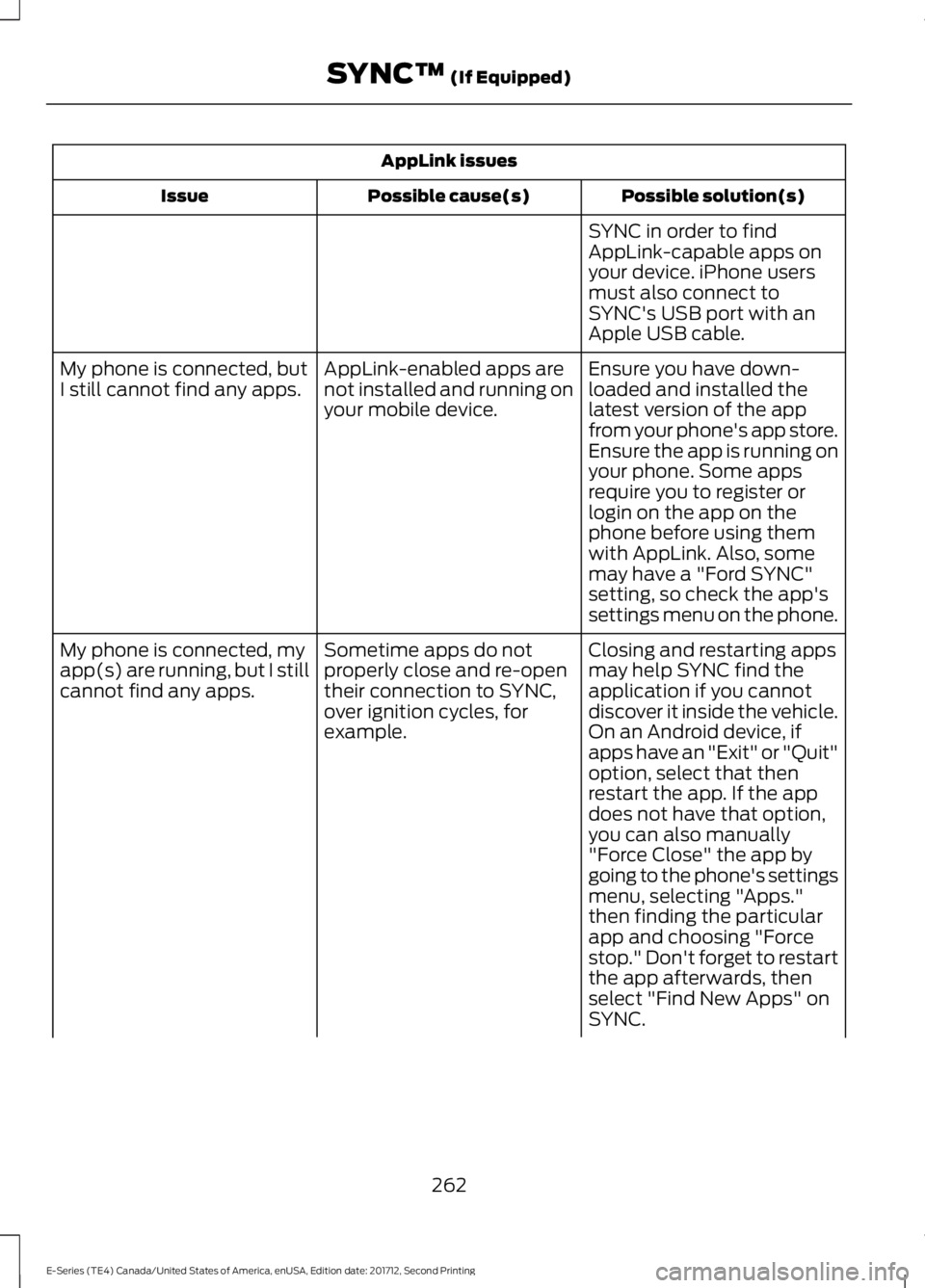

AppLink issues
Possible solution(s)
Possible cause(s)
Issue
SYNC in order to find
AppLink-capable apps on
your device. iPhone users
must also connect to
SYNC's USB port with an
Apple USB cable.
Ensure you have down-
loaded and installed the
latest version of the app
from your phone's app store.
Ensure the app is running on
your phone. Some apps
AppLink-enabled apps are
not installed and running on
your mobile device.
My phone is connected, but
I still cannot find any apps.
require you to register or
login on the app on the
phone before using them
with AppLink. Also, some
may have a "Ford SYNC"
setting, so check the app's
settings menu on the phone.
Closing and restarting apps
may help SYNC find the
application if you cannot
discover it inside the vehicle.
On an Android device, if
apps have an "Exit" or "Quit"
Sometime apps do not
properly close and re-open
their connection to SYNC,
over ignition cycles, for
example.
My phone is connected, my
app(s) are running, but I still
cannot find any apps.
option, select that then
restart the app. If the app
does not have that option,
you can also manually
"Force Close" the app by
going to the phone's settings
menu, selecting "Apps."
then finding the particular
app and choosing "Force
stop." Don't forget to restart
the app afterwards, then
select "Find New Apps" on
SYNC.
262
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing SYNC™ (If Equipped)

•
An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
• If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle.
AUXILIARY SWITCHES
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
• When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer. •
An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
• If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle. The auxiliary switch option package
provides four switches, mounted in the
center of the instrument panel. These
switches operate only when you switch the
ignition on, whether the engine is running
or not. Ford recommends, however, that
the engine remain running to maintain
battery charge when using the auxiliary
switches for extended periods of time or
higher current draws.
When switched on, the auxiliary switches
provide 10 amps, 15 amps or 30 amps of
electrical battery power for a variety of
personal or commercial uses.
The switches include the fuse and relay kit.
This kit contains the required fuses and
relays that an authorized technician needs
to install into the power distribution box,
located under the hood. Refer to the
instruction sketch included in the kit.
Contact an authorized dealer for service.
266
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing AccessoriesE163431

Antenna Positions
Maximum output power Watt (Peak
RMS)
Frequency Band
MHz
1
50
1-30
2, 3
50
50-54
2, 3
50
68-88
2, 3
50
142-176
2, 3
50
380-512
2, 3
10
806-870
Note: After the installation of radio
frequency transmitters, check for
disturbances from and to all electrical
equipment in your vehicle, both in the
standby and transmit modes.
Check all electrical equipment:
• With the ignition ON.
• With the engine running.
• During a road test at various speeds.
Check that electromagnetic fields
generated inside your vehicle cabin by the
transmitter installed do not exceed
applicable human exposure requirements.
END USER LICENSE
AGREEMENT
SYNC End User License Agreement
(EULA)
• You have acquired a device ("DEVICE")
that includes software licensed by Ford
Motor Company and its affiliates
("FORD MOTOR COMPANY") from an
affiliate of Microsoft Corporation
("MS") . Those installed software
products of MS origin, as well as
associated media, printed materials, and "online" or electronic
documentation ("MS SOFTWARE")
are protected by international
intellectual property laws and treaties.
The MS SOFTWARE is licensed, not
sold. All rights reserved.
• The MS SOFTWARE may interface with
and/or communicate with, or may be
later upgraded to interface with and/or
communicate with additional software
and/or systems provided by FORD
MOTOR COMPANY. The additional
software and systems of FORD
MOTOR COMPANY origin, as well as
associated media, printed materials,
and "online" or electronic
documentation ("FORD SOFTWARE")
are protected by international
intellectual property laws and treaties.
The FORD SOFTWARE is licensed, not
sold. All rights reserved.
290
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing Appendices

A
A/C
See: Climate Control.......................................... 64
About This Manual...........................................5
ABS See: Brakes............................................................. 90
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 90
Accessories....................................................265 Exterior Style....................................................... 265
Interior Style........................................................ 265
Peace of Mind..................................................... 265
Accessories See: Replacement Parts
Recommendation............................................ 10
Adjusting the Headlamps..........................153 Vertical Aim Adjustment Procedure............153
Adjusting the Steering Wheel....................45
Airbag Disposal...............................................36
Air Conditioning See: Climate Control.......................................... 64
Air Filter See: Changing the Engine Air Filter.............158
Appendices....................................................288
At a Glance........................................................14
Audible Warnings and Indicators.............55 Fail-Safe Cooling Warning Chime.................. 55
Headlamps On Warning Chime...................... 55
Key in Ignition Warning Chime........................ 55
Parking Brake On Warning Chime.................. 55
Shift to Park Warning Chime........................... 55
Audio System
...............................................209
General Information......................................... 209
Audio Unit - Vehicles With: AM/FM/CD/ SYNC..............................................................210
Audio Unit - Vehicles With: AM/FM.......212
Automatic Transmission
.............................86
Brake-Shift Interlock........................................... 87
If Your Vehicle Gets Stuck In Mud or Snow.................................................................... 88
Putting your vehicle in or out of gear:...........86
Automatic Transmission Fluid Check.............................................................146
Automatic Transmission Fluid Filter...........149
Checking Automatic Transmission Fluid..................................................................... 147Auxiliary Power Points
...................................71
110 Volt AC Power Point...................................... 71
12 Volt DC Power Point........................................ 71
Locations.................................................................. 71
Auxiliary Switches
.......................................266
B
Battery See: Changing the 12V Battery....................... 151
Bonnet Lock See: Opening and Closing the Hood...........139
Booster Seats
..................................................20
Types of Booster Seats....................................... 21
Brake Fluid Check.........................................149
Brakes................................................................90 General Information........................................... 90
Breaking-In.......................................................114
Bulb Specification Chart...........................156
C
California Proposition 65...............................9
Capacities and Specifications - 6.2L
.................................................................199
Alternative Engine Oil for Extremely Cold
Climates........................................................... 203
Specifications..................................................... 200
Capacities and Specifications - 6.8L
................................................................203
Alternative Engine Oil for Extremely Cold
Climates........................................................... 208
Specifications..................................................... 205
Capacities and Specifications.................194
Car Wash See: Cleaning the Exterior............................... 159
Catalytic Converter........................................83 On-Board Diagnostics (OBD-II)..................... 84
Readiness for Inspection and Maintenance (I/M) Testing..................................................... 84
Changing a Bulb............................................154 Lamp Assembly Condensation..................... 154
Replacing Brake/Tail/Turn/Reverse Lamp Bulbs (Cut-Away Only)............................... 156
Replacing Front Parking Lamp and Direction Indicator Bulbs................................................ 155
Replacing Headlamp Bulbs............................ 155
Replacing Side Marker Bulbs......................... 156
313
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing Index

Vehicle Stationary for Extended Periods
During Extreme High Ambient
Temperatures................................................... 66
Hints on Driving With Anti-Lock Brakes.............................................................90
Hood Lock See: Opening and Closing the Hood...........139
I
Ignition Switch.................................................73
In California (U.S. Only)..............................123
Information Displays
.....................................56
General Information............................................ 56
Information Messages
..................................61
Brake System.......................................................... 61
Fuel........................................................................\
..... 61
Maintenance........................................................... 61
Tire........................................................................\
..... 62
Traction Control.................................................... 62
Trailer........................................................................\
63
Transmission.......................................................... 63
Installing Child Restraints
............................16
Child Seats............................................................... 16
Using Lap and Shoulder Belts.......................... 17
Using Tether Straps.............................................. 19
Instrument Cluster
..........................................51
Instrument Lighting Dimmer.....................48
Instrument Panel Overview........................14
Interior Mirror
...................................................50
Automatic Dimming Mirror.............................. 50
Manual Dimming Mirror..................................... 50
Introduction........................................................5
J
Jump Starting the Vehicle..........................119 Connecting the Jumper Cables...................... 119
Jump Starting....................................................... 120
Preparing Your Vehicle....................................... 119
Removing the Jumper Cables........................ 120
K
Keys and Remote Controls.........................37 L
Lighting Control
...............................................47
Headlamp Flasher............................................... 48
High Beams............................................................. 47
Lighting...............................................................47 General Information............................................ 47
Limited Slip Differential..............................89
Load Carrying
...................................................97
Load Limit.........................................................97 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 101
Vehicle Loading - with and without a Trailer.................................................................... 97
Locking and Unlocking
................................40
Autolock Feature................................................... 41
Autounlock Feature.............................................. 41
Enabling or Disabling Autolock and Autounlock......................................................... 41
Illuminated Entry................................................... 41
Power Door Locks................................................ 40
Remote Control.................................................... 40
Lug Nuts See: Changing a Road Wheel........................ 189
M
Maintenance..................................................139 General Information.......................................... 139
Manual Climate Control..............................64 Heater Only System............................................ 64
Manual Climate Control.................................... 65
Manual Seats..................................................69 Manual Lumbar ................................................... 69
Moving the Seat Backward and Forward.............................................................. 69
Recline Adjustment............................................ 69
Message Center See: Information Displays................................. 56
Mirrors See: Windows and Mirrors................................ 49
Mobile Communications Equipment
.......12
Motorcraft Parts - 6.2L...............................195
Motorcraft Parts - 6.8L..............................196
316
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing Index

Scheduled Maintenance Record............277
Scheduled Maintenance...........................270
Seatbelt Extension........................................29
Seatbelt Height Adjustment......................27
Seatbelts...........................................................25 Principle of Operation......................................... 25
Seatbelt Warning Lamp and Indicator Chime..............................................................28
Conditions of operation..................................... 28
Seats...................................................................68
Security..............................................................43
Sitting in the Correct Position...................68
Snow Chains See: Using Snow Chains.................................. 185
Spare Wheel See: Changing a Road Wheel........................ 189
Special Notices
................................................10
New Vehicle Limited Warranty........................ 10
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 11
On Board Diagnostics Data Link Connector
............................................................. 11
Special Instructions............................................. 10
Using your Vehicle as an Ambulance..............11
Special Operating Conditions Scheduled Maintenance...............................................275
Exceptions............................................................. 277
Speed Control See: Cruise Control.............................................. 95
Starter Switch See: Ignition Switch............................................. 73
Starting a Gasoline Engine..........................73 Failure to Start....................................................... 74
Guarding Against Exhaust Fumes.................. 74
Important Ventilating Information.................74
Stopping the Engine When Your Vehicle is Moving.................................................................. 74
Stopping the Engine When Your Vehicle is Stationary........................................................... 74
Starting and Stopping the Engine............73 General Information............................................ 73
Steering.............................................................96
Steering Wheel
...............................................45
Sun Visors.........................................................50
Illuminated Vanity Mirror................................... 50
Supplementary Restraints System.........30 Principle of Operation........................................ 30
Symbols Glossary.............................................5 SYNC™ Applications and Services.......237
911 Assist................................................................ 237
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, United
States Only)..................................................... 241
Vehicle Health Report (If Equipped, United States Only).................................................... 239
SYNC™ AppLink ™
......................................245
SYNC Mobile Apps............................................ 245
SYNC™.............................................................219 General Information.......................................... 219
SYNC™ Troubleshooting.........................256
T
Technical Specifications See: Capacities and Specifications.............194
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................124
Tire Care
...........................................................167
Glossary of Tire Terminology......................... 169
Information About Uniform Tire Quality Grading............................................................... 167
Information Contained on the Tire Sidewall............................................................. 170
Temperature A B C............................................. 168
Traction AA A B C............................................... 168
Treadwear............................................................. 168
Tire Pressure Monitoring System...........186 Changing Tires With a Tire Pressure
Monitoring System........................................ 187
Understanding Your Tire Pressure Monitoring System ....................................... 187
Tires See: Wheels and Tires...................................... 166
Towing a Trailer.............................................102 Load Placement................................................. 102
Towing the Vehicle on Four Wheels.......113 Emergency Towing.............................................. 113
Recreational Towing........................................... 113
Towing..............................................................102
Traction Control
..............................................92
Principle of Operation........................................ 92
Trailer Sway Control
....................................103
Transmission Code Designation.............198
Transmission...................................................86
Transporting the Vehicle.............................121
318
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing Index
