2018 FORD C-MAY HYBRID headlamp

Audio Control
.................................................68
Voice Control ..................................................
69
Cruise Control ................................................
69
Information Display Control ......................
70
Wipers and Washers
Windshield Wipers .........................................
71
Autowipers ........................................................
71
Windshield Washers .....................................
72
Rear Window Wiper and Washers ..........
72
Lighting
General Information .....................................
74
Lighting Control ..............................................
74
Autolamps ........................................................
75
Instrument Lighting Dimmer .....................
75
Headlamp Exit Delay ...................................
76
Daytime Running Lamps ............................
76
Front Fog Lamps ............................................
77
Direction Indicators .......................................
77
Interior Lamps .................................................
77
Ambient Lighting ...........................................
78
Windows and Mirrors
Power Windows .............................................
79
Global Opening .............................................
80
Exterior Mirrors ..............................................
80
Interior Mirror ..................................................
82
Sun Visors ........................................................
82
Sun Shades .....................................................
83
Instrument Cluster
Gauges ..............................................................
85
Warning Lamps and Indicators ................
87
Audible Warnings and Indicators ...........
90
Information Displays
General Information .....................................
92
Information Messages ................................
99Climate Control
Automatic Climate Control
.....................
106
Hints on Controlling the Interior Climate ........................................................................\
108
Heated Windows and Mirrors .................
108
Cabin Air Filter ..............................................
109
Remote Start ................................................
109
Seats
Sitting in the Correct Position ...................
111
Head Restraints ..............................................
111
Manual Seats .................................................
113
Power Seats ....................................................
114
Rear Seats .......................................................
116
Heated Seats ..................................................
117
Rear Seat Armrest ........................................
117
Universal Garage Door Opener
Universal Garage Door Opener ...............
118
Auxiliary Power Points
Auxiliary Power Points ...............................
122
Storage Compartments
Center Console .............................................
124
Overhead Console .......................................
124
Starting and Stopping the Engine
General Information ...................................
125
Ignition Switch ..............................................
125
Keyless Starting ............................................
125
Starting a Hybrid Electric Vehicle System ........................................................................\
.
126
Engine Block Heater ...................................
128
Automatic Engine Shutdown ..................
129
2
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Table of Contents

Collision, Damage or Fire Event
..............191
Post-Crash Alert System ..........................
192
Transporting the Vehicle ...........................
192
Customer Assistance
Getting the Services You Need ..............
194
In California (U.S. Only) ............................
195
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .....................
196
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
197
Getting Assistance Outside the U.S. and Canada ........................................................
197
Ordering Additional Owner's Literature ........................................................................\
198
Reporting Safety Defects (U.S. Only) ........................................................................\
199
Reporting Safety Defects (Canada Only) ........................................................................\
199
Fuses
Fuse Specification Chart ..........................
201
Changing a Fuse ..........................................
210
Maintenance
General Information ....................................
212
Opening and Closing the Hood ..............
212
Under Hood Overview ................................
213
Engine Oil Dipstick ......................................
215
Engine Oil Check ..........................................
215
Oil Change Indicator Reset ......................
216
Engine Coolant Check ...............................
216
Automatic Transmission Fluid Check ........................................................................\
220
Brake Fluid Check ........................................
221
Power Steering Fluid Check .....................
221
Washer Fluid Check ....................................
221
Fuel Filter .........................................................
221
Changing the 12V Battery .........................
222
Checking the Wiper Blades .....................
223
Changing the Wiper Blades ....................
223Adjusting the Headlamps
........................
225
Removing a Headlamp .............................
226
Changing a Bulb ..........................................
226
Bulb Specification Chart ...........................
231
Changing the Engine Air Filter ................
232
Vehicle Care
General Information ..................................
235
Cleaning Products ......................................
235
Cleaning the Exterior .................................
235
Waxing ............................................................
236
Cleaning the Engine ...................................
237
Cleaning the Windows and Wiper Blades ........................................................................\
.
237
Cleaning the Interior ..................................
238
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
239
Cleaning Leather Seats ............................
240
Repairing Minor Paint Damage .............
240
Cleaning the Wheels .................................
240
Vehicle Storage .............................................
241
Body Styling Kits .........................................
243
Wheels and Tires
Tire Sealant and Inflator Kit ...................
244
Tire Care .........................................................
250
Using Snow Chains ....................................
264
Tire Pressure Monitoring System ..........
265
Technical Specifications .........................
268
Capacities and Specifications
Engine Specifications ................................
270
Motorcraft Parts ...........................................
271
Vehicle Identification Number ................
272
Vehicle Certification Label .......................
273
Transmission Code Designation ............
273
Capacities and Specifications ...............
274
4
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Table of Contents

WINDSHIELD WIPERS
Note:
Fully defrost the windshield before
you switch the windshield wipers on.
Note: Make sure you switch the windshield
wipers off before entering a car wash.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield. Single wipe.
A
Intermittent wipe.
B
Normal wipe.
C
High speed wipe.
D Intermittent Wipe Shortest wipe interval.
A
Intermittent wipe.
B
Longest wipe interval.
C
Use the rotary control to adjust the
intermittent wipe interval.
Speed Dependent Wipers
When your vehicle speed increases, the
interval between wipes decreases.
AUTOWIPERS (If Equipped)
Note: Fully defrost the windshield before
you switch the windshield wipers on.
Note: Make sure you switch the windshield
wipers off before entering a car wash.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
Wet or winter driving conditions with ice,
snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.
71
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Wipers and WashersE197525 E197526

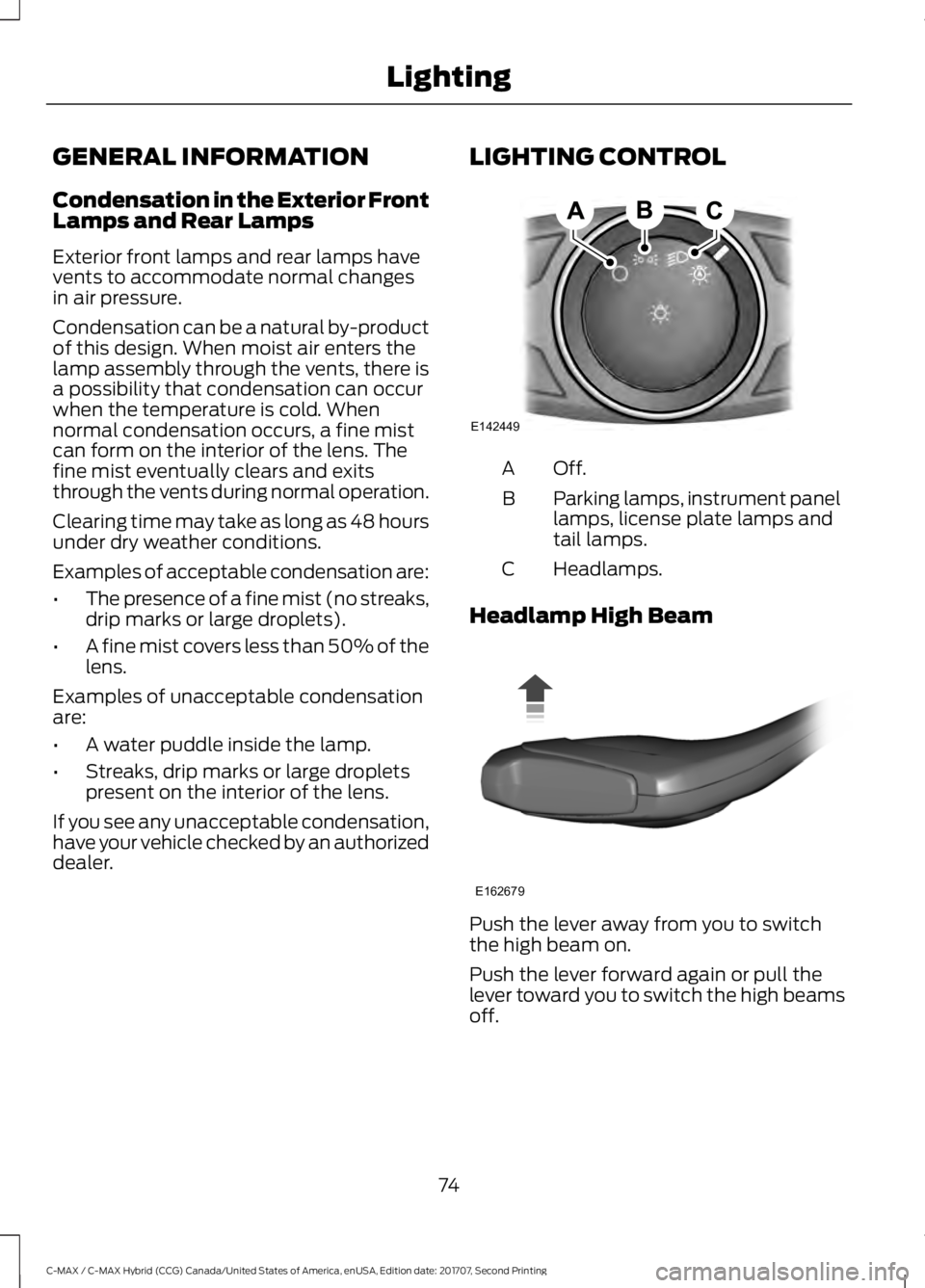

GENERAL INFORMATION
Condensation in the Exterior Front
Lamps and Rear Lamps
Exterior front lamps and rear lamps have
vents to accommodate normal changes
in air pressure.
Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is
a possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine mist
can form on the interior of the lens. The
fine mist eventually clears and exits
through the vents during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
•
The presence of a fine mist (no streaks,
drip marks or large droplets).
• A fine mist covers less than 50% of the
lens.
Examples of unacceptable condensation
are:
• A water puddle inside the lamp.
• Streaks, drip marks or large droplets
present on the interior of the lens.
If you see any unacceptable condensation,
have your vehicle checked by an authorized
dealer. LIGHTING CONTROL Off.A
Parking lamps, instrument panel
lamps, license plate lamps and
tail lamps.
B
Headlamps.
C
Headlamp High Beam Push the lever away from you to switch
the high beam on.
Push the lever forward again or pull the
lever toward you to switch the high beams
off.
74
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing LightingE142449 E162679

Headlamp Flasher
Slightly pull the lever toward you and
release it to flash the headlamps.
AUTOLAMPS
WARNING
The system does not relieve you of
your responsibility to drive with due
care and attention. You may need to
override the system if it does not turn the
headlamps on in low visibility conditions,
for example daytime fog. When the lighting control is in the
autolamps position, the headlamps turn
on in low light situations, or when the
wipers turn on. The headlamps remain on for a period of
time after you switch the ignition off. Use
the information display controls to adjust
the period of time that the headlamps
remain on.
Note:
If you switch the autolamps on, you
cannot switch the high beams on until the
system turns the low beams on.
Windshield Wiper Activated
Headlamps
When you switch the autolamps on, the
headlamps turn on within 10 seconds of
switching the wipers on. They turn off
approximately 60 seconds after you switch
the windshield wipers off.
The headlamps do not turn on with the
wipers:
• During a single wipe.
• When using the windshield washers.
• If the wipers are in intermittent mode.
Note: If you switch the autolamps and the
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note: When disconnecting the battery or
when it runs out of charge, the illuminated
components turn to the maximum setting.
75
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing LightingE162680 E142451

Vehicles With Front Fog Lamps
Press repeatedly or press and hold until
you reach the desired level.
Vehicles Without Front Fog Lamps
Press repeatedly or press and
hold to dim.
A
Press repeatedly or press and
hold to brighten.
B HEADLAMP EXIT DELAY
After you switch the ignition off, you can
switch the headlamps on by pulling the
direction indicator lever toward you. You
will hear a short tone. The headlamps will
switch off automatically after three
minutes with any door open or 30 seconds
after the last door has been closed. You
can cancel this feature by pulling the
direction indicator toward you again or
switching the ignition on.
DAYTIME RUNNING LAMPS
WARNING
The daytime running lamps system
does not activate the rear lamps and
may not provide adequate lighting
during low visibility driving conditions.
Make sure you switch the headlamps on,
as appropriate, during all low visibility
conditions. Failure to do so may result in a
crash. The system turns the lamps on in daylight
conditions.
To switch the system on, switch the
lighting control to the off, autolamp or
parking lamp position.
76
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing LightingE231828 AB
E165366

Fasten Seatbelt
It will light and a tone will sound
to remind you to fasten your
seatbelt. See Seatbelt
Reminder (page 34).
Front Airbag If it fails to light when you start
your vehicle, continues to flash
or remains on, this indicates a
malfunction. Have the system checked by
an authorized dealer.
Front Fog Lamps
(If Equipped) Lights when you switch the front
fog lamps on.
Grade Assist Lights when you switch on grade
assist.
High Beam Lights when you switch the high
beam headlamps on. It will flash
when you use the headlamp
flasher.
Liftgate Ajar Lights when the liftgate is not
completely closed.
Low Battery
(If Equipped) Lights when the battery level is
low. You may also see a
message suggesting you reduce
your usage of the climate system. Low Fuel Level Lights when the fuel level is low
or the fuel tank is nearly empty.
Refuel as soon as possible.
Low Tire Pressure Warning Lights when your tire pressure is
low. If the lamp remains on with
the engine running or when
driving, check your tire pressure as soon as
possible.
It also lights momentarily when you switch
on the ignition to confirm the lamp is
functional. If it does not light when you
switch on the ignition, or begins to flash at
any time, have the system checked by an
authorized dealer.
Parking Lamps Lights when you switch the
parking lamps on.
Powertrain Fault Lights when the system detects
a powertrain or high-voltage
charge system fault. If the
indicator stays on or continues to come on,
contact an authorized dealer as soon as
possible.
Note: If your vehicle detects certain faults,
it will not allow you to operate the
accelerator pedal. If this happens, press the
brake pedal and release it. This will activate
limp home vehicle operation. In limp home
vehicle operation, your vehicle will
accelerate in a controlled manner up to a
maximum speed of 35 mph (56 km/h) on
a flat surface. If you apply the brake pedal
or move the transmission to neutral (N) you
can override your vehicle ’s acceleration.
89
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Instrument ClusterE71880 E67017 E162456 E162453 E144691

Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.
Parking Brake On Warning Chime
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.
Automatic Transmission Warning
Chime
Sounds when you have not moved the
transmission selector lever to position P.
A message will be shown in the display.
91
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Instrument Cluster
