A — Turn-signals: when making a
normal turn, use position (A). The lever
will return automatically when cornering
is completed.
B — Lane change signals: when
moving the lever to (B) slightly to
change a lane, the turn-signal lamps
and indicator lamp in the instrument
cluster will only flash while the lever is
operated. Also, when you move the
lever to (B) slightly then release it, the
turn-signal lamps and indicator lamp in
the instrument cluster will flash three
times.
NOTE If the lamp flashes unusually
quickly, the bulb in a turn-signal lamp
may have burned out. We recommend
you to have the vehicle inspected.
It is possible to activate the following
functions:
Flashing of the turn-signal lamps
when the lever is operated with the
ignition switch or the operation mode is
in ACC
The turn-signal lamps 3-flash
function for lane changes can be
deactivated.
The time required to operate the
lever for the 3-flash function can be
adjusted.
Changing of the tone of a sounding
buzzer as the turn-signal lamps flash.
For further information, we recommend
you to consult a Fiat Dealership.
HAZARD WARNING
FLASHER SWITCH
Use the hazard warning flasher switch
when the vehicle has to be parked on
the road for any emergency. The hazard
warning flashers can always be
operated, regardless of the ignition
switch position or the operation mode.
Push the switch to turn on the hazard
warning flashers, all turn signal lamps
flash continuously. To turn them off,
push the switch again.
NOTE On vehicles equipped with the
emergency brake system, while the
hazard warning lamps are blinking due
to having manually pushed the switch,
the emergency brake system does not
operate. Refer to “Emergency brake
system”.
FOG LAMP SWITCH
(where provided)
Front fog lamp switch
The front fog lamps can be operated
while the headlamps or tail lamps are
on. Turn the knob in the “ON” direction
to turn on the front fog lamps. An
indicator lamp in the instrument cluster
will also come on. Turn the knob in the
“OFF” direction to turn off the front fog
lamps. The knob will automatically
return to its original position when you
release it.
NOTE The front fog lamps are
automatically turned off when the
headlamps or tail lamps are turned off.
To turn the front fog lamps on again,
turn the knob in the “ON” direction after
turning on the headlamps or tail lamps.
81AHA101383
82AG0004596
48
GETTING TO KNOW YOUR VEHICLE

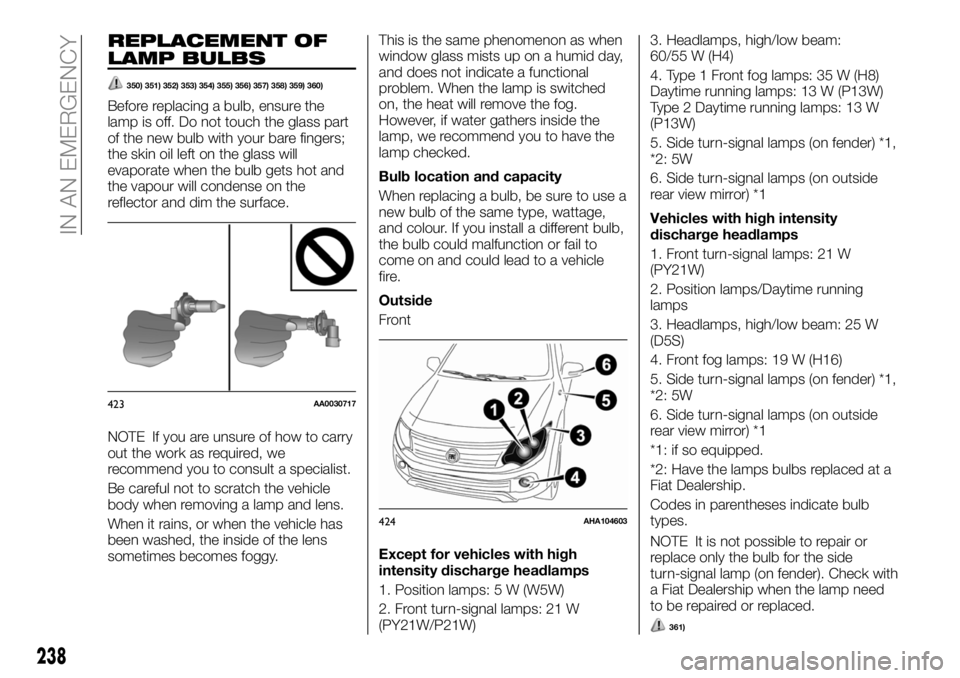

REPLACEMENT OF
LAMP BULBS
350) 351) 352) 353) 354) 355) 356) 357) 358) 359) 360)
Before replacing a bulb, ensure the
lamp is off. Do not touch the glass part
of the new bulb with your bare fingers;
the skin oil left on the glass will
evaporate when the bulb gets hot and
the vapour will condense on the
reflector and dim the surface.
NOTE If you are unsure of how to carry
out the work as required, we
recommend you to consult a specialist.
Be careful not to scratch the vehicle
body when removing a lamp and lens.
When it rains, or when the vehicle has
been washed, the inside of the lens
sometimes becomes foggy.This is the same phenomenon as when
window glass mists up on a humid day,
and does not indicate a functional
problem. When the lamp is switched
on, the heat will remove the fog.
However, if water gathers inside the
lamp, we recommend you to have the
lamp checked.
Bulb location and capacity
When replacing a bulb, be sure to use a
new bulb of the same type, wattage,
and colour. If you install a different bulb,
the bulb could malfunction or fail to
come on and could lead to a vehicle
fire.
Outside
Front
Except for vehicles with high
intensity discharge headlamps
1. Position lamps: 5 W (W5W)
2. Front turn-signal lamps: 21 W
(PY21W/P21W)3. Headlamps, high/low beam:
60/55 W (H4)
4. Type 1 Front fog lamps: 35 W (H8)
Daytime running lamps: 13 W (P13W)
Type 2 Daytime running lamps: 13 W
(P13W)
5. Side turn-signal lamps (on fender) *1,
*2: 5W
6. Side turn-signal lamps (on outside
rear view mirror) *1
Vehicles with high intensity
discharge headlamps
1. Front turn-signal lamps: 21 W
(PY21W)
2. Position lamps/Daytime running
lamps
3. Headlamps, high/low beam: 25 W
(D5S)
4. Front fog lamps: 19 W (H16)
5. Side turn-signal lamps (on fender) *1,
*2: 5W
6. Side turn-signal lamps (on outside
rear view mirror) *1
*1: if so equipped.
*2: Have the lamps bulbs replaced at a
Fiat Dealership.
Codes in parentheses indicate bulb
types.
NOTE It is not possible to repair or
replace only the bulb for the side
turn-signal lamp (on fender). Check with
a Fiat Dealership when the lamp need
to be repaired or replaced.
423AA0030717
424AHA104603
238
IN AN EMERGENCY
361)

Rear
1. High-mounted stop lamp
2. Tail and stop lamps: 21/5 W
(P21/5W)
3. Rear turn-signal lamps: 21 W
(PY21W)
4. Rear fog lamp (driver’s side): 21W
(P21W) Reversing lamps: 21 W (P21W)
5. Licence plate lamps: 5 W (W5W)
Codes in parentheses indicate bulb
types.The following lamps uses LEDs rather
than bulbs. For repair and replacement,
contact a Fiat dealership.
Side turn-signal lamps (on outside
rear view mirror)
Position lamps (Vehicles with high
intensity discharge headlamps)
Daytime running lamps (Vehicles with
high intensity discharge headlamps)
High-mounted stop lamp
Inside
1. Rear room lamp: 8 W
2. Front room & map lamps*: 7.5 W
3. Glove box lamp: 1.4 W
Headlamps (halogen bulb)
1. When replacing the bulb on the right
side of the vehicle, remove the clamps
(A) of the air cleaner filter and move the
upper cover (B) towards the rear of the
vehicle.Straight arrow direction indicates
the front of the vehicle
NOTE When moving the upper cover
towards the rear of the vehicle, remove
the harness from the air cleaner hooks
(C).
Straight arrow direction indicates
the front of the vehicle
425AH4100040426AHA106522
427AHA103954
428AHZ100961
239

Front turn-signal lamps
Except for vehicles with high
intensity discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.3. To install the bulb, perform the
removal steps in reverse.
Vehicles with high intensity
discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.
3. To install the bulb, perform the
removal steps in reverse.
Front fog lamps / Daytime running
lamps (where provided)
1. Insert a straight blade (or minus)
screwdriver with a cloth over its tip at
the edge of the cover (A) and pry gently
to remove the cover.
435AHA103967
436AHA102814
437AHA103967
438AHA102827
241

4. Remove each socket and bulb
assembly by turning it anticlockwise.
C. Tail and stop lamp Remove the bulb
from the socket by turning it
anticlockwise while pressing in.
D. Rear turn-signal lamp Remove the
bulb by pulling it out.
E. Rear fog lamp (driver’s
side)*/Reversing lamp Remove the bulb
by pulling it out.5. To install the bulb, perform the
removal steps in reverse.
When mounting the lamp unit, align the
pins (F) and clip (G) on the lamp unit
with the holes (H) in the body.
Licence plate lamps
1. Insert a straight blade (or minus)
screwdriver into the lamp assembly and
pry gently to remove it.NOTE Wrap a piece of cloth around the
tip of the screwdriver in order to avoid
scratching the lens and the body.
2. Remove the socket and bulb
assembly together by turning it
anticlockwise, and then remove the
bulb by pulling out.
3. To install the bulb, perform the
removal steps in reverse.
NOTE When mounting the lamp unit,
put the hook (A) on the right side of the
lamp unit into the body first.
445AHA102885
446AHA102898
447AHA102902
448AHA102915
449AHA102928
243
