GRAPHICAL INDEX
HEADLIGHTSBulb types..................... 238Daytime running lights........... 45Dipper beam headlights......... 45Headlamps..................... 45Bulb replacement.............. 238
WHEELSTyres and wheels.............. 293Tyre pressure.................. 293Replacing a wheel............. 219
OUTSIDE REAR VIEW MIRRORSAdjustment..................... 41
DOORSCentral opening/closing......... 28
WINDSCREEN WIPERSOperation....................... 52Blade replacement............. 264
ENGINEChecking levels................ 255Engine specifications.......... 278
1
9

Keyless operation key
Coin type battery CR2032
6. Close the transmitter firmly.
7. Attach the screw (A) removed in step
1 (Keyless Entry Key only).
8. Install the emergency key removed in
step 2 (Keyless operation key only).
9. Check the keyless entry system to
see that it works.
KEYLESS OPERATION
SYSTEM
The keyless operation system allows
you to lock and unlock the doors, start
the engine and change the operation
mode simply by carrying the keyless
operation key with you.
The switches on the keyless operation
key can also be used as the key switch
of keyless entry system. Refer to
“Starting and stopping the engine”.
Refer to “Keyless entry system”. The
driver should always carry the keylessoperation key. This key is necessary for
locking and unlocking the doors,
starting the engine and otherwise
operating the vehicle, so before locking
and leaving the vehicle, be sure to
check that you have the keyless
operation key.
4) 5)
Club Cab
Double CabYou can limit the possible operations of
the keyless operation system in the
following ways. (The keyless operation
system can be used as a keyless entry
system.) Please consult a Fiat
Dealership
You can limit operations to locking
and unlocking the doors.
You can limit operations to starting
the engine.
The keyless operation system can be
disabled..
When keyless operation system
operations are modified, the operating
transmitters are as follows.
Only locking and unlocking doors:
exterior transmitter and interior
transmitter.
Only starting the engine: interior
transmitters.
NOTE The keyless operation key uses
an ultra-weak electromagnetic wave. In
the following cases, the keyless
operation system may not operate
properly or may be unstable.
When there is equipment nearby that
emits strong radio waves, such as: a
power station, a radio/TV broadcasting
station or an airport.
The keyless operation system is
carried together with a communications
device such as a cellular phone or radio
set, or with an electronic device such as
a personal computer.
14AHA106825
15AH3100287
16AH3100229
17

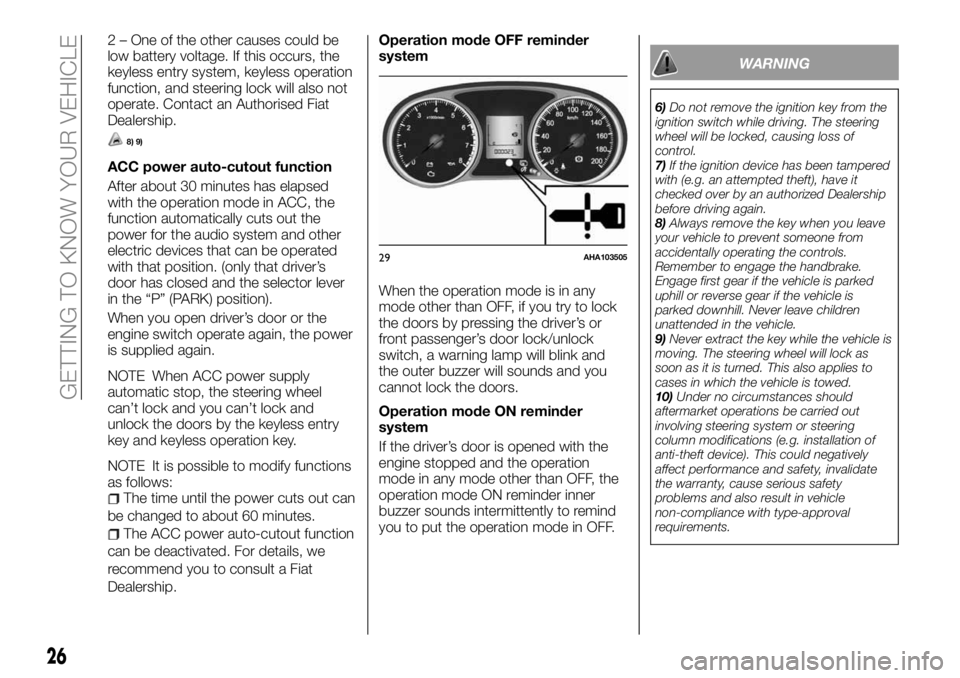

2 – One of the other causes could be
low battery voltage. If this occurs, the
keyless entry system, keyless operation
function, and steering lock will also not
operate. Contact an Authorised Fiat
Dealership.
8) 9)
ACC power auto-cutout function
After about 30 minutes has elapsed
with the operation mode in ACC, the
function automatically cuts out the
power for the audio system and other
electric devices that can be operated
with that position. (only that driver’s
door has closed and the selector lever
in the “P” (PARK) position).
When you open driver’s door or the
engine switch operate again, the power
is supplied again.
NOTE When ACC power supply
automatic stop, the steering wheel
can’t lock and you can’t lock and
unlock the doors by the keyless entry
key and keyless operation key.
NOTE It is possible to modify functions
as follows:
The time until the power cuts out can
be changed to about 60 minutes.
The ACC power auto-cutout function
can be deactivated. For details, we
recommend you to consult a Fiat
Dealership.
Operation mode OFF reminder
system
When the operation mode is in any
mode other than OFF, if you try to lock
the doors by pressing the driver’s or
front passenger’s door lock/unlock
switch, a warning lamp will blink and
the outer buzzer will sounds and you
cannot lock the doors.
Operation mode ON reminder
system
If the driver’s door is opened with the
engine stopped and the operation
mode in any mode other than OFF, the
operation mode ON reminder inner
buzzer sounds intermittently to remind
you to put the operation mode in OFF.
WARNING
6)Do not remove the ignition key from the
ignition switch while driving. The steering
wheel will be locked, causing loss of
control.
7)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by an authorized Dealership
before driving again.
8)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.
9)Never extract the key while the vehicle is
moving. The steering wheel will lock as
soon as it is turned. This also applies to
cases in which the vehicle is towed.
10)Under no circumstances should
aftermarket operations be carried out
involving steering system or steering
column modifications (e.g. installation of
anti-theft device). This could negatively
affect performance and safety, invalidate
the warranty, cause serious safety
problems and also result in vehicle
non-compliance with type-approval
requirements.
29AHA103505
26
GETTING TO KNOW YOUR VEHICLE

EXTERNAL LIGHTS
COMBINATION
HEADLAMPS AND
DIPPER SWITCH
Headlamps
NOTE Do not leave the lamps on for a
long time while the engine is stationary
(not running). A run-down battery could
result.
NOTE When it rains, or when the
vehicle has been washed, the inside of
the lens sometimes becomes foggy, but
this does not indicate a functional
problem. When the lamp is switched
on, the heat will remove the fog.
However, if water gathers inside the
lamp, we recommend you to have
checked.
NOTE The bulbs of high intensity
discharge headlamps (if so equipped)
have the following characteristics:
While the headlamps are used, the
light will gradually become a
bluish-white colour.
The life of a bulb becomes shorter as
it is repeatedly turned on and off. When
the bulb approaches the end of its life,
the brightness may decrease, the bulb
may flicker, and the light may become
reddish in colour. If this occurs, have
the vehicle inspected by a Fiat
Dealership
Type 1
Rotate the switch to turn on the lamps.
OFF— all lamps off
— position, tail, licence plate and
instrument panel lamps on
— headlamps and other lamps go
on
Type 2
Rotate the switch to turn on the lamps.OFF— all lamps off
AUTO— with the ignition switch or the
operation mode is in ON, headlamps,
position, tail, licence plate and
instrument panel lamps turn on and off
automatically in accordance with
outside light level. All lamps turn off
automatically when the ignition switch is
turned to “OFF” position or the
operation mode is put in OFF.
— position, tail, licence plate and
instrument panel lamps on
— headlamps and other lamps go
on
NOTE The sensitivity of the automatic
on/off control can be adjusted. For
further information, contact a Fiat
Dealership.
NOTE If the front fog lamps (if so
equipped) turn on when they are
supposed to with the switch in the
“AUTO” position, the lamps turn off
automatically with the ignition switch or
operation mode off.
75AA0061221
76AA0071497
45

NOTE When the headlamps are turned
off by the automatic on/off control with
the ignition switch in the “ON” position
or the operation mode in ON, the front
fog lamps (if so equipped) and rear fog
lamps (if so equipped) also go off.
When the headlamps are subsequently
turned back on by the automatic on/off
control, the front fog lamps also come
on but the rear fog lamp stay off. If you
wish to turn the rear fog lamp back on,
operate the switch again.
NOTE Do not cover the sensor (A) for
the automatic on/off control by affixing
a sticker or label to the windscreen.
NOTE If the lamps do not turn on or off
with the switch in the “AUTO” position,
manually operate the switch and we
recommend you to have your vehicle
checked.Lamps (headlamps, fog lamp, etc.)
auto-cutout function
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off when the
driver’s door is opened. [Except for
vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off if the driver’s
door then remains closed for
approximately three minutes. [Except
for vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
NOTE The lamp auto-cutout function
can also be disabled. For further
information, we recommend you to
consult a Fiat Dealership.Lamp monitor buzzer
If the following operation is performed,
a buzzer will sound to remind the driver
to turn off the lamps. [Except for
vehicles equipped with the keyless
operation system]
If the driver’s door is opened when the
key is in the “LOCK” or “ACC” position
or removed from the ignition switch
while the lamps are on. [For vehicles
equipped with the keyless operation
system] If the driver’s door is opened
when the operation mode is in ACC or
OFF while the lamps are on. In both
cases, the buzzer will automatically
stop if the auto-cutoff function is
activated, the lamp switch is turned off,
or the door is closed.
Daytime running lamp
(Where provided)
The daytime running lamps comes on
when the engine is running and the
lamp switch is in the “OFF” or “AUTO”
position and the tail lamps are off.
60) 61)
Dipper (High/Low beam change)
When the lamp switch is in the
position, the beam changes from
high to low (or low to high) each time
the lever is pulled fully (A). While the
high beam is on, the high beam
indicator lamp in the instrument cluster
will also illuminate.
77AJZ101023
46
GETTING TO KNOW YOUR VEHICLE

reduce the cooling efficiency.
Too much cooling is not good for the
health. The inside air temperature
should only be 5 to 6 °C below the
outside air temperature.
When operating the system, make
sure the air intake, which is located in
front of the windscreen, is free of
obstructions such as leaves and snow.
Leaves collected in the air-intake
plenum may reduce air flow and plug
the plenum water drains.
Air conditioning system refrigerant
recommendations
If the air conditioning seems less
effective than usual, the cause might be
a refrigerant leak. We recommend you
to have the system inspected.
The air conditioning system in your
vehicle must be charged with the
refrigerant HFC-134a (R134a).
Use of any other refrigerant or lubricant
will cause severe damage which will
result in the need to replace your
vehicle’s entire air conditioning system.
The release of refrigerant into the
atmosphere should be prevented.
It is recommended that the refrigerant
be recovered and recycled for further
use.
During a long period of disuse
The air conditioning should be operated
for at least five minutes each week,
even in cold weather. This is to preventpoor lubrication of the compressor
internal parts and to maintain the air
conditioning in the best operating
condition.PASSENGER
COMPARTMENT AIR
CLEANER / POLLEN
FILTER
An air filter has been incorporated into
this air conditioner so that dirt and dust
are cleaned from the air.
Replace the air filter periodically as its
ability to clean the air will be reduced as
it collects pollen and dirt.
NOTE Operation in certain conditions
such as driving on a dusty road and
frequent use of the air conditioner can
lead to reduction of service life of the
filter. When you feel that the airflow is
lower than normal or when the
windscreen or windows start to fog up
easily, replace the air filter. We
recommend you to have it checked.
REAR WINDOW
DEMISTER SWITCH
(where provided)
The rear window demister switch can
be operated when the engine is
running. Push the switch to turn on the
rear window demister. It will be turned
off automatically in about 20 minutes.
To turn off the demister within about
20 minutes, push the switch again. The
indicator lamp (A) will illuminate while
the demister is on.Manual type
Automatic type
NOTE On vehicles equipped with
heated mirrors, when the rear window
demister switch is pressed, the outside
rear-view mirrors are defogged or
defrosted. Refer to “Heated mirror”.
137AHA101396
138AA0110220
70
GETTING TO KNOW YOUR VEHICLE

1. Lock 2. Unlock
Timer function
The door windows can be opened or
closed for 30 seconds after the engine
is stopped. However, once the driver’s
door or the front passenger’s door is
opened, the windows cannot be
operated.
Safety mechanism (driver’s window
only)
74) 75) 76)
When the door window is automatically
closed by pulling up the switch fully, if a
hand or head is trapped in the closing
window, it will lower automatically.
Nonetheless, make sure that nobody
puts their head or hand out of the
window when closing the driver’s door
window. The lowered window will
become operational after a few
seconds.NOTE The safety mechanism can be
activated if the driving conditions or
other circumstances cause the driver’s
door window to be subjected to a
physical shock similar to that caused by
a trapped hand or head.
NOTE If the safety mechanism is
activated five or more times in a row,
the safety mechanism will be cancelled
and the door window will not close
correctly. In such a case, the following
procedure should be implemented to
rectify this situation. If the window is
open, repeatedly raise the driver’s door
window switch until that window has
been fully closed. Following this, release
the switch, raise the switch once again
and hold it in this condition for at least
1 second, then release it. You should
now be able to operate in the normal
way.
NOTE If the battery terminals are
disconnected or the fuse for electric
window is replaced, the safety
mechanism will be cancelled and the
door window will not automatically
open/close completely. If the window is
open, repeatedly raise the driver’s door
window switch until the window has
been fully closed. Following this, release
the switch, raise the switch once again
and hold it in this condition for at least
1 second, then release it. You should
now be able to operate the driver’s door
window in the normal way.
WARNING
69)Incorrect use of the electric windows
may be dangerous. Before and during
operation, always check that nobody is
exposed to the risk of being injured either
directly by the moving window or through
objects getting caught or by being hit.
When leaving the vehicle, always remove
the key from the ignition switch to avoid the
risk of injury to anyone remaining in the car
due to accidental operation of the electric
windows.
70)Before operating the electric window
control, make sure that nothing is capable
of being trapped (head, hand, finger, etc.).
71)Never leave the vehicle without
removing the key. Never leave a child (or
other person who might not be capable of
safe operation of the electric window
control) in the vehicle alone.
72)A child may tamper with the switch at
the risk of its hands or head being trapped
in the window.
73)When driving with a child in the vehicle,
please press the window lock switch to
disable the passenger’s switches.
74)If the battery terminals are
disconnected or the fuse for electric
window is replaced, the safety mechanism
will be cancelled. If a hand or head got
trapped, a serious injury could result.
75)The safety mechanism is cancelled just
before the window is fully closed. This
allows the window to close completely.
Therefore be especially careful that no
fingers are trapped in the window.
142AHA105512
73
