2018 FIAT FULLBACK bulb

After replacing the bulb, make sure that
the hinges at the front of the vehicle are
firmly set.
2. Disconnect the connector (A).3. Remove the sealing cover (B).
4. Unhook the spring (1) which secures
the bulb, and then remove the
headlamp bulb.
5. To install the bulb, perform the
removal steps in reverse.Position lamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by pulling out.
3. To install the bulb, perform the
removal steps in reverse.
429AHZ100974
430AHA102771
431AHA102784
432AHA102797
433AHA103967
434AHA102801
240
IN AN EMERGENCY

Front turn-signal lamps
Except for vehicles with high
intensity discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.3. To install the bulb, perform the
removal steps in reverse.
Vehicles with high intensity
discharge headlamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by turning it anticlockwise
while pressing in.
3. To install the bulb, perform the
removal steps in reverse.
Front fog lamps / Daytime running
lamps (where provided)
1. Insert a straight blade (or minus)
screwdriver with a cloth over its tip at
the edge of the cover (A) and pry gently
to remove the cover.
435AHA103967
436AHA102814
437AHA103967
438AHA102827
241

2. Remove the 3 screws (B) and
remove the lamp unit.
NOTE When unfastening the screws of
the fog lamp, be careful not to
mistakenly move the beam position
adjustment screw (C).3. Turn the socket anticlockwise to
remove it.
D. Front fog lamp
E. Daytime running lamp
4. While holding down the tab (F), pull
out the bulb (G).* — Front Fog Lamp
** — Daytime Running Lamp
5. To install the bulb, perform the
removal steps in reverse
Rear combination lamps
1. Open the rear gate (refer to “Rear
gate”).
2. Remove the screws (A) that hold the
lamp unit.
3. Move the lamp unit toward the rear
of the vehicle and remove the clips (B).
439AHA102667
440AHA102670
441AHZ101056
442AA0112846
443AA0103202
444AHA102872
242
IN AN EMERGENCY

4. Remove each socket and bulb
assembly by turning it anticlockwise.
C. Tail and stop lamp Remove the bulb
from the socket by turning it
anticlockwise while pressing in.
D. Rear turn-signal lamp Remove the
bulb by pulling it out.
E. Rear fog lamp (driver’s
side)*/Reversing lamp Remove the bulb
by pulling it out.5. To install the bulb, perform the
removal steps in reverse.
When mounting the lamp unit, align the
pins (F) and clip (G) on the lamp unit
with the holes (H) in the body.
Licence plate lamps
1. Insert a straight blade (or minus)
screwdriver into the lamp assembly and
pry gently to remove it.NOTE Wrap a piece of cloth around the
tip of the screwdriver in order to avoid
scratching the lens and the body.
2. Remove the socket and bulb
assembly together by turning it
anticlockwise, and then remove the
bulb by pulling out.
3. To install the bulb, perform the
removal steps in reverse.
NOTE When mounting the lamp unit,
put the hook (A) on the right side of the
lamp unit into the body first.
445AHA102885
446AHA102898
447AHA102902
448AHA102915
449AHA102928
243

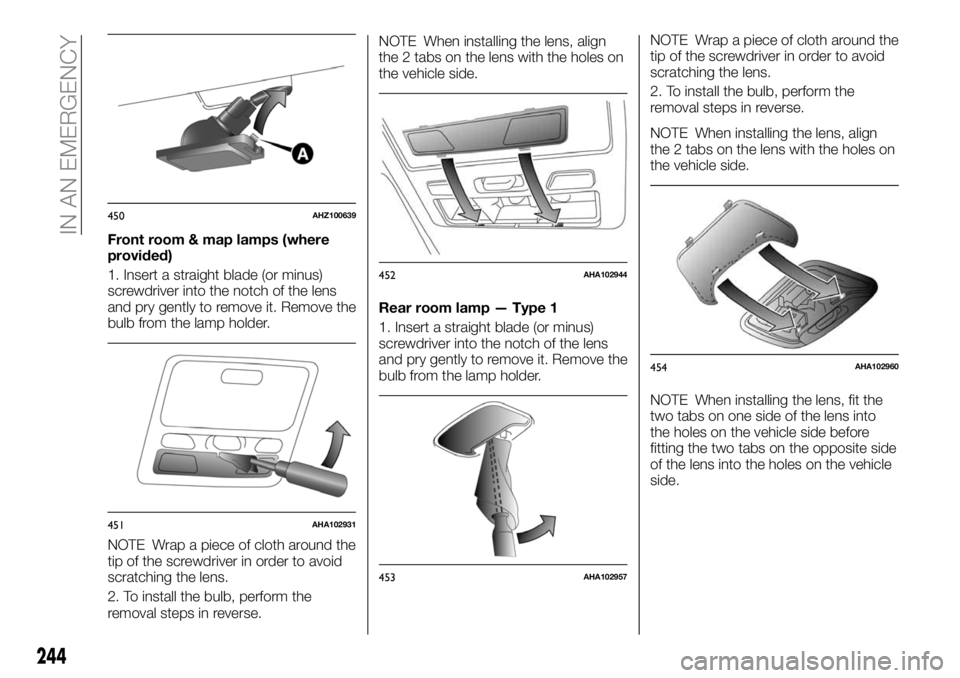

Front room & map lamps (where
provided)
1. Insert a straight blade (or minus)
screwdriver into the notch of the lens
and pry gently to remove it. Remove the
bulb from the lamp holder.
NOTE Wrap a piece of cloth around the
tip of the screwdriver in order to avoid
scratching the lens.
2. To install the bulb, perform the
removal steps in reverse.NOTE When installing the lens, align
the 2 tabs on the lens with the holes on
the vehicle side.
Rear room lamp — Type 1
1. Insert a straight blade (or minus)
screwdriver into the notch of the lens
and pry gently to remove it. Remove the
bulb from the lamp holder.NOTE Wrap a piece of cloth around the
tip of the screwdriver in order to avoid
scratching the lens.
2. To install the bulb, perform the
removal steps in reverse.
NOTE When installing the lens, align
the 2 tabs on the lens with the holes on
the vehicle side.
NOTE When installing the lens, fit the
two tabs on one side of the lens into
the holes on the vehicle side before
fitting the two tabs on the opposite side
of the lens into the holes on the vehicle
side.
450AHZ100639
451AHA102931
452AHA102944
453AHA102957
454AHA102960
244
IN AN EMERGENCY

Rear room lamp — Type 2
1. Insert a straight blade (or minus)
screwdriver into the notch of the lens
and pry gently to remove it. Remove the
bulb from the lamp holder.
NOTE Wrap a piece of cloth around the
tip of the screwdriver in order to avoid
scratching the lens.
2. To install the bulb, perform the
removal steps in reverse.NOTE When installing the lens, fit the
two tabs on one side of the lens into
the holes on the vehicle side before
fitting the two tabs on the opposite side
of the lens into the holes on the vehicle
side.
Glove box lamp
Have the glove box lamp bulb replaced
at a Fiat dealership.
WARNING
350)Before replacing the bulb, wait for the
exhaust ducts to cool down: DANGER OF
SCALDING!
351)Only replace the bulb when the
engine is off and the vehicle is in a safe
position that does not cause danger to the
traffic and allows for a safe replacement.
Also ensure that the engine is cold, to
prevent the risk of burns.352)Halogen bulbs contain pressurised
gas; in the case of breakage they may
burst.
353)Bulbs are extremely hot immediately
after being turned off. When replacing a
bulb, wait for it to cool sufficiently before
touching it. You could otherwise be burnt.
354)Handle halogen lamp bulb with care.
The gas inside halogen lamp bulb is highly
pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
355)Never hold the halogen lamp bulb
with a bare hand, dirty glove, etc. The oil
from your hand could cause the bulb to
break the next time the headlamps are
operated fig. 0 fig. 423. If the glass surface
is dirty, it must be cleaned with alcohol,
paint thinner, etc., and refit it after drying it
thoroughly.
356)Always consult a specialist when
repairing or replacing the bulbs of high
intensity discharge headlamps. This is
because the power circuit, bulbs and
electrodes generate a high voltage that
could cause an electric shock.
357)Modifications or repairs to the electric
system that are not carried out properly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
358)Only replace bulbs when the engine is
off. Also ensure that the engine is cold, to
prevent the risk of burns.
359)Do not install commercially available
LED-type bulbs. Commercially available
LED-type bulbs could adversely affect the
operation of the vehicle, such as by
preventing the lamps and other vehicle
equipment from operating properly.
455AHZ101043
456AHA104645
457AHZ101043
245

360)When replacing a bulb, be sure to use
a new bulb of the same type, wattage, and
colour. If you install a different bulb, the
bulb could malfunction or fail to come on
and could lead to a vehicle fire.
361)Check with an authorised Fiat
dealership when it is necessary to repair a
high intensity discharge headlamp or to
replace the bulb. High voltage is generated
in the high intensity discharge headlamp
bulb and electrodes, which may cause a
severe shock when the bulb and connector
are removed or disconnected.
