2018 FIAT FULLBACK Owner handbook (in English)

3. Push the child restraint system’s
connectors (A) into the lower
anchorages (B) in accordance with the
instructions provided by the child
restraint system’s manufacturer.
A. Connector
B. Lower anchorage
If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor.
If your child restraint system with a
tether strap, perform the step 4 through
8.
If your child restraint system without a
tether strap, perform the step 8.4. Drop the child restraint’s tether strap
(C) down from the clearance between
the rear seatback and back panel trim.
5. Tip the armrest forward. Open the
two fasteners (D) that’s located in the
space where the armrest are stowed.6. Open the inner cover.
7. Put your hand in the opening of the
two fasteners, attach the tether strap
hook (E) to the tether anchorage (F),
and securely tighten the tether strap.
If it is difficult to latch the tether strap
hook, turn the hook sideways.
8. Push and pull the child restraint
system in all directions to be sure it is
firmly secured.
212AHA106434
213AHA106610
214AHA106623
215AHA106636
216AHA106649
127

To remove
Remove the child restraint system in
accordance with the instructions
provided by the child restraint system’s
manufacturer.
Installing a child restraint system to
a 3-point type seat belt (with
emergency locking mechanism)
Installation
1. Put a child restraint system on the
seat in which you wish to install it and
remove the head restraint from the seat.
Refer to “Head restraints”.
2. When installing a child restraint
system in the front passenger seat,
adjust seat slide to its most rearward
position.
3. Route the belt through the child
restraint according to the child restraint
system manufacturer’s instructions,
then insert the latch plate into the
buckle.
4. Remove all slack by using the locking
clip (A).
5. If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor.
6. Before putting the child in the
restraint, push and pull the child
restraint in all directions to be sure it is
secure. Do this before each use.
166)
WARNING
164)When installing a child restraint
system, remove the head restraint from the
seat.
165)Child restraint anchorages are
designed to withstand only those loads
imposed by correctly fitted child restraints.
Under no circumstances are they to be
used for adult seat belts, harnesses, or for
attaching other items or equipment to the
vehicle.
166)For some type of child restraint, the
locking clip (A) fig. 0 fig. 217 should be
used to help avoid personal injury during a
collision or sudden manoeuvre. It must be
fitted and used in accordance with the child
restraint manufacturer’s instructions. The
locking clip must be removed when the
child restraint is removed.
IMPORTANT
77)When attaching a child restraint system
to the rear seat, adjust the front seat to
prevent the front seatbacks from touching
the child's feet and child restraint system.
78)When installing a child restraint system
(Mass group II & III) on the front passenger
seat, please move the seatbacks position
to 2 steps rearward from upright position.
79)Child restraint system with support leg
can not be suitable on the rear centre seat.
80)Pull down the head restraint of the child
restraint after the child gets down from the
child restraint when you use the “KID-FIX
XP” in the rear seat to prevent the head
restraint of the child restraint from touching
the rear glass. And make sure the head
restraint is adjusted and properly
positioned when the child sits in the child
restraint system.
217AA0008772

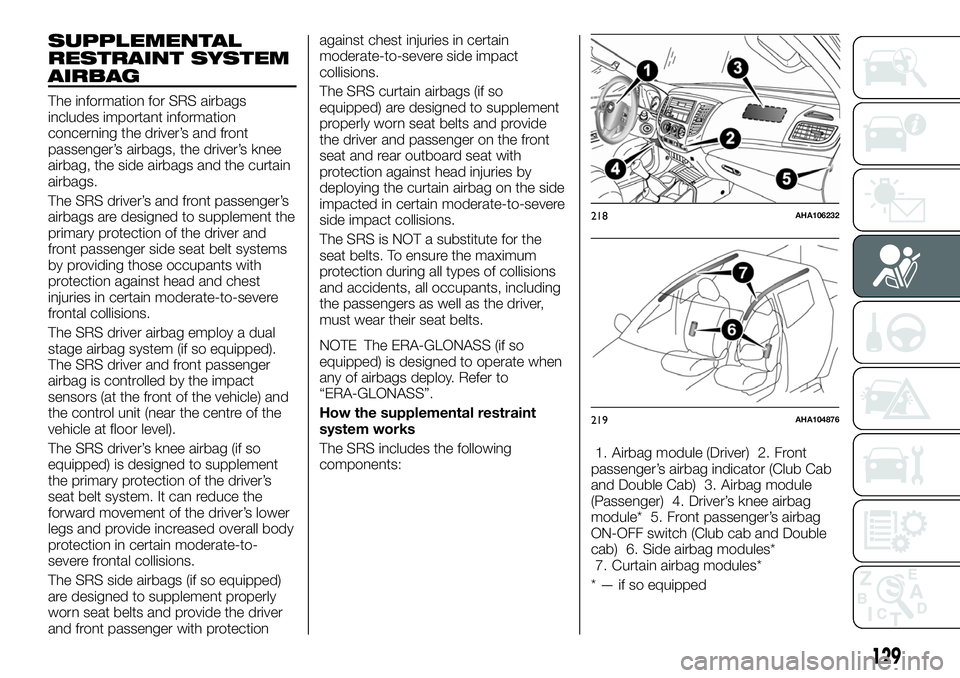

128
SAFETY

SUPPLEMENTAL
RESTRAINT SYSTEM
AIRBAG
The information for SRS airbags
includes important information
concerning the driver’s and front
passenger’s airbags, the driver’s knee
airbag, the side airbags and the curtain
airbags.
The SRS driver’s and front passenger’s
airbags are designed to supplement the
primary protection of the driver and
front passenger side seat belt systems
by providing those occupants with
protection against head and chest
injuries in certain moderate-to-severe
frontal collisions.
The SRS driver airbag employ a dual
stage airbag system (if so equipped).
The SRS driver and front passenger
airbag is controlled by the impact
sensors (at the front of the vehicle) and
the control unit (near the centre of the
vehicle at floor level).
The SRS driver’s knee airbag (if so
equipped) is designed to supplement
the primary protection of the driver’s
seat belt system. It can reduce the
forward movement of the driver’s lower
legs and provide increased overall body
protection in certain moderate-to-
severe frontal collisions.
The SRS side airbags (if so equipped)
are designed to supplement properly
worn seat belts and provide the driver
and front passenger with protectionagainst chest injuries in certain
moderate-to-severe side impact
collisions.
The SRS curtain airbags (if so
equipped) are designed to supplement
properly worn seat belts and provide
the driver and passenger on the front
seat and rear outboard seat with
protection against head injuries by
deploying the curtain airbag on the side
impacted in certain moderate-to-severe
side impact collisions.
The SRS is NOT a substitute for the
seat belts. To ensure the maximum
protection during all types of collisions
and accidents, all occupants, including
the passengers as well as the driver,
must wear their seat belts.
NOTE The ERA-GLONASS (if so
equipped) is designed to operate when
any of airbags deploy. Refer to
“ERA-GLONASS”.
How the supplemental restraint
system works
The SRS includes the following
components:1. Airbag module (Driver) 2. Front
passenger’s airbag indicator (Club Cab
and Double Cab) 3. Airbag module
(Passenger) 4. Driver’s knee airbag
module* 5. Front passenger’s airbag
ON-OFF switch (Club cab and Double
cab) 6. Side airbag modules*
7. Curtain airbag modules*
* — if so equipped
218AHA106232
219AHA104876
129

Only when the ignition switch or the
operation mode is under the following
conditions, the airbags will operate.
Except for vehicles equipped with the
keyless operation system: the ignition
switch is in the “ON” or “START”
position.
Vehicles equipped with the keyless
operation system: the operation mode
is in ON.
When the airbag control unit detects
rollover of the vehicle, curtain airbags
will be deployed (if so equipped).
The airbags deployment produces a
sudden, loud noise, and releases some
smoke and powder, but these
conditions are not injurious, and do not
indicate a fire in the vehicle. People with
respiratory problems may feel some
temporary irritation from chemicals
used to produce the deployment; open
the windows after airbag deployment, if
safe to do so.
The airbags deflate very rapidly after
deployment, so there is little danger of
obscured vision.
167) 168) 169) 170) 171) 172) 173) 174) 175) 176) 177) 178)
179)
Caution for installing the child
restraint on vehicle with front
passenger’s airbag
The label shown here is attached on
vehicles with front passenger’s airbag.
180)
NOTE The labels may be in different
positions depending on the vehicle
model.
Front passenger’s airbag ON OFF
switch (Club cab and Double cab)
The front passenger’s airbag ON-OFF
switch can be used to disable the front
passenger’s airbag. If you have a child
restraint system that cannot be fitted to
any seat other than the front passenger
seat, be sure to turn OFF the front
passenger’s airbag ON-OFF switch
before using it. Refer to “To turn an
airbag off”.
Front passenger’s airbag ON-OFF
switch is located as shown in the
illustration.
220AF0009484
221AHA100605
222AHA105668
130
SAFETY

Front passenger’s airbag indicator
(Club cab and Double cab)
The front passenger’s airbag indicator is
located in the instrument panel.
This indicator normally comes on when
the ignition switch is turned to the “ON”
position or the operation mode is put in
ON, and goes off a few seconds later.
When the front passenger’s airbag
ON-OFF switch is turned OFF, the OFFindicator will stay on to show that the
front passenger’s airbag is not
operational. When the front passenger’s
airbag ON-OFF switch is turned ON,
the OFF indicator goes off, and the ON
indicator comes on for approximately
1 minute to show that the front
passenger’s airbag is operational.
181)
To turn an airbag off (Club cab and
Double cab)
182)
To turn an airbag off, follow these steps:
1. Insert the key into the front
passenger’s airbag ON-OFF switch,
and turn it to the “OFF” position.
2. Remove the key from the front
passenger’s airbag ON-OFF switch.
3. Turn the ignition switch to the “ON”
position or put the operation mode in
ON. The front passenger’s airbag OFF
indicator lamp will stay on.
(*) — Type 1; (**) — Type 2The front passenger’s airbag is now
deactivated and will not deploy until
switched on again.
Driver’s and front passenger’s
airbag system
The driver’s airbag is located under the
padded cover in the middle of the
steering wheel. The front passenger’s
airbag is contained in the instrument
panel above the glove box.
The driver’s airbag inflates at two
different rates according to the severity
of the impact (if so equipped).
The driver’s airbag and the front
passenger’s airbag are designed to
inflate at the same time even if the
passenger seat is not occupied.
223AHA106245
224AHA106258
225AHA109190
226AA0001988
131

Driver’s knee airbag system (where
provided)
The driver’s knee airbag is located
under the steering wheel. The driver’s
knee airbag is designed to deploy at the
same time as the driver’s front airbag.
Deployment of front
airbags and driver’s
knee airbag
(where provided)
The front airbags and driver’s knee
airbag ARE DESIGNED TO DEPLOY
when…
The front airbags and driver’s knee
airbag are designed to deploy when the
vehicle suffers a moderate to severe
frontal impact. The typical condition is
shown in the illustration.1. Head-on collision with a solid wall at
speed of approximately 25 km/h or
higher 2. Moderate to severe frontal
impact within the shaded area between
the arrows
The front airbags and driver’s knee
airbag will deploy if the severity of
impact is above the designed threshold
level, comparable to an approximately
25 km/h collision when impacting
straight into a solid wall that does not
move or deform. If the severity of the
impact is below the above threshold
level, the front airbags and driver’s knee
airbag may not deploy. However, this
threshold speed will be considerably
higher if the vehicle strikes an object
that absorbs the impact by either
deforming or moving (for example,
another stationary vehicle, pole or a
guard rail).
Because frontal collisions can easily
move you out of position, it is important
to always properly wear your seat belts.Your seat belts will help keep you a safe
distance from the steering wheel and
instrument panel during the initial
stages of airbag deployment. The initial
stage of airbag inflation is the most
forceful, and can possibly cause serious
or fatal injuries. Moreover, the seat belts
in your vehicle are your primary means
of protection in a collision. The SRS
airbags are designed to provide
additional protection. Therefore, for your
safety and the safety of all occupants,
be sure to always properly wear your
seat belts.
The front airbags and driver’s knee
airbag MAY NOT DEPLOY when…
With certain types of frontal collisions,
the vehicle’s body structure is designed
to absorb the shock to help protect the
occupants from harm. (The vehicle
body’s front area may deform
significantly as it absorbs the impact.)
Under such circumstances, the front
airbags and driver’s knee airbag may
not deploy irrespective of the
deformation and damage to the vehicle
body.
Examples of some typical conditions
are shown in the illustration.
227AHA105697
228AHA103130
132
SAFETY

1. When colliding with a utility pole,
tree or other narrow object. 2. Vehicle
slides under the rear body of a truck
3. Oblique frontal impacts
Because the front airbags and driver’s
knee airbag do not protect the
occupant in all types of frontal
collisions, be sure to always properly
wear your seat belts.
The front airbags and driver’s knee
airbag ARE NOT DESIGNED TO
DEPLOY when…
The front airbags and driver’s knee
airbag are not designed to deploy in
conditions where they cannot typically
provide protection to the occupant.
Such conditions are shown in the
illustration.1. Rear end collisions 2. Side
collisions 3. Vehicle rolls onto its side
or roof
Because the front airbags and driver’s
knee airbag do not protect the
occupant in all types of collisions, be
sure to always properly wear your seat
belts.
The front airbags and driver’s knee
airbag MAY DEPLOY when…
The front airbags and driver’s knee
airbag may deploy if the bottom of the
vehicle suffers a moderate to severe
impact (undercarriage damage).
Examples of some typical conditions
are shown in the illustration.1. Collision with an elevated
median/island or kerb 2. Vehicle travels
over a deep hole/pothole 3. Vehicle
drives down a steep slope and hits the
ground
Because the front airbags and driver’s
knee airbag may deploy in certain types
of unexpected impacts as shown in the
illustration that can easily move you out
of position, it is important to always
properly wear your seat belts. Your seat
belts will help keep you a safe distance
from the steering wheel and instrument
panel during the initial stages of airbag
deployment. The initial stage of airbag
inflation is the most forceful and can
possibly cause serious or fatal injuries if
you contact it at this stage.
181) 182) 183) 184) 185) 186) 187) 188) 189) 190)
229AHA103143230AHA103156231AHA103169
133

Side airbag system
(where provided)
The side airbags (A) are contained in
the driver and front passenger
seatbacks. The side airbag is designed
to inflate only on the side of the vehicle
that is impacted, even with no
passenger in the front seat.The label shown here is attached to the
seatbacks with a side airbag.
Curtain airbag system (where
provided)
191) 192)
The curtain airbags are contained in the
front pillars and roof side rail. The
curtain airbag is designed to inflate only
on the side of the vehicle that is
impacted, even with no passenger in
the front seat or rear seat.Also, when the airbag control unit
detects rollover of the vehicle, the
curtain airbags will deploy (if so
equipped).
Deployment of side airbags and
curtain airbags*
The side airbags and curtain
airbags ARE DESIGNED TO
DEPLOY when...
The side airbags and curtain airbags
are designed to deploy when the
vehicle suffers a moderate to severe
side impact to the middle of the
passenger compartment.
The typical condition is shown in the
illustration.
232AHA105701
233AHA105714
234AHA103198
235AHA103202
236AJA102937
134
SAFETY
