2018 FIAT DOBLO COMBI remote control

KEYS
MECHANICAL KEY
The key's metal insert A fig. 1 is fixed.
The key operates:
the ignition device;
the door lock;
opening and closing of the fuel tank
cap.
KEY WITH REMOTE
CONTROL
The metal insert A fig. 2 - fig. 3 retracts
into the handle and operates:
the ignition device;
the door lock;
opening and closing of the fuel tank
cap.
To extract the metal insert, press the
button B fig. 2 - fig. 3.To refit it in the grip proceed as follows:
hold down button B and turn the
metal insert A;
release button B and turn the metal
insert A completely until the locking
click is heard to ensure correct closure.
1)
Cargo versions fig. 2
Button
unlocks all the doors
(including the tailgate, the rear swing
doors and the sliding side doors for
versions/markets where provided).
The
button locks all the doors.
Button
unlocks the boot, the rear
swing doors and the sliding side doors
(depending on the version).
Combi / Panorama versions fig. 3
Button
unlocks all the doors
(including the tailgate, the rear swing
doors and the sliding side doors for
versions/markets where provided).
The
button locks all the doors.
Button
unlocks the boot, the rear
swing doors and the sliding side doors
(depending on the version).
DEAD LOCK DEVICE
(for versions/markets, where provided)
This safety device prevents the opening
of the doors from inside the passenger
compartment if there has been a break
in attempt (e.g. a window has been
broken).
The dead lock device therefore offers
the best possible protection against
break in attempts. We recommend
engaging it whenever the vehicle is
parked and left unattended.
1F0V0003
2 - Cargo versionsF0V0004
3 - Combi / Panorama versionsF0V0536
10
KNOWING YOUR VEHICLE

Turning the device on
The system is automatically enabled on
all the doors by pressing button
twice on the key with remote control.
The direction indicators flash twice to
let you know that the device is active.
If one or more of the doors is not
perfectly shut, the dead lock device will
not be activated, thus preventing a
person getting into the vehicle through
the open door and, on shutting, it,
remaining stuck inside the passenger
compartment.
Turning the device off
The system is disabled automatically on
every door when:
unlocking the doors;
by turning the ignition key to the
MAR position.
2) 3)
WARNING
1)Button B should only be pressed when
the key is away from the body, in particular
from the eyes and from objects that can
be spoilt (e.g. clothes). Do not leave the
key unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.2)Once the safe lock system is engaged it
is impossible to open the doors from
inside the vehicle. Before engaging the
system please therefore check that there is
no one left on board.
3)If the remote control battery is flat, the
system can only be turned on by inserting
the metal key in the door lock: in this case,
the device remains active for the rear
doors only.
WARNING
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
IGNITION DEVICE
The key can be turned to 3 different
positions fig. 4:
STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can operate;
MAR: driving position. All electrical
devices are enabled;
AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that requires
the ignition key to be turned back
to STOP if the engine will not start,
before the starting operation can be
repeated.
4) 5) 6) 7)
4F0V0006
11

Irregular operation
If the code has not been recognised
correctly during starting, the
warning light on the instrument
panel turns on accompanied by the
corresponding message on the display
(see the “Warning lights and messages”
chapter).
In this case, turn the key toSTOPand
then back toMAR; if the lock
continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot start
the engine.
IMPORTANT Each key has its own
code which must be stored by the
system's control unit. Contact a Fiat
Dealership to have new keys (up to 8)
stored with a code.
Activation of the
warning light while
driving
If thewarning light turns on, this
means that the system is running a
self-diagnosis (for example due to
a voltage drop).
If thewarning light stays on,
contact a Fiat Dealership.
WARNING
1)The electronic components inside the
key may be damaged if the key is
subjected to strong shocks. In order to
ensure complete efficiency of the
electronic devices inside the key, it should
never be exposed to direct sunlight.
DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Locking from the outside
The doors will only be locked if all doors
are shut. If one or more of the doors is
open after button
is pressed on
the remote control , the direction
indicators will flash quickly for around
three seconds.
You can lock all the doors by turning
the key clockwise in the driver's door.
Pressing the button
on the remote
control twice rapidly turns on the dead
lock device (see the "Dead lock device"
paragraph).
Door unlocking from the outside
Press the
button shortly to remotely
unlock only the front doors (Cargo
version), to turn on the front ceiling
lights for a limited period and to double
flash the direction indicators.
Press
button and hold it pressed to
remotely unlock the load compartment
(Cargo version), to turn on the rear
ceiling lights for a limited period and to
double flash the direction indicators.
Turn the key anticlockwise in the
driver's door to unlock the front doors
only.
13

The device remains engaged even if the
doors are electrically unlocked.
12)
KEY EMERGENCY LOCK
(KEL) DEVICE
The sliding side doors are provided with
a device for locking all the doors using
the lock in the case of a power fault.
The device can be engaged, with
the sliding side doors open, as follows
fig. 10:
position 2: device not engaged
(doors released)
position 1: device engaged (fit the
metal insert of the ignition key in its seat
and rotate clockwise), door locked
The device is released and thus the
doors can be opened as follows: in the
event that electrical operation is
restored:
by remote control
or
open a front door by inserting the
key into the key pawl. in the event that
electrical operation is restored;
opening the driver side door by key
pawl and the other doors (passenger's
side and sliding side door) pulling the
inner handle.DOUBLE REAR WING
DOORS
(for versions/markets, where provided)
The double rear swing doors are fitted
with a link system that stops them
when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180
degrees, push the locking device A
fig. 11 (one on each side) as shown in
the diagram and simultaneously open
the doors.13)
Using the key latch on the door, you
can do the following:
for Cargo versions with wing door:
centrally unlock the load compartment
(sliding side doors + rear wing doors),
centrally lock all the doors;
for Doblò/Doblò Combi versions
with swing door: local unlocking/
locking.
8F0V0382
9F0V0186
10F0V0383
15

Opening/closing the first
swing door from the
outside
To open the door, turn the metallic
insert of the key in the lock or press
button
on the remote control and
then pull handle A fig. 12 in the
direction of the arrow. To close the
door, turn the key in the lock or press
the
button on the remote control.
14)
Emergency opening of
the first swing door
from the inside
From inside, use device A fig. 13.
Opening the second
swing door
After having opened the first door, pull
handle A fig. 14 in the direction shown
by the arrow.
IMPORTANT Pull handle A fig. 14 only
in the direction shown in the diagram.FIXED WINDOW
(for versions/markets, where provided)
Using the fixed window:
Open the swing doors;
Push lever A fig. 15 downwards,
ensuring that it is held down until the
lock goes beyond the crossmember;
Open using both hands, making
sure to aid the fixed window opening by
using handle B fig. 15;
To close, pull the fixed window
downwards using the suitable handle
B.
IMPORTANT The fixed window remains
open up to a speed of 110 km/h.
With the fixed window open it is
possible, if necessary, to lower the
crossmember C, accompanying it from
position 1 to position 2 fig. 16.
To release and lower the crossmember,
act, with rear doors open, on lever D
fig. 17.
11F0V0067
12F0V0518
13F0V0080
14F0V007815F0V0526
16
KNOWING YOUR VEHICLE

ELECTRIC WINDOWS
ELECTRIC FRONT
WINDOWS
(for versions/markets, where provided)
There are buttons on the driver side
door panel which control the following
functions, with the ignition key turned to
MAR:
TO: Opening/closing of left-hand
window
B: Opening/closing of right-hand
window
Push button A or B to open/close the
appropriate window.When one of the two buttons is
pressed briefly, the window moves in
steps; if the button is held down,
"continuous automatic" operation is
activated both for closing and opening.
Press button A or B again to stop the
window in its current position.
The electric windows are fitted with a
security system (where provided) that
can detect the presence of an obstacle
whilst the window is closing; when
this happens, the system kicks in and
the movement of the glass is
immediately reversed.
IMPORTANT With the ignition key at
STOP or removed, the electric windows
remain activated for about two minutes
and are deactivated as soon as a
door is opened.
28) 29)
FRONT AND REAR
ELECTRIC WINDOWS
(for versions/markets, where provided)
Driver side door
Five switches fig. 68 on the inner
armrest control the following with the
ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/closing;
C left rear window opening/closing;
D right rear window opening/closing;
E inhibition of control switches on rear
doors.Passenger side and rear doors
(for versions/markets, where provided)
The switch controlling the
corresponding window is located on
the inner armrest of each door.
WINDOW OPENING/
CLOSING BY MEANS OF
A KEY WITH REMOTE
CONTROL
(for versions/markets, where provided)
The windows can be opened/closed by
holding the unlock
/ lockbuttons
on the remote control pressed,
respectively.
The windows move simultaneously as
long as the corresponding button is
held down; they will stop when they
reach the upper or lower end of travel
position, or the button is released.
67F0V0020
68F0V0175
40
KNOWING YOUR VEHICLE

WARNING

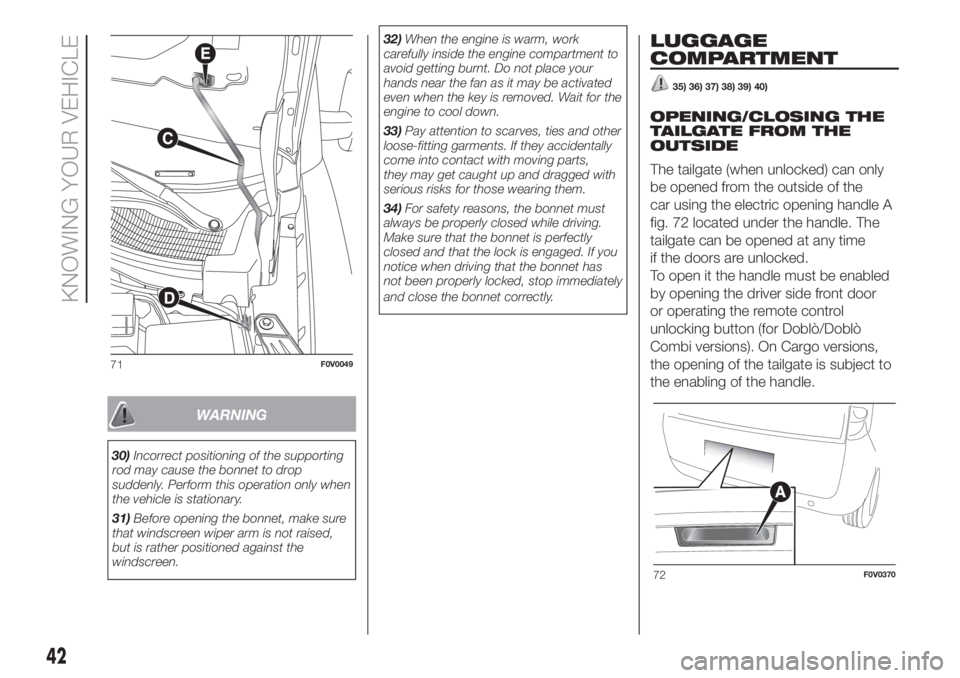

30)Incorrect positioning of the supporting
rod may cause the bonnet to drop
suddenly. Perform this operation only when
the vehicle is stationary.
31)Before opening the bonnet, make sure
that windscreen wiper arm is not raised,
but is rather positioned against the
windscreen.32)When the engine is warm, work
carefully inside the engine compartment to
avoid getting burnt. Do not place your
hands near the fan as it may be activated
even when the key is removed. Wait for the
engine to cool down.
33)Pay attention to scarves, ties and other
loose-fitting garments. If they accidentally
come into contact with moving parts,
they may get caught up and dragged with
serious risks for those wearing them.
34)For safety reasons, the bonnet must
always be properly closed while driving.
Make sure that the bonnet is perfectly
closed and that the lock is engaged. If you
notice when driving that the bonnet has
not been properly locked, stop immediately
and close the bonnet correctly.
LUGGAGE
COMPARTMENT
35) 36) 37) 38) 39) 40)
OPENING/CLOSING THE
TAILGATE FROM THE
OUTSIDE
The tailgate (when unlocked) can only
be opened from the outside of the
car using the electric opening handle A
fig. 72 located under the handle. The
tailgate can be opened at any time
if the doors are unlocked.
To open it the handle must be enabled
by opening the driver side front door
or operating the remote control
unlocking button (for Doblò/Doblò
Combi versions). On Cargo versions,
the opening of the tailgate is subject to
the enabling of the handle.
71F0V0049
72F0V0370
42
KNOWING YOUR VEHICLE

The handle is enabled after pressing the
third button on the remote control or
by operating the unlocking button from
the interior of the vehicle. Opening
can also take place by using the
mechanical key or the metal insert of
the remote control key in the driver side
door pawl.
7)
EMERGENCY OPENING
FROM THE INSIDE
In the event of an emergency, you can
open the boot from inside the vehicle
as follows:
open the sliding side door and fully
fold the rear seats;
from inside the boot, press lever A
fig. 74 and open the tailgate.EMERGENCY OPENING
OF THE SWING DOORS
FROM THE INSIDE
In the event of an emergency, you can
open the boot from inside the vehicle
as follows:
open the sliding side door and lower
the backrest of the rear seat to give
you access to the load compartment
(Doblò/Doblò Combi versions);
or
open the sliding side door (Cargo
versions);
use device A fig. 75 located on the
inside of the right-hand swing door;
open the left-hand swing door
by pulling on its handle (see "Doors" in
this section).REMOVING THE PARCEL
SHELF
The parcel shelf consists of two parts.
To remove it completely, proceed as
follows:
open the rear wing door; raise the
front part A fig. 76, unhooking pin A fig.
77 from its housing
raise rear part B fig. 76, unhooking
pins B and C fig. 77 from their
housings.
If the seat is completely folded down,
remove the parcel shelf as described
and store it horizontally between the
back of the front seats and the folded
rear seat.
To refit the parcel shelf, follow the same
procedure in reverse.73F0V0340
74F0V013575F0V0080
43
