Driving and Operating 199
Warning (Continued)
‐When driving over road
joints or bumps such as
light reflectors on the road.
‐ When driving on a bumpy
road, stone-paved road or
track.
‐ When driving over an iron
plate or manhole lid.
ABS does not work for wheel skid
during a standing start,
acceleration and cornering which
do not involve braking. On a very
slippery icy road, tires may lose
grip and steering wheel operation
may not be able to control the
vehicle's direction, resulting in
very unstable driving. Always
drive the vehicle observing a safe
speed well matched with both
road surface and tire conditions,
and avoid sudden braking.
If powerful engine braking is
applied on a very slippery icy
road, the drive wheels may be (Continued)
Warning (Continued)
locked (the ABS then does not
work), resulting in loss of vehicle
control.
When ABS is activated, a slight
vibration (especially when the
road surface is different between
right and left wheels) and pulling
may be felt on the brake pedal
and steering wheel. In addition,
an operating sound is produced
from the ABS actuators. This
does not indicate any abnormal
condition. Stay calm and operate
the steering wheel properly.
Electronic Braking force
Distribution (EBD)
EBD is a function that uses the ABS
to distribute braking force ideally
between the front and rear wheels
in order to compensate for changes
in load conditions or any shift of the
load due to acceleration or
deceleration, thus preventing
premature locking of the rear
wheels.
{Warning
If a problem should occur with the
EBD function, the ABS warning
light and the brake system
warning light will come on
simultaneously.
The rear wheels will lock more
easily if there is a problem with
the EBD function. Have it
checked and serviced at the
nearest dealer as soon as
possible. You and others could be
seriously injured.
When the EBD operates, the brake
pedal may push back slightly or you
may hear a sound similar to that
generated by the ABS when
operational. Neither of them
indicates any abnormal condition.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
200 Driving and Operating
Parking Brake
Parking Brake Lever
{Warning
Although the parking brake
indicator light will come on if the
parking brake is engaged while
the engine control switch is in the
ON position, this does not mean
the parking brake is fully
engaged, so always make sure
the lever is fully pulled up.
Never drive the vehicle with the
parking brake set as this will
cause excessive wear, reduce
parking brake effectiveness and
increase fuel consumption.
Choose a flat place where
stopping and parking are
permitted and where the vehicle
will not obstruct traffic.
Remove all dirt from the vehicle's
light lenses and reflectors to
ensure that the vehicle can be
seen from other vehicles. You and
others could be seriously injured.Avoid parking for long periods with
cargo on the vehicle.
Operation of Parking Brake
The parking brake lever is located to
the right of the driver's seat.
To set the parking brake, completely
stop the vehicle. Then, without
pressing the release button (1), hold
the brake pedal down while pulling
the parking brake lever (2) all the
way up.
The parking brake indicator light in
the instrument panel will come on
when the lever is pulled up. Before
you leave the driver's seat, follow
the steps under
“Parking, or Leaving
Driver's Seat”. See Braking0126.
To release the parking brake, hold
the brake pedal down while pushing
the release button of the parking
brake lever and lower the lever. The
parking brake indicator light in the
instrument panel will go out.
The parking brake indicator light is
designed to remind you if the
parking brake is not released when
the engine control switch is on.
If you notice the parking brake lever
travel has increased over time, this
means the cable adjustment must
be checked by a qualified
technician. Adjustment may be
required due to parking brake shoe
wear. See Control of a Vehicle
0 122.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

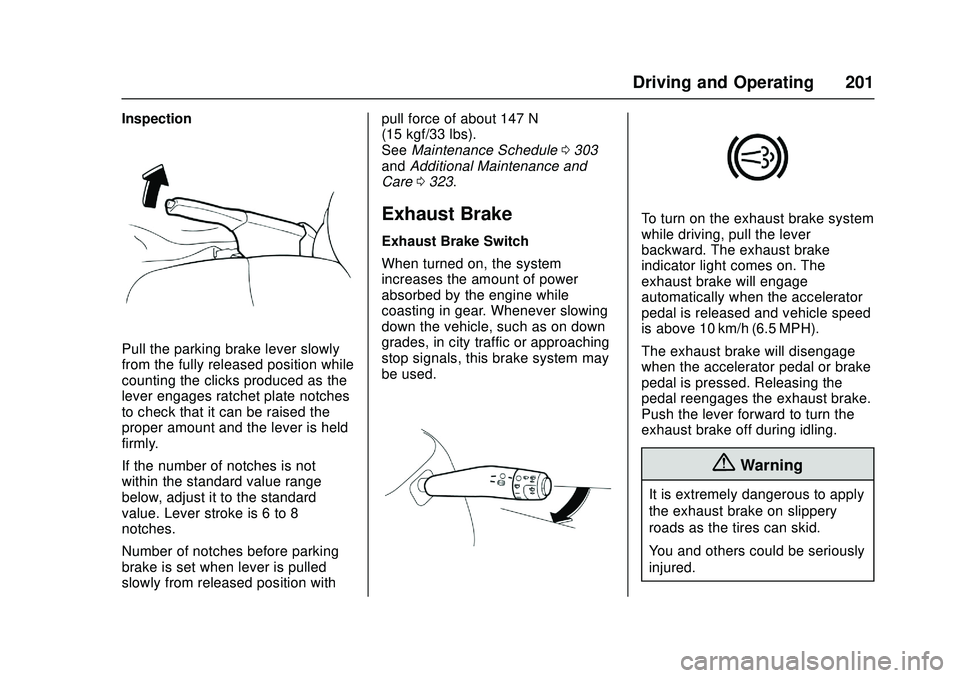

Driving and Operating 201
Inspection
Pull the parking brake lever slowly
from the fully released position while
counting the clicks produced as the
lever engages ratchet plate notches
to check that it can be raised the
proper amount and the lever is held
firmly.
If the number of notches is not
within the standard value range
below, adjust it to the standard
value. Lever stroke is 6 to 8
notches.
Number of notches before parking
brake is set when lever is pulled
slowly from released position withpull force of about 147 N
(15 kgf/33 lbs).
See
Maintenance Schedule 0303
and Additional Maintenance and
Care 0323.
Exhaust Brake
Exhaust Brake Switch
When turned on, the system
increases the amount of power
absorbed by the engine while
coasting in gear. Whenever slowing
down the vehicle, such as on down
grades, in city traffic or approaching
stop signals, this brake system may
be used.
To turn on the exhaust brake system
while driving, pull the lever
backward. The exhaust brake
indicator light comes on. The
exhaust brake will engage
automatically when the accelerator
pedal is released and vehicle speed
is above 10 km/h (6.5 MPH).
The exhaust brake will disengage
when the accelerator pedal or brake
pedal is pressed. Releasing the
pedal reengages the exhaust brake.
Push the lever forward to turn the
exhaust brake off during idling.
{Warning
It is extremely dangerous to apply
the exhaust brake on slippery
roads as the tires can skid.
You and others could be seriously
injured.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
202 Driving and Operating
Even if the selector lever is placed
in the N position, the exhaust brake
does not disengage until the engine
is warmed up if the warm-up system
is on.
Conditions for Inoperable Exhaust
Brake
Under the following conditions, the
exhaust brake does not engage
even if the exhaust brake indicator
light comes on:
.The accelerator pedal is
pressed.
. The selector lever is in the N
position.
. The vehicle is traveling at
5 km/h (3 MPH) or lower speeds.
If your vehicle is equipped with an
anti-lock brake system (ABS), the
exhaust brake may disengage
during ABS operation even when
the exhaust brake switch is in the
ON position and the exhaust brake
indicator light is on. The exhaust
brake may disengage temporarily as
the vehicle passes over a bump
even when the brake pedal is not
pressed. It is advisable to operate the
exhaust brake when descending a
slope or when stop and go driving is
involved.
The selection of transmission gears
and engine speed when operating
the brake system is important. The
exhaust brake is more effective in
the lower gears and at the higher
engine speeds. See
Exhaust Brake
Light 078.Cruise Control
The cruise control function allows
you to drive the vehicle at a
constant speed without operating
the accelerator pedal. Use this
function when the vehicle speed is
between 40 to 160 km/h (25 to 100
MPH). This function should only be
used when driving without frequent
starts and stops.
{Warning
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. Do not use
cruise control on winding roads or
in heavy traffic. You and others
could be seriously injured.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause needless wheel spinning,
and you could lose control. Do
not use cruise control on slippery
roads. You and others could be
seriously injured.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Driving and Operating 205
Press the cruise control main switch
again to turn the cruise control
system off. The cruise control main
indicator light will go out.
The cruise control set speed is
canceled in the following cases:
.When the brake pedal is
pressed.
. When the selector lever is
shifted to the N position.
. When cruising speed is
approximately 27 km/h (17
MPH). *
. When the vehicle speed
decreases more than 20% below
your set speed.
. When the cruise control main
switch is turned off. *
. When the engine control switch
is turned to the LOCK position. *
. When trouble develops in the
system. *
Memory speed is eliminated. *
When you do not use the cruise
control, be sure to place the cruise
control main switch into off. When you place the engine control
switch into ACC, place the cruise
control main switch into off, then
reset the cruise control if you want
to use the cruise control again.
Using Cruise Control on Hills
How well your cruise control will
work on hills depends upon your
speed, load and the steepness of
the hills. When going up steep hills,
you may want to step on the
accelerator pedal to maintain your
speed. When going downhill, you
may have to brake or shift to a lower
gear to keep your speed down. Of
course, applying the brake takes
you out of cruise control. Many
drivers find this to be too much
trouble and do not use cruise
control on steep hills.
When Returning to Cruise Control
Driving
If you have canceled cruise control
under the following conditions, you
can return to the cruise control
driving condition before cancellation
when you operate and release the
cruise control resume switch. The
moment the resume switch is
released, the cruise set indicator
light comes on.
.
When pressing the brake pedal.
. When the selector lever is
shifted to the N position.
When the vehicle speed decreases
to 40 km/h (25 MPH) or less, it is
not possible to return to the cruise
control driving. You must reset the
cruise control.
If the cruise control is turned back
on while the vehicle speed exceeds
what is set prior to the cancellation
of cruise control, the set vehicle
speed cannot be changed until the
vehicle reaches to the set speed.
Also, the vehicle speed must be 1
MPH below the previously set
vehicle speed.
If you hold the switch at the +RES
position, the vehicle will keep going
faster until you release the switch or
apply the brake. So unless you want
to go faster, do not hold the switch
at the +RES position.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
206 Driving and Operating
Exhaust Brake Function
Diesel Vehicles Equipped with
Exhaust Brake-interlocked Cruise
Automatic activation of the exhaust
brake during cruise control driving
suppresses an increase in the
speed on a downhill slope,
decreasing the need for the driver to
apply the regular brake pedal. The
exhaust brake does not activate
when the exhaust brake switch is
turn off.
The maximum slope angle at which
the system can control the vehicle
speed increase is different
depending on the load the vehicle is
carrying.
Automatic Activation and
Automatic Release of Exhaust
Brake
The exhaust brake is engaged when
the vehicle speed exceeds the set
speed on a downhill slope.
The exhaust brake is disengaged
when the vehicle slows down close
to the set.
Fuel
Fuel for Diesel Engines
Diesel Fuel Requirement and
Fuel System
Fuel Requirements
Use of fuels other than ultra
low-sulfur fuel may not conform to
emission regulations.
The fuel supply pump, injector or
other parts of the fuel system and
engine can be damaged if you use
any fuel or fuel additive other than
those specifically recommended by
the dealer.
To help avoid fuel system or engine
damage, pay attention to the
following:
.Some service stations mix used
engine oil with diesel fuel. Some
manufacturers of large diesel
engines allow this; however, for
your diesel engine, do not use
diesel fuel which has been
contaminated with engine oil.
Besides causing engine
damage, such fuel can also affect emission control. Before
using any diesel fuel, check with
the service station operator to
see if the fuel has been mixed
with engine oil.
. Do not use any fuel additive
(other than as recommended
under "Biocides" in Water in
Fuel 0209). At the time this
manual was printed, no other
fuel additive was recommended.
(See your authorized dealer to
find out if this has changed.)
. Take care not to run out of diesel
fuel. If you do run out of fuel,
you may need to bleed air out of
the supply pump to re-start the
engine after fuel has been filled.
Your vehicle is designed to use
either Number 1-D or Number 2-D
diesel fuel. However, for better fuel
economy, use Number 2-D diesel
fuel whenever possible. At
temperatures below -7 °C (20 °F),
Number 2-D fuel may pose
operating problems (see "Cold
Weather Operation" which follows).
At colder temperatures, use Number
1-D fuel (if available) or use a

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Driving and Operating 207
"winterized" Number 2-D (a blend of
Number 1-D and Number 2-D). This
blended fuel is usually called
Number 2-D also, but can be used
in colder temperatures than Number
2-D fuel which has not been
"winterized". Check with the service
station operator to be sure you get
the properly blended fuel.
Do not use fuels other than those
recommended in this manual. Doing
so may adversely affect the engine.DIESEL FUEL/APPLICABLE
STANDARD (Sulfur content below 15ppm)
ASTM
(AMERICAN
SOCIETY FOR
TESTING and
MATERIALS) Based on D975
Number 1–D
S15 or Number
2-D S15 (below
15 ppm)
Biodiesel
Biodiesel, may also be referred to
as FAME blended (Fatty-acid methyl
ester) fuel is a renewable fuel
produced from vegetable oils or
animal fats that have been
chemically modified to make it
compatible with diesel fuel.
Caution
Do not use home-made biodiesel
or home test kits because the
quality cannot be verified by
approved scientific methods. Do
not use raw vegetable oil or other
unmodified bio-oils, fats,
or blends of vegetable oil with
diesel. They could damage the
fuel system and engine, and
damages would not be covered
by the vehicle warranty.
Caution
Do not use blends containing
more than 20% biodiesel. Any
engine, fuel system, or exhaust
after-treatment system damage
would not be covered by the
vehicle warranty.
As a renewable fuel, biodiesel
provides some environmental
benefits. However, biodiesel has
unique properties and needs to be handled differently than diesel fuel.
Its use presents additional risks and
may not be appropriate in all
situations. Certain vehicle operating
modes increase these risks and
should be avoided. Read further to
determine if your driving habits are
compatible with the use of biodiesel.
Biodiesel fuel quality degrades with
time and exposure to high
temperature quicker than Ultra Low
Sulfur Diesel fuel. More frequent
refueling provides the best
opportunity to have a supply of fresh
fuel. Storage at hot ambient
temperatures will accelerate
biodiesel degradation.
Owners who use very little fuel,
or who have vehicles or fuel stored
for extended periods of time, should
avoid the use of biodiesel blended
fuels above 5% by volume. When
vehicles are stored for longer than
one month, they should be run out
of biodiesel to below one-quarter
tank, refueled with Ultra Low Sulfur
Diesel fuel, and driven several miles
before storage.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
208 Driving and Operating
At temperatures below 0 °C (32 °F),
it is recommended to switch to Ultra
Low Sulfur Diesel fuel with no
biodiesel content, or to blends with
biodiesel containing less than 5% by
volume. At these extreme cold
temperatures, biodiesel blends
higher than 5% by volume may
cause fuel filter plugging and
system gelling, which can lead to
vehicle operability problems.
Fuels improperly blended for cold
temperature operation may result in
restricted fuel filters and degraded
vehicle performance. The vehicle is
equipped with a fuel heating system
to provide a level of protection
against filter plugging from gelling or
waxing of conventional diesel fuel
and biodiesel blends. If the
operating temperature is far below
the temperature at which gelling or
waxing of the fuel occurs, the
system will not prevent all cases of
filter plugging.
If the vehicle experiences a fuel
filter restriction, the on-board
monitoring system will alert the
driver that the fuel filter requiresservice. The fuel filter, however, will
not prevent all damage caused by
poor quality biodiesel.
Biodiesel Blends
Use biodiesel blends that meet the
ASTM specification D6751.
Retail pumps dispensing blends
containing up to 5% biodiesel (B5)
are not required to be labeled with
the concentration of biodiesel.
Blends up to B5 must meet ASTM
D975 (Grades No. 2-D or No. 1-D
S15 Ultra Low Sulfur Diesel). When
refueling with a biodiesel blend
above B5, one of the following
labels should appear on the
dispenser:
Caution
Do not use blends containing
more than 20% biodiesel. Any
engine, fuel system, or exhaust
after-treatment system damage
would not be covered by the
vehicle warranty.
Blends containing more than 5%
and up to 20% biodiesel must meet
ASTM specification D7467
(Biodiesel blend, B6 - B20) and are
labeled with an orange or blue label.
