2018 CHEVROLET CRUZE Owner's Manual

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

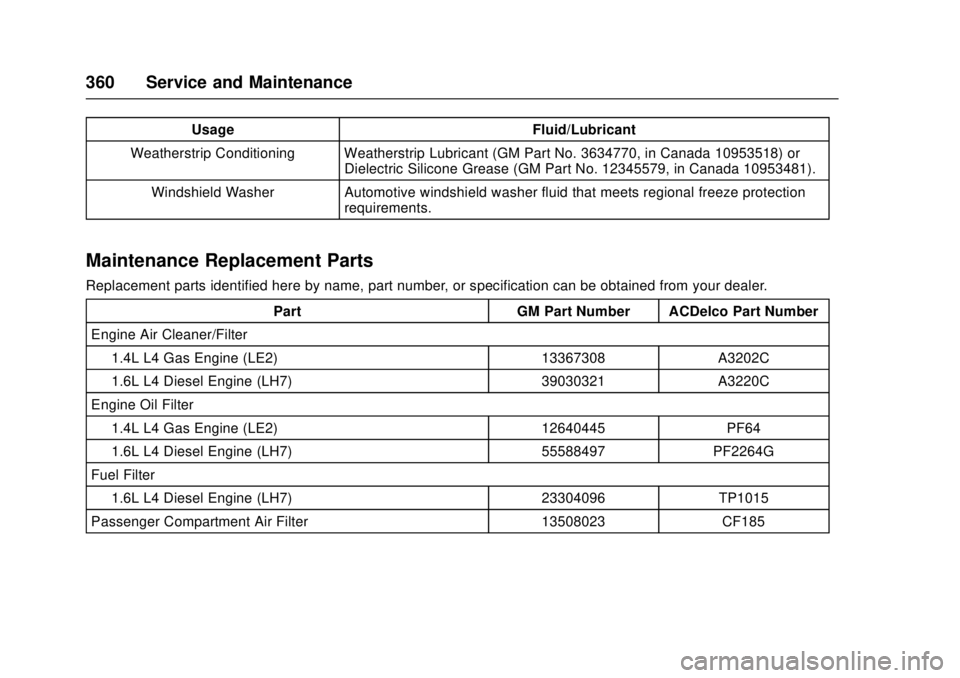

360 Service and Maintenance
UsageFluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Maintenance Replacement Parts
Replacement parts identified here by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 1.4L L4 Gas Engine (LE2) 13367308 A3202C
1.6L L4 Diesel Engine (LH7) 39030321 A3220C
Engine Oil Filter 1.4L L4 Gas Engine (LE2) 12640445 PF64
1.6L L4 Diesel Engine (LH7) 55588497 PF2264G
Fuel Filter
1.6L L4 Diesel Engine (LH7) 23304096 TP1015
Passenger Compartment Air Filter 13508023 CF185

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

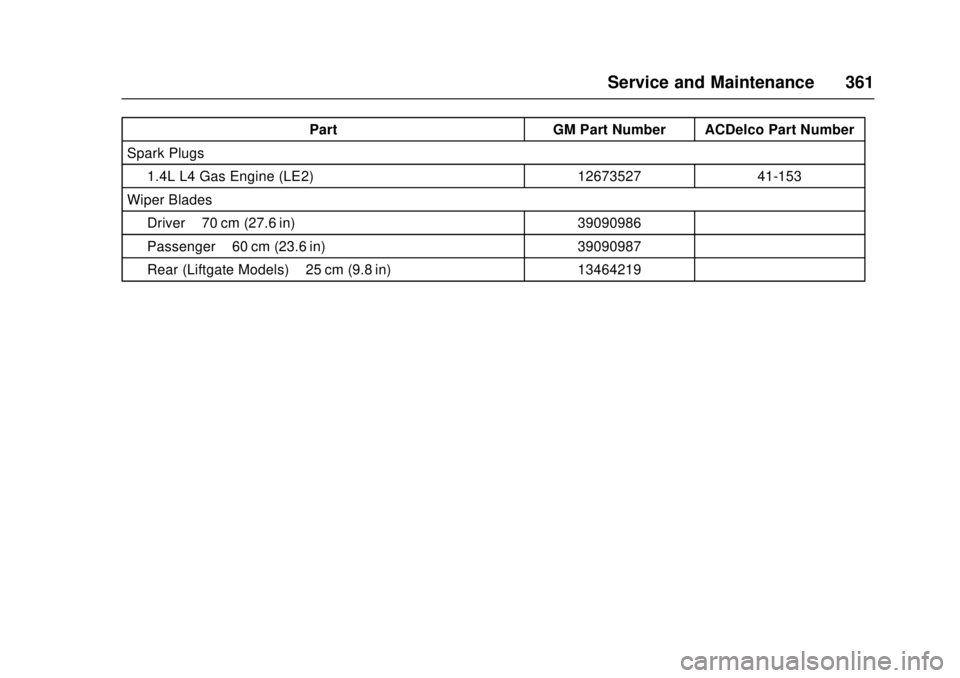

Service and Maintenance 361
PartGM Part Number ACDelco Part Number
Spark Plugs 1.4L L4 Gas Engine (LE2) 1267352741-153
Wiper Blades Driver –70 cm (27.6 in) 39090986—
Passenger –60 cm (23.6 in) 39090987—
Rear (Liftgate Models) –25 cm (9.8 in) 13464219—

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
362 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Technical Data 363
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 363
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 363
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 364
Engine Drive Belt Routing . . . . 366
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 364 for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the trunk area that contains the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
364 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants 0359.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System 1.4L L4 Gas Engine (LE2) 5.9 L 6.2 qt
1.6L L4 Diesel Engine (LH7) 4.5 L 4.8 qt
Engine Oil with Filter 1.4L L4 Gas Engine (LE2) 4.0 L 4.2 qt
1.6L L4 Diesel Engine (LH7) 5.0 L 5.3 qt
Fuel Tank Base Diesel 51.3 L 13.5 gal
Base Gasoline 51.7 L 13.7 gal
LS Trim with Automatic Transmission 45.6 L 12.0 gal

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Technical Data 365
ApplicationCapacities
Metric English
DEF Tank (LH7 Only)
Sedan 14.3 L 3.8 gal
Liftgate Models 12.5 L 3.3 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
1.4L L4 Gas Engine (LE2) MAutomatic
Manual 0.60
–0.70 mm (0.024 –
0.028 in)
1.6L L4 Diesel Engine (LH7) EAutomatic
Manual —
Spark plug gap is for replacement spark plugs.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
366 Technical Data
Engine Drive Belt Routing
1.4L L4 Engine
1.6L L4 Diesel Engine

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Customer Information 367
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . 367
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . 369
Customer Assistance for Text Telephone (TTY) Users . . . . . 370
Online Owner Center . . . . . . . . . 370
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 371
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 371
Scheduling Service Appointments . . . . . . . . . . . . . . . 373
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 373
Collision Damage Repair . . . . . 374
Service Publications Ordering Information . . . . . . . . . . . . . . . . . . 376
Radio Frequency Statement . . . . . . . . . . . . . . . . . . . 377
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . . . 377 Reporting Safety Defects to
the Canadian
Government . . . . . . . . . . . . . . . . . 378
Reporting Safety Defects to General Motors . . . . . . . . . . . . . 378
Vehicle Data Recording and
Privacy
Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . . . 379
Event Data Recorders . . . . . . . . 379
Infotainment System . . . . . . . . . . 380
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by your dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE : Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of your dealership or the general
manager.
STEP TWO : If after contacting a
member of dealership management,
it appears your concern cannot be
