2018 BUICK CASCADA Owners Manual

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
128 Infotainment System
Infotainment
System Introduction Infotainment . . . . . . . . . . . . . . . . . . 128
Introduction Infotainment See the infotainment manual for
information on the radio, audio
players, phone, navigation system,
and voice or speech recognition.
It also includes information on
settings.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Climate Controls 129
Climate Controls Climate Control Systems Dual Automatic Climate
Control System . . . . . . . . . . . . . 129
Air Vents Air Vents . . . . . . . . . . . . . . . . . . . . . 132
Maintenance Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . 133
Climate Control
Systems Dual Automatic Climate
Control System The heating, cooling, and ventilation
for the vehicle can be controlled
with this system.
1. Driver and Passenger Heated
Seats (If Equipped)
2. Driver and Passenger
Temperature Controls
3. AUTO (Automatic Operation) 4. Air Delivery Modes
5. Fan Controls
6. Defrost
7. Rear Window Defogger
8. Recirculation
9. Heated Steering Wheel (If
Equipped)
10. Air Conditioning
Automatic Operation
The system automatically controls
the fan speed, air delivery, air
conditioning, and recirculation in
order to heat or cool the vehicle to
the desired temperature.
When AUTO is lit, all four functions
operate automatically. Each function
can also be manually set and the
setting is displayed. Functions not
manually set will continue to be
automatically controlled, even if the
AUTO indicator is not lit.
For automatic operation:
1. Press AUTO.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
130 Climate Controls 2. Set the temperature. Allow the
system time to stabilize. Then
adjust the temperature as
needed for best comfort.
To improve fuel efficiency and
to cool the vehicle faster,
recirculation may be
automatically selected in warm
weather. The recirculation light
will not come on. Press
Lto select recirculation; press it
again to select outside air.
English units can be changed to
metric units through the Driver
Information Center (DIC). See
Driver Information Center (DIC)
0 110 .
Manual Operation
9 : Press the lower
9 button to
decrease the fan speed. Pressing
the lower button longer turns the fan
and cooling off. When off is
selected, the system will stop air
from flowing into the cabin. If any
buttons are pressed or knobs are
turned, the climate control system
will turn on and operate at the
current setting. Press the upper
9 button to increase the fan speed.
The selected fan speed is indicated
by the number of segments on the
display screen. Press AUTO to
return to automatic operation.
Air Delivery Modes : Press
% ,
Y ,
or
[ to change the direction of the
airflow. Any combination of the three
buttons can be selected. The
indicator light in the button will turn
on. The current mode appears in
the display screen. Pressing any of
the three buttons cancels automatic
air delivery control and the direction
of the airflow is controlled manually.
Press AUTO to return to automatic
operation.
To change the current mode, select
one or more of the following:
% : Air is directed to the
windshield and side window vents.
Y : Air is directed to the instrument
panel outlets.
[ : Air is directed to the floor
outlets. 0 : Press to clear the windshield
of fog or frost more quickly. Air is
directed to the windshield.
For best results, clear all snow and
ice from the windshield before
defrosting.
# : Press to turn the air
conditioning on or off. If the fan is
turned off or the outside
temperature falls below freezing, the
air conditioning compressor will
not run.
Press AUTO to return to automatic
operation and the air conditioner
runs as needed. When the indicator
light is on, the air conditioner runs
automatically to cool the air inside
the vehicle or to dry the air needed
to defog the windshield faster.
L : Press to turn recirculation on
or off. An indicator light comes on.
Air is recirculated to quickly cool the
inside of the vehicle or reduce entry
of outside air and odors.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Climate Controls 131Rear Window Defogger
= : Press to turn the rear window
defogger on or off. An indicator light
on the button comes on to show that
the rear window defogger is on.
The defogger only works when the
ignition is on. The defogger turns off
if the ignition is off or in ACC/
ACCESSORY.
The rear window defogger can be
set to automatic operation. See
“ Climate and Air Quality ” under
Vehicle Personalization 0 114 .
When Auto Rear Defog is selected,
the rear window defogger turns on
automatically when the interior
temperature is cold and the outside
temperature is about 4 °C (40 °F)
and below. The auto rear defogger
turns off automatically after about
10 minutes. At higher speeds, the
rear window defogger may stay on
continuously.
If equipped with heated outside
mirrors, they turn on when the rear
window defogger button is on and help to clear fog or frost from the
surface of the mirrors. See Heated
Mirrors 0 34 .
CautionDo not try to clear frost or other
material from the inside of the
front windshield and rear window
with a razor blade or anything
else that is sharp. This may
damage the rear window
defogger grid and affect the
radio's ability to pick up stations
clearly. The repairs would not be
covered by the vehicle warranty.
M or
L : If equipped, press to turn
the heated seats on or off. See
Heated Front Seats 0 50 .
( : If equipped, press to turn the
heated steering wheel on or off. See
Heated Steering Wheel 0 94 . Remote Start Climate Control
Operation : The climate control
system may run when the vehicle is
started remotely. The system uses
the driver ’ s previous settings to heat
or cool the inside of the vehicle. The
rear defog may come on during
remote start based on cold ambient
conditions. The rear defog indicator
light does not come on during a
remote start. If equipped with front
heated seats, they may come on
during a remote start. The heated
seat indicator lights do not come
on during a remote start.
See Remote Vehicle Start 0 26 and
Heated Front Seats 0 50 .

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
132 Climate Controls

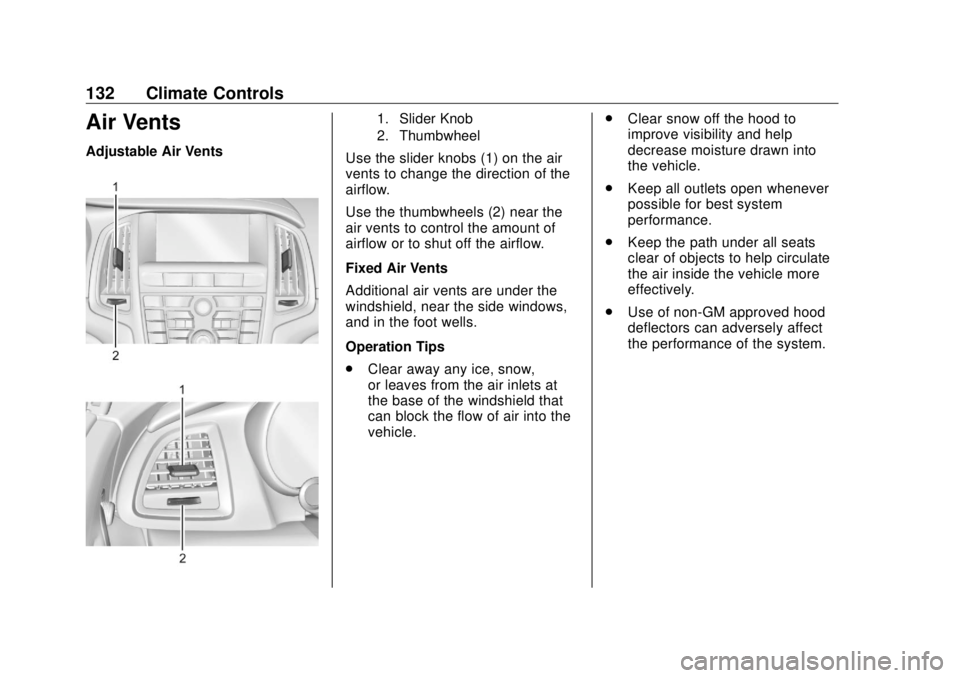

Air Vents Adjustable Air Vents 1. Slider Knob
2. Thumbwheel
Use the slider knobs (1) on the air
vents to change the direction of the
airflow.
Use the thumbwheels (2) near the
air vents to control the amount of
airflow or to shut off the airflow.
Fixed Air Vents
Additional air vents are under the
windshield, near the side windows,
and in the foot wells.
Operation Tips
.
Clear away any ice, snow,
or leaves from the air inlets at
the base of the windshield that
can block the flow of air into the
vehicle. .
Clear snow off the hood to
improve visibility and help
decrease moisture drawn into
the vehicle.
.
Keep all outlets open whenever
possible for best system
performance.
.
Keep the path under all seats
clear of objects to help circulate
the air inside the vehicle more
effectively.
.
Use of non-GM approved hood
deflectors can adversely affect
the performance of the system.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Climate Controls 133

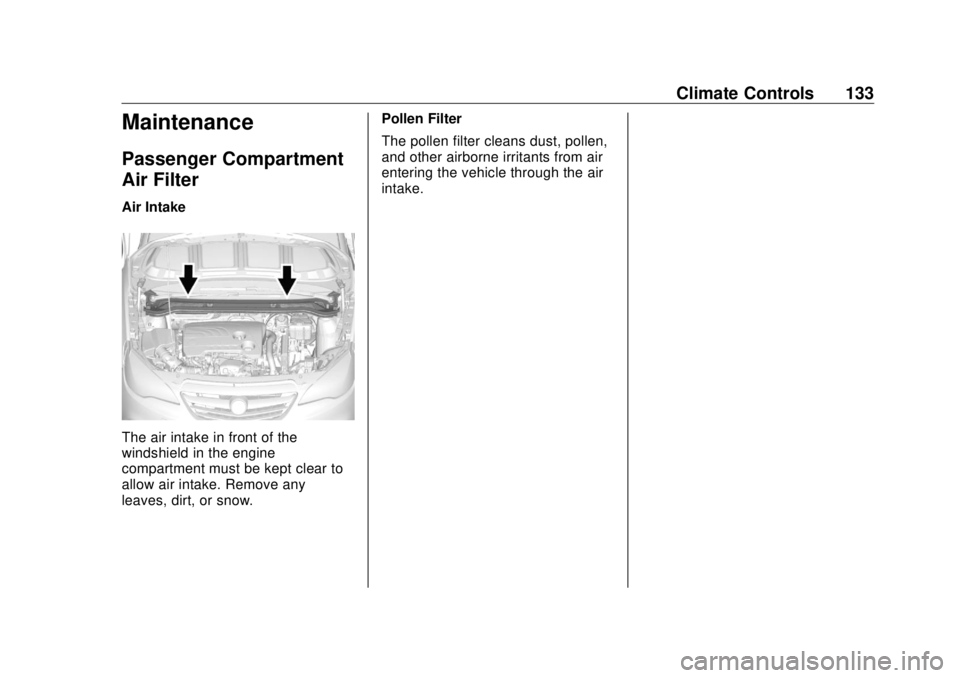

Maintenance Passenger Compartment
Air Filter Air Intake
The air intake in front of the
windshield in the engine
compartment must be kept clear to
allow air intake. Remove any
leaves, dirt, or snow. Pollen Filter
The pollen filter cleans dust, pollen,
and other airborne irritants from air
entering the vehicle through the air
intake.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
134 Driving and Operating
Driving and
Operating Driving Information Distracted Driving . . . . . . . . . . . . 135
Defensive Driving . . . . . . . . . . . . . 135
Drunk Driving . . . . . . . . . . . . . . . . . 136
Control of a Vehicle . . . . . . . . . . . 136
Braking . . . . . . . . . . . . . . . . . . . . . . . 136
Steering . . . . . . . . . . . . . . . . . . . . . . 136
Off-Road Recovery . . . . . . . . . . . 137
Loss of Control . . . . . . . . . . . . . . . 137
Driving on Wet Roads . . . . . . . . 138
Hill and Mountain Roads . . . . . 139
Winter Driving . . . . . . . . . . . . . . . . 139
If the Vehicle Is Stuck . . . . . . . . 141
Vehicle Load Limits . . . . . . . . . . . 141
Starting and Operating New Vehicle Break-In . . . . . . . . . 145
Ignition Positions . . . . . . . . . . . . . 145
Starting the Engine . . . . . . . . . . . 147
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . 148
Shifting Into Park . . . . . . . . . . . . . 149
Shifting out of Park . . . . . . . . . . . 149
Parking over Things
That Burn . . . . . . . . . . . . . . . . . . . 150 Engine Exhaust Engine Exhaust . . . . . . . . . . . . . . 150
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . 151
Automatic Transmission Automatic Transmission . . . . . . 151
Manual Mode . . . . . . . . . . . . . . . . . 153
Brakes Antilock Brake
System (ABS) . . . . . . . . . . . . . . . 154
Electric Parking Brake . . . . . . . . 155
Brake Assist . . . . . . . . . . . . . . . . . . 157
Hill Start Assist (HSA) . . . . . . . . 157
Ride Control Systems Traction Control/Electronic
Stability Control . . . . . . . . . . . . . 157
Cruise Control Cruise Control . . . . . . . . . . . . . . . . 159
Driver Assistance Systems Assistance Systems for
Parking or Backing . . . . . . . . . . 162
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . 164
Lane Departure
Warning (LDW) . . . . . . . . . . . . . 166 Fuel Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 167
California Fuel
Requirements . . . . . . . . . . . . . . . 168
Fuels in Foreign Countries . . . 169
Fuel Additives . . . . . . . . . . . . . . . . 169
Filling the Tank . . . . . . . . . . . . . . . 169
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 171
Trailer Towing General Towing
Information . . . . . . . . . . . . . . . . . . 171
Conversions and Add-Ons Add-On Electrical
Equipment . . . . . . . . . . . . . . . . . . 172

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Driving and Operating 135
Driving Information Distracted Driving Distraction comes in many forms
and can take your focus from the
task of driving. Exercise good
judgment and do not let other
activities divert your attention away
from the road. Many local
governments have enacted laws
regarding driver distraction. Become
familiar with the local laws in
your area.
To avoid distracted driving, keep
your eyes on the road, keep your
hands on the steering wheel, and
focus your attention on driving.
.
Do not use a phone in
demanding driving situations.
Use a hands-free method to
place or receive necessary
phone calls.
.
Watch the road. Do not read,
take notes, or look up
information on phones or other
electronic devices. .
Designate a front seat
passenger to handle potential
distractions.
.
Become familiar with vehicle
features before driving, such as
programming favorite radio
stations and adjusting climate
control and seat settings.
Program all trip information into
any navigation device prior to
driving.
.
Wait until the vehicle is parked
to retrieve items that have fallen
to the floor.
.
Stop or park the vehicle to tend
to children.
.
Keep pets in an appropriate
carrier or restraint.
.
Avoid stressful conversations
while driving, whether with a
passenger or on a cell phone.{ WarningTaking your eyes off the road too
long or too often could cause a
crash resulting in injury or death.
Focus your attention on driving.
Refer to the infotainment section for
more information on using that
system and the navigation system,
if equipped, including pairing and
using a cell phone.
Defensive Driving Defensive driving means “ always
expect the unexpected. ” The first
step in driving defensively is to wear
the seat belt. See Seat Belts 0 53 .
.
Assume that other road users
(pedestrians, bicyclists, and
other drivers) are going to be
careless and make mistakes.
Anticipate what they might do
and be ready.
.
Allow enough following distance
between you and the driver in
front of you.
