'ySecure the vehicle against rolling away bysetting the parking brake.'yHave all vehicle occupants get out of thevehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle or
portable hazard warning light at a sufficient
distance.'yChange wheels only on a flat, solid and slip-resistant surface. On soft or slippery
ground, for example snow, ice, tiles, etc.,
the vehicle or the vehicle jack may slip
away sideways.'yDo not place wood blocks or similar items under the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'yIf the vehicle is raised, do not lie under the vehicle and do not start the engine, or else
there is a danger to life.
Mobility
System
Concept
With the Mobility System, minor tire damage can be sealed temporarily to enable continued
travel. To accomplish this, sealant is pumped
into the tires, which seals the damage from the inside.
The compressor can be used to check the tire inflation pressure.
General
information
'yFollow the instructions on using the Mobij lity System found on the compressor and
sealant container.'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire.'yPull the speed limit sticker off the sealant
container and apply it to the steering
wheel.'yThe use of a sealant can damage the TPM wheel electronics. In this case, have theelectronics checked and replaced at the
next opportunity.
Storage
The Mobility System is located under thecargo floor panel.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Seite 225Wheels
and
tiresMobility225
Online Edition for Part no. 01402978133 - II/17

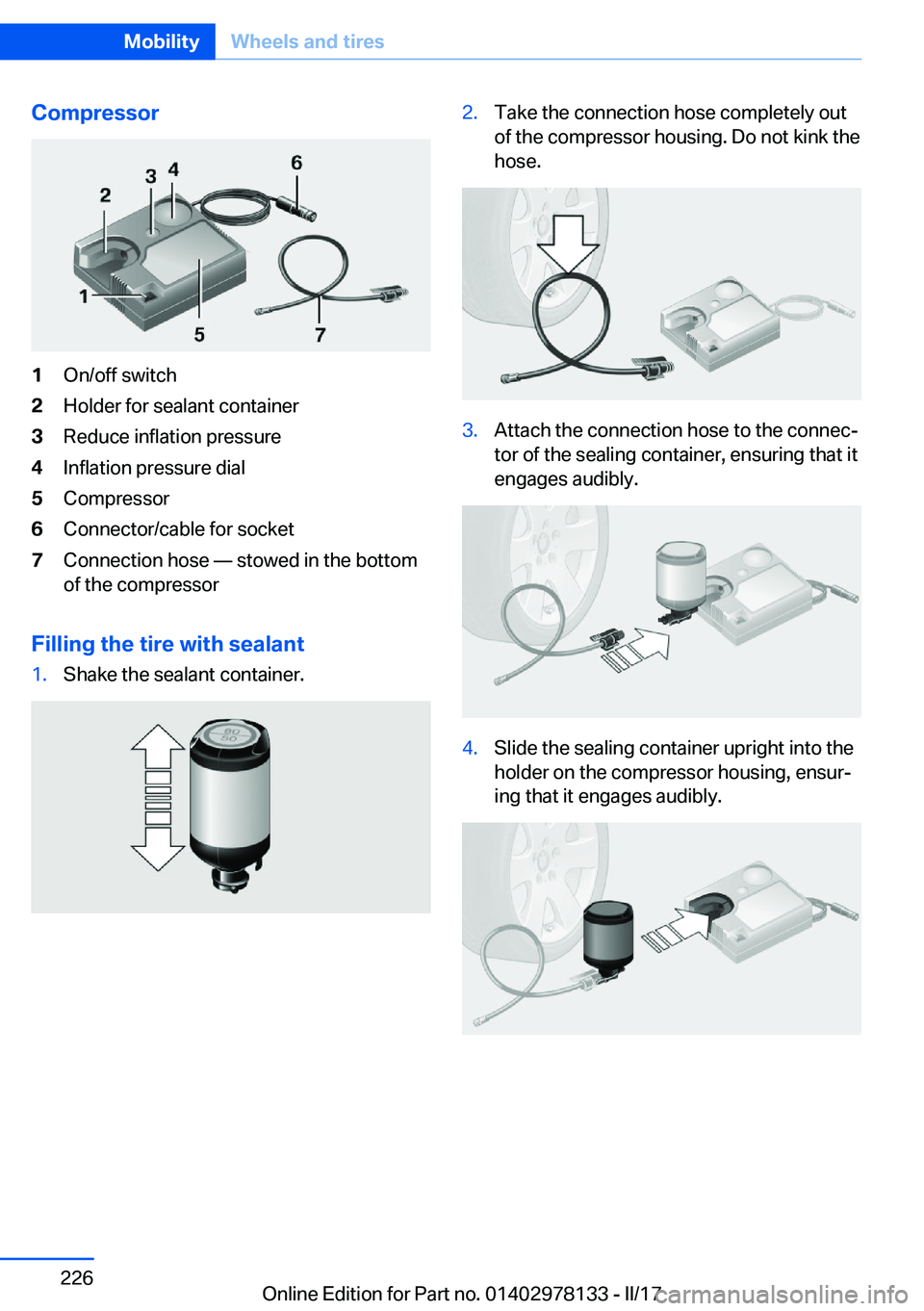

Compressor1On/off switch2Holder for sealant container3Reduce inflation pressure4Inflation pressure dial5Compressor6Connector/cable for socket7Connection hose n stowed in the bottom
of the compressor
Filling
the
tire
with
sealant
1.Shake the sealant container.2.Take the connection hose completely out of the compressor housing. Do not kink the
hose.3.Attach the connection hose to the connecj tor of the sealing container, ensuring that itengages audibly.4.Slide the sealing container upright into the
holder on the compressor housing, ensurj ing that it engages audibly.Seite 226MobilityWheels
and
tires226
Online Edition for Part no. 01402978133 - II/17

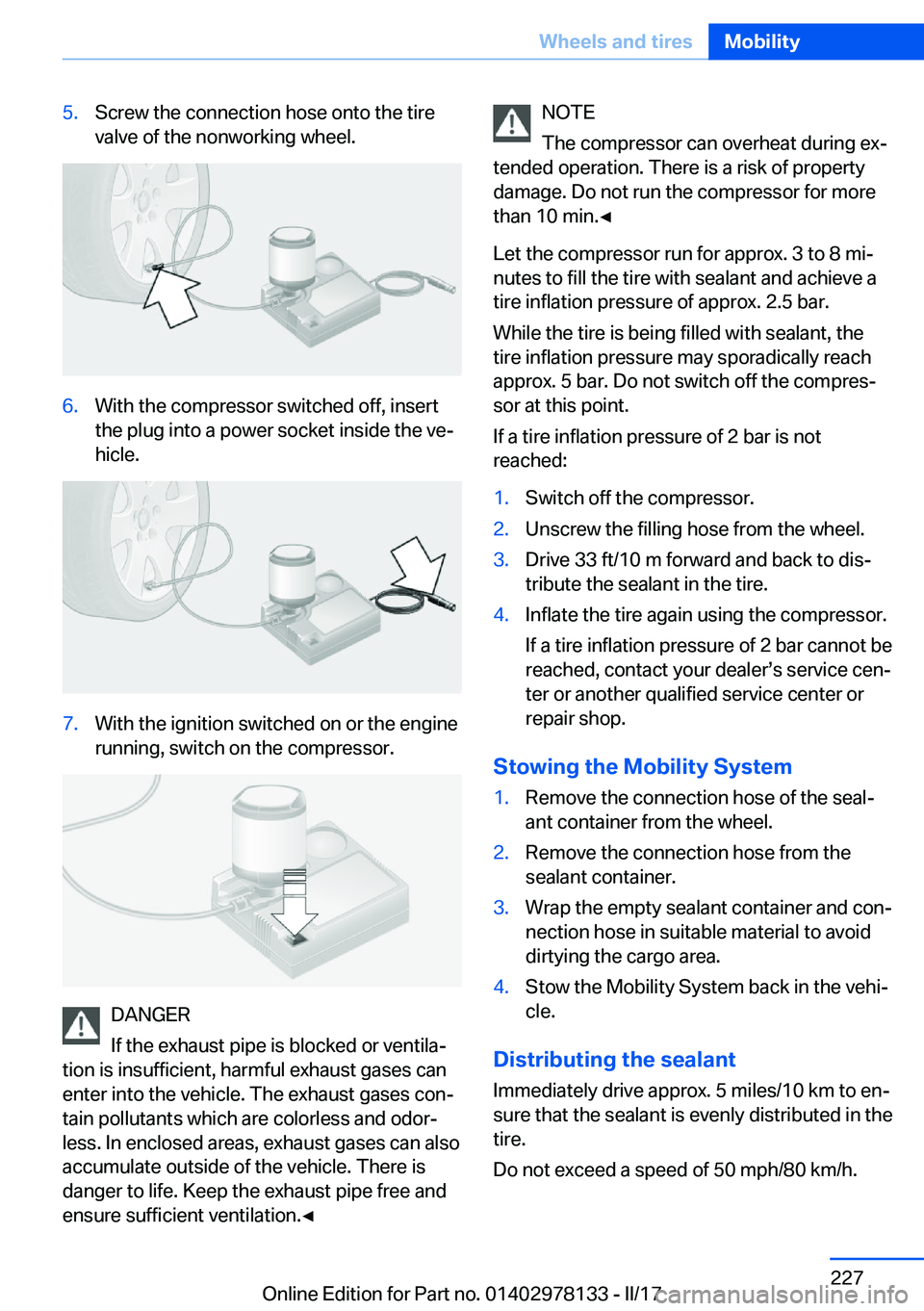

5.Screw the connection hose onto the tirevalve of the nonworking wheel.6.With the compressor switched off, insert
the plug into a power socket inside the vej
hicle.7.With the ignition switched on or the engine running, switch on the compressor.
DANGER
If the exhaust pipe is blocked or ventilaj
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases conj tain pollutants which are colorless and odorj
less. In enclosed areas, exhaust gases can also
accumulate outside of the vehicle. There is
danger to life. Keep the exhaust pipe free and
ensure sufficient ventilation.'

If possible, do not drive at speeds less than12 mph/20 km/h.
Correcting
the
tire
inflation
pressure1.Stop at a suitable location.2.Screw the connection hose onto the tire valve stem.3.Attach the connection hose directly to the
compressor.4.Insert the connector into the power socket
inside the vehicle.5.Correct the tire inflation pressure to
2.5 bar.'yIncrease pressure: with the ignition
switched on or the engine running,
switch on the compressor.'yTo reduce the pressure: press the butj ton on the compressor.
Continuing
the
trip
Do not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the Flat Tire Monitor.
Reinitialize the Tire Pressure Monitor.
Replace the nonworking tire and the sealant
container of the Mobility System promptly.
Snow
chains
Fine-link
snow
chains
The manufacturer of your vehicle recommends use of fine-link snow chains. Certain types of
fine-link snow chains have been tested by the
manufacturer of the vehicle and recommended as road-safe and suitable.
Information regarding suitable snow chains is
available from a dealerss service center or anj other qualified service center or repair shop.
Use WARNING
With the mounting of snow chains on unj
suitable tires, the snow chains can come into
contact with vehicle parts. There is a risk of acj
cidents or risk of property damage. Only mount
snow chains on tires that are designated by
their manufacturer as suitable for the use of
snow chains.'

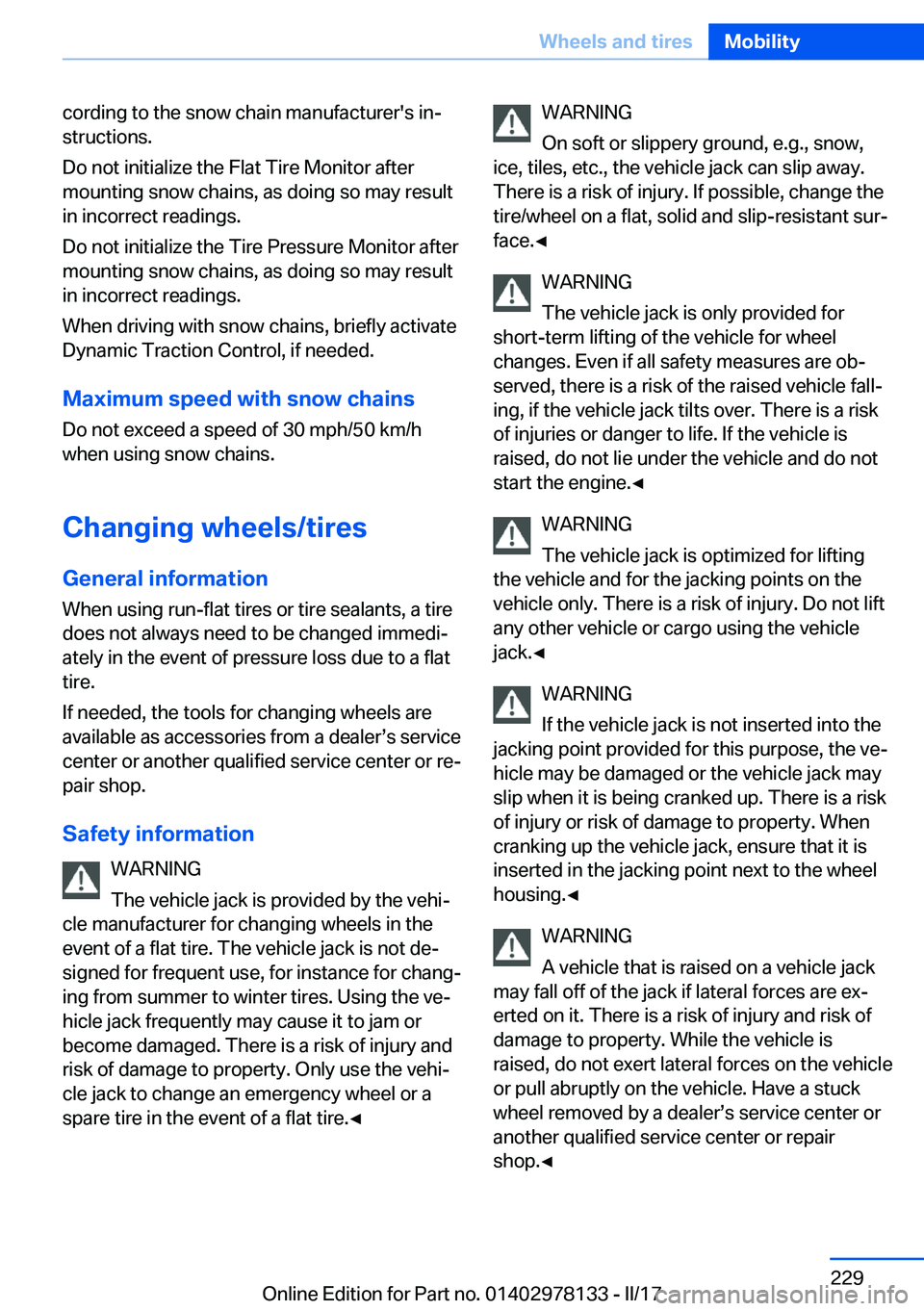

cording to the snow chain manufacturer's inj
structions.
Do not initialize the Flat Tire Monitor after
mounting snow chains, as doing so may result
in incorrect readings.
Do not initialize the Tire Pressure Monitor after mounting snow chains, as doing so may result
in incorrect readings.
When driving with snow chains, briefly activate
Dynamic Traction Control, if needed.
Maximum
speed
with
snow
chains
Do not exceed a speed of 30 mph/50 km/h when using snow chains.
Changing
wheels/tires General
information When using run-flat tires or tire sealants, a tire
does not always need to be changed immedij ately in the event of pressure loss due to a flattire.
If needed, the tools for changing wheels are available as accessories from a dealerss service
center or another qualified service center or rej pair shop.
Safety
information WARNING
The vehicle jack is provided by the vehij
cle manufacturer for changing wheels in the
event of a flat tire. The vehicle jack is not dej
signed for frequent use, for instance for changj
ing from summer to winter tires. Using the vej
hicle jack frequently may cause it to jam or
become damaged. There is a risk of injury and
risk of damage to property. Only use the vehij
cle jack to change an emergency wheel or a
spare tire in the event of a flat tire.'

Securing
the
vehicle
against
rolling
General
information
The vehicle manufacturer recommends to adj
ditionally secure the vehicle against rolling
away when changing a wheel.
On
a
level
surface
Place chocks or other suitable objects, for exjample a rock, in front of and behind the wheel
that is diagonally opposite to the wheel that you wish to change.
On
a
slight
downhill
gradient
If you need to change a wheel on a slight downhill grade, place chocks and other suitajble objects, for instance a rock, under the
wheels of both the front and rear axles against
the rolling direction.
Preparing
the
vehicle
'yChange the wheel as far away as possible
from passing traffic.'yPark the vehicle on solid, non-slip and level ground.'ySwitch on the hazard warning system.'ySet the parking brake.'yEngage a gear or selector lever position P.'yAs soon as permitted by the traffic flow,have all vehicle occupants get out of the
vehicle and ensure that they remain outj side the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning lamp at an approj priate distance.'yDo not place wood blocks or similar itemsunder the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.
Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are loj cated at the indicated positions.
Jacking
up
the
vehicle WARNING
Hands and fingers can be jammed when
using the vehicle jack. There is a risk of injury. Comply with the described hand position and
Seite 230MobilityWheels
and
tires230
Online Edition for Part no. 01402978133 - II/17

do not change this position while using the vej
hicle jack.'

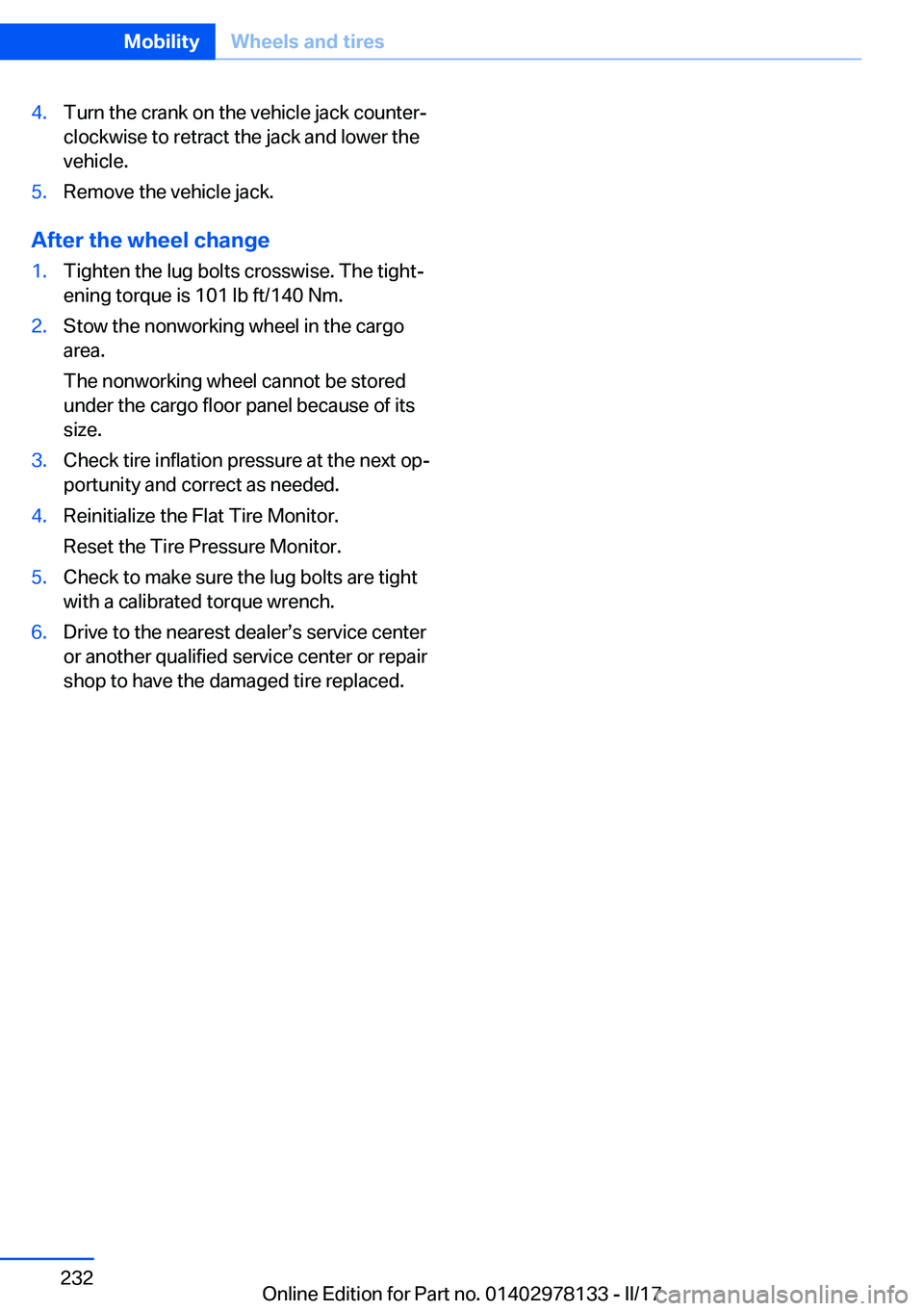

4.Turn the crank on the vehicle jack counterj
clockwise to retract the jack and lower the vehicle.5.Remove the vehicle jack.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightjening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the Flat Tire Monitor.
Reset the Tire Pressure Monitor.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Drive to the nearest dealerss service center
or another qualified service center or repair
shop to have the damaged tire replaced.Seite 232MobilityWheels
