2018 BMW 2 SERIES CONVERTIBLE Owners Manual

2.Take the connection hose completely outof the compressor housing. Do not kink the
hose.3.Attach the connection hose to the connecj tor of the sealing container, ensuring that itengages audibly.4.Slide the sealing container upright into the
holder on the compressor housing, ensurj ing that it engages audibly.5.Remove the valve cap from the tire valveand screw the connection hose onto thetire valve of the nonworking wheel.6.With the compressor switched off, insert
the plug into a power socket inside the vej
hicle.7.With the ignition switched on or the engine running, switch on the compressor.
Let the compressor run for max. 10 minutes tofill the tire with sealant and achieve a tire inflaj
tion pressure of approx. 2.5 bar.
While the tire is being filled with sealant, the
tire inflation pressure may sporadically reach
approx. 5 bar. Do not switch off the compresj
sor at this point.
Seite 225Wheels
and
tiresMobility225
Online Edition for Part no. 01402981298 - VI/17

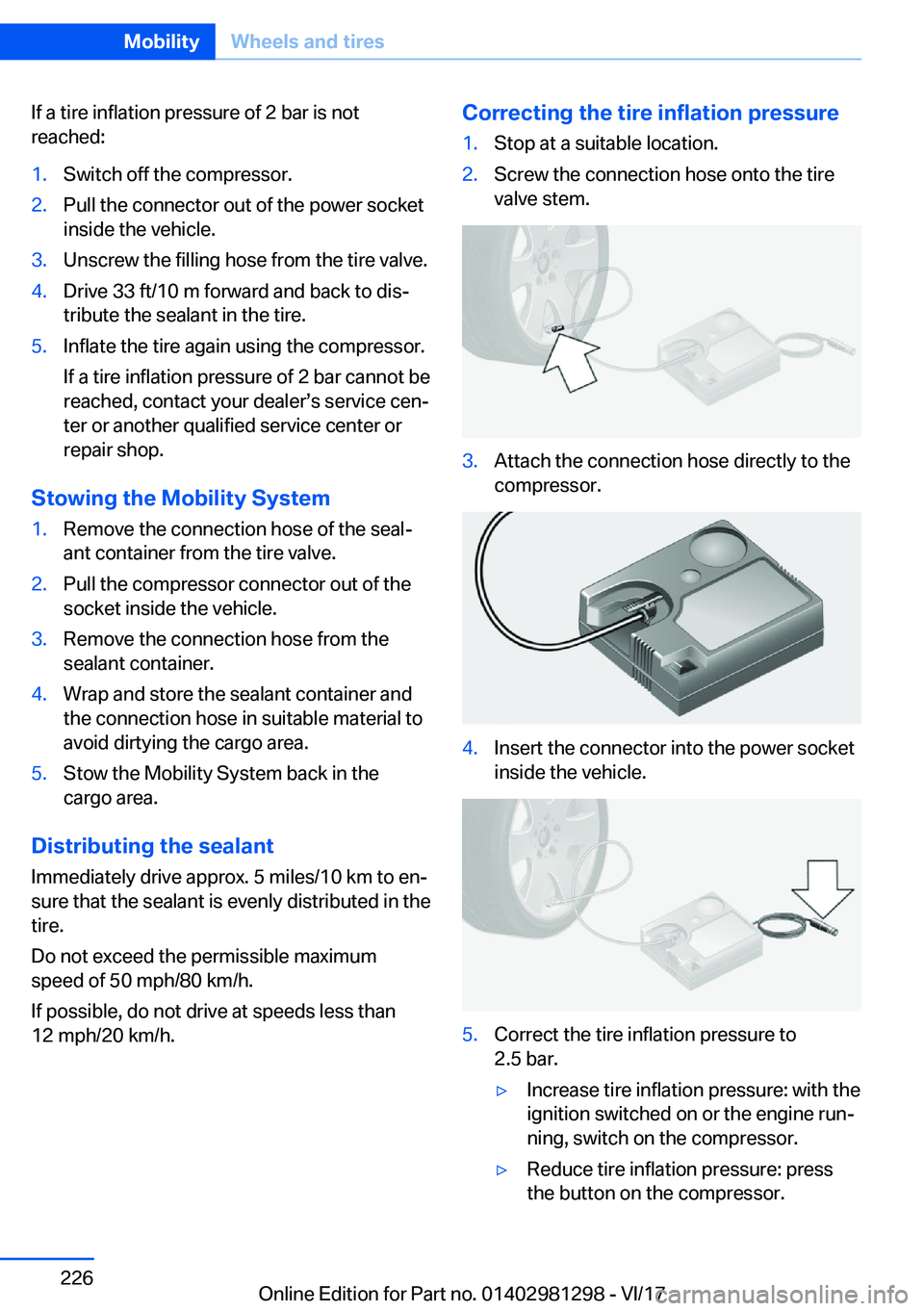

If a tire inflation pressure of 2 bar is notreached:1.Switch off the compressor.2.Pull the connector out of the power socketinside the vehicle.3.Unscrew the filling hose from the tire valve.4.Drive 33 ft/10 m forward and back to disjtribute the sealant in the tire.5.Inflate the tire again using the compressor.
If a tire inflation pressure of 2 bar cannot be
reached, contact your dealerss service cenj
ter or another qualified service center or repair shop.
Stowing
the
Mobility
System
1.Remove the connection hose of the sealj
ant container from the tire valve.2.Pull the compressor connector out of the socket inside the vehicle.3.Remove the connection hose from thesealant container.4.Wrap and store the sealant container and
the connection hose in suitable material to
avoid dirtying the cargo area.5.Stow the Mobility System back in the cargo area.
Distributing
the
sealant
Immediately drive approx. 5 miles/10 km to enjsure that the sealant is evenly distributed in thetire.
Do not exceed the permissible maximum
speed of 50 mph/80 km/h.
If possible, do not drive at speeds less than
12 mph/20 km/h.
Correcting
the
tire
inflation
pressure1.Stop at a suitable location.2.Screw the connection hose onto the tire valve stem.3.Attach the connection hose directly to the
compressor.4.Insert the connector into the power socket
inside the vehicle.5.Correct the tire inflation pressure to
2.5 bar.'yIncrease tire inflation pressure: with the
ignition switched on or the engine runj
ning, switch on the compressor.'yReduce tire inflation pressure: press
the button on the compressor.Seite 226MobilityWheels
and
tires226
Online Edition for Part no. 01402981298 - VI/17

Continuing
the
tripDo not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the run-flat tires.
Reset the Tire Pressure Monitor TPM.
Replace the nonworking tire and the sealant
container of the Mobility System at the next
opportunity.
Snow
chains Fine-link
snow
chains
The manufacturer of your vehicle recommends use of fine-link snow chains. Certain types offine-link snow chains have been tested by the
manufacturer of the vehicle and recommended as road-safe and suitable.
Information regarding suitable snow chains is available from a dealerss service center or anjother qualified service center or repair shop.
Use Use only in pairs on the rear wheels, equippedwith the tires of the following size:'y205/50 R 17.'y225/45 R 17.'y225/40 R 18.
Follow the snow chain manufacturer's instrucjtions.
Do not initialize the run-flat tires after mountj
ing snow chains, as doing so may result in inj
correct readings.
Do not reset the Tire Pressure Monitor TPM after mounting snow chains, as doing so mayresult in incorrect readings.
When driving with snow chains, briefly activate
Dynamic Traction Control DTC, if needed.
Maximum
speed
with
snow
chains
Do not exceed a speed of 30 mph/50 km/h when using snow chains.
Changing
wheels/tires
General
information
When using run-flat tires or a flat tire kit, a
wheel does not always need to be changed imj mediately when there is a loss of tire inflation
pressure due to a flat tire.
If needed, the tools for changing wheels are
available as accessories from a dealerss service
center or another qualified service center or rej pair shop.
Safety
information DANGER
The vehicle jack is only provided for
short-term lifting of the vehicle for wheel
changes. Even if all safety measures are obj
served, there is a risk of the raised vehicle fallj
ing, if the vehicle jack tilts over. There is a risk
of injuries or danger to life. If the vehicle is
raised, do not lie under the vehicle and do not
start the engine.'

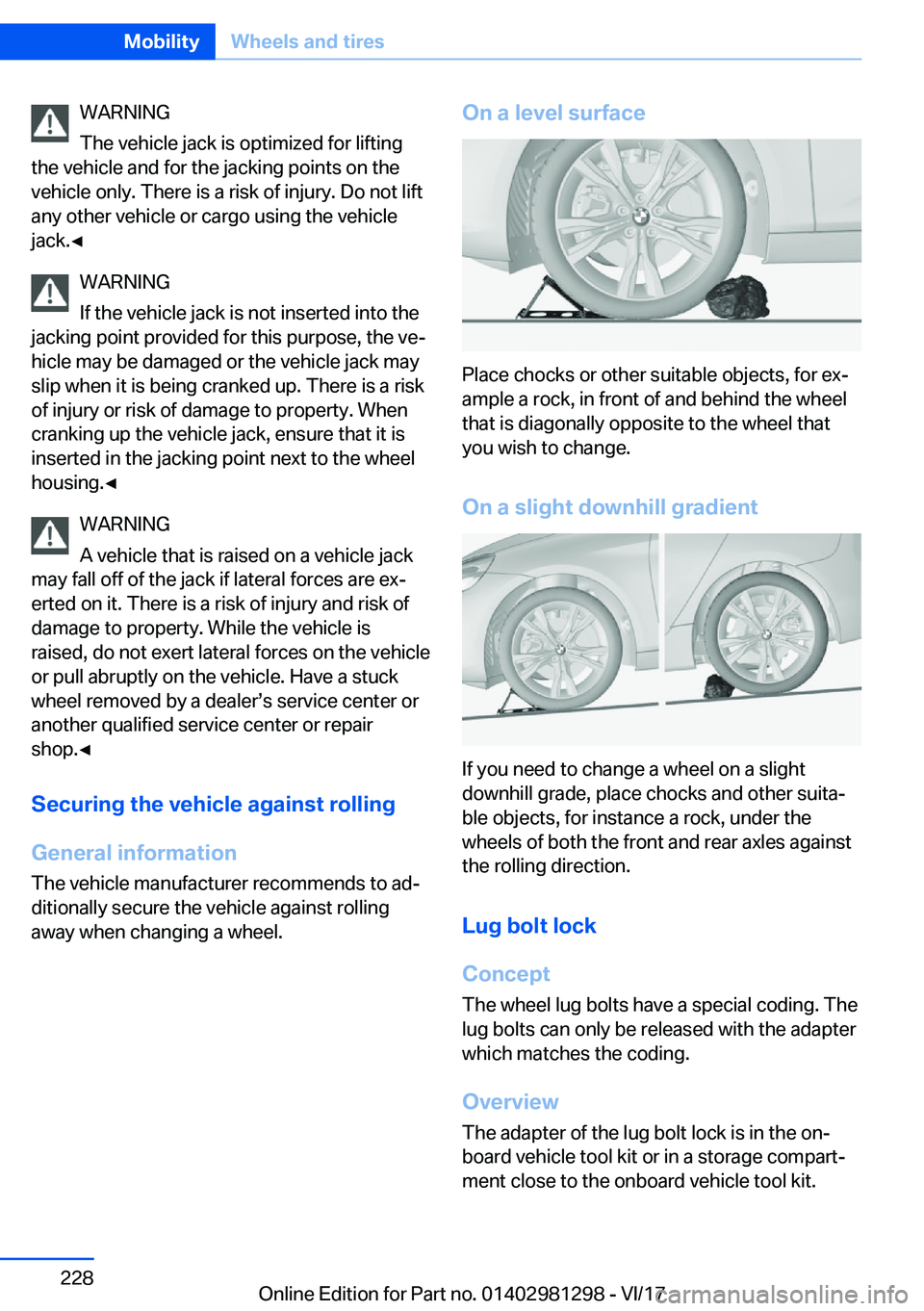

WARNING
The vehicle jack is optimized for lifting
the vehicle and for the jacking points on the
vehicle only. There is a risk of injury. Do not lift
any other vehicle or cargo using the vehicle jack.'

'yLug bolt, arrow 1.'yAdapter, arrow 2.
Unscrewing
1.Attach the adapter to the lug bolt.2.Unscrew the lug bolt.3.Remove the adapter after unscrewing thelug bolt.
Screwing
on
1.Attach the adapter to the lug bolt. If necesj
sary, turn the adapter until it fits on the lug bolt.2.Screw on the lug bolt. The tightening torj
que is 140 Nm.3.Remove the adapter and stow it after screwing on the lug bolt.
Preparing
the
vehicle
'yPark the vehicle on solid and non-slipground at a safe distance from traffic.'ySwitch on the hazard warning system.'ySet the parking brake.'yEngage a gear or move the selector leverto position P.'yAs soon as permitted by the traffic flow,have all vehicle occupants get out of the
vehicle and ensure that they remain outj side the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning light at an approj priate distance.'yDo not place wood blocks or similar itemsunder the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.
Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are loj cated at the indicated positions.
Jacking
up
the
vehicle WARNING
Hands and fingers can be jammed when
using the vehicle jack. There is a risk of injury. Comply with the described hand position and
Seite 229Wheels
and
tiresMobility229
Online Edition for Part no. 01402981298 - VI/17

do not change this position while using the vej
hicle jack.'

4.Hand-tighten the remaining lug bolts andtighten all lug bolts well in a crosswise patj
tern.5.Turn the vehicle jack crank counterclockj
wise to retract the vehicle jack and lower
the vehicle.6.Remove the vehicle jack and stow it sej
curely.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightj ening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area, if necessary.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the run-flat tires.
Reset the Tire Pressure Monitor TPM.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Have the damaged tire replaced at the
nearest dealerss service center or another
qualified service center or repair shop.Seite 231Wheels
and
tiresMobility231
Online Edition for Part no. 01402981298 - VI/17

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Important
features
in
the
engine
compartment
1Jump-starting, negative battery terminal2Vehicle identification number3Filler neck for washer fluid4Jump-starting, positive battery terminal5Engine compartment fuse box6Oil filler neck7Coolant reservoir
The coolant reservoir for 6-cylinder and
diesel engines is located on the opposite
side of the engine compartment.Seite 232MobilityEngine
compartment232
Online Edition for Part no. 01402981298 - VI/17
