2018 AUDI A6 display

folded in or the driver's door/front passeng­
er's door/luggage compartment lid was
opened .
Switching on or off
Applies to: veh icles with peripheral cameras

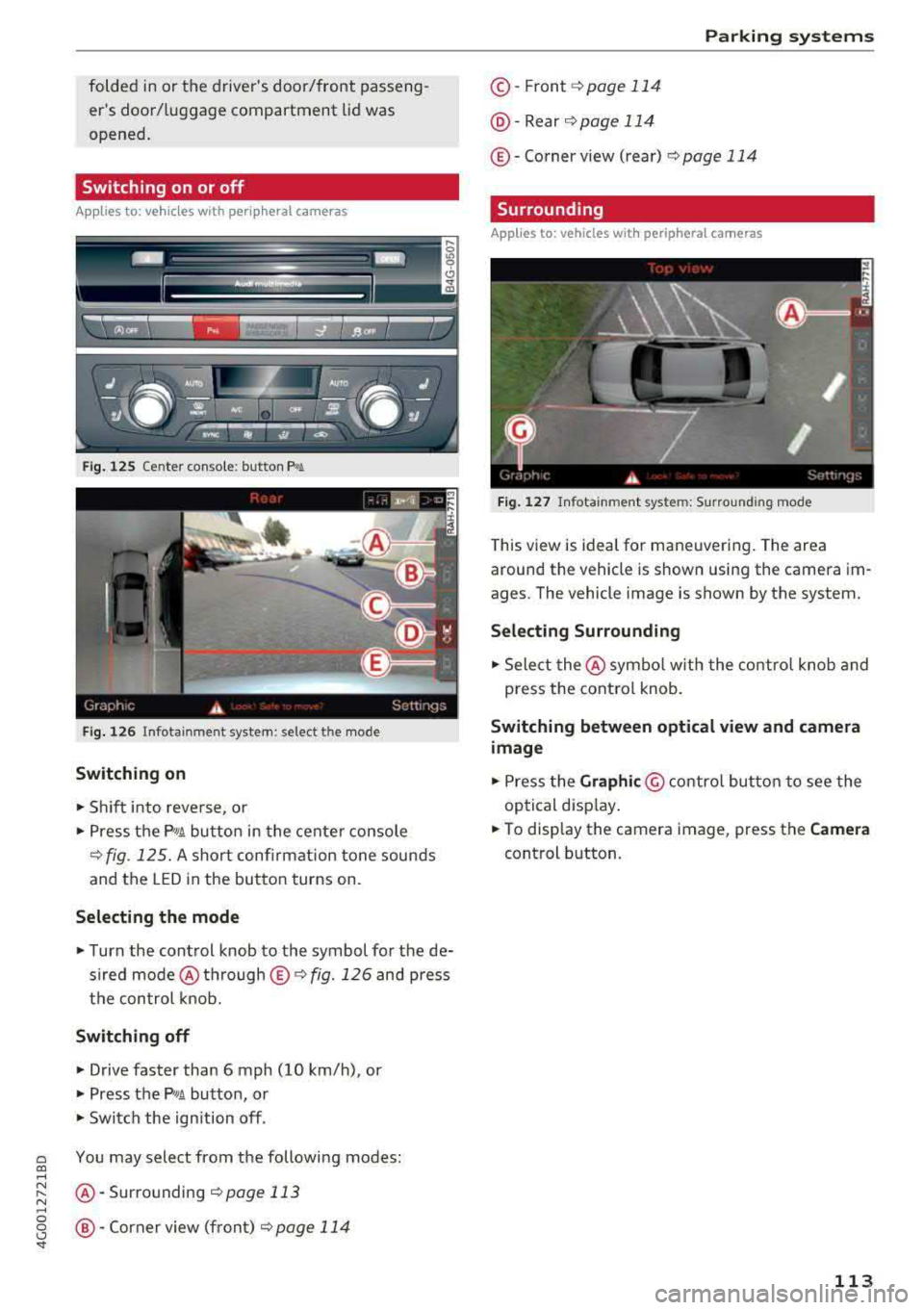

Fig. 125 Center conso le: button P1A
Fig. 126 Infotainment system: select the mode
Switching on
.,. S hi ft into reve rse, or
.,. Press t he P" i-4. bu tton in the cente r console
<>fig. 125. A short confirmation tone sounds
and the LED in the button turns on.
Selecting the mode
.,. Turn the cont rol knob to the symbol for the de­
s ired mode @thr ough
® ¢fig. 126 and press
t h e con trol knob.
Switching off
.,. Drive faster than 6 mph (10 km/h), or
.,. Press the P• 1.4. button, or
.,. Switch the ign ition off .
a You may select from the following modes: co ,...,
~ @-Surrounding ¢page113 ,...,
§ @ -Corner view (front) ¢ page 114
' Parking systems
© -Front ¢ page 114
@-Rear <> page 114
®-Corner view (rear) ¢ page 114
Surrounding
Applies to: vehicles wit h peripheral cameras
Fig. 127 Infotainment system: S urround ing mode
This view is idea l for maneuvering. The area
around the vehicle is shown using the camera im­
ages . The vehicle image is shown by the system.
Selecting Surrounding
"" Sele ct the @ symbo l w ith the co ntro l knob and
press the cont rol knob.
Switching between optical view and camera
"" Press the Graphic @ control butto n to see the
opti cal disp lay .
.,. To display the camera image, press the Camera
control button.
113

Parking systems
Corner view (front)/corner view (rear)
Applies to: vehicles with peripheral cameras
Fig. 128 Infotainment system: Corner view (front)
Fig. 129 Infotainment system: Corner view (rear)
This view can assist you for example, when you
are exiting from an area with poor visibility. The
area at the front and rear sides of the vehicles is
displayed .
.,. To show the side view toward the front, select
the symbol @¢
fig. 128 with the control knob
and press the control knob .
.,. To show the side view toward the rear, select
the symbol ®¢
fig. 129 with the control knob
and press the control knob.
114
Front
Applies to: vehicles with peripheral cameras
Fig. 130 Infotainment system: front mode
This view assists you for example, in using the
full maneuvering range in front of the vehicle.
The area in front of the vehicle is displayed. The
vehicle surroundings are shown in the left area of
the display . You can switch between the optical
display and camera image
¢page 113 .
.,. Select the© symbol with the control knob. The
orange orientation lines mark the expected
path of the vehicle. Stop the vehicle when the
red orientation line* borders an
object¢ ,& in
General information on page 112.
Rear
Applies to: vehicles with peripheral cameras
Fig. 131 Infota inmen t system: rear mode
This view assists you for example, in using the
full maneuvering range behind the vehicle. The
area behind the vehicle is displayed. The vehicle
surroundings are shown in the left area of the
display . You can switch between the optical dis­
play and camera image
¢page 113 .
.,. Select the symbol @with the control knob. ..,.

Parking systems
,.. Turn the Infotainment system on and shift into
reverse gear. The parking system must be
turned on and the
Cross parking view must be
displayed .
,.. Press the control button on the Infotainment
unit(D ¢page 111, fig . 122 . The Parallel park ­
ing
view is displayed.
,.. Back up and align your vehicle so the b lue area
@ borders on the rear end of the vehicle be­
hind you or on the parking space line
¢_& in
General information on page 112, ¢(D in Gen­
eral information on page 112.
The blue area
represents an extension of the vehicle's outline
by approximately 16 ft (5 meters) to the rear .
The long side of the blue area should be on the
curb . The entire blue area must fit into the
parking space.
,.. With the veh icle stopped, turn the steer ing
wheel to the right as far as it w ill go .
,.. Back into the parking space until the blue curve
¢ page 111, fig . 123 to uch es the curb¢ _& in
General information on page 112,
¢ (D in Gen­
eral information on page 112 .
Stop the vehicle.
,.. With the vehicle stopped, turn the steering
whee l to the left as far as it will go.
,.. Continue to back into the parking space until
the vehicle is parked parallel to the
curb¢ .&.
in General information on page 112, ¢(D in
General information on page 112. @ repre­
sents the rear bumper. At the very latest, stop
the vehicle when the red orientation line ©
borders an object . Keep an eye on the front of
your vehicle while doing this .
Parking next to obstacles
If there is an obstacle (such as a wall) next to the
parking space, position the vehicle so there is
mo re space on that side. Position the long side of
the blue area so that there is sufficient space
from the object. The area must not be on the
curb . You will a lso need to start turning the
steer ing whee l earlier. The blue curve
¢ page 111, fig. 123 must not touch the obsta­
cle, but rather there should be enough distance.
116
@ Tips
The left or right orientation lines and surfaces
will be disp layed, depending on the turn s ig­
nal being used.
Trailer mode
Applies to: vehicles wit h peripheral ca meras a nd tra iler hitch
This view assists you in positioning the vehicle in
front of a trailer .
Fig. 136 Infotainment system: rea r m ode
Requirement: the trailer mode must be selected
¢page 114.
,.. Now you can posit ion your veh icle in front of
the trailer
¢ .&. in General information on
page 112,
¢ @ in General information on
page 112.
The orange orientation line indicates
the expected path toward the trailer h itch. Use
the blue lines to help you estimate the d istance
to the trailer h itch .
Setting the mode
App lies to: vehicles with peripheral ca meras
,.. Select: !CAR ! function button > (Car)* Systems
control button > Driver assistance > Parking
aid
> Change to front/rear > Auto or Manual.
Auto
-this view behind the vehicle (Rear mode) is
displayed automatically when you shift into re­
verse. This view in front of the vehicle
( Front
mode) is displayed automatically when you shift
into the forward gears.
Manual -When you switch the system on, the
view behind the vehicle
( Rear mode) is always
displayed and it does not switch to the
Front
mode when a forward gear is selected.

a co .... N
" N .... 0 0 \.J ' Adjusting the display and the warning tones
A ppl ies to : ve hicles w ith parkin g system plus/rearv iew cam­
era/peripheral ca mera
The display and warning tones can be adjusted in
the Infotainment.
~ Se lect: the ICARI fu nction button > (Car)* Sys­
tems
control b utton > Driver assistance > Park­
ing aid .
Display
On * -
an op tical d isp lay is shown for the par kin g
system plus, a rearv iew camera image is s hown
for the rearview camera *.
Off -when the p arking sys tem is sw itche d off,
on ly audib le sign als are give n.
Signal tones
Front volume -
volume for the front area
Rear volume -volume for the rear area
Front frequency -frequency for the front area
Rear frequency -frequen cy fo r the rea r area
Music volume during nav . prompts -the volume
of the a udio/video so urce is lowe red when t he
pa rking system is turned o n
The new value is g iven briefly during the adjust­
ment.
(D Tips
- The wa rning tones ca n also be ad justed d i­
r ectly by the vis ual d isp lay or the pictu re
from the camera. Simply p ress the
Settings
co ntro l bu tton.
- Changed set tings are ac tivated whe n the
parking system is swi tched o n aga in.
- The settings for volume and frequency are
a utomat ica lly saved and ass igned to the re­
mo te con trol key be ing used.
Error messages
A pp lies to: ve hicles with parking system plus/rearview cam­
era/per ipheral ca mera
There is an erro r in the system if the LED in the
Pw , button is b link ing and yo u hear a continuous
Parking systems
alarm for a few seconds after sw itch ing on the
par king system or w hen the pa rking system is a l­
r eady activated. If the erro r is not cor rected be ­
fo re you switch off the ignition, the
LED in the Pw ,
button w ill blink the next time you switch on the
park ing system by shifting into reverse.
Parking system plus*
If a senso r is fa ulty, the~ symbo l will appear i n
front of/beh ind the vehicle in the Infotainment
display. If a rear sensor is faulty, on ly obstacles
t h at are i n areas @and @ are shown
<=> page 108, fig . 114 . If a front se nsor is faulty,
o n ly obs tacles tha t are in a reas © and @are
shown. The re is a lso a sys tem ma lf u nct ion if all
seg ments arou nd the veh icle are red or if no seg­
me nts are disp laye d.
Peripheral cameras*
The re is a system malfu nction if t he 00 • symbol
appea rs and the co rresponding d isp lay area is
s h own in bl ue. The camera is not wo rking in t his
are a.
Drive to an authorized A udi dealer or authorized
Audi Se rvice Facility immed iate ly to have the
malfu nction corrected.
Trailer hitch
App lies to: vehicles wit h parking system pl us/rea rv iew cam ­
e ra/peri phe ra l cameras an d tra ile r hitc h
When the trailer socket is in use, the par king sys­
tem rear sensors are not act ivated when you sh ift
into reverse gear or when yo u press t he
p,,1A but­
ton. This res ults in the following rest rict ions.
Parking system plus*
The re is no distance warning for the rear. The
front senso rs remain activated. T he v isua l disp lay
switches to trailer mode.
Rearview camera*/peripheral cameras*
T he re is no distance warning for the rea r. The
front senso rs remain activated . The visua l disp lay
switches to trailer mode. The rearview came ra
i mage will not s how the orie ntation lines and t he
bl ue surfaces.
.,..
117

a co .... N
" N .... 0 0 \,;J ' Audi rec ommends
~ Castrot /lftlg;'f.E@t Frtrrr.::--.~lri,'lAl.
A ud i recomm ends using the Lo ng Life h igh ­
perfo rm ance eng ine oil from Aud i Genu ine
Parts .
Checking the engine oil level
The engine oil level can be checked in the Info ­
tainment system
Observe the safety precautions ¢ A in Working
in the engine compartment on page 189.
~ Park your vehicle on a level surface.
~ Shut the engine off when it is warm .
~ Switch only the ignition back on.
~ Wait approx imately two minutes.
~ Select : the ICARI function button > (C ar)* Sys ­
tem s
control button > Service & control > O il
l e v el.
~ Read the o il level in the display. Add eng ine oil
i f t he ba r in the oil leve l ind icator is just before
"min" ¢ page 194.
(UJ) Note
The engine oil leve l mus t not be unde r the
"min" mark ing, as this will increase the risk of
engine damage.
(D Tips
The o il level indica tor in the disp lay is on ly an
informationa l display. If the o il level is too
low, a minimum oi l warning appears in the in ­
strument cluster. Add oil and close the hood.
The current oil level is d isplayed in the Info­
tainment system the next t ime the ignition is
sw itched on.
(D Tips
The engine oil consumption may be up to
0.5 quart/600 m iles (0.S liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumpt ion may be h igher during the
first 3,000 miles (5,000 km). Because of this,
the eng ine oil level m ust be checked regu lar­
ly. I t is best to chec k each t ime yo u refuel
your veh icle and befo re long d rives .
Ch eck ing and F illing
-In order to prov ide effective lubrication and
cooling of interna l engine components, a ll
internal comb ustion engines consume acer ­
tain amount of oil. Oi l consumption var ies
from engine to engine and may change sig­
nificantly over the life of the engine . Typi­
cally, eng ines with a specified break-in peri­
od consume mo re o il du ring the break-in pe­
r iod than they consume afte r oil cons ump­
t ion has s tabilized.
-Under norma l co ndit io ns, the rate of oil
cons umption depe nds on the q ual ity and
vis cos ity of the oil , the R PM (revo lutions per
m inute) a t which the engine is operated, the
ambient temperature and road conditions .
Further factors are the amount of oi l di lu­
tion from water condensat ion or fue l resi­
due and the oxidation level of the oil. As any
eng ine is subject to wear as m ileage builds
up, the oil consumption may increase over
t ime until replacement of worn components
may become necessa ry.
-With all these var iables com ing into play,
no sta ndard rate of o il consumption can be
established o r specified. There is no a lter na­
ti ve to c hec king the oil leve l reg ularly and
frequently.
-If you have the impress ion your e ngine co n­
sumes excessive amo unts o f oil, we recom ­
mend that you consult an author ized Audi
dea ler to have the cause of your concern
properly diagnosed . Keep in mind that t he
acc urate measurement of o il cons umption
requires great care and may take some
time . An authorized Aud i dealer has instruc­
tions about how to measu re o il consump­
tion accurate ly.
-You can find informat ion on engine oil and
eng ine o il capacit ies for the USA at
www.aud iusa.com/he lp/ma intenance, o r
for Ca nada at www.aud i.ca/ ca/web/en/
cu stomer -area/ ca re -and -m a i ntena nee/ a u di ­
serv i ce -sched u les. htm l, or ca ll
800 -822-2834 .
193

a co .... N
" N .... 0 0 \,;J ' Contact an authorized Audi dealer or au­
thorized Aud i Serv ice Facility for more infor­
mation.
- Do not connect or disconnect the charging
cable while charg ing because this increases
the risk of an explosion.
(D Tips
-Only charge the vehicle battery through the
connections in the engine compartment.
- Read all of the manufacturer's instructions
for the charger before charging the ve hicle
battery.
Windshield washer system
F ig. 184 Eng ine co mpartment: washer flu id reservoir cap
M N ~ N
"' a, a,
The winds hield washer reservoir O contains the
cleaning solution for the windshield and the
headlight washer system*
c::;,page 192 , fig . 179.
The reservoir capacity can be found in
c::;, page 245 .
To reduce the risk of lime sca le deposits on the
spray nozzles, use clean water w ith low amounts
of calc ium . Always add window cleaner to the wa­
ter . When the outs ide temperatures are cold, an
anti-freez ing agent should be added to the water
so that it does not freeze.
0 Note
- The concentration of anti-freezing agent
must be adjusted to the vehicle operating
cond itions in the respect ive climate. A con­
centration that is too high can lead to vehi­
cl e damage.
Checking and Filling
- Never add radiato r anti -freeze or other addi­
tives to the washer fluid .
- Do not use a glass cleaner that contains
paint solvents, because this could damage
the paint.
Service interval display
The service interval display detects when your ve ­
hicle is due for service .
The service interval display works in two stages:
-Inspection or oil change reminder : after a cer-
tain distance driven, a message appears in the
instrument cluster display each time the igni­
tion is switched on or off. The remaining dis­
tance or time is disp layed briefly.
-Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af­
ter switching the ignition on/off .
Checking service intervals
You can check the remaining distance or time un ­
til the next oi l change or next inspection in the
Car menu. To do this, select: the
I CAR I function
button
> (Car)* Systems control button > Service
& control > Service intervals .
Resetting the indicator
An authorized Audi dea ler or authorized Audi
Service Facility w ill reset the service interval dis­
play after perform ing service .
If you have changed the oi l yourse lf, you must re ­
set the oil change interval.
To r eset the indicat or, select: the
I CARI function
button
> (Car)* Systems control button > Service
& control > Service intervals . Turn the control
knob downward to
Reset oil change interval and
press the control knob.
@ Note
- Only reset the oi l change indicator if the oi l
was changed.
199

a co ,...,
N
" N ,...,
0 0 \,;J ' Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsib ility to ma intain correct tire pressure,
even if under-inf lation has not reached the level
to trigger illum ination of the TPMS low tire pres­
sure telltale .
Your veh icle has also been equ ipped w ith a TPMS
malfunct ion indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined w ith the low tire
pressure telltale. Whe n the system detects a
malfunct ion, the telltale will flash for approxi­
mately one minu te and then remain cont inuous ly
i llum inated. This sequence wi ll continue upon
subseq uen t veh icle start -ups as long as the ma l­
function exists.
When the malfunct ion i ndicator is ill uminated,
the system m ay not be ab le to detec t or sig nal
l ow tire press ure as intended. TPMS ma lfunctions
may occur for a var iety of reasons, incl uding the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the TPMS malfunction telltale after rep lacing one or
more t ires or whee ls on your vehicle to ensu re
that t he replacement or alternate ti res and
wheels allow the TPMS to cont inue to func tion
p roperly.
If the tire pressure monitoring system
indicator appears
A ppl ies to: ve hicles with Tire Pressure Moni toring System in­
di cato r
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction .
Fig. 1 89 Instrument cl uste r: in dicator l ight w it h m essage
Wheels
Using the ABS sensors, the tire pressure monito r­
ing system compares the tire tread circumfer­
ence and vibration characterist ics of the ind ividu ­
al tires. If the pressure changes in one or more
t ires, th is is indicated in the instrument cluster
display with an indicator l ight
IE and a message .
If only o ne tire is affected, the location of tha t
t ir e will be indicated .
The tire pressures must be stored in the Infotain­ ment system again each time the pressures
change (switching between partial and full load
pressure) or afte r changing or replac ing a tire on
yo ur vehicle
Q page 220. The tire p ressure mon i­
tor ing system on ly mon itors the t ire pressure you
have stored. Refer to the t ire press ure label fo r
the recommended ti re pressure for yo ur vehicle
Q page 211, fig. 188 .
Tire tread c ircu mfe rence and vibr ation cha racter ­
istics can change and ca use a tire press ure warn­
ing if:
- the t ire pressure in one or more tires is too low
- the t ire has str uctural damage
- the t ire was replaced or the t ire pressure was
changed and it was not stored
Q page 220
- the spare tire* is i nstalled
Indicator light s
IE-toss of pressure in at least one tire Q & .
Check the tires and replace or repair if necessary .
Check/correct the pressures of all four tires and
store the pressu re again in the Infotainment sys­
tem
Q page 220.
m ( T ire Pressure Monitoring System) Ti re
pressure: System malfunction!.
If rn:m appears
after switching the ignition on or while driving
and the
IE indicator light in the instrument clus­
te r blinks for approx imately one minute and then
stays on, the re is system malf unct ion . Try to
store the co rrect t ire pressu res
Q page 220. If
t h e indicat or light does turn off or turns on agai n
af ter a sho rt pe riod o f time, d rive to an au thor­
ized Audi dea ler or authorized Audi Service Facili ­
ty immediate ly to have the ma lfunction correct-
ed.
~
219

Wheels
A WARNING
-If the t ire pressure indicator appears in the
display, reduce your speed immediate ly and
avoid any hard s teer ing or braking maneu­
vers . Stop as soon as possib le and check the
t ir es and thei r pressu re .
- The driver is responsib le for main taining the
correct tire pressure. You mus t check t he
t ir e pressure regu larly.
- Under certain conditions (such as a sporty
dr iv ing style, winter cond itions o r unpaved
ro ads), the tire p ressure mon itoring system
in dicator may be delaye d.
(D Tips
- The t ire pressu re monitoring sys tem can al­
so stop work ing when there is an ESC mal­
fun ct ion.
- Using snow chains may result in a system
malfu nction.
- The t ire pressu re monitoring sys tem in your
A udi was calibrated with "A udi Orig inal
T ires "~ page 208. Using these ti res is re c­
ommended.
Storing tire pressures
Applies to: vehicles with Tir e Pressure Monitor ing System in­
dicator
I f the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys­ tem .
.,. Make sur e before sto ring that t he tire pressures
of a ll fo ur t ires meet the specified val ues and
are ada pted to the load
c:;> page 211 .
.,. Switch the ign ition on .
.,. Se lect : the ICARI fu nction bu tton> ( Car )* Sys­
tems
con trol button > Service & control > Tire
pre ssure monitor > Store tire pre ssure > Yes,
store now .
(D Tips
Do not store the tire pre ssu res i f snow chains
are installed.
220
