2018 AUDI A3 SEDAN technical data

u. 00 .-< N l'­ N .-< 0 N > 00
Technical data and accessories . . 38 1
Technical data . . . . . . . . . . . . . . . . . . . . 381
Ve hicle specifications . . . . . . . . . . . . . . . . 38 1
Notes about technical data . . . . . . . . . . . . 381
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . 381
Capac it ies . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Consumer Information . . . . . . . . . . 383
Warranty coverages . . . . . . . . . . . . . . . . . . 383
Operating your ve hicle outs ide the U .S .A .
or Ca nada . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Aud i Service Repair Manua ls and
Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 383
M aintenance . . . . . . . . . . . . . . . . . . . . . . . . 383
Accessories and technical changes . . . . . . 385
Declaration of compliance for
telecommunicat ions eq uipment and
e lectronic systems
386
Index ... .. .. ............... .. .. .. . 387
Table of contents
5

Checking and Filling
~ After the fuel pump has switched off, wait five seconds before removing it to allow the rest of
the fuel to finish dripping into the fuel tank.
~ Turn the fue l cap clockwise until you hear it
lock.
~ Close the fuel filler door and then press on the
left side until it latches .
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional information on fuel,
see
Qpage 314 .
For the tank capacity in your vehicle, refer to the
Technical Data
Qpage 382.
To reduce the risk of fuel leaking out or vapors
escaping, make sure that the fuel tank is closed
correctly. Otherwise
thP ¢..iff indicator light will
turn on.
If the centra l locking system malfunctions, the
fuel filler door may emergency release
Qpage317.
A WARNING
An improper fueling procedure and improper
handling of fuel can lead to explosions, fires,
severe burns and other injuries.
-Do not smoke and keep away from open
flames.
-The ignition must be switched off when re­
fueling.
-Cell phones, radio devices and other radio
equipment should always be switched off
when refueling. Electromagnetic rays could cause sparks and start a fire.
-If you do not insert the fuel pump nozzle all
the way into the filler tube, then fuel can
leak out. Spilled fuel can ignite and start a
fire.
-Never get into the vehicle when refueling. If
there is an exceptional situation where the
vehicle must be entered, close the door and
touch a metal surface before touching the
fuel pump nozzle again. This will reduce the
risk of electrostatic discharge that can cause
flying sparks. Sparks can start a fire when
refueling.
316
A WARNING
We recommend that you do not transport any
fuel containers in the vehicle. Fuel could leak
out of the container and ignite, especially dur­
ing an accident. This can cause explosions,
fires and injuries.
-If you must transport fuel in a fuel contain­
er, please note the following:
-Always place a fuel container on the
ground before filling. Never fill the fuel
container with fuel while it is in or on the
vehicle. Electrostatic charge can occur
while refueling and the fuel vapors could
ignite .
-For fuel containers made of metal, the
fuel pump nozzle must always maintain
contact with the container to reduce the
risk of static charge.
-Insert the fuel pump nozzle as far as pos­
sible into the filler opening while refuel­
ing.
-Follow legal requirements when using,
storing and transporting fuel containers.
-Make sure that the fuel container meets
the industry standards, for example ANSI
or ASTM F852-86.
@ Note
-Remove fuel that has overflowed onto any
vehicle components immediately to reduce
the risk of damage to the vehicle.
-Never drive until the fuel tank is completely
empty. The irregular supply of fuel that re­
sults from that can cause engine misfires.
Uncombusted fuel will enter the exhaust
system and increase the risk of damage to
the catalytic converter.
@I For the sake of the environment
Do not overfill the fuel tank, otherwise fuel
can leak out when the vehicle is warming up.
© Tips
The fuel filler door on your vehicle does not lock if you lock the vehicle from the inside us-
ing the central locking switch.
II>-

LL co ..... N
" N ..... 0 N > co

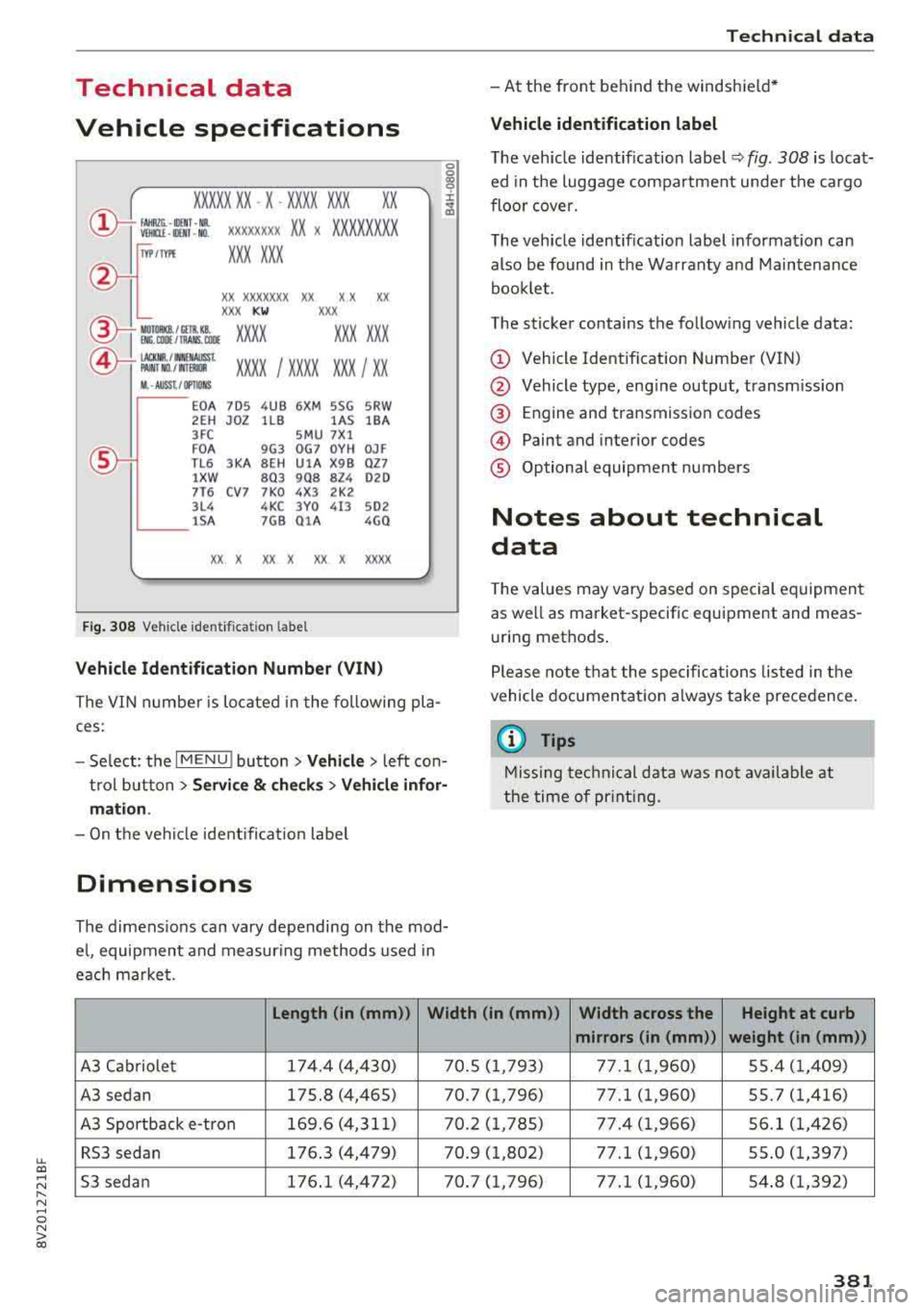

Technical data
Vehicle specifications
XXXXX XX -X -XXXX XXX XX
®-+ : ::::::. XX XXXXX X XX X XXXXX XXX
IYP /lffl XXX XXX
X X XXXXXXX X X X X XX
X XX KW XXX
®i ~= -:~~ XXXX XXX XXX
©+ ~ rur:i~ xxxx I xxxx XXX I xx
II. · AIJSli t I OPTIONS
E0A 7D 5 4U B 6XM SSG SR W
2 EH J0 Z 1LB 1AS 1BA
3FC SM U 7Xl
F 0 A 9G3 0G7 0 YH 0JF
TL 6 3 KA 8EH UlA X 9B 0Z7
l XW
803
908 8Z4 020
7 T6 CV 7
71<0 4X3 21< 2
3L4 4 KC 3Y0 413 5 02
1S A 7GB
01A 4GQ
XX. X XX X X X X XXXX
F ig. 308 Vehicle ident ifica tion labe l
Vehicle Identification Number (VIN )
The VIN n umber is located in the following pla­
ces :
0
0
~ :x: -Se lect : the I MENU ! button >Vehi cle > left con­
t rol button
> Servi ce & check s > Vehicle infor­
mati on.
-On t he vehicle identificat io n labe l
Dimensions
The dimens ions can vary depending on the mod­
e l, equipment and measuring methods used in
each marke t.
Technical data
-At the front behind the windshield *
Vehicle identification label
The vehicle identification label~ fig. 308 is loca t­
ed in the luggage compartment unde r the cargo
floor cover.
The vehicle identification label informat ion can
also be found in the Warranty and Maintenance
booklet .
The sticker contains the following vehicle data :
© Vehicle Identification Number (VIN)
@ Vehicle type, eng ine output, transmission
@ Engine and transmission codes
@ Paint and interior codes
® Optional equipment numbers
Notes about technical
data
T he values may vary based on special equipment
as well as market-specif ic equipment and meas­
u ring methods .
Please note that the specific ations listed in the
vehicle documen tat ion a lways take preceden ce.
{i) Tips
M issing tec hni cal data was not ava ilable at
t he time of pr int ing.
Length (in (mm )) Width (in (mm )) Width across the
Height at curb
mirrors (in (mm )) weight (in (mm))
A3 Cabriole t 17 4.4 (4,430) 70.S (
1,793) 77.1 (1,960) 5S.4 (1,409)
A3 sedan 17 5 .8 (4,465) 70. 7 (1,796) 77.1 (1,960) 5S.7 (1,416)
A3 Sportback e-tron 169.6 (4,311) 7
0.2 (1 , 78S) 77.4 (1 ,966) 56.1 ( 1,426)
RS3 sedan 176.3 (4,479) 70.9 (1,802) 77.1 (1,960) 5S.0 (1,397)
S3 sedan 176
.1 (4,4 72) 70 . 7 (1 ,796) 77.1 ( 1,960) 54 .8 (1,392)
381

Technical data
Capacities
Fuel tank, front wheel drive
Fuel tank, all wheel drive
Plug-in hybrid drive fuel tank
Windshield washer system
Windshield and headlight washer system*
Windshield and headlight washer system*,
S models
Windshield and headlight washer system*,
RS model.s
Weights
"'
~=Cf)== ~== ~= ~~ ~i
=I= = I= = I= c:m>
-
Aud i
Fig. 309 Safety cert ificate
Gross Vehicle Weight Rating (GVWR)
The maximum permitted total weight (D of the
vehicle is listed on the safety certificate on the
side area of the door or on the driver's door pillar.
Gross Axle Weight Rating (GAWR)
The maximum permitt ed load on the front axle
@ or the rear ax le ® is listed on the safety cer­
tificate on the side area of the door or on the
driver's door pillar.
Load
The maximum permitt ed load is listed on the tir e
p ressure labe l on the driver's door pillar .
Roof load
The max imum perm issible roof load is 165 lbs
(75 kg).
382
Approximate capaci- ties
13.2 gal (50.0 L)
14.5 gal (55.0
L)
10.5 gal (40.0 L)
3.2 qt (3.0 L)
5.0 qt (4.7 L)
4.2 qt (4.0
L)
3.7 qt (3.5 L)
