2018 Acura RLX HYBRID Owner's Manual

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
136
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice: u The remaining doors unlock.
*1:
Checking Door Lock Status P. 138
■Using the Remote Transmitter1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting. 2 Customized Features P. 297
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 531
You can customize the door unlock mode setting. 2 Customized Features P. 297
LED*1
Unlock
Button Lock
Button
18 ACURA RLX E-AWD-31TY36400.book 136 ページ ２０１７年７月２０日　木曜日　午後６時
８分

Continued137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the keyless access remote battery or the ve hicle battery is dead, use the key instead
of the keyless access remote. Fully insert the key and turn it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the keyless access remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
If you unlock the doors wi th the key, the alarm
activates when you open the hood before the power
mode is set to ON.
You can customize the door unlock mode setting.
2 Customized Features P. 297
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
When you lock the front passenger’s door with the
master door lock switch, al l the other doors lock at
the same time.
Make sure you have the key in your hand when you
lock the driver’s door or any of the other doors,
otherwise you may end up lo cking the key inside the
vehicle.
18 ACURA RLX E-AWD-31TY36400.book 137 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
138
Controls
You can remotely check if your vehicle’s doors
are all locked or any are unlocked using the
keyless access remote from extended
distances.
Press the lock button, the Amber (LEFT) LE D blinks once. Then after three seconds
one of the following feedback will come:
• Green (center) comes on: Acknowle dges that the doors are locked.
• Red (right) comes on: Acknowledges that doors are not locked, or any door is not
completely closed.
• Red (right) blinks three times: The remote does not receive the door lock status
from the vehicle.
■Checking Door Lock Status1 Checking Door Lock Status
Operate the remote in an open space. If there are
buildings or other obstacl es between your vehicle
and the remote, the remote may not work even
within the operable range. However, the range of
unlock, all doors, and panic functions are the same as
the standard keyless access remote. 2 Using the Remote Transmitter P. 136
When checking the door lock status, you can also
turn the power system on or off. 2 Remote Engine Start with Vehicle
Feedback P. 382
Red
Green
Amber
Lock Button
18 ACURA RLX E-AWD-31TY36400.book 138 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
18 ACURA RLX E-AWD-31TY36400.book 139 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
140
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 141
Inner Handle
18 ACURA RLX E-AWD-31TY36400.book 140 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

141
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls
Press the master door lo ck switch in as shown
to lock or unlock all doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors lock/
unlock at the same time.
To Unlock
To Lock
Master Door Lock Switch
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
18 ACURA RLX E-AWD-31TY36400.book 141 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

142
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors automatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 297
18 ACURA RLX E-AWD-31TY36400.book 142 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

143
Controls

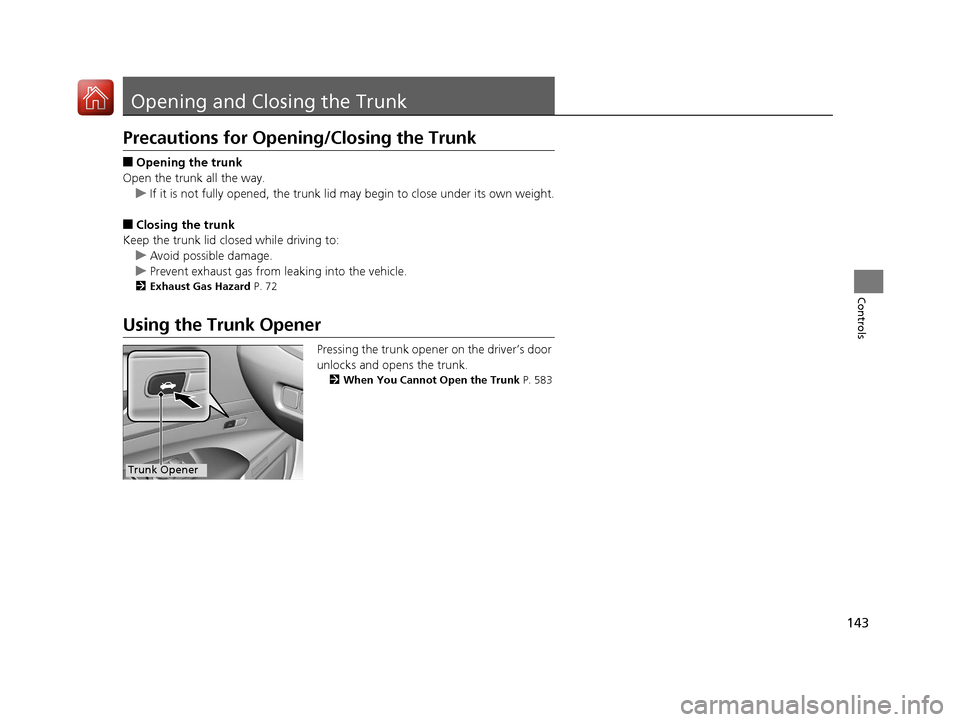

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 72
Using the Trunk Opener
Pressing the trunk open er on the driver’s door
unlocks and opens the trunk.
2 When You Cannot Open the Trunk P. 583
Trunk Opener
18 ACURA RLX E-AWD-31TY36400.book 143 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
