Instrument and control functions
4-40
1
2
345
6
7
8
9
10
11
12

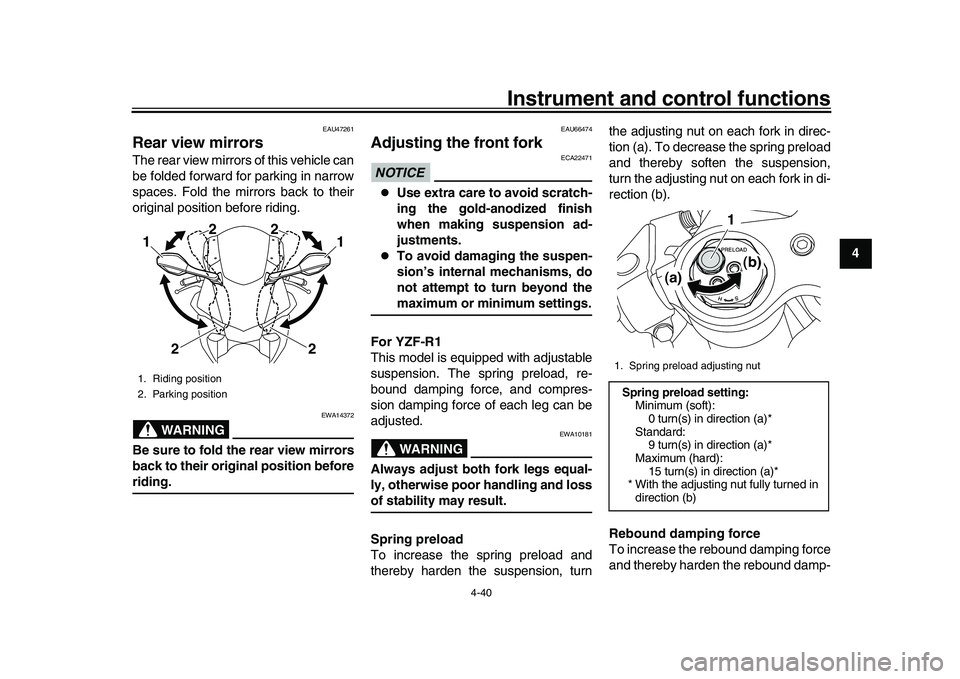

EAU47261
Rear view mirrorsThe rear view mirrors of this vehicle can
be folded forward for parking in narrow
spaces. Fold the mirrors back to their
original position before riding.
WARNING
EWA14372
Be sure to fold the rear view mirrors
back to their original position beforeriding.
EAU66474
Adjusting the front forkNOTICE
ECA22471

Use extra care to avoid scratch-
ing the gold-anodized finish
when making suspension ad-
justments.

To avoid damaging the suspen-
sion’s internal mechanisms, do
not attempt to turn beyond themaximum or minimum settings.
For YZF-R1
This model is equipped with adjustable
suspension. The spring preload, re-
bound damping force, and compres-
sion damping force of each leg can be
adjusted.WARNING
EWA10181
Always adjust both fork legs equal-
ly, otherwise poor handling and lossof stability may result.
Spring preload
To increase the spring preload and
thereby harden the suspension, turn the adjusting nut on each fork in direc-
tion (a). To decrease the spring preload
and thereby soften the suspension,
turn the adjusting nut on each fork in di-
rection (b).
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
1. Riding position
2. Parking position11
2 22
2
1. Spring preload adjusting nutSpring preload setting:Minimum (soft):
0 turn(s) in direction (a)*
Standard: 9 turn(s) in direction (a)*
Maximum (hard): 15 turn(s) in direction (a)*
* With the adjusting nut fully turned in
direction (b)
1
(a) (b)
BX4-9-E0.book 40 ページ ２０１６年１２月１日　木曜日　午後８時７分
