2017 YAMAHA XSR 900 Owners Manual

Specifications
8-2
1
2
3
4
5
6
789
10
11
12
6th: 1.037 (28/27)
Chassis:Frame type: Diamond
Caster angle: 25.0 
Trail:
103 mm (4.1 in)Front tire:Type:Tubeless
Size:
120/70 ZR17M/C(58W)
Manufacturer/model: BRIDGESTONE/S20F MRear tire:Type:
Tubeless
Size: 180/55 ZR17M/C (73W)
Manufacturer/model: BRIDGESTONE/S20R MLoading:Maximum load:170 kg (375 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):1 person:Front:250 kPa (2.50 kgf/cm
2, 36 psi) Rear:
290 kPa (2.90 kgf/cm
2, 42 psi)
2 persons:
Front:250 kPa (2.50 kgf/cm2, 36 psi)
Rear:
290 kPa (2.90 kgf/cm2, 42 psi)
Front wheel:Wheel type: Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:Hydraulic dual disc brake
Specified brake fluid:
DOT 4Rear brake:Type:Hydraulic single disc brake
Specified brake fluid:
DOT 4Front suspension:Type:Telescopic fork
Spring:
Coil spring
Shock absorber: Hydraulic damper Wheel travel:
137 mm (5.4 in)
Rear suspension:Type:Swingarm (link suspension)
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 130 mm (5.1 in)Electrical system:System voltage:
12 V
Ignition system: TCI
Charging system: AC magnetoBattery:Model:YTZ10S
Voltage, capacity: 12 V, 8.6 Ah (10 HR)Headlight:Bulb type:Halogen bulbBulb wattage:Headlight:
H4, 60.0 W/55.0 W
Brake/tail light: LED
Front turn signal light: 10.0 W
B90-9-E1.book 2 ページ ２０１７年２月１５日　水曜日　午後１時５９分

Specifications
8-3
1
2
3
4
5
6
78
9
10
11
12
Rear turn signal light: 10.0 W
Auxiliary light:
5.0 W
License plate light: 5.0 W
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Oil level warning light: LED
Turn signal indicator light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
ABS warning light:
LED
Immobilizer system indicator light: LED
Traction control system indicator/warning
light: LEDFuse(s):Main fuse:
50.0 A
Auxiliary fuse 1: 2.0 A
Headlight fuse: 15.0 A Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse: 15.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse: 7.5 A
B90-9-E1.book 3 ページ ２０１７年２月１５日　水曜日　午後１時５９分

9-1
1
2
3
4
5
6
7
8910
11
12

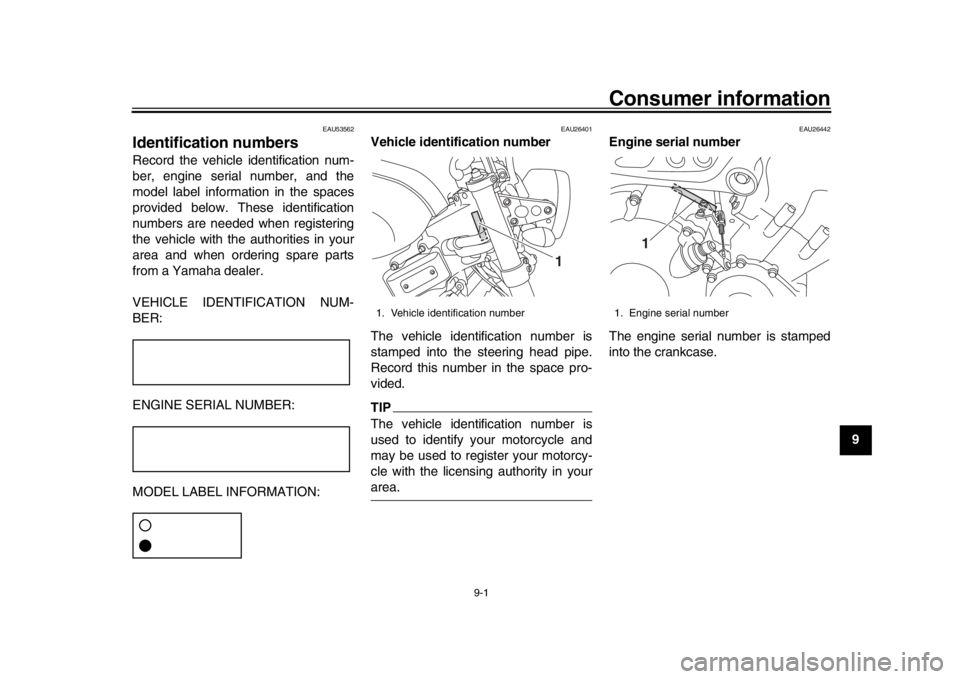

Consumer information
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUM-
BER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
1
1. Engine serial number
1
B90-9-E1.book 1 ページ ２０１７年２月１５日　水曜日　午後１時５９分

Consumer information
9-2
1
2
3
4
5
6
7
89
10
11
12
EAU26481
Model label
The model label is affixed to the frame
under the seat. (See page 3-23.) Re-
cord the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
EAU69910
Diagnostic connectorThe diagnostic connector is located as
shown.
EAU74701
Vehicle data recordingThis model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data

Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a
third party except:

With the consent of the vehicle
owner

Where obligated by law

For use by Yamaha in litigation

For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner
1. Model label
1
1. Diagnostic connector
1
B90-9-E1.book 2 ページ ２０１７年２月１５日　水曜日　午後１時５９分

10-1
1
2
3
4
5
6
7
8
91011
12
Index
AABS ...................................................... 3-17
ABS warning light ................................... 3-5
Air filter element.................................... 6-15
Auxiliary DC connector ......................... 3-30
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-29
Brake and clutch levers, checking and lubricating .................................... 6-26
Brake and shift pedals, checking and lubricating .................................... 6-26
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ........................................... 3-16
Brake lever free play, checking ............ 6-19
Brake light switches .............................. 6-20
Brake pedal .......................................... 3-17
Brake/tail light ....................................... 6-35CCables, checking and lubricating .......... 6-25
Canister ................................................ 6-10
Care ........................................................ 7-1
Catalytic converter ................................ 3-22
Clutch lever........................................... 3-16
Clutch lever free play, adjusting ........... 6-19
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-4DData recording, vehicle ........................... 9-2
Diagnostic connecto r .............................. 9-2
Dimmer switch ...................................... 3-14
D-mode (drive mode)............................ 3-13
Drive chain, cleaning and lubricating .... 6-24Drive chain slack ................................... 6-23
EEngine break-in ....................................... 5-3
Engine idling speed,
checking............... 6-15
Engine oil and oil filter cartridge ............ 6-10
Engine serial number ..............................9-1
Engine trouble warning light .................... 3-5FFront and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-24
Front fork, checking............................... 6-28
Fuel ....................................................... 3-20
Fuel consumption, tips for reducing ........5-3
Fuel tank breather hose and
overflow hose ...................................... 3-22
Fuel tank cap......................................... 3-20
Fuses, replacing .................................... 6-30HHandlebar switches ............................... 3-14
Hazard switch........................................ 3-15
Headlight bulb, replacing....................... 6-33
High beam indicator light .........................3-4
Horn switch ........................................... 3-15IIdentification numbers .............................9-1
Ignition circuit cut-off system ................. 3-28
Immobilizer system ................................. 3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-4LLicense plate light ................................. 6-36
Luggage strap holders .......................... 3-27MMain switch/steering lock ........................3-2 Maintenance and lubrication, periodic .... 6-5
Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-6
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14SSafety information ................................... 1-1
Seat ...................................................... 3-23
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shock absorber assembly, adjusting .... 3-26
Sidestand .............................................. 3-28
Sidestand, checking and lubricating ..... 6-27
Spark plugs, checking ............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Steering, checking ................................ 6-28
Stop/Run/Start switch ........................... 3-15
Storage ................................................... 7-3
Storage compartment ........................... 3-24
Supporting the motorcycle .................... 6-36
Swingarm pivots, lubricating ................. 6-27TThrottle grip and cable, checking
and lubricating .................................... 6-25
Throttle grip free play, checking............ 6-15
B90-9-E1.book 1 ページ ２０１７年２月１５日　水曜日　午後１時５９分

Index
10-2
1
2
3
4
5
6
7
8
910
11
12
Tires ...................................................... 6-16
Tool kit .................................................... 6-2
Traction control system ......................... 3-18
Traction control system indicator light..... 3-5
Traction control system switch .............. 3-15
Troubleshooting .................................... 6-37
Troubleshooting charts ......................... 6-38
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................. 3-15VValve clearance .................................... 6-16
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-29
Wheels .................................................. 6-18
