Page 73 of 104
Periodic maintenance and adjustment6-21
1
2
3
4
567
8
9
10
11
12
touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.
EAU46292

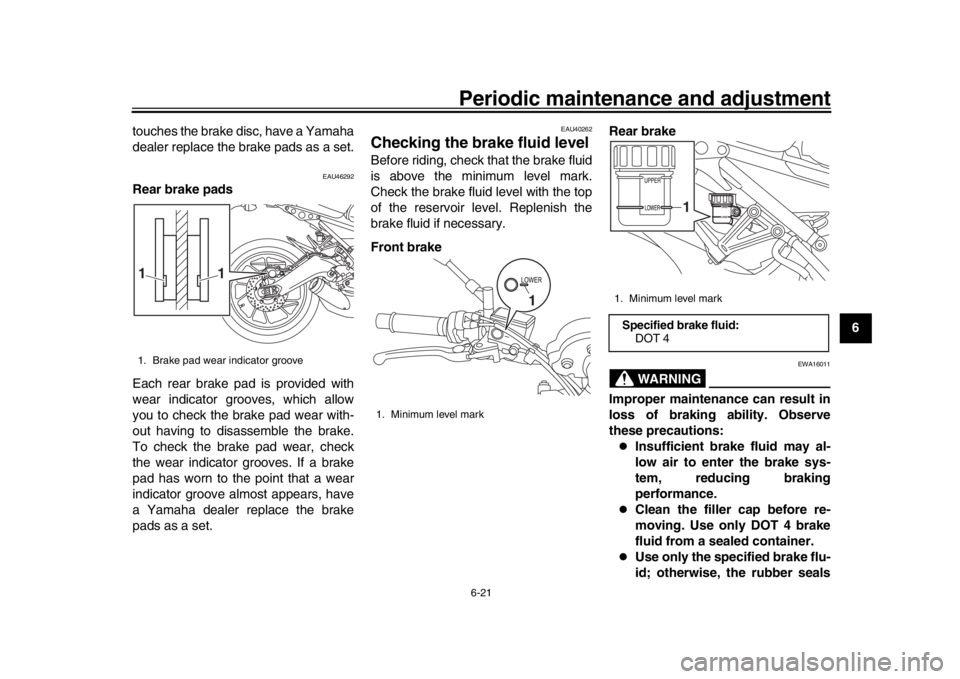

Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU40262
Checking the brake fluid levelBefore riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
Rear brake
WARNING
EWA16011
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.
Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.
Use only the specified brake flu-
id; otherwise, the rubber seals
1. Brake pad wear indicator groove
1
1
1. Minimum level mark
1
1. Minimum level markSpecified brake fluid:
DOT 4
1
B90-9-E1.book 21 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 74 of 104
Periodic maintenance and adjustment
6-22
1
2
3
4
56
7
8
9
10
11
12 may deteriorate, causing leak-
age.
Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.
Be careful that water or dust
does not enter the brake fluid
reservoir when refilling. Water
will significantly lower the boil-
ing point of the fluid and may re-
sult in vapor lock, and dirt may
clog the ABS hydraulic unitvalves.
NOTICE
ECA17641
Brake fluid may damage painted sur-
faces or plastic parts. Always cleanup spilled fluid immediately.
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake sys-
tem leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. If the brake
fluid level goes down suddenly, have a
Yamaha dealer check the cause before further riding.
EAU22733
Changing the brake fluidHave a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the master cylinders and calipers as
well as the brake hoses replaced at the
intervals listed below or whenever they
are damaged or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
B90-9-E1.book 22 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 75 of 104
Periodic maintenance and adjustment6-23
1
2
3
4
567
8
9
10
11
12
EAU22762
Drive chain slackThe drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU2277G
To check the drive chain slack 1. Place the motorcycle on the sides- tand.TIPWhen checking and adjusting the drive
chain slack, there should be no weighton the motorcycle.
2. Shift the transmission into the neu- tral position.
3. Measure the drive chain slack as shown. 4. If the drive chain slack is incorrect,
adjust it as follows. NOTICE: Im-
proper drive chain slack will
overload the engine as well as
other vital parts of the motorcy-
cle and can lead to chain slip-
page or breakage. If the drive
chain slack is more than 25.0
mm (0.98 in), the chain can dam-
age the frame, swingarm, and
other parts. To prevent this from
occurring, keep the drive chain
slack within the specified lim-
its.
[ECA17791] EAU57971
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.
1. Loosen the axle nut and the lock- nut on each side of the swingarm.
2. To tighten the drive chain, turn the drive chain slack adjusting bolt on
each side of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt on each side
of the swingarm in direction (b),
and then push the rear wheel for-
ward.
1. Drive chain slackDrive chain slack:5.0–15.0 mm (0.20–0.59 in)
1
1. Axle nut
2. Locknut
2
1
B90-9-E1.book 23 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 76 of 104
Periodic maintenance and adjustment
6-24
1
2
3
4
56
7
8
9
10
11
12
TIPUsing the alignment marks and notch
on each side of the swingarm, make
sure that both drive chain pullers are in
the same position for proper wheelalignment. 3. Tighten the axle nut, then the lock-
nuts to their specified torques.
4. Make sure that the drive chain pull- ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.
EAU23026
Cleaning and lubricating the
drive chainThe drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10584
The drive chain must be lubricated
after washing the motorcycle, ridingin the rain or riding in wet areas.
1. Clean the drive chain with kero- sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam cleaners,
high-pressure washers or inap-
propriate solvents.
[ECA11122]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as they
1. Drive chain slack adjusting bolt
(a)(b)
1
1. Notch
2. Alignment marks
3. Drive chain pullerTightening torques: Axle nut:150 N·m (15 kgf·m, 108 lb·ft)
Locknut:
16 N·m (1.6 kgf·m, 12 lb·ft)
3
12
B90-9-E1.book 24 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 77 of 104
![YAMAHA XSR 900 2017 Owners Manual Periodic maintenance and adjustment6-25
1
2
3
4
567
8
9
10
11
12
may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubr
icating the
cablesThe operation of all con](/manual-img/51/53087/w960_53087-76.png "YAMAHA XSR 900 2017 Owners Manual Periodic maintenance and adjustment6-25
1
2
3
4
567
8
9
10
11
12
may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubr
icating the
cablesThe operation of all con")
Periodic maintenance and adjustment6-25
1
2
3
4
567
8
9
10
11
12
may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubr
icating the
cablesThe operation of all control cables and
the condition of t he cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe condi-
tions.
[EWA10712] EAU23115
Checking and lubricating the
throttle grip and cableThe operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from water
entry. Therefore, use care not to pour
water directly onto the cover or cable
when washing the vehicle. If the cable
or cover becomes dirty, wipe clean with
a moist cloth.
Recommended lubricant:
Yamaha cable lubric ant or other suit-
able cable lubricant
B90-9-E1.book 25 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 78 of 104
Periodic maintenance and adjustment
6-26
1
2
3
4
56
7
8
9
10
11
12

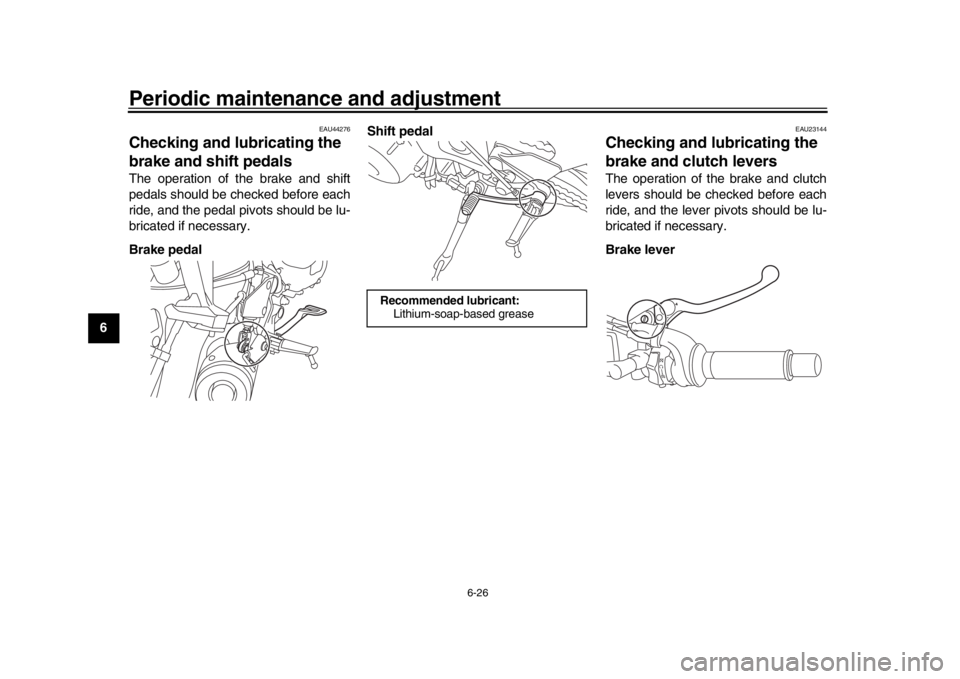

EAU44276
Checking and lubricating the
brake and shift pedalsThe operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Brake pedal Shift pedal
EAU23144
Checking and lubricating the
brake and clutch leversThe operation of the brake and clutch
levers should be c
hecked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Brake lever
Recommended lubricant: Lithium-soap-based grease
B90-9-E1.book 26 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 79 of 104
Periodic maintenance and adjustment6-27
1
2
3
4
567
8
9
10
11
12

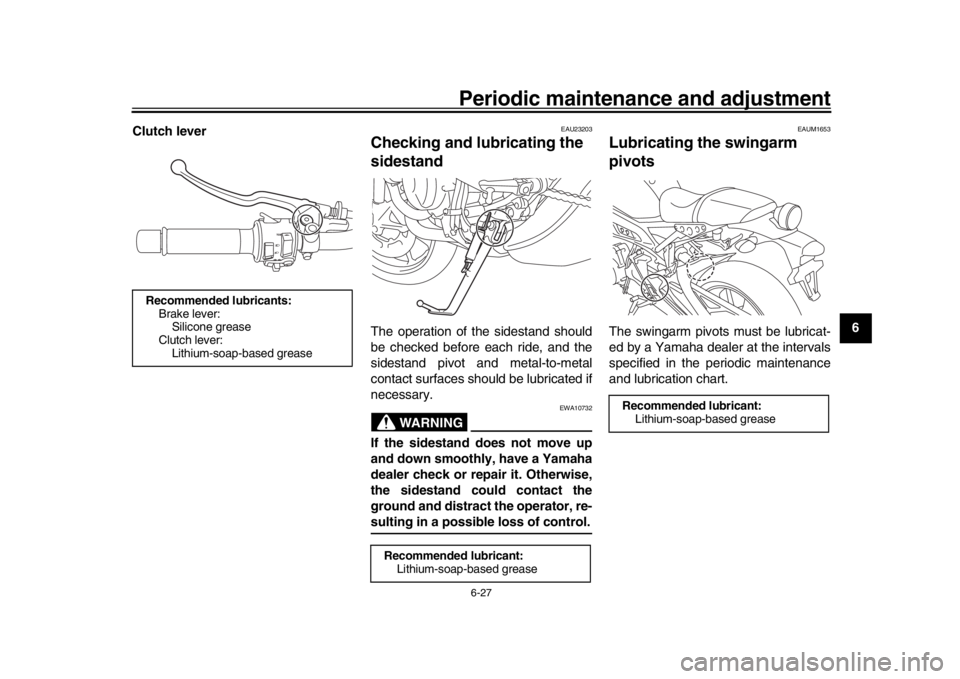

Clutch lever
EAU23203
Checking and lubr
icating the
sidestandThe operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10732
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-sulting in a possible loss of control.
EAUM1653
Lubricating the swingarm
pivotsThe swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricants: Brake lever: Silicone grease
Clutch lever: Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
B90-9-E1.book 27 ページ ２０１７年２月１５日 水曜日 午後１時５９分
Page 80 of 104
Periodic maintenance and adjustment
6-28
1
2
3
4
56
7
8
9
10
11
12

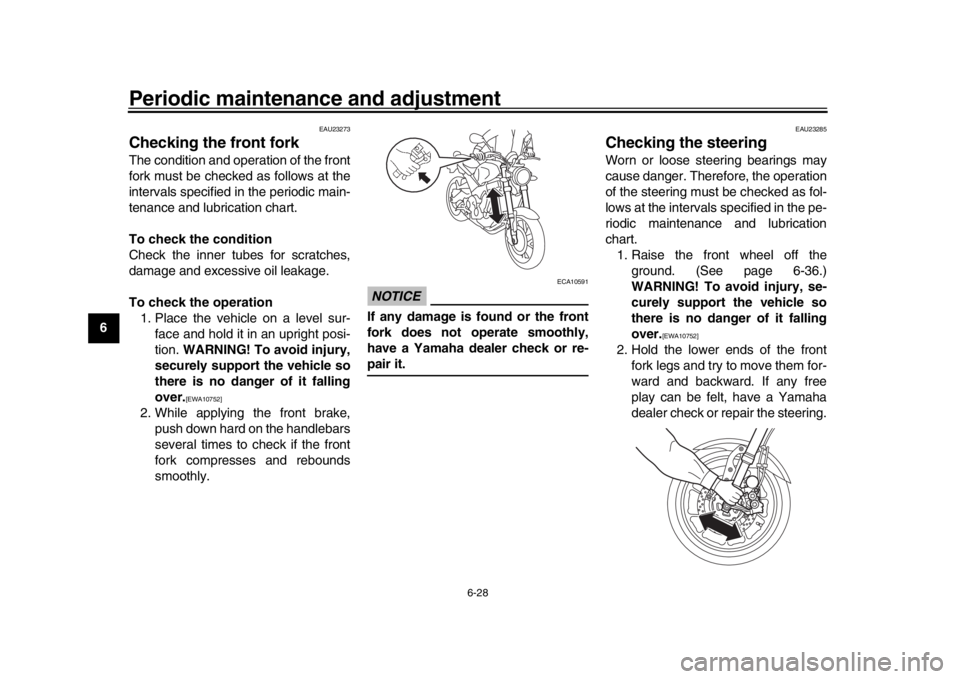

EAU23273
Checking the front forkThe condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. While applying the front brake, push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23285
Checking the steeringWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.1. Raise the front wheel off the ground. (See page 6-36.)
WARNING! To avoid injury, se-
curely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the frontfork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
B90-9-E1.book 28 ページ ２０１７年２月１５日 水曜日 午後１時５９分
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
