9-3
9
tively, turn the wheels a little every month in
order to prevent the tires from becoming de-
graded in one spot.
8. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
9. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more infor-
mation on storing the battery, see page 8-37.
TIPMake any necessary repairs before storing the
ATV. UB1463E0.book Page 3 Thursday, August 4, 2016 2:12 PM

10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1984 mm (78.1 in)
Overall width: 1085 mm (42.7 in)
Overall height:
1120 mm (44.1 in)
Seat height: 827 mm (32.6 in)
Wheelbase: 1233 mm (48.5 in)
Ground clearance:
245 mm (9.6 in)
Minimum turning radius: 3000 mm (118 in)Weight:Curb weight:
238.0 kg (525 lb)Noise and vibration level:Noise level (77/311/EEC):77.6 dB(A) (EUR, FRA, GBR)
Uncertainty of measurement:
3.0 dB(A) (EUR, FRA, GBR)
Vibration on seat (EN1032, ISO5008): Will not exceed 0.5 m/s² (EUR, FRA, GBR)
Uncertainty of measurement: 0.2 m/s² (EUR, FRA, GBR) Vibration on handle (EN1032, ISO5008):
2.8 m/s² (EUR, FRA, GBR)
Uncertainty of measurement: 0.7 m/s² (EUR, FRA, GBR)
Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement: 348 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)
Compression ratio: 9.2 : 1
Starting system: Electric starter
Lubrication system:
Wet sumpEngine oil:Recommended brand:YAMALUBE
UB1463E0.book Page 1 Thursday, August 4, 2016 2:12 PM

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:Yamaha Friction Modified Plus Shaft Drive Oil (Part No.:
ACC-SHFTL-PL-32) or SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.23 L (0.24 US qt, 0.20 Imp.qt)
Air filter:Air filter element:Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 13.5 L (3.56 US gal, 2.97 Imp.gal)
Fuel reserve amount:
3.3 L (0.87 US gal, 0.73 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model: NGK/DR8EA
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, centrifugal automaticTransmission:Secondary reduction system:
Shaft drive
Secondary reduction ratio: 41/21 × 24/18 × 33/9 (9.545)
Transmission type: V-belt automatic
Operation:
Left hand operation

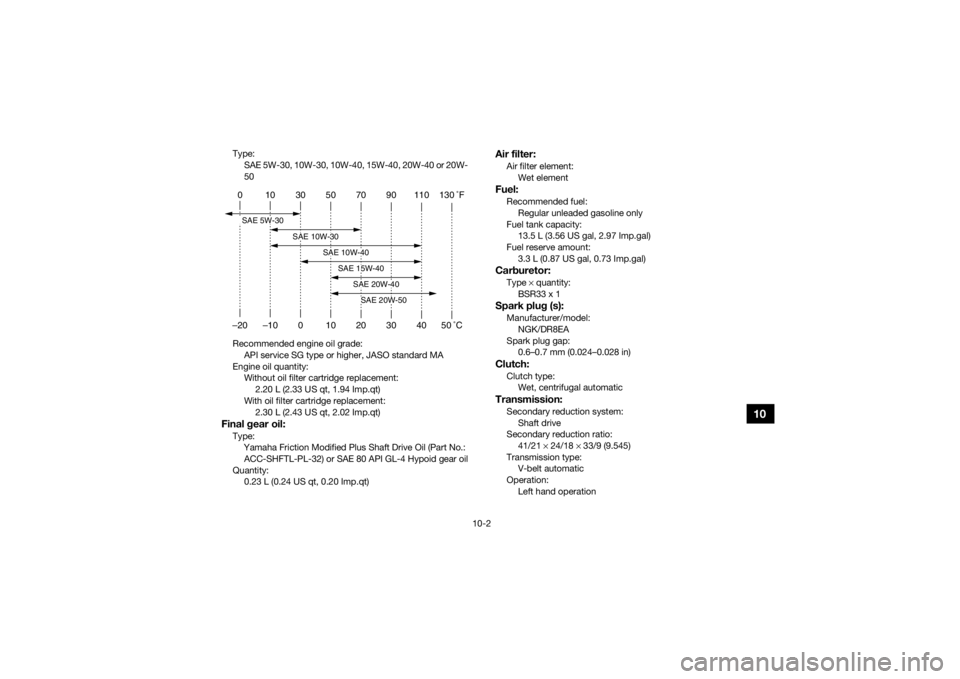

0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
UB1463E0.book Page 2 Thursday, August 4, 2016 2:12 PM

10-3
10
Forward gear:35/20 (1.750)
Reverse gear: 26/15 (1.733)Chassis:Frame type:Steel tube frame
Caster angle: 4.00 °
Trail:
21.0 mm (0.83 in)Front tire:Type:Tubeless
Size:
AT25 x 8-12
Manufacturer/model: CHENG SHIN/C828 (AUS, NZL)
MAXXIS/MU13 (EUR, FRA, GBR)Rear tire:Type:Tubeless
Size:
AT25 x 10-12
Manufacturer/model: CHENG SHIN/C828 (AUS, NZL)
MAXXIS/MU14 (EUR, FRA, GBR)Loading:Maximum loading limit:210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):Recommended:Front: 25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear: 25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front: 22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:Disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:
Drum brake
UB1463E0.book Page 3 Thursday, August 4, 2016 2:12 PM

10-4
10
Operation:Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 160 mm (6.3 in)Rear suspension:Type:Swingarm
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Electrical system:Ignition system:DC CDI
Charging system:
AC magnetoBattery:Model:YTX14AH
Voltage, capacity:
12 V, 12.0 AhHeadlight(s):Bulb type:Krypton bulb
Bulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting: 14 V, 3.0 W × 1
Neutral indicator light: 12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light: 12 V, 1.7 W × 1Fuses:Main fuse:
30.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
15.0 A
Auxiliary DC jack fuse: 10.0 AEBU30402For Europe only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
UB1463E0.book Page 4 Thursday, August 4, 2016 2:12 PM

10-5
10levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.
UB1463E0.book Page 5 Thursday, August 4, 2016 2:12 PM

11-1
11
EBU26001
CONSUMER INFORMATION

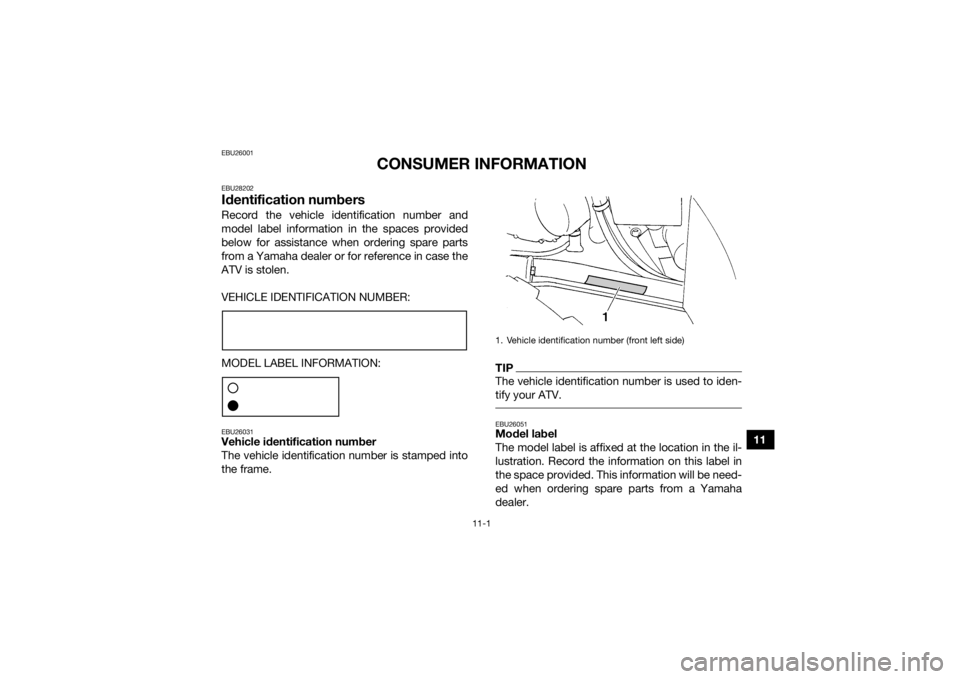

EBU28202Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below for assistance when ordering spare parts
from a Yamaha dealer or for reference in case the
ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26031Vehicle identification number
The vehicle identification number is stamped into
the frame.
TIPThe vehicle identification number is used to iden-
tify your ATV. EBU26051Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha
dealer.1. Vehicle identification number (front left side)
UB1463E0.book Page 1 Thursday, August 4, 2016 2:12 PM

11-2
11

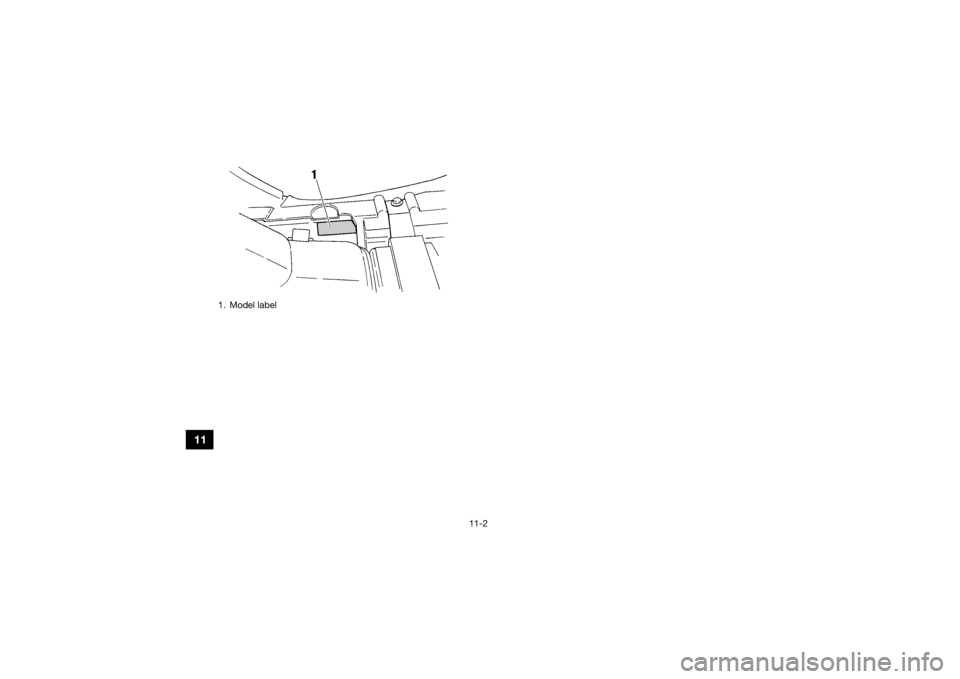

1. Model labelUB1463E0.book Page 2 Thursday, August 4, 2016 2:12 PM
