2017 YAMAHA GRIZZLY 350 Owners Manual

8-26
8
EBU24072Adjusting the drive select lever safety
system cableThe drive select lever safety system cable stretch-
es with use, which can result in improper function.
Therefore, the safety system cable should be
checked and adjusted by a Yamaha dealer at the
intervals specified in the periodic maintenance
and lubrication chart.EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.
EBU24121Checking the front brake pads and rear
brake shoesThe front brake pads and the rear brake shoes
must be checked for wear at the intervals speci-
fied in the periodic maintenance and lubrication
chart.EBU24172Front brake pads
Check each front brake pad for damage and mea-
sure the lining thickness. If a brake pad is dam-
aged or if the lining thickness is less than 1.0 mm
(0.04 in), have a Yamaha dealer replace the brake
pads as a set.
UB1463E0.book Page 26 Thursday, August 4, 2016 2:12 PM

8-27
8
TIPThe wheels need to be removed to check the
brake pads. (See page 8-44.) EBU24181Rear brake shoes
The rear brake is provided with a wear indicator,
which allows you to check the brake shoe wear
without having to disassemble the brake. To
check the brake shoe wear, check the position of
the wear indicator while applying the brake. If abrake shoe has worn to the point that the wear in-
dicator reaches the wear limit line or mark, have a
Yamaha dealer replace the brake shoes as a set.
EBU29843Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.
1. Brake pad
2. Lining thickness
2
1
1. Wear limit line
2. Wear indicator
1
2
UB1463E0.book Page 27 Thursday, August 4, 2016 2:12 PM

8-28
8
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:
Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er. 
Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the
brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
1. Minimum level markSpecified brake fluid:
DOT 4
1
UB1463E0.book Page 28 Thursday, August 4, 2016 2:12 PM

8-29
8
EBU24283Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the brake master cylinder and calipers as well
as the brake hoses replaced at the intervals listed
below or whenever they are damaged or leaking.
Oil seals: Replace every two years.
 Brake hoses: Replace every four years.EBU24395Checking the front brake lever free
playThe brake lever free play must be checked at the
intervals specified in the periodic maintenance
and lubrication chart. The brake lever should have
no free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
EBU30691Adjusting the brake pedal height, and
the brake pedal and rear brake lever
free playThe brake pedal height, brake pedal free play, and
rear brake lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.TIP Always perform this maintenance completely in
the following order whenever adjusting the rear
brake.1. No brake lever free play
UB1463E0.book Page 29 Thursday, August 4, 2016 2:12 PM

8-30
8

Before adjusting the brake pedal and brake le-
ver free play, check the rear brake shoes for
wear.
Checking and adjusting the brake pedal height
The top of the brake pedal should be positioned
72.0–82.0 mm (2.83–3.23 in) above the footboard
bracket.
Check and adjust the brake pedal height as fol-
lows.
1. Remove the footboard by removing the bolts and nuts. 2. Check the brake pedal height.
If the brake pedal height is correct, skip steps
3–5.
3. Loosen the locknut.1. Distance between brake pe dal and footboard bracket
1
1. Footboard
2. Bolt and nut
3. Bolt22
31
UB1463E0.book Page 30 Thursday, August 4, 2016 2:12 PM

8-31
84. Turn the adjusting bolt in or out until the brake
pedal height is within the specified limits.
5. Tighten the locknut.
6. Install the footboard by installing the bolts and nuts, and then tighten the bolts to the
specified torques. Adjusting the brake pedal free play
The brake pedal free play should measure 20.0–
30.0 mm (0.79–1.18 in) as shown. If the free play is
incorrect, adjust it as follows.
1. Locknut
2. Adjusting boltTightening torque:
Locknut:7 N·m (0.7 kgf·m, 5.1 lb·ft)
1
2
1. Footboard bolt A
2. Footboard bolt BTightening torques:Footboard bolt A:3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
Footboard bolt B: 7 N·m (0.7 kgf·m, 5.1 lb·ft)11
2
UB1463E0.book Page 31 Thursday, August 4, 2016 2:12 PM

8-32
8
1. Fully loosen the brake lever free play adjust-
ing nut on the brake cable at the rear wheel
hub.
2. Turn the brake pedal free play adjusting nut on the brake cable at the rear wheel hub in di-
rection (a) to increase the free play, and in di-
rection (b) to decrease it. Adjusting the brake lever free play
The brake lever free play should measure 3.0–5.0
mm (0.12–0.20 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Brake pedal free play
1. Brake pedal free play adjusting nut
2. Brake lever free play adjusting nut
UB1463E0.book Page 32 Thursday, August 4, 2016 2:12 PM

8-33
81. Loosen the locknut at the brake lever and fully
turn in the brake lever free play adjusting bolt.
2. Turn the brake lever free play adjusting nut on the brake cable at the rear wheel hub so that
gap “A” measures 0–1 mm (0–0.04 in). 3. Turn the brake lever free play adjusting bolt at
the brake lever in direction (a) to increase the
free play, and in direction (b) to decrease it.

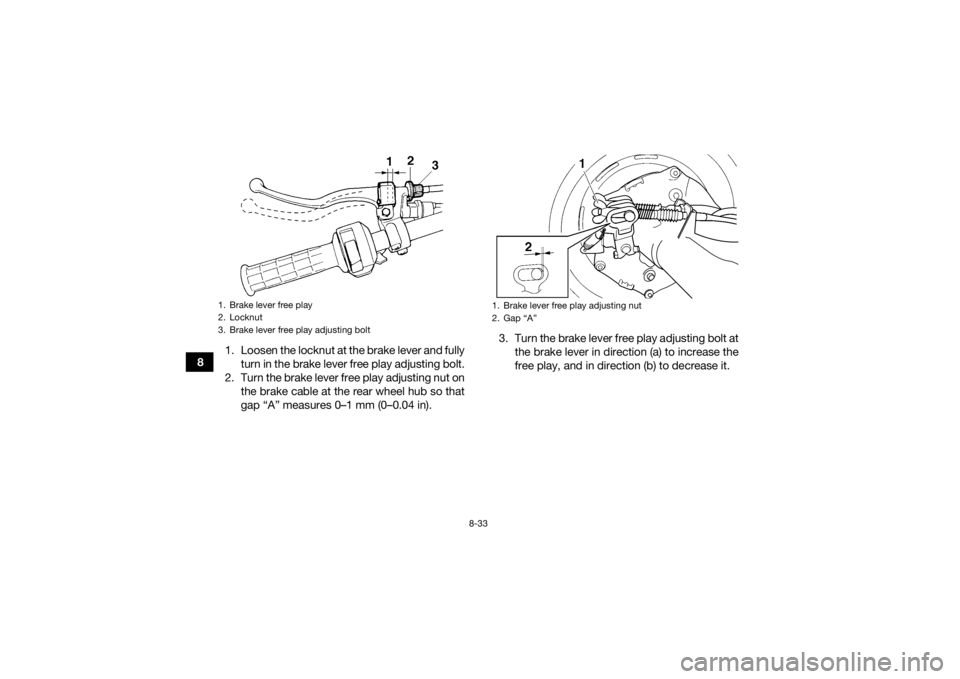

1. Brake lever free play
2. Locknut
3. Brake lever free play adjusting bolt
1. Brake lever free play adjusting nut
2. Gap “A”
