INSTRUMENTS AND CONTROLS
* Option/accessory, for more information, see Introduction.165

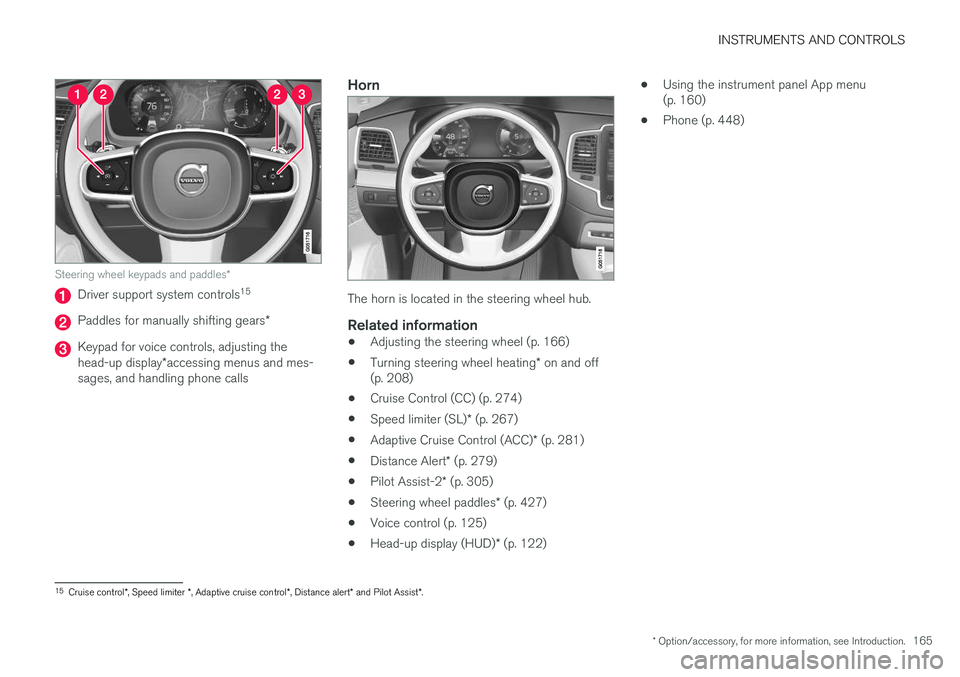

Steering wheel keypads and paddles*
Driver support system controls15
Paddles for manually shifting gears*
Keypad for voice controls, adjusting thehead-up display*accessing menus and mes-sages, and handling phone calls

Horn
The horn is located in the steering wheel hub.

Related information
•Adjusting the steering wheel (p. 166)
•Turning steering wheel heating* on and off(p. 208)
•Cruise Control (CC) (p. 274)
•Speed limiter (SL)* (p. 267)
•Adaptive Cruise Control (ACC)* (p. 281)
•Distance Alert* (p. 279)
•Pilot Assist-2* (p. 305)
•Steering wheel paddles* (p. 427)
•Voice control (p. 125)
•Head-up display (HUD)* (p. 122)
•Using the instrument panel App menu(p. 160)
•Phone (p. 448)
15Cruise control*, Speed limiter *, Adaptive cruise control*, Distance alert* and Pilot Assist*.

INSTRUMENTS AND CONTROLS
* Option/accessory, for more information, see Introduction.168
Power front seats*
The power front seats offer a number of adjust-ment possibilities to help maximize comfort andergonomics.
The power seats have an overload protector thatactivates if a seat is blocked by any object. If thisoccurs, put the ignition in mode I or 0 and waitfor a short period before operating the seatagain.
The power seat(s) can be adjusted for a shortperiod after unlocking the door with the remotekey without switching the ignition on. Seat adjust-ment can always be made when the engine isrunning.

Related information
•Multifunctional front seats* (p. 170)
•Adjusting power front seats* (p. 168)
•Using the power seat memory function*(p. 169)
•Manually operated front seats (p. 167)
•Turning seat heating* on and off (p. 210)
•Turning front seat ventilation* on and off(p. 211)
•Easy access to and from the driver seat(p. 174)
Adjusting power front seats*
The power front seat(s) can be adjusted to manypositions to help improve comfort and ergonom-ics.
Adjust lumbar support by pressing the con-trol up/down/forward/rearward
Raise/lower the front edge of the seat cush-ion by moving the control up/down
Raise/lower the seat by moving the controlup/down
Move the seat forward/rearward by movingthe control forward/rearward
Change backrest tilt by moving the controlforward/rearward
Only one of the power seat's controls can beused at the same time.
The front seat backrests can be folded downcompletely.
Related information
•Power front seats* (p. 168)
•Using the power seat memory function*(p. 169)
•Multifunctional front seats* (p. 170)
•Seat belts (p. 66)

INSTRUMENTS AND CONTROLS
}}
181
Driver profiles
Many of the vehicle's settings can be adapted tothe driver's personal preferences and saved inone or more driver profiles.
The personal settings made are automaticallysaved in the active driver profile. Each remote keyis linked to a driver profile and when this key isused, the vehicle's settings are adapted accord-ing to the specific ones saved in that profile.

Which settings are saved in driver
profiles?
The settings that can be changed in the vehicleare either personal or global.
Changes made to personal settings are savedautomatically in the active (current) driver profile,assuming that this profile is not locked. See thearticle "Editing a driver profile" for additionalinformation.
Changes to global settings are not saved in aspecific driver profile but instead affect all driverprofiles.

Global settings
Global settings and parameters remain the sameregardless of which driver profile is currentlyactive.
Keyboard layout is an example of a global setting.If driver profile X is used to add additional key-board languages, these languages will also beavailable even if driver profile Y is used. This type
of global change is not specific to a single driverprofile.
Personal settings
If driver profile X has been used to e.g., set thebrightness for the center display, driver profile Ywill not be affected by this setting since it is spe-cific (personal) to driver profile X.
See also the article "Categories in Settings view"for an overview of global and personal settings.

Related information
•Editing a driver profile (p. 182)
•Categories in Settings view (p. 116)
Selecting a driver profile
The most recently selected driver profile will beused automatically the next time the vehicle isstarted. However, a different driver profile can beselected after the vehicle has started.
When the vehicle is started, the most recentlyselected driver profile will be shown at the top ofthe center display. There are two alternatives forchanging to another driver profile.
Alternative1:
1.Tap the name of the drive profile shown atthe top of the center display when the vehi-cle has been started.
> A list of driver profiles that can beselected will be displayed.
2. Select the desired profile.
3.Tap Confirm.
>The new driver profile has now beenselected and the system will load the set-tings stored in that profile.
Alternative 2:
1. Pull down the center display's Top view.
2.Tap Profile.
>A list of driver profiles that can beselected will be displayed.
3. Select the desired profile.

||
INSTRUMENTS AND CONTROLS
182
4.Tap Confirm.
>The new driver profile has now beenselected and the system will load the set-tings stored in that profile.

Related information
•Driver profiles (p. 181)
•Editing a driver profile (p. 182)
•Linking a remote key to a driver profile(p. 183)
Editing a driver profile
The driver profiles can be edited to e.g., changetheir names or lock a profile.
All types of changes in driver profiles are made
from the center display's Top view: Settings
SystemDriver Profile.

Changing a profile's name
Changing a driver profile's name is done from theDriver Profile window:
1.Tap Edit Profile.
>A menu will open in which the profile canbe edited.
2.Tap the Profile Name box.
>A keyboard will be displayed and can be
used to change the name. Tap toclose the keyboard.
3.Save the changes by tapping Back/Close.
>The name has now been changed.
Locking/unlocking a driver profile
In some cases, it may be desirable to not savecertain settings in the active driver profile. Forthis reason, the profile can be locked. To lock/unlock a profile from the Driver Profile window:
1.Tap Edit Profile.
>A menu will open in which the profile canbe edited.
2.Tap Protect My Profile to lock/unlock theprofile.
3.Save the change by tapping Back/Close.
>When a profile is locked, settings that arechanged in the vehicle will not be savedautomatically in the profile and will have tosaved manually by tapping Savechanges. However, when the profile isunlocked, the changes will be saved auto-matically.

Resetting driver profile changes
Settings that have been changed and saved inone or more driver profiles can be reset.

NOTE
Global Reset is only possible when the vehi-cle is stationary.

INSTRUMENTS AND CONTROLS
}}
183
1.Tap Settings in the center display's Topview.
2.Select SystemGlobal ResetResetPersonal Settings.
3.Select one of the following: Reset for theactive profile, Reset for all profiles orCancel.

Related information
•Driver profiles (p. 181)
•Resetting the settings view (p. 119)
•Using the center display keyboard (p. 36)
•Using the center display (p. 50)
•Selecting a driver profile (p. 181)
Linking a remote key to a driverprofile
A remote key can be linked to a driver profile,which means that all of the settings stored in thedriver profile will apply each time that particularremote key is used with the vehicle.
A remote key is not initially linked to a specificdriver profile. When the key is used to unlock thevehicle/start the engine for the first time, theGuest profile will be used.
A driver profile can be selected manually eachtime the vehicle is unlocked/started without aremote key being linked to that profile. When thevehicle is started, the most recently selecteddriver profile will be activated. If the key has previ-ously been linked to a driver profile, it is not nec-essary to manually select a profile when that par-ticular key is used.

Linking a remote key to a driver profile
for the first time
Select a profile to link to the remote key (if thatprofile is not already active).
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemDriver Profile.
3. Tap the profile to be linked to the remotekey. The Guest profile cannot be linked to aremote key.
4.Open Top view in the center display and tap
SettingsSystemDriver ProfileEdit Profile.
5.Select Connect key to link the selected pro-file to the remote key currently being used. Aprofile can only be linked to the remote keythat is currently being used. If there are sev-eral keys in the vehicle at the same time,More than one key is found, put the keyyou want to connect on backup readerwill be displayed.
Location of the backup reader in the tunnel console>When Profile connected to key is dis-played, the remote key and the selecteddriver profile have been linked.
6.Tap OK to confirm.
>The key currently in use will remain linkedto the selected driver profile as long asthe Connect key box is not deselected.

||
INSTRUMENTS AND CONTROLS
184

Related information
•Driver profiles (p. 181)
•Editing a driver profile (p. 182)
•Remote key (p. 238)
Importing/exporting a driver profilefrom/to a USB flash drive
The personal settings stored in a driver profilecan be imported or exported to another vehicleusing a USB flash drive.
The following steps describe the procedure forimporting or exporting personal settings saved ina driver profile to a USB flash drive:
1.Tap Settings in the center display's Topview.
2.Tap SystemDriver Profile.
3. Insert a flash drive in the USB socket in thetunnel console.
USB socket in the tunnel console
4.Select Import Profile From USB/ExportProfile To USB.

NOTE
•The Guest profile cannot be imported orexported
•Several profiles can be exported to USBbut only one profile can be imported.When a profile is imported, it overwritesthe one currently being used in the vehicle.
5. Select the profile(s) to be imported/exported.
6.Select OK.
If an export does not succeed, this may be dueto:
•USB flash drive is full.
•USB flash drive was not inserted correctly orwas removed before the export was comple-ted.
If an import does not succeed, this may be dueto:
•USB flash drive was not inserted correctly orwas removed before the import was comple-ted.
•No driver profile had been stored on the USBflash drive.
•The driver profile file on the USB flash driveis damaged.

CLIMATE
193
3.Tap Add timer.
>A pop-up window will open.

NOTE
A new timer setting cannot be made if thereare already 8 timers set. Delete one of theexisting timer settings in order to add a newone.
4.Tap Date to set a specific date for the timersetting.
Tap Days to set a timer for one or more daysof the week.
For Days: activate/deactivate the repeatfunction by selecting/deselecting theRepeat weekly box.
5.For Date: Select a date for preconditioningby scrolling in the date list using the arrowkeys.
For Days: Select days of the week for pre-conditioning by tapping the days' buttons.
6.Set the time at which preconditioning shouldbe completed by scrolling with the arrows inthe clock.
7.Tap Confirm to add the timer setting.
>The timer settings will be added to the listand activated.
Editing a timer setting
1. Open Climate view in the center display.
2.Tap the Parking climate tab.
3.Tap the timer setting to be changed.
> A pop-up window will open.
4. Change the setting as described in the sec-tion "Adding a timer setting" above.

Deleting a timer setting
The button for editing a list/deleting a timer setting inthe Climate setting's Parking climate tab
1. Open Climate view in the center display.
2.Tap the Parking climate tab.
3.Tap Edit list.
4.Tap the delete icon at the right in the list.
>The icon will change to the text Delete.
5.Tap Delete to confirm.
>The timer setting will be deleted from thelist.

CLIMATE
* Option/accessory, for more information, see Introduction.197
Clean Zone Interior Package
(CZIP)*
The Clean Zone Interior Package includes anumber of features that help further reduce aller-genic substances in the passenger compart-ment.
CZIP includes the following:
•An enhanced blower function that starts theblower when the vehicle is unlocked with theremote key to fill the passenger compart-ment with fresh air. This function starts auto-matically when required and shuts off auto-matically after a short period or if one thedoors is opened. The time for which theblower operates decreases gradually due toreduced need until the vehicle is four yearsold.
•The Interior Air Quality System (IAQS).
Interior Air Quality System (IAQS)*
The Interior Air Quality System uses a multifilterand an air quality sensor to remove gases, parti-cles and other contaminants from the air enter-ing the passenger compartment.
The IAQS air quality sensor monitors increasedlevels of contaminants in the outside air and ifcontaminants are detected, the air intake closesand the air inside the passenger compartment isrecirculated, i.e., no outside air enters the vehicle.The filter also cleans recirculated passengercompartment air.

NOTE
•The air quality sensor should always beengaged in order to obtain the best air inthe passenger compartment.
•Recirculation is limited in cold weather toavoid fogging.
•If the insides of the windows start fog-ging, disengage the air quality sensor.Use the defroster function to increaseairflow to the front, side, and rear win-dows.

Activating/deactivating IAQS
To change the setting for IAQS activation/deacti-vation:
1. In the center display's Settings view, go toClimate.
2.Activate/deactivate IAQS by selecting/dese-lecting the Air Quality Sensor box.
Related information
•Air quality (p. 196)
•Passenger compartment air filter (p. 198)
•Clean Zone Interior Package (CZIP)*(p. 197)
•Turning recirculation on and off (p. 205)
