2017 VOLVO XC90 TWIN ENGINE HYBRID tow bar

DRIVER SUPPORT
304
Pilot Assist-1 limitations
Pilot Assist functionality may be limited in certainsituations.
Pilot Assist is designed to help the driver in anumber of situations. However, the driver alwayshas the primary responsibility for maintaining asafe distance to other vehicles and for keepingthe vehicle in its proper traffic lane.

WARNING
Pilot Assist is not a collision avoidance sys-tem. The driver is always responsible forsteering or applying the brakes if the systemdoes not detect another vehicle.
Do not use Pilot Assist in demanding drivingconditions such as city driving or other heavytraffic situations, in slippery conditions, whenthere is a great deal of water or slush on theroad, during heavy rain or snow, in poor visibil-ity, on winding roads or on highway on- or off-ramps.
In certain situations, it may be difficult for PilotAssist to assist the driver correctly or to deac-tivate automatically. In such cases, it is advisa-ble not to use Pilot Assist. Examples of suchsituations may be:
•the lane's side market lines are missing,badly faded or cross each other.
•the division of lanes is not clear, e.g.,when a line divides or merges withanother, at exits or if there are many roadsigns/markers.
•there are edges or other lines on or nearthe lane, e.g., curbs, cracks, repairedareas, sharp shadows, etc.
•the lane is narrow or winding.
•the lane is at the top of a hill, on anuneven road surface or over a bump.
•bad weather conditions (rain, snow, fog,slush, poor visibility, backlighting, etc).
The driver should also be aware that PilotAssist has the following limitations:
•High curbs, barriers and temporary obsta-cles (cones, barriers etc) may not bedetected or could be detected incorrectlyas side marker lines, which may create arisk of collision. The driver must ensure asafe distance to these obstacles.
•The camera or radar sensor may not beable to detect objects if there are pot-holes or if there are stationary objectspartially or completely blocking the road.
•Pilot Assist does not "see" pedestrians,animals, etc.
•Pilot Assist's steering capacity is limitedand may not always be able to help thedriver keep the vehicle in the lane.
The driver can always take action to override PilotAssist.

Steep roads and/or heavy loads
Pilot Assist is primarily intended for use on rela-tively level roads. The function may not be able tomaintain the correct time interval to the vehicleahead on when driving down steep hills. Thedriver should be attentive and prepared to applythe brakes in these situations.
Do not use Pilot Assist when the vehicle is trans-porting a heavy load or if it is towing a trailer.

||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.316

WARNING
Pilot Assist is not a collision avoidance sys-tem. The driver is always responsible forsteering or applying the brakes if the systemdoes not detect another vehicle.
Do not use Pilot Assist in demanding drivingconditions such as city driving or other heavytraffic situations, in slippery conditions, whenthere is a great deal of water or slush on theroad, during heavy rain or snow, in poor visibil-ity, on winding roads or on highway on- or off-ramps.
In certain situations, it may be difficult for PilotAssist to assist the driver correctly or to deac-tivate automatically. In such cases, it is advisa-ble not to use Pilot Assist. Examples of suchsituations may be:
•the lane's side market lines are missing,badly faded or cross each other.
•the division of lanes is not clear, e.g.,when a line divides or merges withanother, at exits or if there are many roadsigns/markers.
•there are edges or other lines on or nearthe lane, e.g., curbs, cracks, repairedareas, sharp shadows, etc.
•the lane is narrow or winding.
•the lane is at the top of a hill, on anuneven road surface or over a bump.
•bad weather conditions (rain, snow, fog,slush, poor visibility, backlighting, etc).
The driver should also be aware that PilotAssist has the following limitations:
•High curbs, barriers and temporary obsta-cles (cones, barriers etc) may not bedetected or could be detected incorrectlyas side marker lines, which may create arisk of collision. The driver must ensure asafe distance to these obstacles.
•The camera or radar sensor may not beable to detect objects if there are pot-holes or if there are stationary objectspartially or completely blocking the road.
•Pilot Assist does not "see" pedestrians,animals, etc.
•Pilot Assist's steering capacity is limitedand may not always be able to help thedriver keep the vehicle in the lane.
The driver can always take action to override PilotAssist.

Steep roads and/or heavy loads
Pilot Assist is primarily intended for use on rela-tively level roads. The function may not be able tomaintain the correct time interval to the vehicleahead on when driving down steep hills. Thedriver should be attentive and prepared to applythe brakes in these situations.
Do not use Pilot Assist when the vehicle is trans-porting a heavy load or if it is towing a trailer.
Additional information
•The Off Road drive mode cannot beselected if Pilot Assist is activated.
•Pilot Assist uses the vehicle's camera andradar sensor, which have certain general limi-tations. See the articles "Camera limitations"and "Radar sensor limitations" for additionalinformation.

Related information
•Pilot Assist* (p. 295)
•Pilot Assist-2* (p. 305)
•Starting and activating Pilot Assist-2 (p. 308)
•Changing Pilot Assist-2 speed (p. 310)
•Setting a Pilot Assist-2 time interval (p. 311)
•Changing target vehicles and automaticbraking with Pilot Assist-2 (p. 314)
•Deactivating/resuming Pilot Assist (p. 312)
•Passing Assistance with Adaptive CruiseControl or Pilot Assist-2 (p. 289)
•Pilot Assist-2 symbols and messages(p. 317)
•Radar sensor limitations (p. 319)
•Camera limitations (p. 323)

DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.362
Park Assist Camera (PAC)*
The Park Assist Camera system is designed toprovide the driver with a view of the area aroundthe vehicle in the form of a camera image andgraphics in the center display.
PAC is a supplementary parking aid that can beactivated automatically when the gear selector isin R or by tapping a button in the center display,depending on the selected settings. See also thearticle "Starting the Park Assist Camera."
Lines: Guiding lines On/Off
Towbar: Guiding lines for a trailer hitch*11
On/Off
PAS: Park Assist On/Off
CTA: Cross Traffic Alert* On/Off
Zoom: Zoom in/out12

NOTE
A trailer hitch whose wiring is integrated withthe vehicle's electrical system will be takeninto account when measuring the availablespace behind the vehicle.

WARNING
•PAC is designed to be a supplementaryaid when parking the vehicle. It is not,however, intended to replace the driver

DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.365

Trajectory lines for a trailer hitch (towbar)
Towbar: activate trajectory lines for a trailerhitch
Zoom: zoom in/out
The camera can help make hitching a trailer eas-ier by showing the "line" that the trailer hitch willtake toward the trailer.
1.Tap Towbar (1).
>The trajectory lines will be displayed andthe trajectory lines for the vehicle will dis-appear.
2.Tap Zoom (2) for a close-up view.
>The camera will zoom in.
Trajectory lines for the trailer hitch and the vehi-cle cannot be shown at the same time.

Front and rear sensor fields
If the vehicle is also equipped with the optionalPark Assist system, this information will be dis-played on the screen as colored field showingthe distance to obstacles that have beendetected.

Front and rear sensors
The screen can display colored sensor fields on the carsymbol at the right
The front and rear fields change colors (yellow-orange-red) as the vehicle moves closer to anobject.
Front/rear field col-orsDistance to the object
Yellow2.0–4.9 ft (0.6–1.5 m )
Orange1.3–2.0 ft (0.4–0.6 m)
Red0–1.3 ft (0–0.4 m)
Side sensors
The side fields will only be shown in orange.
Side field colorDistance to the object
Orange0–1.0 ft (0–0.3 m)

Related information
•Park Assist Camera (PAC)* (p. 362)
•Starting the Park Assist Camera (PAC)*(p. 366)

STARTING AND DRIVING
}}
397
Driving with a trailer
When towing a trailer, always observe the legalrequirements of the state/province.
•All Volvo models are equipped with energy-absorbing shock-mounted bumpers. Trailerhitch installation should not interfere with theproper operation of this bumper system.
Trailer towing does not normally present any par-ticular problems, but take into consideration:
•Increase tire pressure to recommended fullpressure.
•When your vehicle is new, avoid towing heavytrailers during the first 620 miles (1,000 km).
•Maximum speed when towing a trailer:50 mph (80 km/h).
•Engine and transmission are subject toincreased loads. Therefore, engine coolanttemperature should be closely watched whendriving in hot climates or hilly terrain. Use alower gear and turn off the air conditioner ifthe temperature gauge needle enters the redrange.
•If the automatic transmission begins to over-heat, a message will be displayed in the textwindow.
•Avoid overload and other abusive operation.
•Hauling a trailer affects handling, durability,and economy.
•It is necessary to balance trailer brakes withthe towing vehicle brakes to provide a safestop (check and observe state/local regula-tions).
•Do not connect the trailer's brake systemdirectly to the vehicle's brake system.
•More frequent vehicle maintenance isrequired.
•Remove the ball holder when the hitch is notbeing used.

NOTE
•When parking the vehicle with a trailer ona hill, apply the parking brake before put-ting the gear selector in P. Always followthe trailer manufacturer's recommenda-tions for wheel chocking.
•When starting on a hill, put the gearselector in D before releasing the parkingbrake.
•If you use the manual (Geartronic) shiftpositions while towing a trailer, make surethe gear you select does not put toomuch strain on the engine (using toohigh a gear).
•The drawbar assembly/trailer hitch maybe rated for trailers heavier than the vehi-cle is designed to tow. Please adhere toVolvo's recommended trailer weights.
•Avoid driving with a trailer on inclines ofmore than 15%.

||
INFOTAINMENT
* Option/accessory, for more information, see Introduction.454
2.•To reply to a message: tap the name ofthe contact who sent the message andthen tap Answer.
•To create a new message: tap Create
new+. Select the contact who willreceive the message or enter a phonenumber.
3.Write or dictate () the message.
4.Tap Send.

Message notification
See the article "Text message settings" for a listof possible settings.

Related information
•Text message settings (p. 454)
Phone settings
The following settings can be made for a pairedand connected cell phone.
Cell phones
–Pull down the center display's Top view and
tap SettingsCommunicationPhoneand choose among the following settings:
•Ringtones: select a ring tone (tones fromthe cell phone or the vehicle can beused). Not all cell phones are fully com-patible and it may not be possible to usetheir ring tones in the vehicle. Go towww.volvocars.com for additional informa-tion.
•Sort order for contacts: select sort cri-teria for the phone book (list of contacts).
To show call notifications in the head-up dis-play*, see the article "Head-up display."

Related information
•Text message settings (p. 454)
•Bluetooth settings (p. 468)
•Phone (p. 448)
•Handling phone calls (p. 452)
•Head-up display (HUD)* (p. 122)
Text message settings
The following settings can be made for text mes-sages received through a paired and connectedcell phone.
Text message settings
–Pull down the center display's Top view and
tap SettingsCommunicationTextMessages and choose among the followingsettings:
•Notification in center display: showstext messages in the center display's sta-tus bar.
•Notification in driver display: showstext messages in the instrument panel.With this alternative active, incoming mes-sages can be handled from the right-sidesteering wheel keypad.
•Text message tone: select an audiblesignal for incoming text messages.

Related information
•Connecting/disconnecting a cell phone(p. 451)
•Pairing a cell phone (p. 449)
•Handling text messages (p. 453)

INFOTAINMENT
466
Internet connected vehicle
Connecting to the Internet makes it possible toe.g., use certain navigation services, listen toweb radio, stream music using apps, contact aretailer and download software.
The vehicle can connect to the Internet usingBluetooth, Wi-Fi, a cell phone connected by acable to the USB socket or via the integratedmodem.
When connected, it is possible to share (tether) aWi-Fi-hotspot to allow other devices to use the
connection6.
Connection status is shown in the center dis-play's status bar.

Related information
•Connecting to the Internet (p. 466)
•Apps (applications) (p. 432)
•Booking service and repairs (p. 508)
•System updates (p. 506)
•Volvo ID (p. 32)
•Symbols in the center display status bar(p. 48)
•Tethering (Wi-Fi sharing) (p. 470)
Connecting to the Internet
Connect the vehicle to the Internet usingBluetooth, Wi-Fi, by connecting a phone througha cable to the USB socket or via the vehicle'sintegrated modem.
The cell phone and the network service providermust support Internet sharing (tethering) and thesubscription must included data transfer.
See the terms and confidentiality information atsupport.volvocars.com before connecting to theInternet.

NOTE
When using Apple CarPlay, an Internet con-nection can only be established by usingWi-Fi or the vehicle's integrated modem.

Connect using Bluetooth
See the article "Pairing a cell phone."

Connect using Wi-Fi
6This does not apply to Wi-Fi connections.

WHEELS AND TIRES
* Option/accessory, for more information, see Introduction.488

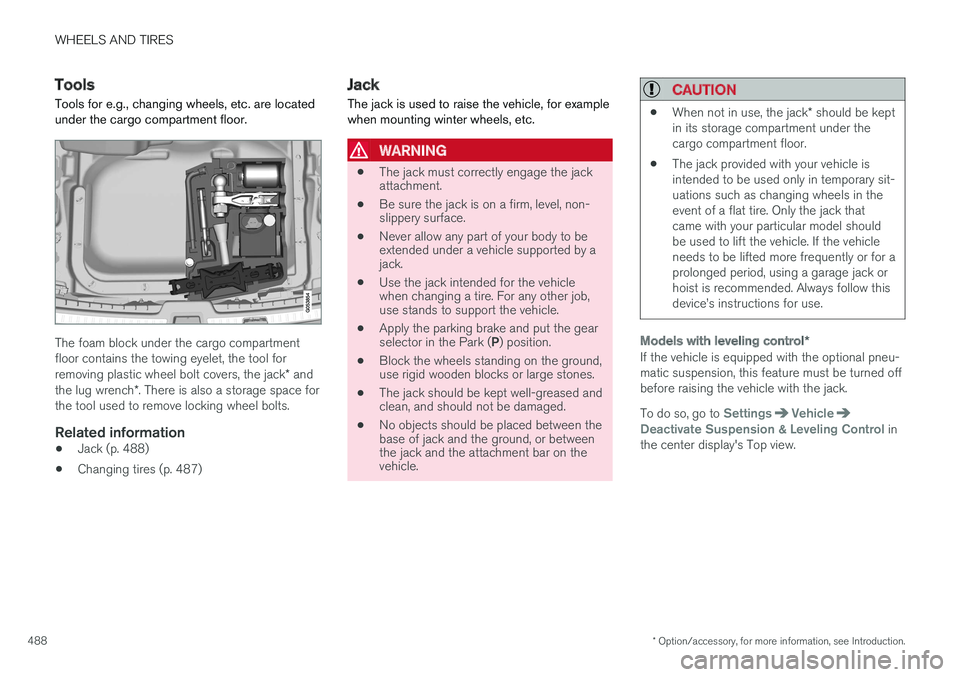

Tools
Tools for e.g., changing wheels, etc. are locatedunder the cargo compartment floor.
The foam block under the cargo compartmentfloor contains the towing eyelet, the tool forremoving plastic wheel bolt covers, the jack* andthe lug wrench*. There is also a storage space forthe tool used to remove locking wheel bolts.

Related information
•Jack (p. 488)
•Changing tires (p. 487)
Jack
The jack is used to raise the vehicle, for examplewhen mounting winter wheels, etc.
WARNING
•The jack must correctly engage the jackattachment.
•Be sure the jack is on a firm, level, non-slippery surface.
•Never allow any part of your body to beextended under a vehicle supported by ajack.
•Use the jack intended for the vehiclewhen changing a tire. For any other job,use stands to support the vehicle.
•Apply the parking brake and put the gearselector in the Park (P) position.
•Block the wheels standing on the ground,use rigid wooden blocks or large stones.
•The jack should be kept well-greased andclean, and should not be damaged.
•No objects should be placed between thebase of jack and the ground, or betweenthe jack and the attachment bar on thevehicle.
CAUTION
•When not in use, the jack* should be keptin its storage compartment under thecargo compartment floor.
•The jack provided with your vehicle isintended to be used only in temporary sit-uations such as changing wheels in theevent of a flat tire. Only the jack thatcame with your particular model shouldbe used to lift the vehicle. If the vehicleneeds to be lifted more frequently or for aprolonged period, using a garage jack orhoist is recommended. Always follow thisdevice
